Description

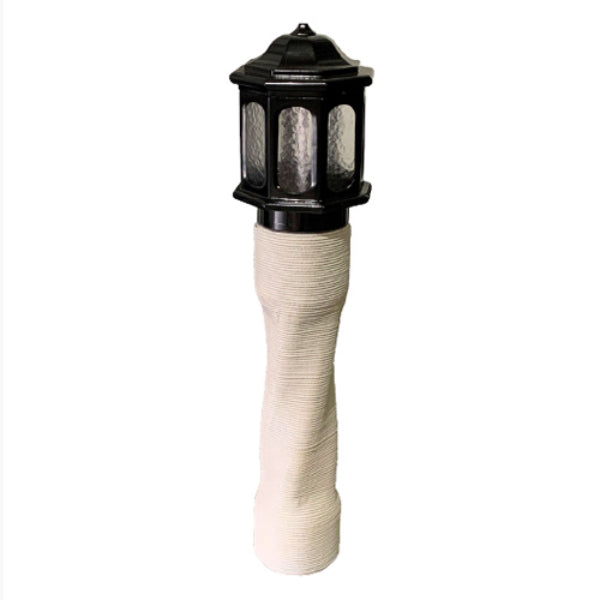

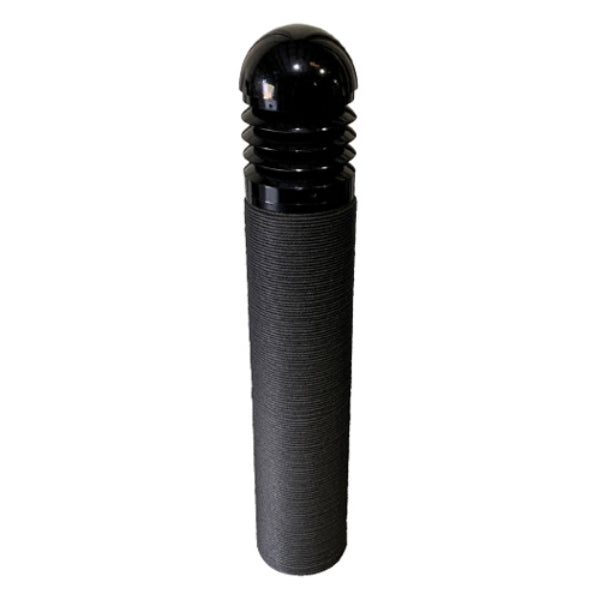

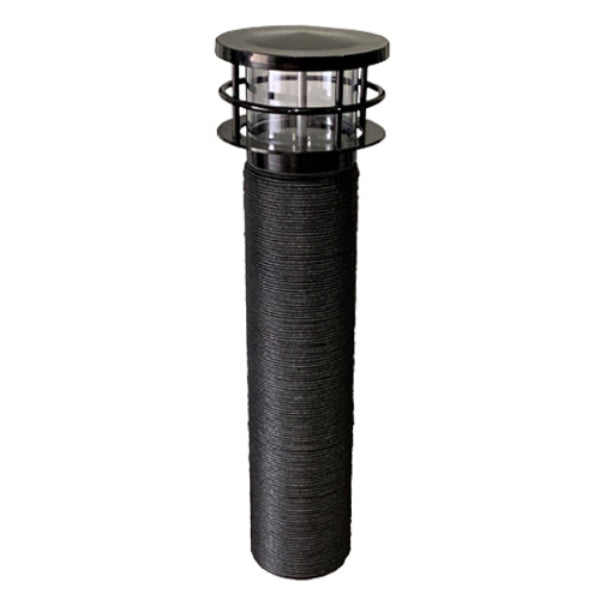

Pemco Lighting LumaCrete Q3D Concrete Printed 8" Outdoor Bollard Light
Specifications & Features
Concrete Bollard Shaft:
- The concrete shaft is 3D printed using high strength modified cement based micro concrete with selected aggregates and additives utilizing unique continuous layers for a unique design appearance.
Bollard Luminaire Heads:
- Cast Aluminum Housing with Flush Mounting Base & Vandal-Resistant Screws, Internal Driver Tray for Easy Maintenance.
Listing & Ratings:
- ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP65 (H1, HB1, & HB10) & IP66 (Legacy Bollards) Sealed LED Compartment.
Finish:
- Textured Architectural Bronze or Black Powdercoat Finish Over a Chromate Conversion Coating for Bollard Heads, Exterior Concrete Stains For Shaft. Custom Colors Available Upon Request.
Style:
- Clear Prismatic Borosilicate Glass Refractor, Specially Designed Cone Reflector or Internal Louvers
Lens:
- Clear UV-Stabilized Polycarbonate Vandal-Resistant Lens or SoftLED LumaLens UVStabilized Polycarbonate Opal Vandal-Resistant Lens.
Mounting Options:
- Steel ½? Base Plate With ½?x 12? Galvanized Steel Anchor Bolts.
EasyLED LED:
- Aluminum Boards
Driver:
- Electronic Driver, 120-277V, 50/60Hz or 347V, 50/60Hz (15w Only); Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Warranty:
- 5-Year Warranty for -40°C to +40°C Environment.
Additional Information
| CCT | 3K, 4K, 5K |
|---|---|
| Distribution | Type II, Type III, Type IV, Type V |
| Wattage | <50W |
| Controls & Options | Button-Eye Photo Control, House Side Shield |
| Manufacture | BABA |
