Description

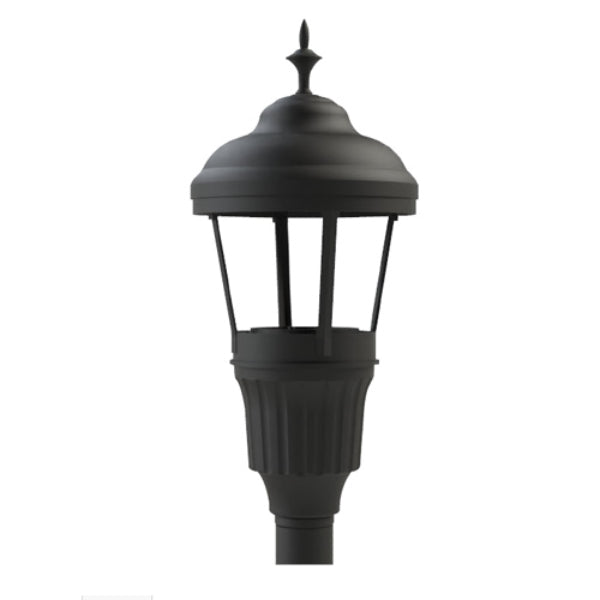

Pemco Lighting Odessa 1 Post Top
Specifications & Features
Radiant™ LED:
- Conformal Coating LED light engine
- CCT: Standard-3000K, 4000K, & 5000K
- 2700K, Amber, LPS (1800K) Offered for Some Wattages - Consult Factory
- Static Colors Available - Consult Factory
Optical:
- Types I* II, III, IV, V (Type I Available in 70w & Higher Only)
- Full Cutoff
- Electrical
- Electronic Driver, 120-277V, 50/60Hz or 347/480V, 50/60Hz
- 0-10v Dimmable Driver
- Standard Surge Protection Included (6kV Line-Line; 10k-V Line-Earth)
- Controls (Optional)
- Button Eye Photo Control (PC)
- 3-Pin Twist-Lock Receptacle (PCR3, C8, C10 & C12 Capitals Only)**
- 7-Pin Twist-Lock Receptacle (PCR7, C8, C10 & C12 Capitals Only)**
- Housing
- Spun Aluminum Roof, Sand Cast Arms and Capital. 3" Slip Fitter.
- Finish
- Super Durable Polyester Powder Coat Finish. Custom Finishes Available, Including Patinas and All RAL Colors.
- Listings & Ratings
- ETL Listed to UL 1598 Standard for Wet Location.
- LED is IP66 Rated
- Warranty
- 5 Year Limited Warranty
Additional Information
| CCT | |
|---|---|
| Distribution | |
| Wattage | |
| Driver | |
| Controls & Options | 3-Pin TwistLock Photocell Rec , 7-Pin TwistLock Photocell Rec , Button-Eye Photo Control |
| Manufacture |
