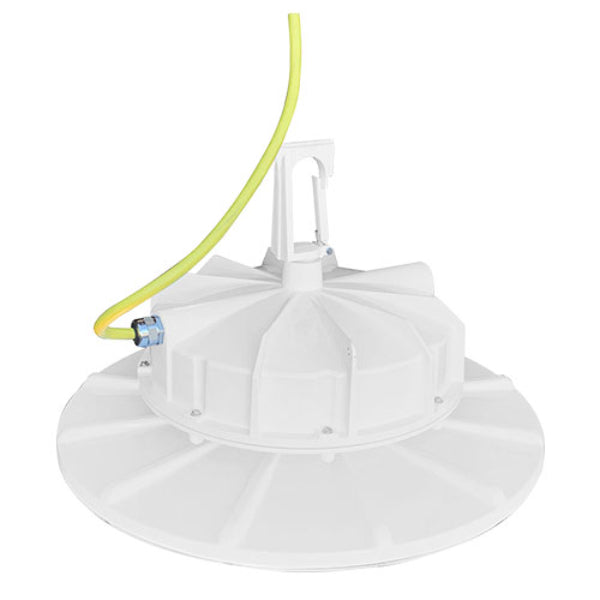

Pemco Lighting OptiMAX High Bay
Specifications & Features
HOUSING
- Heavy-Duty Die Cast Aluminum Housing construction with silicone gaskets and stainless-steel fasteners. Drivers, sensors, and battery backup are mounted on internally for easy
maintenance.
LISTING & RATINGS
- ETL: Listed for Wet Locations, ANSI/UL 1598, 8750. ETL Sanitation certified to National Sanitation Foundation ANSI NSF2, Food Splash Zone. IP66 Sealed LED Compartment, Pressure wash rated to 1400 PSI.
FINISH
- Powdercoat Finish Over a Chromate Conversion Coating.
LENS
- Clear UV-Stabilized Polycarbonate or Optional DR Acrylic Lens. Medium Distribution (80? Beam).
MOUNTING OPTIONS
- Suspended Using Die Cast Aluminum Captive Hook
EasyLED LED
- Aluminum Boards
WATTAGE
- 100w, 150w, 200w, or 240w Array
DRIVER
- Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 4KV to 6kV depending on wattage. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
CONTROLS
- Fixtures Ordered with Factory-Installed Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with Pemco Controls and May Not Function Properly with Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.
WARRANTY
- 5-Year Warranty for -40°C to +55°C Environment.
Additional Information
| Globe/Lens | |
|---|---|
| Controls & Options | |
| CCT |
