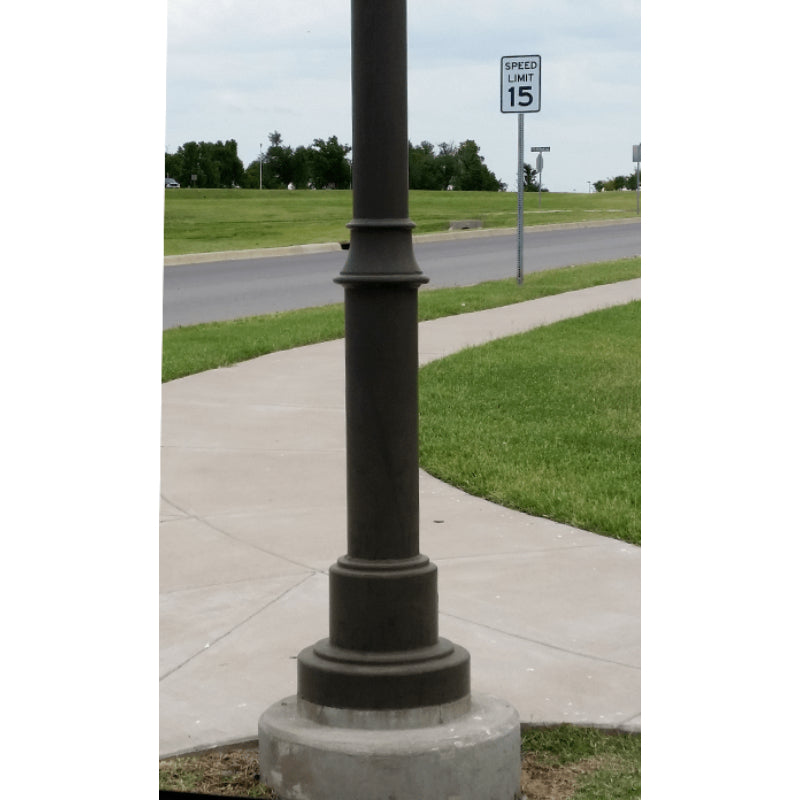

Pemco Lighting PLB414 Decorative Pole

Pemco Lighting PLB414 Decorative Pole

Specifications & Features

• 5? - 8' to 18' Standard Heights
• Straight or Tapered, Smooth or Fluted Poles.
• PLEASE NOTE: Contact the Factory For TAPERED FLUTED poles. Expect an extended lead time.

Shaft:

• Smooth or Fluted Tubing Uses 6061-T6 Aluminum Alloy
• Tapered Poles Use 6061-T6 Aluminum Alloy.

Structural Base:

• A356 Alloy Sand Cast Aluminum, Four Bolt Base. An Extra Large Access Cover is Included. A Grounding Lug is Also Provided.

Tenons:

• T300=Standard for Post Top (2?" OD x 3" Tall)
• T355=Standard for Shepherd's Crook Arms (2?" OD x 5.5" Tall)
• SLV=Male Sleeve Welded to Pole; Ready for Extension/Arm Set-Up (Consult Factory)
• CAP=Removable Cap, No Tenon
• PF_=Decorative Pole Top Finial (Optional Adder)

Anchor Bolts:

• Standard With Each Pole: Includes Four ¾-10x25" Steel Hot Dip Galvanized Anchor Bolts; Each With Two Nuts, Two Flat Washers and One Lock Washer.

Accessories:

• GFIC=Weatherproof GFI In-Use Cover, Cast Aluminum (Must Indicate Location-See
• Orientation Guide On Last Page)
• GFIP=Weatherproof GFI In-Use Cover, Plastic (Must Indicate Location-See
• Orientation Guide On Last Page)
• DBS=Direct Burial Shaft to Convert Pole to Embedded/Burial Installation. 48" Shaft
• With Anti-Rotational Fins Included.
• USB=Dual USB Port (Must Indication Location-See Orientation Guide On Last Page)

Finish:

• Standard Finishes: High Gloss Black, Textured Black, High Gloss White, Medium Bronze, Dark Bronze, Green, Gray, Silver Metallic
• Premium Finishes (Adder): Verde Patina, Pewter Patina, Silver Sparkle, Semi-Gloss or Matte Black
• Custom and Marine-Grade Finishes Are Available. All RAL Colors Are Available To Match (Adder).

Warranty:

• 5 Year Limited Warranty

Additional Information

Product Files

Click for Pemco Lighting PLB414 Spec Sheet
