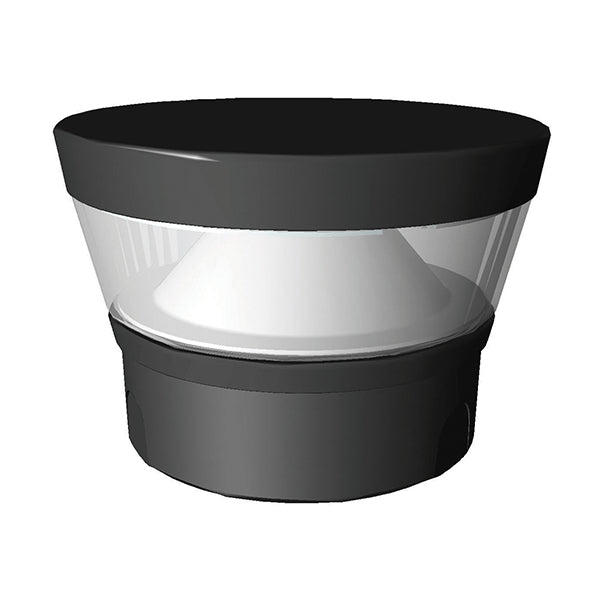

Pemco Lighting Round Flat Pillar Top

Pemco Lighting Round Flat Pillar Top

Specifications & Features

Housing:

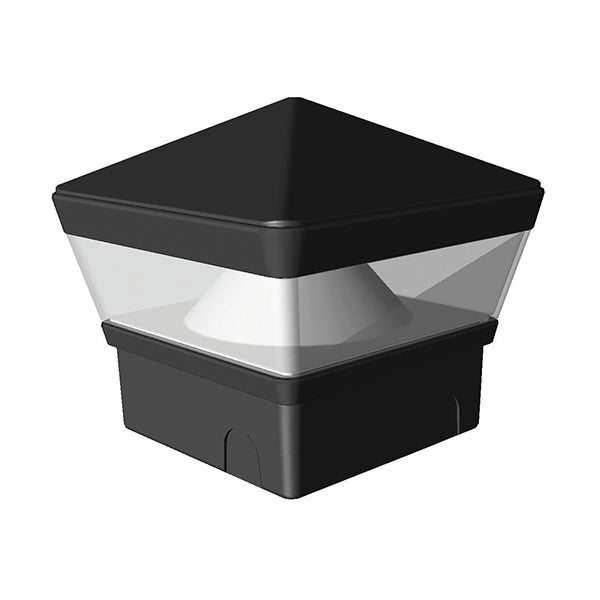

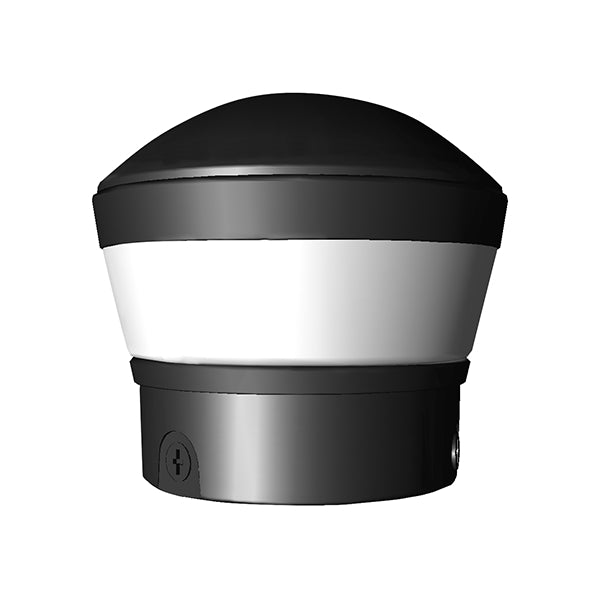

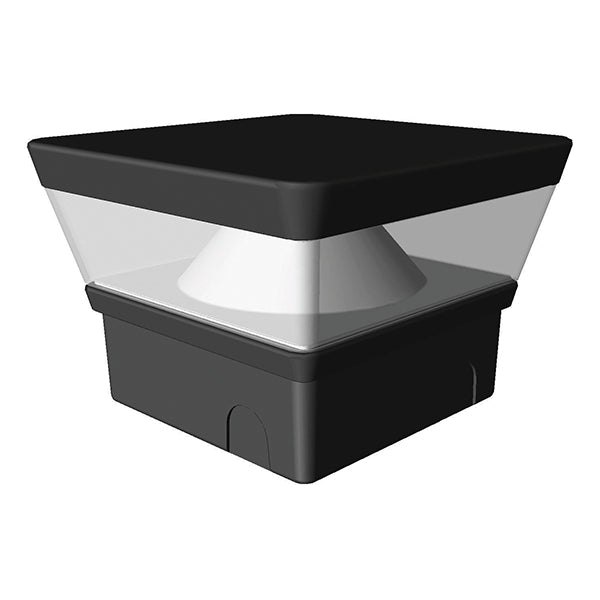

• Die Cast Aluminum Housing with Flush Mounting Base & Vandal-Resistant Screws, Flat, Dome and Pyramid Top, Internal Driver Tray for Easy Maintenance. ½" Coin Plugs for Photocell and Conduit Entry.

Listing & Ratings:

• ETL: Listed for Wet Locations, ANSI/UL 1598, 8750 IP66 Sealed LED Compartment.

Finish:

• Textured Architectural Bronze or Black Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.

Reflector:

• Reflective White Polycarbonate Cone Reflector

Lens:

• Clear Polycarbonate or SoftLED LumaLens Opal Polycarbonate Vandal-Resistant Lens.

Mounting:

• Flush Mount on Flat Surfaces. Cast-In Electrical Box Template with ½" Coin Plug on Bottom.

EasyLED LED:

• Aluminum Boards

Wattage:

• Array: 23w, System: 27w; (70w HID Equivalent)

Driver:

• Electronic Driver, 120-277V, 50/60Hz or 347V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.

Warranty:

• 5-Year Warranty for -20°C to +40°C Environment.

Additional Information

Product Files

Click for Pemco Lighting PB1TQ Spec Sheet
