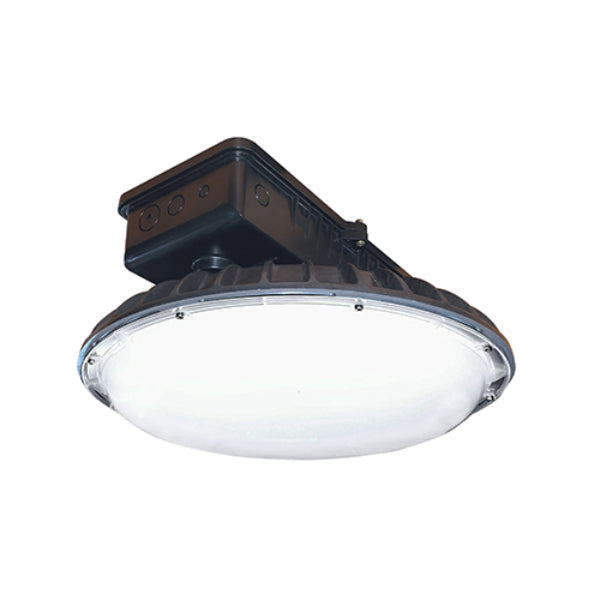

Pemco Lighting Round LED Composite High Bay for Wet Locations

Pemco Lighting Round LED Composite High Bay for Wet Locations

Specifications & Features

Housing:

• Thermally Conductive Polycarbonate Housing. Zinc Plated Driver/Mounting Yoke. Passive Heat Management.

Listing & Ratings:

• ETL: Listed for Damp Locations, ANSI/UL 1598, 8750. IP65 sealed LED compartment.

Finish:

• Charcoal colored Thermally Conductive Polycarbonate smooth finish.

Lens:

• UV-Stabilized Flat or Drop Polycarbonate Lens, available clear or frosted for glare reduction.

Mounting Options:

• Mount with Included Die Cast Aluminum Hook with locking screw.

LED Light Engine:

• Silicone Coated Aluminum Core LED Array Boards - Water and Humidity Proof - Made in USA

Wattage:

• 100-180w

Driver:

• 120-277V Non-Dimming

Controls:

• Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Please consult factory for remote direct wired interface of 1-10V Dimming, fixtures are not wired for remote control connection standard and may not be available in this configuration. Fixtures are NOT designed for use with line voltage dimmers.

Warranty:

• 5-Year Warranty for -40°C to +40°C Environment

Additional Information

Product Files

Click for Pemco Lighting PMUSAHBCRW Spec Sheet
