Description

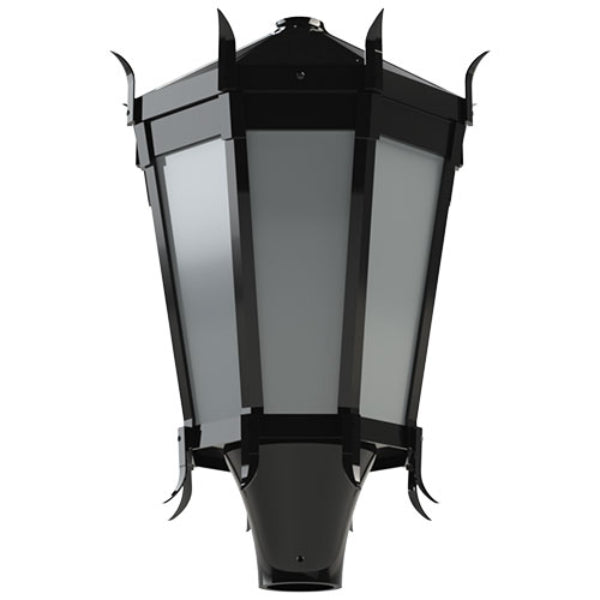

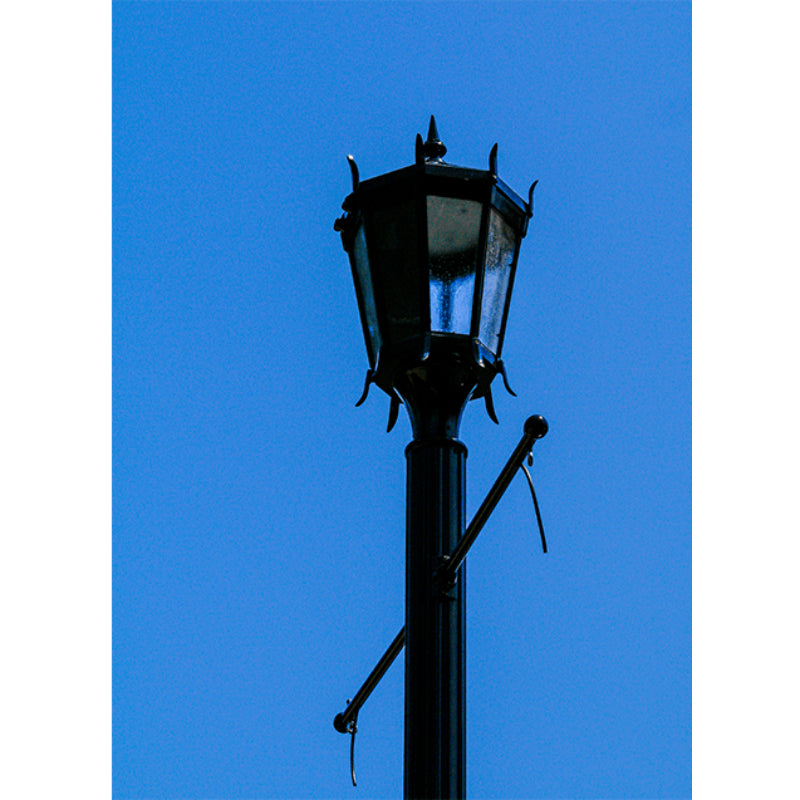

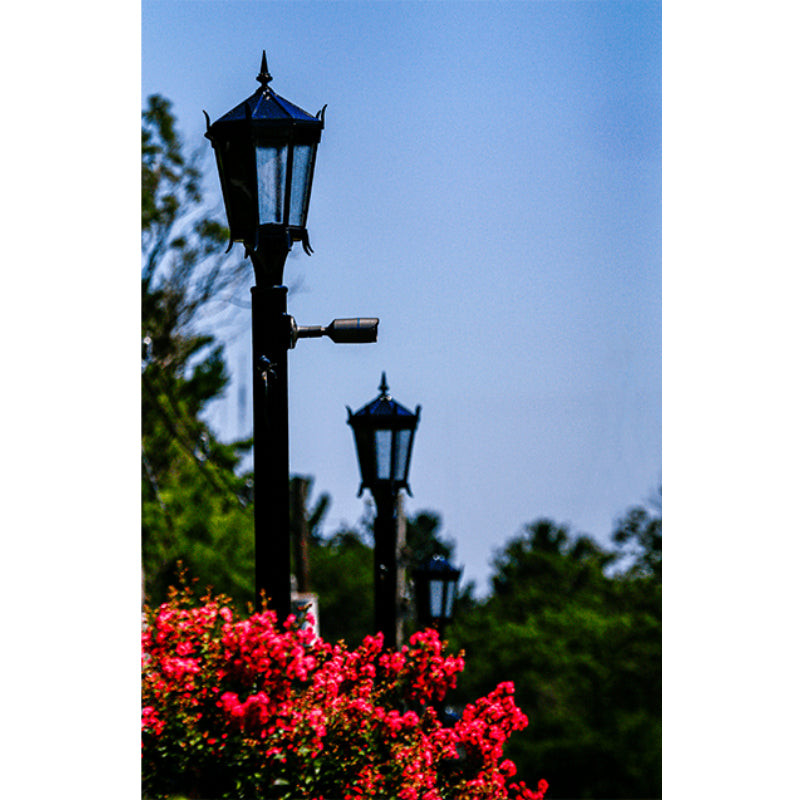

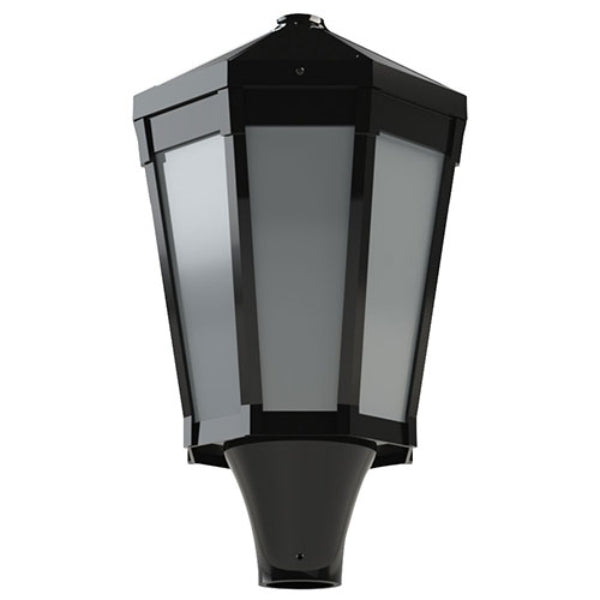

Pemco Lighting Sherwood 1 Post Top
Specifications & Features
Radiant™ LED:
- Conformal Coating LED light engine
- CCT: Standard-3000K, 4000K, & 5000K
- 2700K, Amber, LPS (1800K) Offered for Some Wattages - Consult Factory
- Static Colors Available - Contact Factory
Distribution:
- Types I* II, III, IV, V (Type I Available in 70w & Higher Only)
Electrical:
- Electronic Driver, 120-277V, 50/60Hz or 347/480V, 50/60Hz
- 0-10V Dimmable Driver
- Standard Surge Protection Included (6kV Line-Line; 10kV Line-Earth)
Controls (Optional):
- Button eye photo control (PC)
- House Side Shield (H)
- 7-Pin Twist-Lock Receptacle (PCR7, C10 Capital Required)
- 3-Pin Twist-Lock Receptacle (PCR3, C10 Capital Required)
Housing:
- Decorative Aluminum Capital Housing Choices with 3" Slip Fitter
Finish:
- Super Durable Polyester Powder Coat Finish. Custom Finishes Available, Including Patinas and All RAL Colors.
Listings & Ratings:
- ETL Listed to UL 1598 Standard for Wet Location and IP66.
- LED is IP66 Rated
Additional Information
| Globe/Lens | Clear Acrylic , Clear Flat Tempered Glass , Clear Poly , Frosted Acrylic , Frosted Poly , Frosted Tempered Glass , Patterned Acrylic , White/Opal Acrylic |
|---|---|
| Wattage | |
| CCT | |
| Driver | |
| Controls & Options | 3-Pin TwistLock Photocell Rec , 7-Pin TwistLock Photocell Rec , Button-Eye Photo Control , House Side Shield |
| Made in the USA/BABA | |
| Manufacture |
