Description

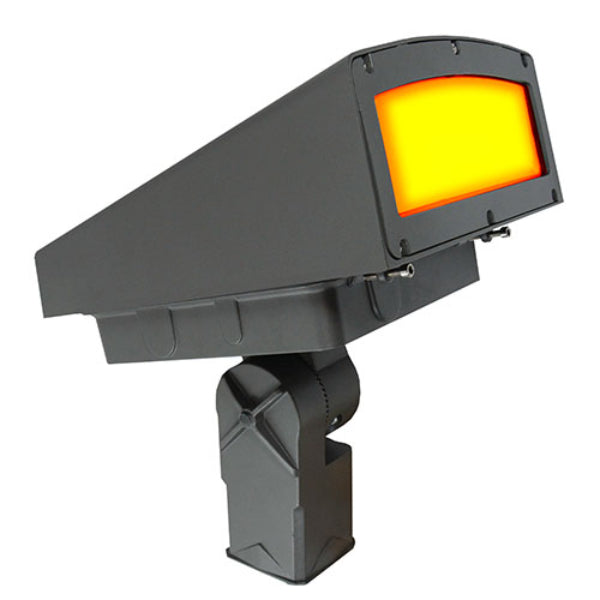

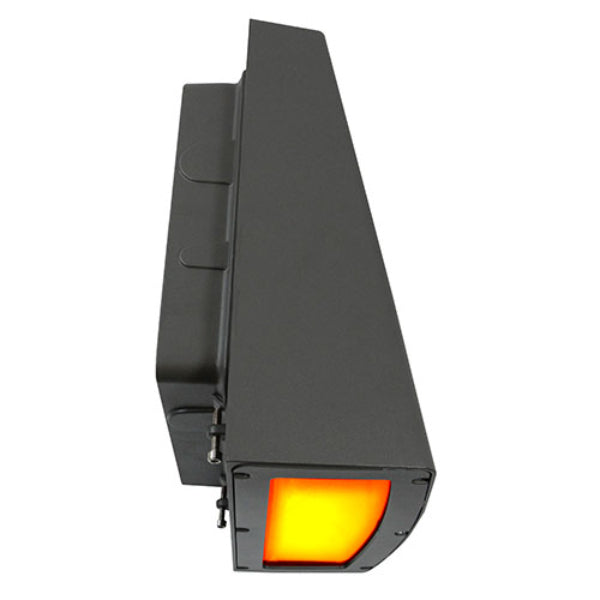

Pemco Lighting Small Wedge AmberLED Flood Light
Specifications & Features
Housing: Die-Cast Gasketed Aluminum Housing, Includes Cast-In Box Template and Built in Level. White Reflector Nickel-Plated Stainless Steel Hardware. Listing & Ratings: ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP65 Sealed LED Compartment. Finish: Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request. Lens: Tempered Clear Flat Glass Lens. Mounting Options: Mount Directly Over Recessed Electrical Box or Use ½? Surface Mount Conduit. Heavy-Duty Adjustable Knuckle, Slipfitter, or Two-Piece Swivel Bracket, Sold Separately, Field Installed. AmberLED:Aluminum Boards Wattage: AmberLED Array: 17w Driver: Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps. Controls: Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with QSSI Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers. Warranty: 5-Year Warranty for -40°C to +50°C Environment.
Additional Information
| Quick Ship/BAA | |
|---|---|
| Controls & Options |
