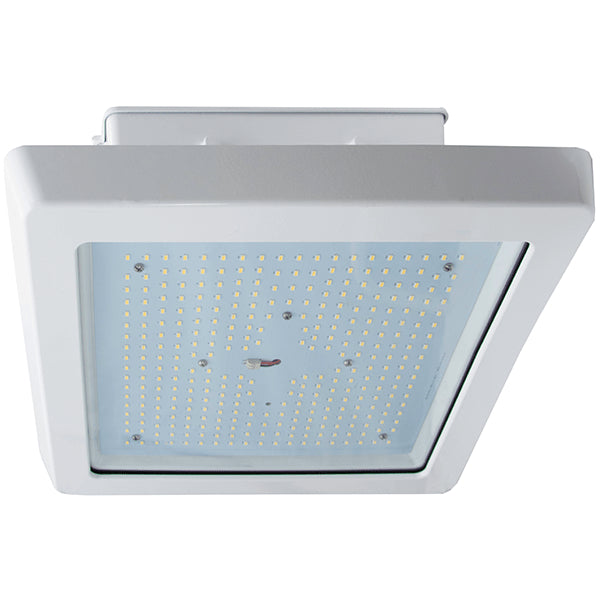

Pemco Lighting Station 16 Recessed Canopy
Specifications & Features
Housing:
- Die Cast Aluminum Housing with IP66 Driver Compartment.
Listing & Ratings:
- ETL: Listed for Wet Locations, ANSI/UL 1598, 8750 IP66 Sealed LED Compartment.
Finish:
- White Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens:
- Tempered Clear Flat Glass Lens
Mounting Options:
- Recessed Mount
EasyLED LED:
- Aluminum Boards
Wattage:
- Array: 111.5w; System: 127w; (250w HID Equivalent)
Driver:
- Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Warranty:
- 5-Year Warranty for -40°C to +50°C Environment.
Additional Information
| Distribution | |
|---|---|
| CCT | |
| Globe/Lens | |
| Quick Ship/BAA | |
| Controls & Options |
