Description

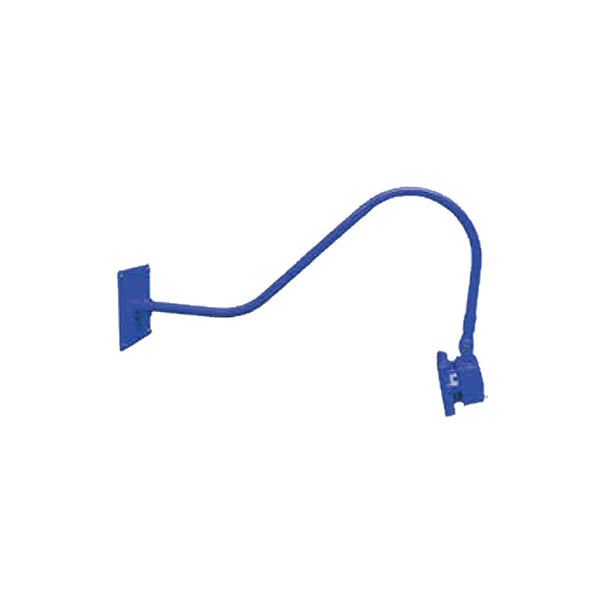

Pemco Lighting Swan 3 Gooseneck Mounting Arm
Specifications & Features
Housing:
- Die Cast Aluminum Housing and Front Frame with Separate Ballast Compartment. Integral Heat-Dissipating Fins for Thermal Management. ½? Threaded Aperture with Liquid-Tight Connector.
Listing & Ratings:
- ETL: Listed for Wet Locations, ANSI/UL 1598, 8750. IP66 Sealed LED Compartment.
Finish:
- Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens:
- Clear Flat Glass Lens.
Mounting:
- Adjustable Knuckle with ½? NPS Threads.
COB LED:
- LED COB
Wattage:
- LED: 1 x 18w; System: 21w (70w HID Equivalent
Driver:
- Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps. Current is 150 Microamps.
Warranty:
- 5-Year Warranty for -30 to 50ºC Environment.
Additional Information
| Quick Ship/BAA | |
|---|---|
| CCT | |
| Controls & Options | |
| Goosenecks |
Product Files
