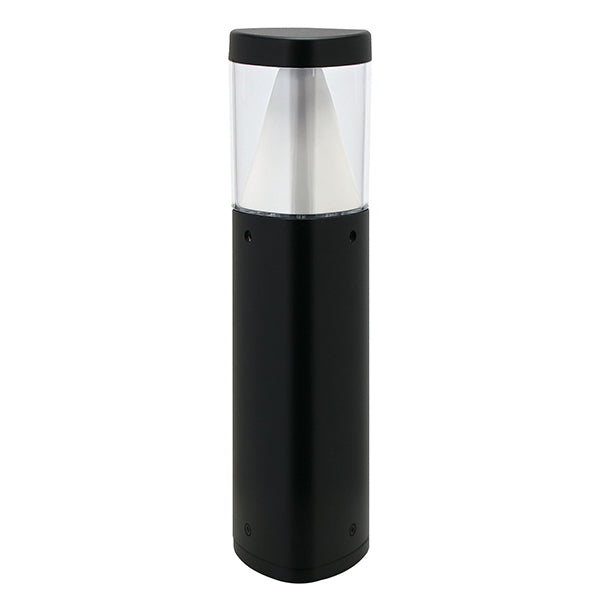

Pemco Lighting Triangle Low Profile Pathway Bollard Light
Specifications & Features
Housing:
- Extruded Aluminum Housing with Flush Mounting Base, Flat Top. Bollard Can Be Cut to Custom Lengths Upon Request.
Listing & Ratings:
- ETL: Listed for Wet Locations, ANSI/UL 1598, 8750 IP66 Sealed LED Compartment.
Finish:
- Textured Architectural Bronze or Black Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Style:
- Specially Designed White Cone Reflector that Minimizes Diode Brightness
Lens:
- Clear UV-Stabilized Polycarbonate or SoftLED LumaLens Opal UV-Stabilized Polycarbonate Vandal-Resistant Lens.
Mounting Options:
- Mounting Kit with 8? Zinc-Plated Anchor Bolts, Included.
EasyLED LED:
- Aluminum Boards
Wattage:
- Array: 12w, System: 11.8w; (50w HID Equivalent)
Driver:
- Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Controls:
- Fixtures are NOT Designed for Use with Line Voltage Dimmers.
Warranty:
- 5-Year Warranty for -40°C to +50°C Environment.
Additional Information
| CCT | |
|---|---|
| Controls & Options | |
| Distribution | |
| Globe/Lens | |
| Quick Ship/BAA |
