Description

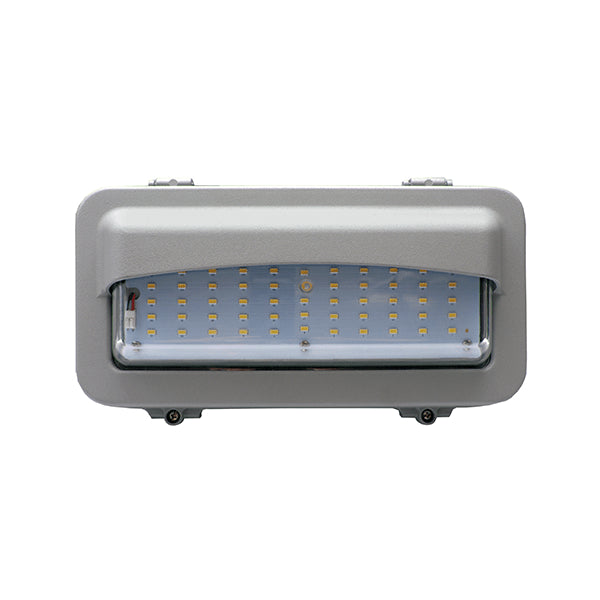

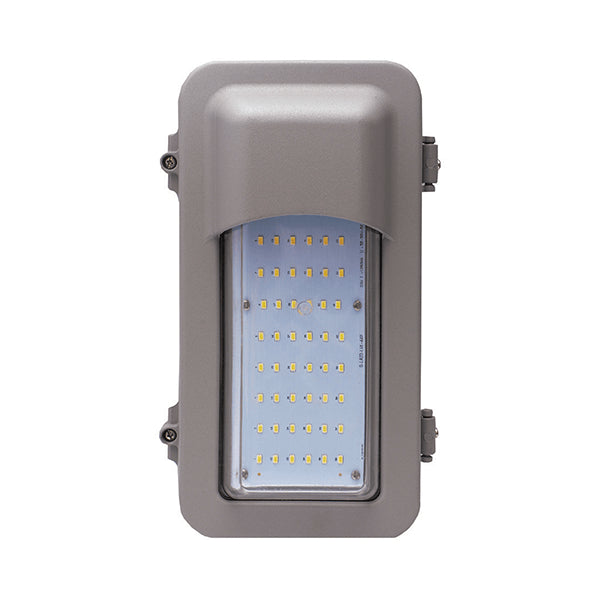

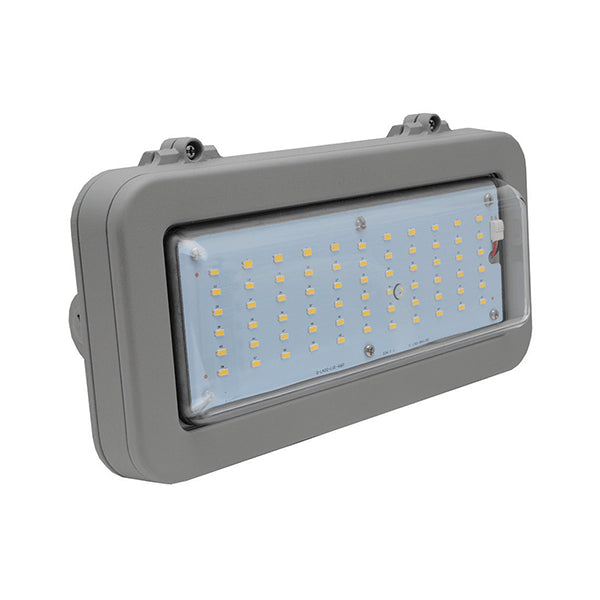

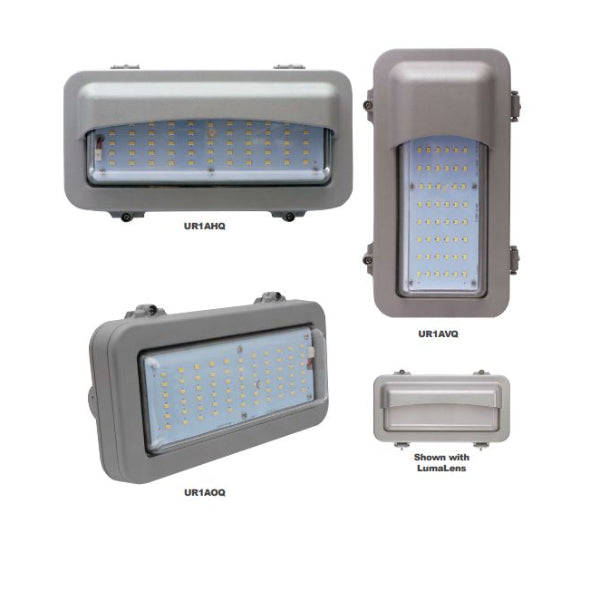

Pemco Lighting UR1AO Outdoor Parking Garage Light
Specifications & Features
Housing:
- Heavy-Duty Die Cast Aluminum Housing and Top Frame. Can be Tapped for Side Conduit Entry. Listing & Ratings: ETL: Listed for Wet Locations, ANSI/UL 1593, 8750 IP66 Sealed LED Compartment Finish: Platinum Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
Lens:
- Clear Polycarbonate or SoftLED LumaLens Opal Polycarbonate Vandal-Resistant Lens
Mounting Options:
- Surface Mount or Use Optional ½? NPS Adjustable Threaded Knuckle, Stainless Steel QuickMount Bracket, Adjustable Bracket or Yoke.
EasyLED LED:
- Aluminum Boards
Wattage:
- 22w: Array: 22w, System: 26.4w; (70w HID Equivalent) 37w: Array: 37.2w, System: 43.4w; (175w HID Equivalent)
Driver:
- Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
Warranty:
- 5-Year Warranty for -25°C to +40°C Environment
Additional Information
| Distribution | Wide |
|---|---|
| CCT | 4K, 5K |
| Globe/Lens | Clear Poly, Low-Glare SoftLED, White/Opal Poly |
