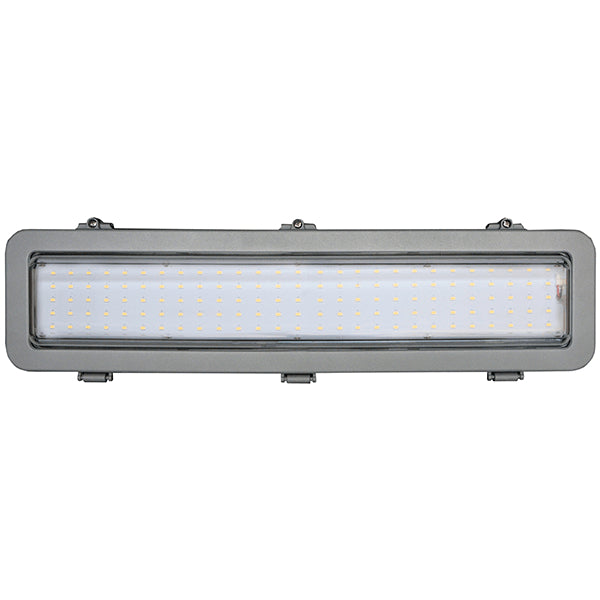

Pemco Lighting UR2AO Parking Garage Light

Pemco Lighting UR2AO Parking Garage Light

Specifications & Features

Housing:

• Heavy-Duty Die Cast Aluminum Housing and Top Frame. Can Be Tapped for Side Conduit Entry.

Listing & Ratings:

• ETL: Listed for Wet Locations, ANSI/UL 1598, 8750 IP66 Sealed LED Compartment. ADA Compliant (Without Brackets)

Finish:

• Gray Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.

Lens:

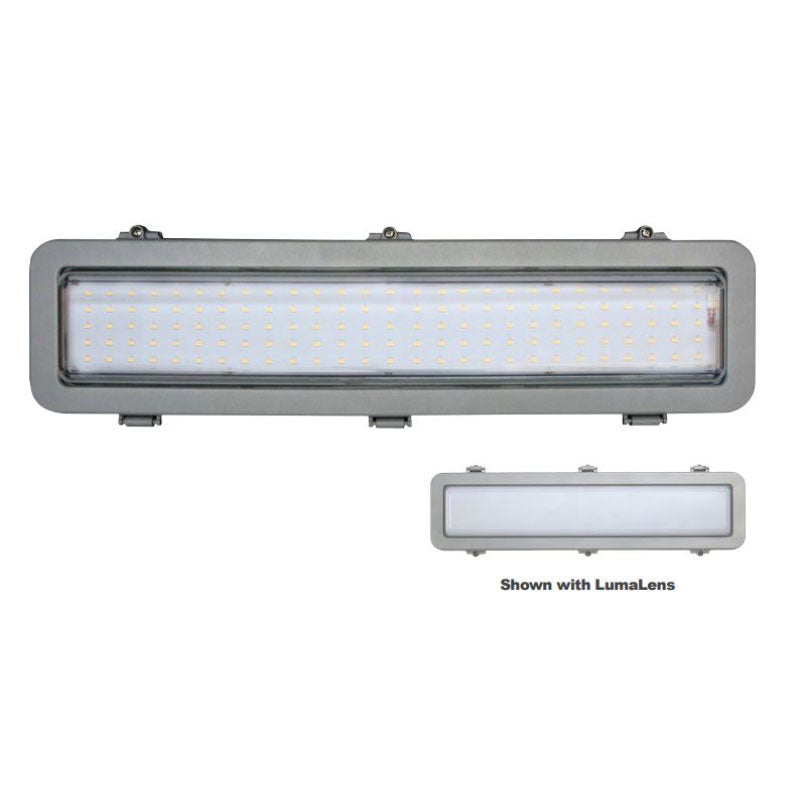

• Clear Polycarbonate or SoftLED LumaLens Opal Polycarbonate Vandal-Resistant Lens

Mounting Options:

• Surface Mount or Use Optional Stainless Steel Quick-Mount Bracket, Adjustable Bracket, or Yoke.

Radiant™ LED:

• Aluminum Boards

Wattage:

• 47w: Array: 47w, System: 57.8w; (175w HID Equivalent) 66w: Array: 66w, System: 77.3w; (250w HID Equivalent)

Driver:

• Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.

Warranty:

• 5-Year Warranty for -40°C to +50°C Environment

Additional Information

Product Files

Click for Pemco Lighting UR2AO-WM Spec Sheet
