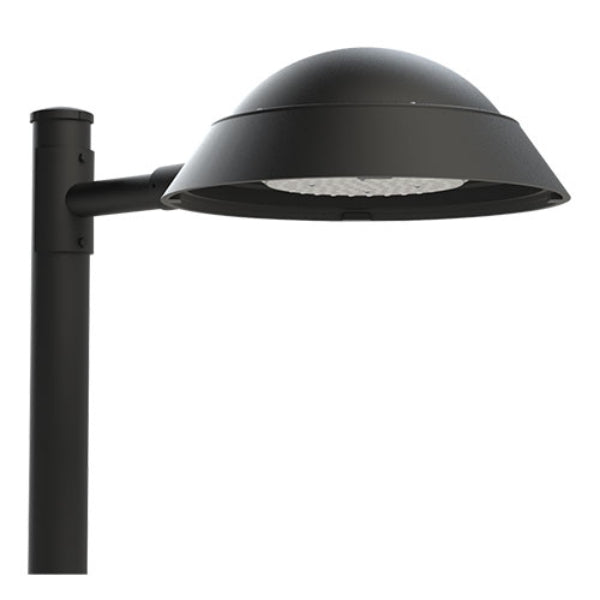

Pemco Lighting Ventura 1 Area Light
Specifications & Features
LED:
- Conformal Coating LED light engine
- CCT: Standard-3000K, 4000K, & 5000K
- 2700K, Amber, LPS (1800K) Offered for Some Wattages - Consult Factory
- Static Colors Available - Contact Factory
Distribution:
- Types I* II, III, IV, V (Type I Available in 70w & Higher Only)
- Full Cutoff
Electrical:
- Electronic Driver, 120-277V, 50/60Hz or 347/480V, 50/60Hz
- 0-10v Dimmable Driver
- Standard Surge Protection Included; Surge Protection Device Meets
IEEE C62.41 2002 C High 10kA:
Controls (Optional):
- Button Eye Photo Control (PC)
- 3-Pin Twist-Lock Receptacle (PCR3)
- 7-Pin Twist-Lock Receptacle (PCR7)
Housing:
- Consists of a Molded Aluminum Rim and a Spun Aluminum Canopy that Combine for a Sleek and Compact Appearance
- Side Mount on a horizontal tenon
Finish:
- Super Durable Polyester Powder Coat Finish. Custom Finishes Available, Including Patinas and All RAL Colors.
Listings & Ratings:
- ETL Listed to UL 1598 Standard for Wet Location.
- LED is IP66 Rated
Additional Information
| Globe/Lens | |
|---|---|
| Wattage | |
| CCT | |
| Driver | |
| Controls & Options | 3-Pin TwistLock Photocell Rec , 7-Pin TwistLock Photocell Rec , Button-Eye Photo Control , Single Fuse |
| Made in the USA/BABA | |
| Manufacture |
