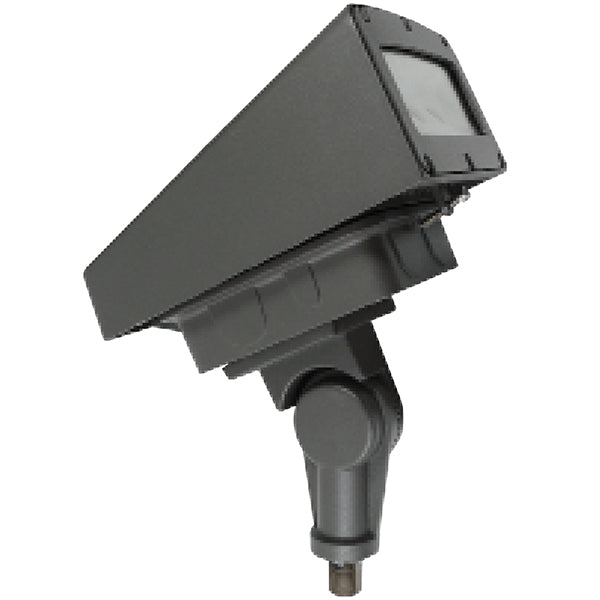

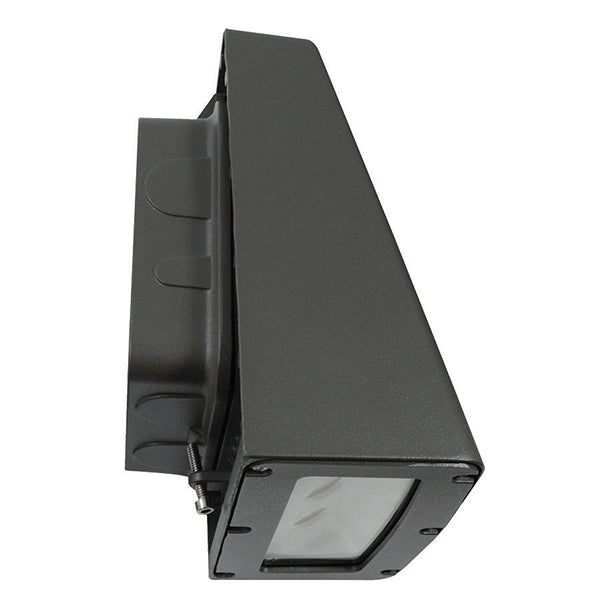

Pemco Lighting Wedge - Small Flood Light
Specifications & Features

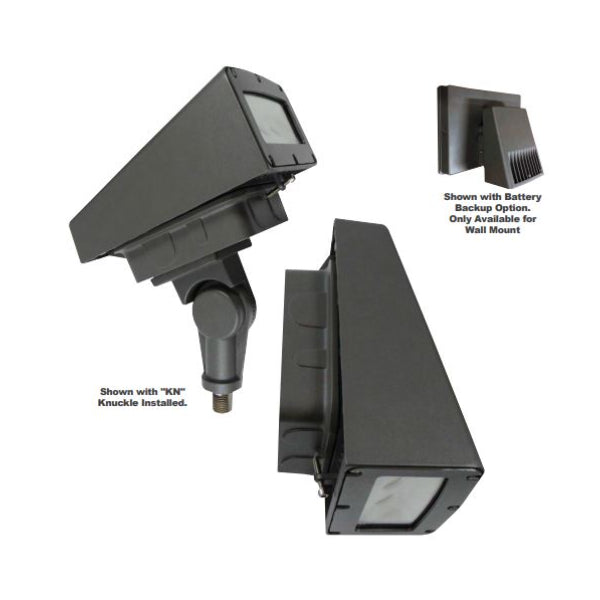

Housing:Die-Cast Gasketed Aluminum Housing, Includes Cast-In Box Template and Built in Level. White Reflector. Nickel-Plated Stainless Steel Hardware. Listing & Ratings:ETL: Listed for Wet Locations, ANSI/UL 1598, 8750; IP66 Sealed LED Compartment. Finish:Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request. Lens:Tempered Clear Flat Glass Lens. Mounting Options:Mount Directly Over Recessed Electrical Box or use ½? Surface Mount Conduit. Adjustable Knuckle with ½? NPS Threads, Sold Separately, Field Installed. COB LED:QSSI Cool Copper COB Wattage: 17w EasyLED Array: 17, System 22w 20w COB: 20w, System: 21w; 40w COB 40w, System: 43w Driver:Electronic Driver, 120-277V, 50/60Hz; 347-480V, 50/60Hz or 347V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection is 2kV for 20w, 6kV for 40w. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps. 12V: Electronic Driver, 12-17VAC Input, 50/60Hz, Non-Dimmable (20w Model Only) Controls:Fixtures Ordered with Factory-Installed Photocell or Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with LEPG Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers. Warranty:5-Year Warranty for -40°C to +50°C Environment
Additional Information
| Quick Ship/BAA | |
|---|---|
| CCT | |
| Controls & Options | |
| Globe/Lens |
Product Files
