Description

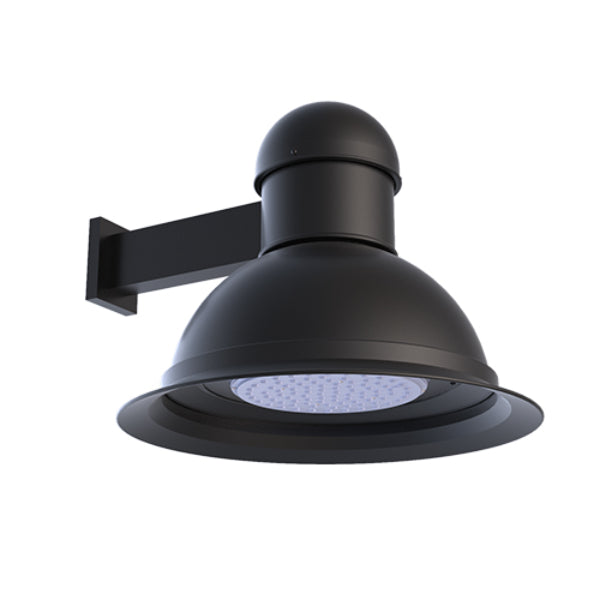

Pemco Lighting Winston Wall Mount Value Set
Specifications & Features
Radiant™ LED
- Conformal Coating LED light engine
- CCT: Standard-4000K
- 2700K, Amber, LPS (1800K) Offered - Consult Factory
- Static Colors Available - Contact Factory
Distribution
- Type IV
- Full Cutoff
Electrical
- Electronic Driver, 120-277V, 50/60Hz
- 0-10V Dimmable Driver
- Standard Surge Protection Included (6kV Line-Line; 10kV Line-Earth)
Wall Mount
- For all Wall Mounted Fixtures, Back Plates Are Not Predrilled at the Factory. This Allows Installation Contractors the Ability to Match Mounting Holes (By Contractor) to Specified Mounting Surfaces.
Housing & Arm Construction
- Housing is made of cast aluminum
- Decorative Arms are Constructed From Extruded Tubes and/or Aluminum Sand Cast parts. Parts are Welded and then Heat Treated to a T6 Hardness for Maximum Strength
Finish
- Super Durable Polyester Powder Coat Finish. Custom Finishes Available, Including Patinas and All RAL Colors.
Listings & Ratings
- ETL Listed to UL 1598 Standard for Wet Location and IP66.
- LED is IP66 Rated
Warranty
- 5 Year Limited Warranty
Value Sets are preconfigured FIXTURE + ARM components in popular combinations that are made available with a simple catalog number. These configurations contain highly specified characteristics and when ordered as a Wall Mount Value Set are a greater value.
Different configurations are available by ordering the standard product.
Additional Information
| Lumen Output | 3,757 |
|---|---|
| Wattage | |
| CCT | |
| Driver | |
| Made in the USA/BABA | |
| Manufacture |
