Fast & Easy Quote Request For Cooper Portfolio Lighting
Description

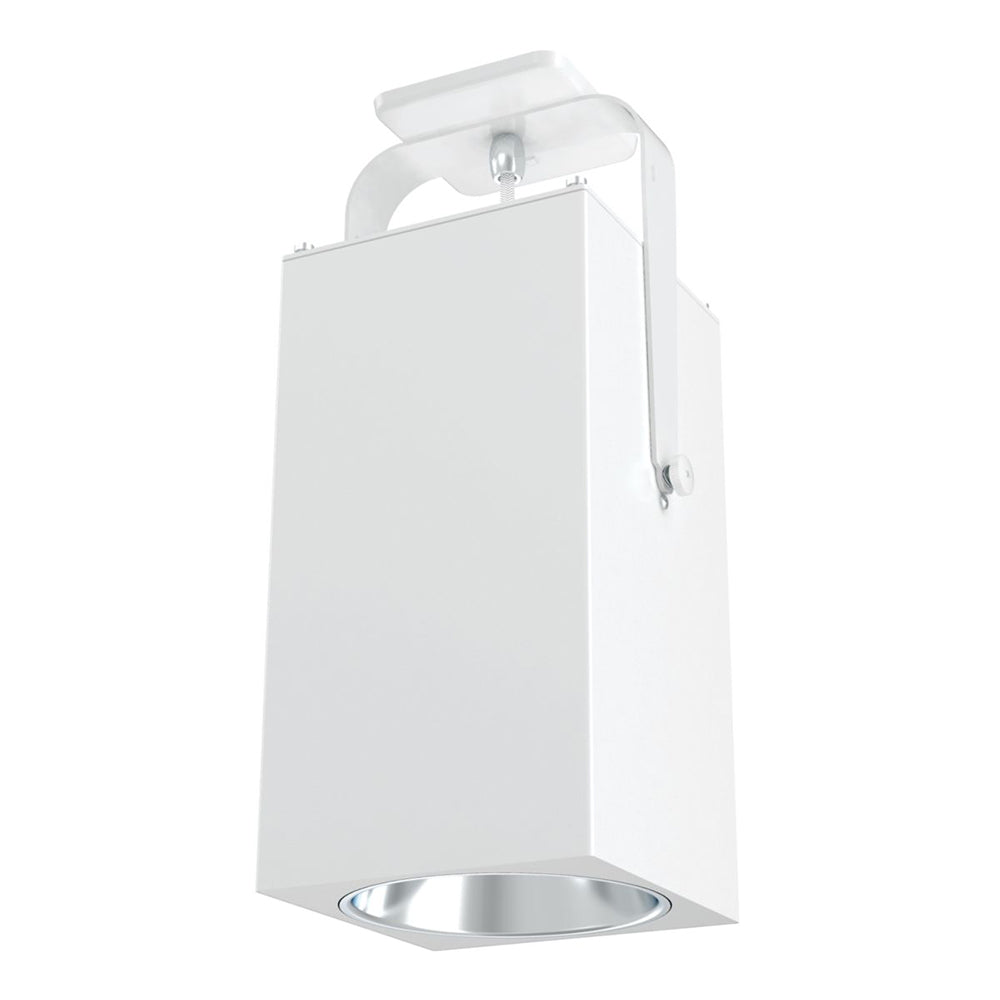

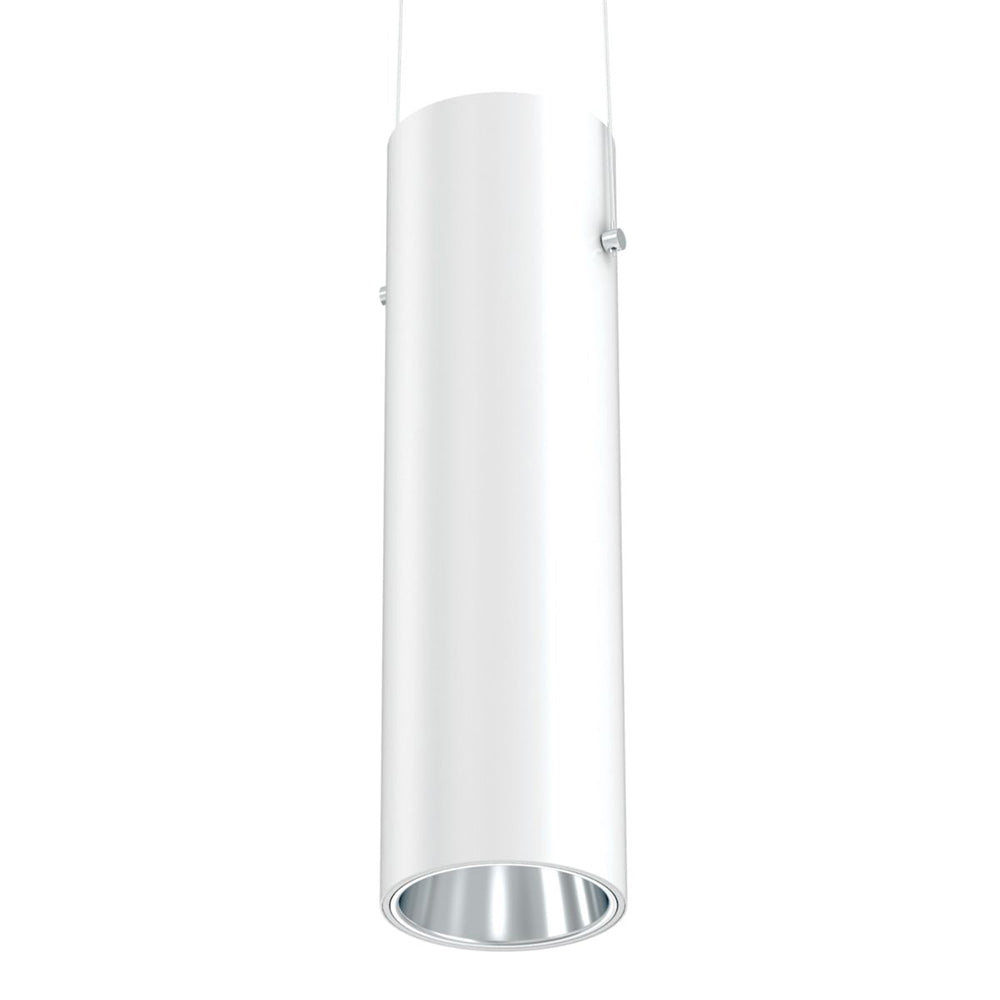

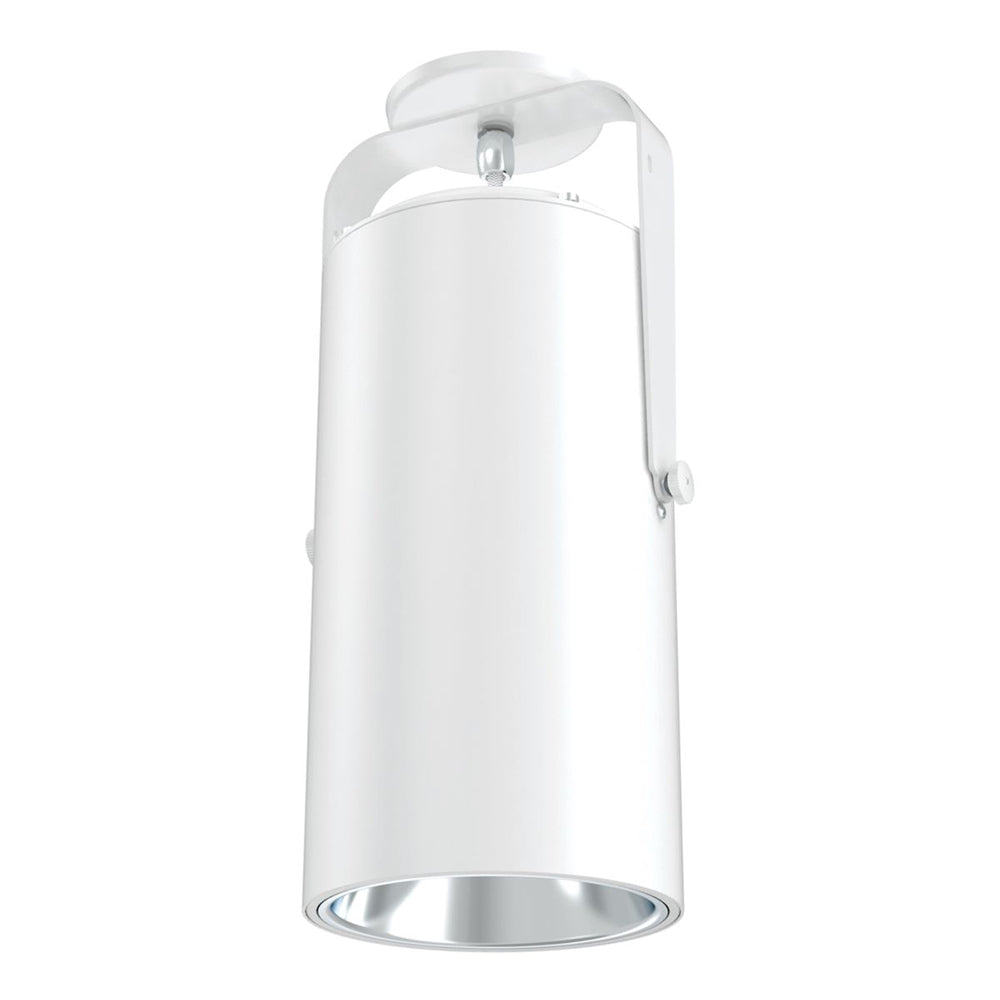

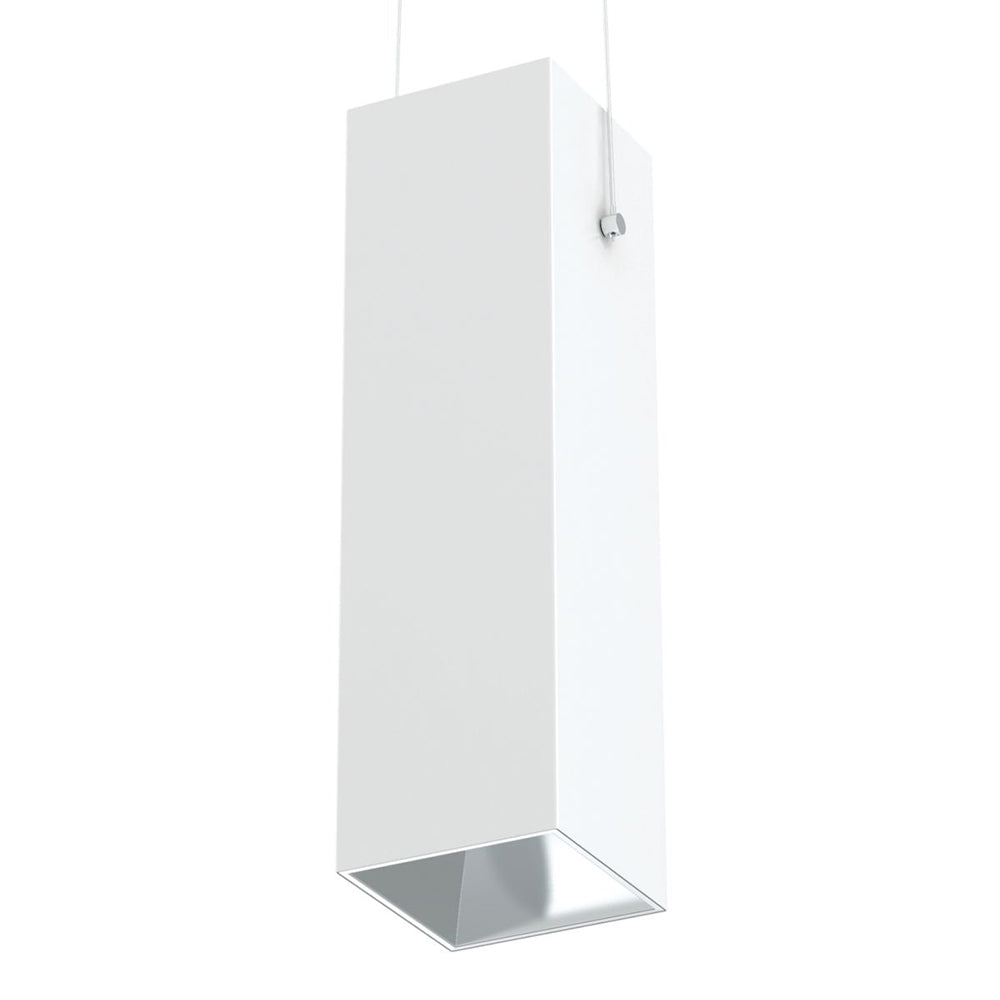

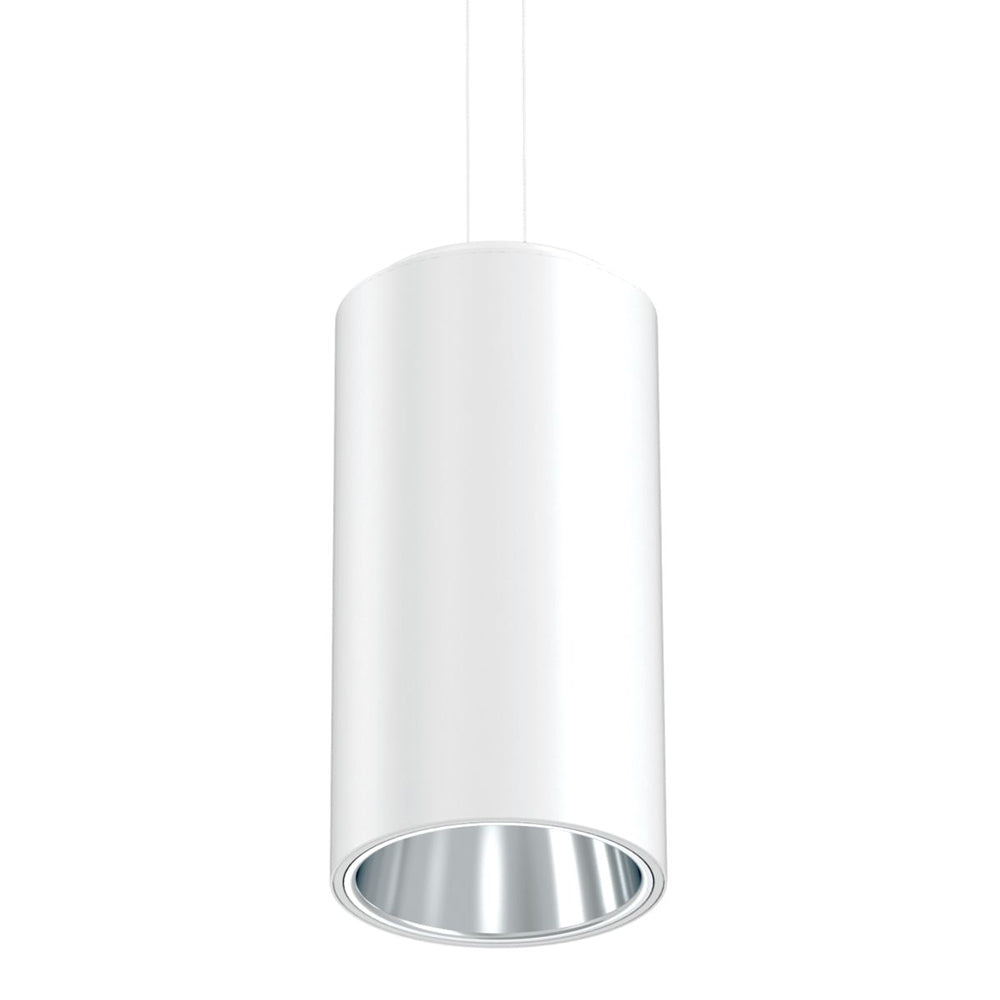

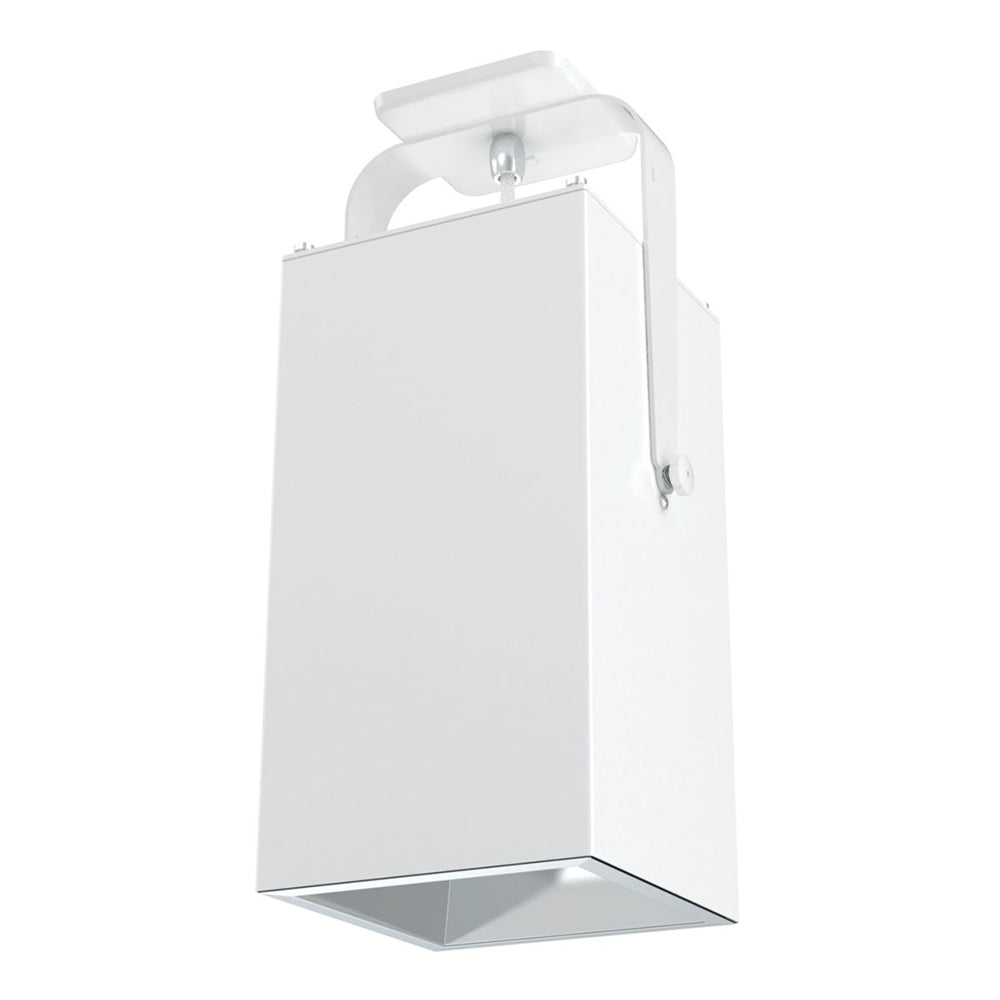

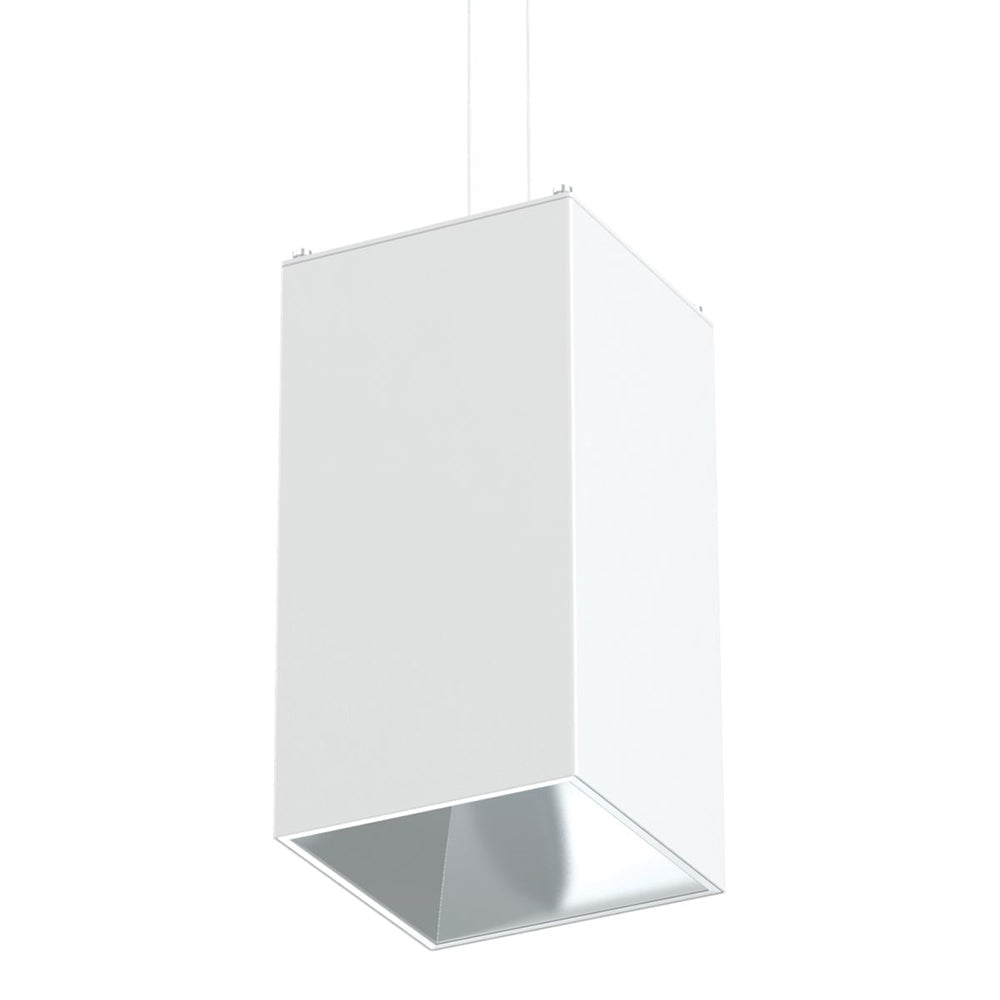

Portfolio Lighting 6" Standard Cylinder LER6B/LESQ6B Round and Square LED
Accent architectural spacesDesigned to complement any space, the 6" LED round and square downlight cylinders, also available as a wall wash cylinder, can be wall-, ceiling- or pendant-mount or hung by aircraft cable. A two-stage system produces smooth distribution with excellent light control and low aperture brightness. The cylinders are available in multiple lumen packages, color temperatures and a variety of finishes. Standard 0-10V driver dims to 1% with a multitude of optional integral and remote drivers available.
High-performing optical systemTaking a total systems approach, Portfolio LED downlight components are specifically engineered for the latest in LED technology, ensuring optimal luminaire efficacy and quality performance.
Features of Portfolio 6" Standard Cylinder LER6B/LESQ6B Round and Square LED- Ceiling, wall, stem, aircraft cable, Lux wire power over cable
- Extruded aluminum housing, Die-cast or spun aluminum reflectors
- 6 color temperatures: 2400K, 2700K, 3000K, 3500K, 4000K and 5000K CCT
- CRI: 80, 90 or 97, D2W™ option from 3000K to 1850K
- Lumens: 1,000-4,000, W2N Tunable White 2700K-6500K or 2000K-5000K
- Colors: Matte Black, White, Bronze and Silver paint finishes
- Standard 0-10V dimming down to 1%, ENERGY STAR® qualified
- 5-year warranty
- Integral or remote driver options
- Down, up/down and adjustable yoke
Product Files
Click for Portfolio LER6B 6-Inch Ceiling/Wall Mount Cylinder Downlight spec sheet ![](https://cdn.shopify.com/s/files/1/1916/1697/files/pdf-icon2_thumb_ce6aac8a-5dd6-4090-9d7b-a071ab3e51c1.png?5597370559161569354")
Click for Portfolio Cylinder brochure
Click for Portfolio LED Catalog
Click for Portfolio LED D2W sell sheet
Click for Portfolio Cylinder Lux wire Mount installation instructions
Click for Portfolio CylinderYoke Mount installation instructions
Click for Portfolio Installation Instructions - Aircraft Cable Assembly
Click for Portfolio Installation Instructions - for the P836 - Pendant Mounting Kit
Click for Portfolio LSR6B/LSSQ6B 6-inch Cylinder LED - DMX driver Installation Instructions
Click for Portfolio 6-inch Downlighting VividTune spec sheet
Click for Portfolio LED products dimming guide
