Portfolio Lighting 8" Shallow Cylinder LSRS8B/LSRSWM8B Shallow Round LED

Portfolio Lighting 8" Shallow Cylinder LSRS8B/LSRSWM8B Shallow Round LED

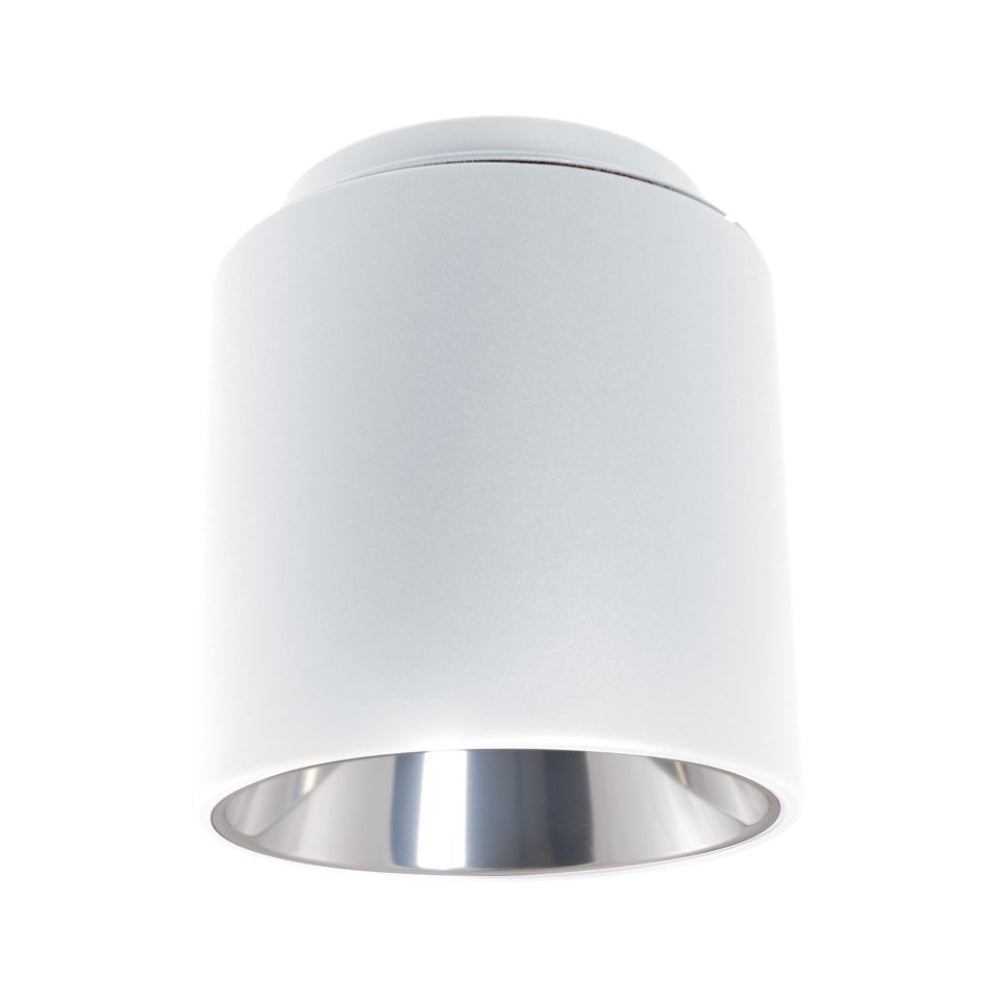

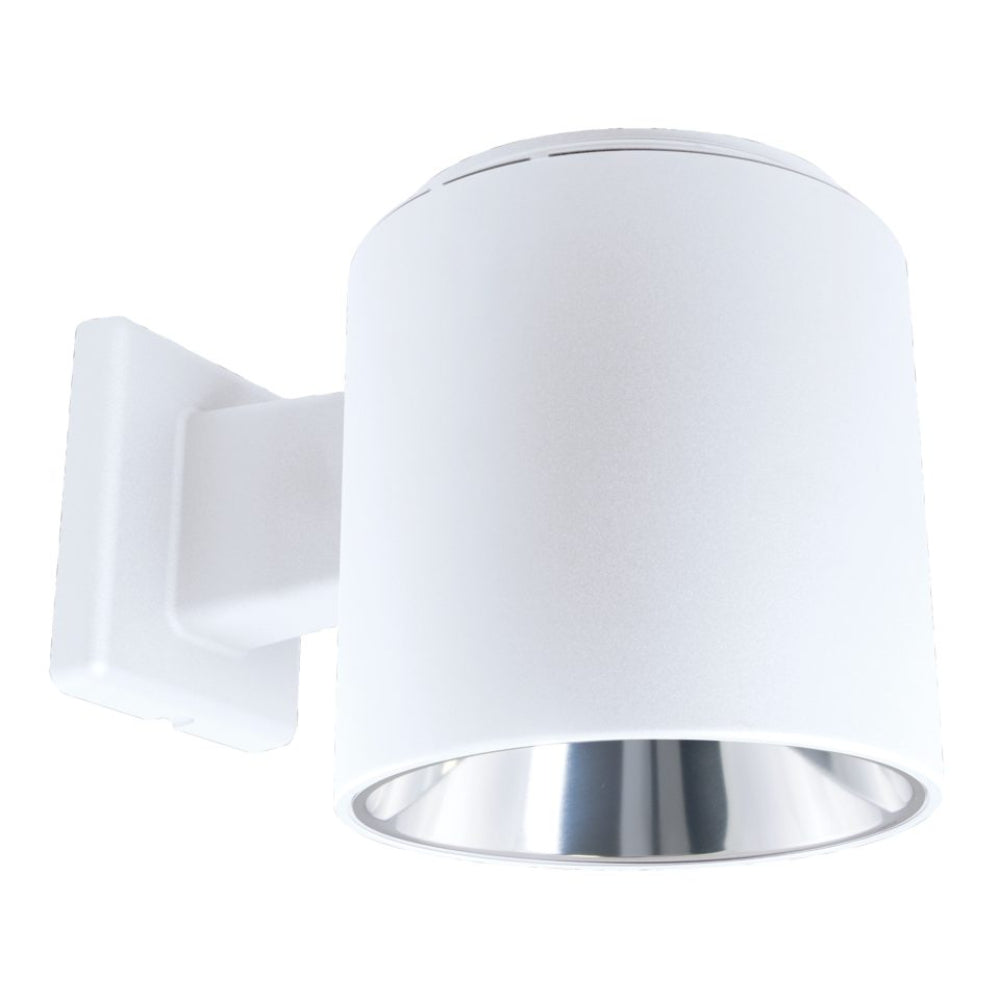

Designed to complement any space, the 8" LED round downlight cylinders, also available as a wall wash cylinder, can be wall-, ceiling- or pendant-mount or hung by aircraft cable. A two-stage system produces smooth distribution with excellent light control and low aperture brightness. The cylinders are available in multiple lumen packages, color temperatures and a variety of finishes. Standard 0-10V driver dims to 1% with a multitude of optional integral and remote drivers available.

Taking a total systems approach, Portfolio LED downlight components are specifically engineered for the latest in LED technology, ensuring optimal luminaire efficacy and quality performance.

• Mounting: high bay/low bay ceiling, wall, stem or aircraft cable
• Spun aluminum housing, Spun aluminum reflectors
• 5 color temperatures: 2700K, 3000K, 3500K, 4000K and 5000K CCT
• CRI: 80, 90 or 97, D2W™ option from 3000K to 1850K
• Lumens: 1,000-6,000, W2N Tunable White 2700K-6500K or 2000K-5000K
• Colors: Matte Black, White, Bronze and Silver paint finishes
• Standard 0-10V dimming down to 1%, ENERGY STAR® qualified
• 5-year warranty
• Integral or remote driver options
