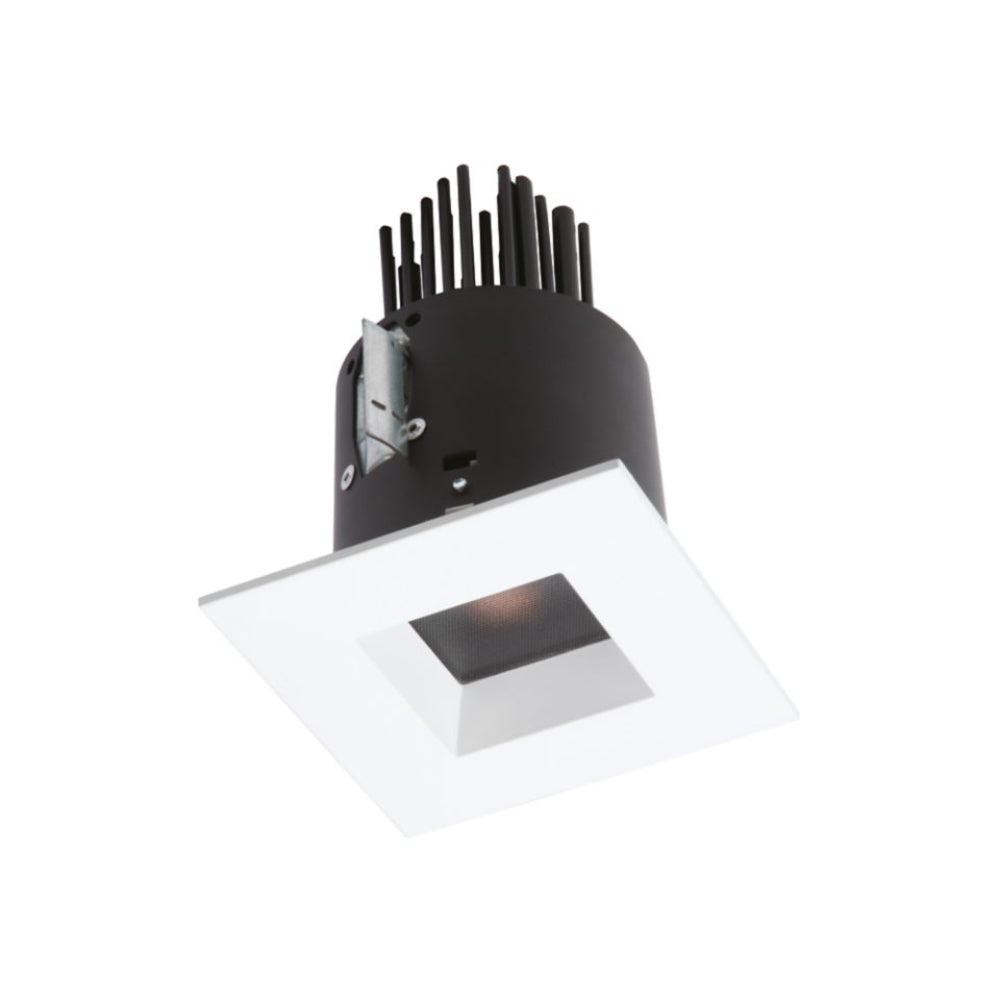

Portfolio Lighting LD2B LED 2" Square Recessed Downlight
Small size, powerful performanceThe specification-grade, small aperture product family combines energy efficiency with superior cut-off, optical performance and control for architectural applications. A standard 0-10V driver dims to 1% and a multitude of optional drivers are available.
High-performing optical systemTaking a total systems approach, Portfolio LED downlight components are specifically engineered for the latest in LED technology, ensuring optimal luminaire efficacy and quality performance.
Features of Portfolio LD2B LED 2" Square Recessed Downlight- New construction or retrofit from below, Downlight or lensed wall wash
- Excellent light control and low aperture brightness
- Installs in shallow or standard plenums, ENERGY STAR® qualified
- Round or square die-cast or spun aluminum reflectors
- 6 color temperatures: 2400K, 2700K, 3000K, 3500K, 4000K and 5000K CCT
- CRI: 80, 90 or 97, D2W™ option from 3000K to 1850K
- W2N Tunable White 2700K-6500K or 2000K-5000K
- Lumens: 500-2,000, Distributions: 15°, 25°, 40° or 55°
- WaveLinx and DLVP connected lighting systems compatibility
- 5-year warranty
Click for Portfolio LD2B EU2B 2LB downlight specification sheet ![](https://cdn.shopify.com/s/files/1/1916/1697/files/pdf-icon2_thumb_ce6aac8a-5dd6-4090-9d7b-a071ab3e51c1.png?5597370559161569354")
Click for Portfolio LD2/LDA2 2-inch downlight brochure
Click for Portfolio 2-inch Round Plaster Lathing Ring Accessory Installation Instructions
Click for Portfolio HBB2 Hanger Bar Accessory Kit Installation Instructions
Click for Portfolio LD2B Commercial Recessed LED Rough-In Installation Instructions
Click for Portfolio LD2B Emergency Commercial Recessed Installation Instructions
Click for Portfolio LDRT2 LED Retrofit Installation Instructions
