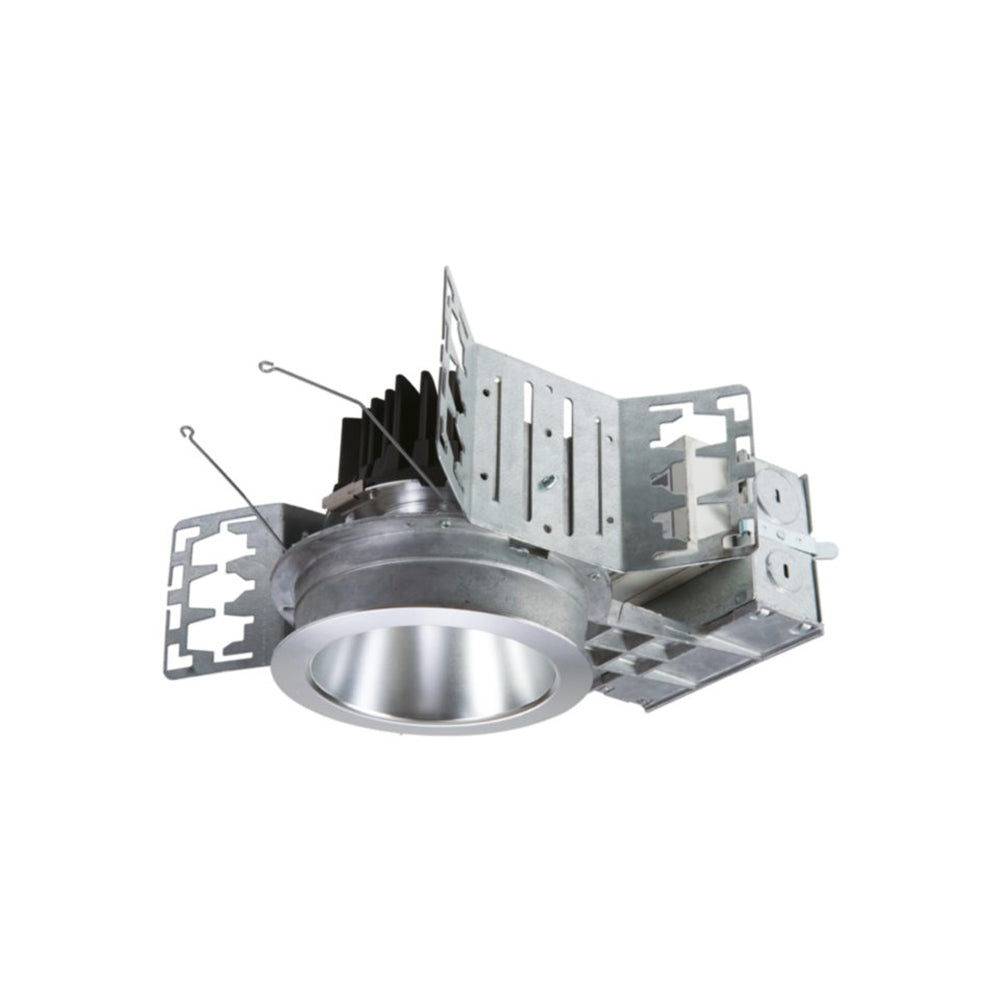

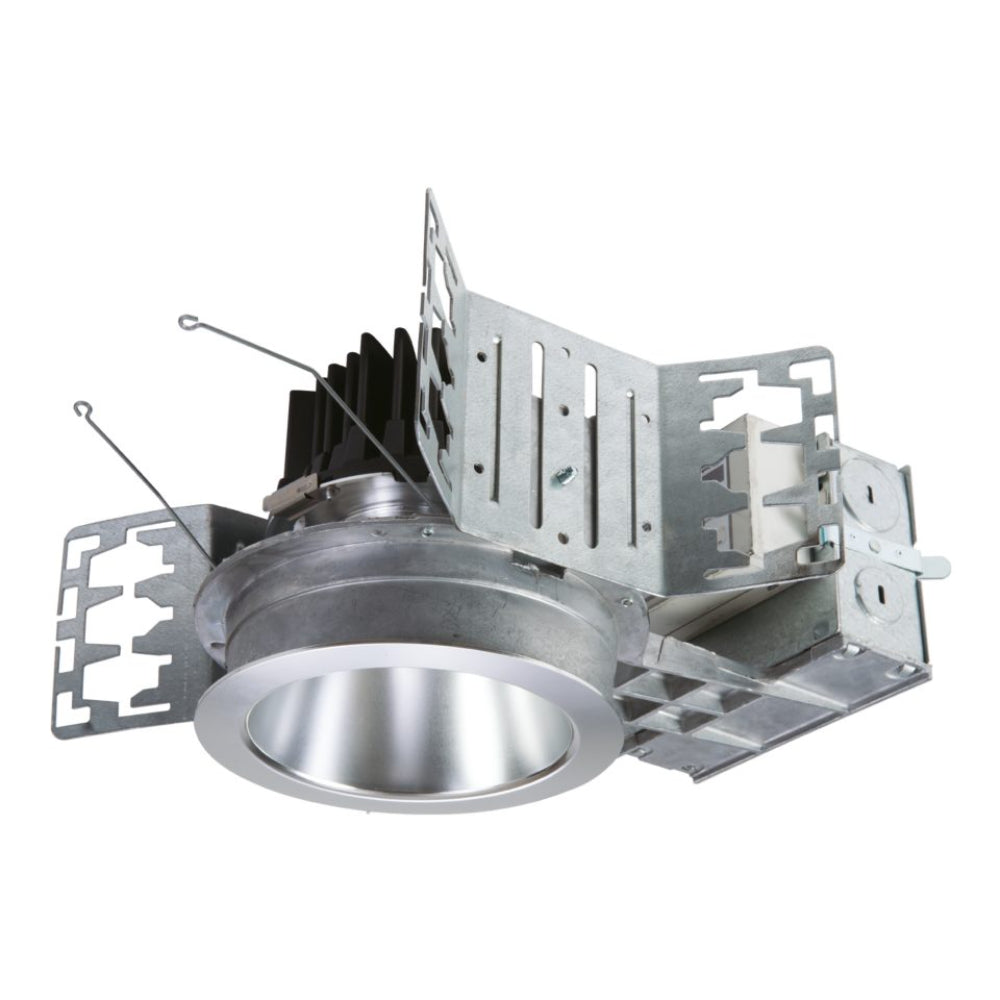

Portfolio Lighting LD4C 4 Inch Recessed Downlight
Glare-free, even illumination with exceptional performanceThe 4" new construction recessed downlight, also available as an open or lensed wall wash luminaire, is designed with a two-stage system producing smooth distribution with excellent light control and low aperture brightness. The luminaires are available in narrow, medium and wide beam distributions with light output of up to 7,500 lumen. A standard 0-10V driver dims to 1% and a multitude of optional drivers are available.
High-performing optical systemTaking a total systems approach, Portfolio LED downlight components are specifically engineered for the latest in LED technology, ensuring optimal luminaire efficacy and quality performance.
Features of Portfolio LD4C- New construction for standard plenum height, ENERGY STAR® qualified
- Excellent light control and low aperture brightness
- Lumens: 1,000-7,500, 0-10V dimming down to 1%
- 90, 97 or 98 CRI, 6 color temperatures, tunable white and dim to warm
- Round spun aluminum, die-cast, or non-conductive reflectors
- Spun aluminum reflectors in narrow, medium and wide beams
- Open or rotatable lensed wall wash
- WaveLinx and DLVP connected lighting systems compatibility
- Optional snap in or remote driver
- Plaster lathing ring accessory offered for flush reflector transition
Click for Portfolio LD4C / EU4C / 4LB spec sheet ![](https://cdn.shopify.com/s/files/1/1916/1697/files/pdf-icon2_thumb_ce6aac8a-5dd6-4090-9d7b-a071ab3e51c1.png?5597370559161569354")
Click for Portfolio LD4C / EU4C / 4LB VividTune and 98 CRI spec sheet
Click for Portfolio Performance LED brochure
Click for WaveLinx LITE Brochure
Click for Portfolio LD4 / LD6 Installation Instructions
Click for Portfolio Plug-in Driver Replacement Installation Instructions
Click for Portfolio LD4B/LD6B Wiring Diagrams installation instructions
Click for Portfolio LD4C/LD6C Wiring Diagrams installation instructions
Click for Portfolio Round Plaster Lathing Ring Installation Instructions
Click for Portfolio 4-inch Downlighting VividTune spec sheet
Click for Portfolio D010 Drivers Dimming Guide
Click for Portfolio D010TR 0-10V Drivers Dimming Guide
