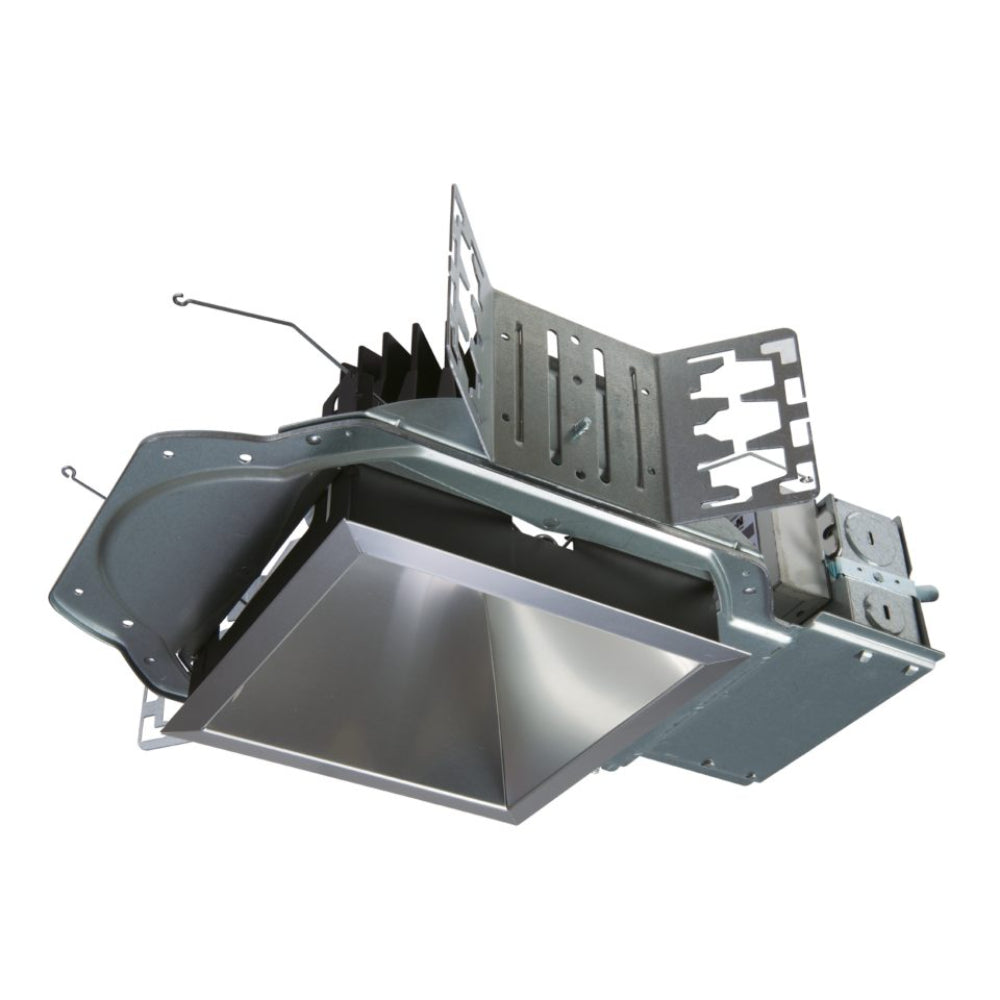

Portfolio Lighting LDSQ6C 6 Inch Recessed Downlight
Glare-free, even illumination with exceptional performanceThe 6" LED square new construction recessed downlight, also available as a lensed wall wash luminaire, is designed with a two-stage system producing smooth distribution with excellent light control and low aperture brightness. Adjustable collar adjusts for up to 2" thick ceilings and rotates+/- 7.5°. Available with die-cast or spun aluminum reflectors with light output of up to 15,000 lumen. A standard 0-10V driver dims to 1% and a multitude of optional drivers are available.
High-performing optical systemTaking a total systems approach, Portfolio LED downlight components are specifically engineered for the latest in LED technology, ensuring optimal luminaire efficacy and quality performance.
Features of Portfolio LDSQ6C- Square new construction downlight or lensed wall wash, ENERGY STAR® qualified
- Collar adjusts for up to 2" thick ceilings and rotates+/- 7.5°
- Excellent light control and low aperture brightness
- Lumens: 1,000-15,000, 0-10V dimming down to 1%
- 90, 97 or 98 CRI, 6 color temperatures, tunable white and dim to warm
- Square anodized aluminum, or die-cast reflectors
- WaveLinx and DLVP connected lighting systems compatibility
- Optional snap in or remote driver
- Plaster lathing ring accessory offered for flush reflector transition
Click for Portfolio LDSQ6C | EU6C | 6LBSQ spec sheet ![](https://cdn.shopify.com/s/files/1/1916/1697/files/pdf-icon2_thumb_ce6aac8a-5dd6-4090-9d7b-a071ab3e51c1.png?5597370559161569354")
Click for Portfolio LDSQ6C | EU6C | 6LBSQ VividTune and 98 CRI spec sheet
Click for Portfolio Performance LED brochure
Click for WaveLinx LITE Brochure
Click for Portfolio LDSQ4 / LDSQ6 Installation Instructions
Click for Portfolio Plug-in Driver Replacement Installation Instructions
Click for Portfolio Square Plaster Lathing Ring Accessory Installation Instructions
Click for Portfolio Square Trim Upper Reflector Installation Instructions
Click for Portfolio Square Knife Edge/Rimless Millwork Ring installation instructions
Click for Portfolio 6-inch Downlighting VividTune spec sheet
Click for Portfolio D010 Drivers Dimming Guide
Click for Portfolio D010TR 0-10V Drivers Dimming Guide
Click for Portfolio D010TR Phase Drivers Dimming Guide
Click for Portfolio DE010 Drivers Dimming Guide
