Portfolio Lighting LDSQA4A Recessed Lights 4 Inch

Portfolio Lighting LDSQA4A Recessed Lights 4 Inch

Portfolio Lighting

Mfg ID #: PORTFOLIO-LDSQA4A

  • $0.00

Normally ships within 3-6 Weeks

Expert Support & Project Quotes

Request a Quote Below. Please Check The Product Files For Accurate Part Numbers And Provide Project Information.

Product description for Portfolio LDSQA4A

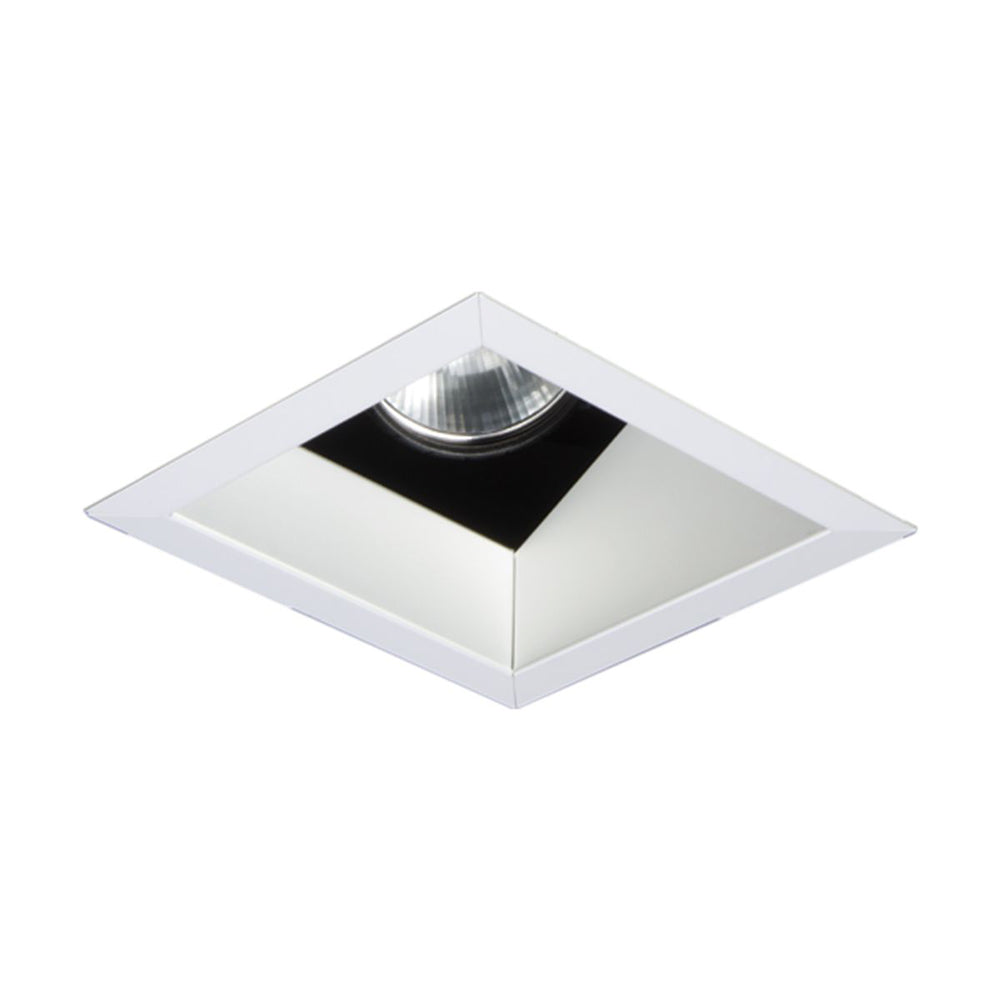

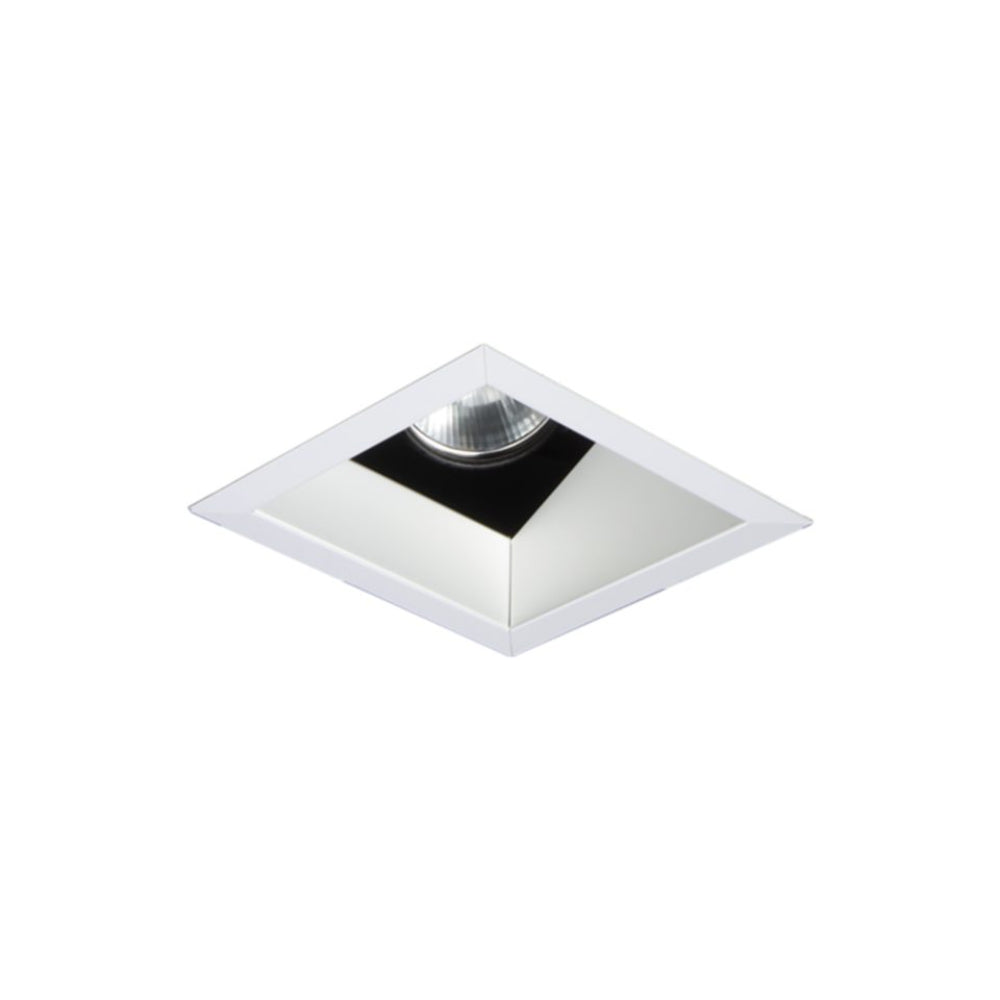

Portfolio 4-1/2 inch square aperture adjustable accent/slope LED fixture for flat or sloped ceilings. Lockable 365° rotation and tool-less 40° tilt with center beam optics provides full output without flash back. Offered in three field interchangeable beam distributions providing a smooth beam. Available with lumen packages of 900 to 2800 in color temperatures of 2700K, 3000K, 3500K and 4000K. Standard dimmable driver can dimmed with 0-10V or trailing edge controls. Accessible from above or below the ceiling plane.

Features of Portfolio LDSQA4A
  • Angle cut or lensed angle cut reflectors
  • Interchangeable 15, 25 and 35 degree upper reflector
  • Included media holder accepts two lens media
  • Locking 365° rotation and 40° tilt holds any aiming position
  • Offered in 80 or 90 CRI
  • Color variation within 3-step MacAdam ellipses
  • Standard dual dimming driver, 0-10V or trailing edge
  • Optional 100%-1% Fifth Light (DALI), 0-10V or DMX drivers
Product Files

Click for LDSQA4A 4L 4- Inch Adjustable Specification Sheet

Click for LumaWatt Pro Commercial Recessed Spec Sheet

Click for LDSQA4 Adjustable LED Installation Instructions

...Read More


Product description for Portfolio LDSQA4A

Portfolio 4-1/2 inch square aperture adjustable accent/slope LED fixture for flat or sloped ceilings. Lockable 365° rotation and tool-less 40° tilt with center beam optics provides full output without flash back. Offered in three field interchangeable beam distributions providing a smooth beam. Available with lumen packages of 900 to 2800 in color temperatures of 2700K, 3000K, 3500K and 4000K. Standard dimmable driver can dimmed with 0-10V or trailing edge controls. Accessible from above or below the ceiling plane.

Features of Portfolio LDSQA4A
  • Angle cut or lensed angle cut reflectors
  • Interchangeable 15, 25 and 35 degree upper reflector
  • Included media holder accepts two lens media
  • Locking 365° rotation and 40° tilt holds any aiming position
  • Offered in 80 or 90 CRI
  • Color variation within 3-step MacAdam ellipses
  • Standard dual dimming driver, 0-10V or trailing edge
  • Optional 100%-1% Fifth Light (DALI), 0-10V or DMX drivers
