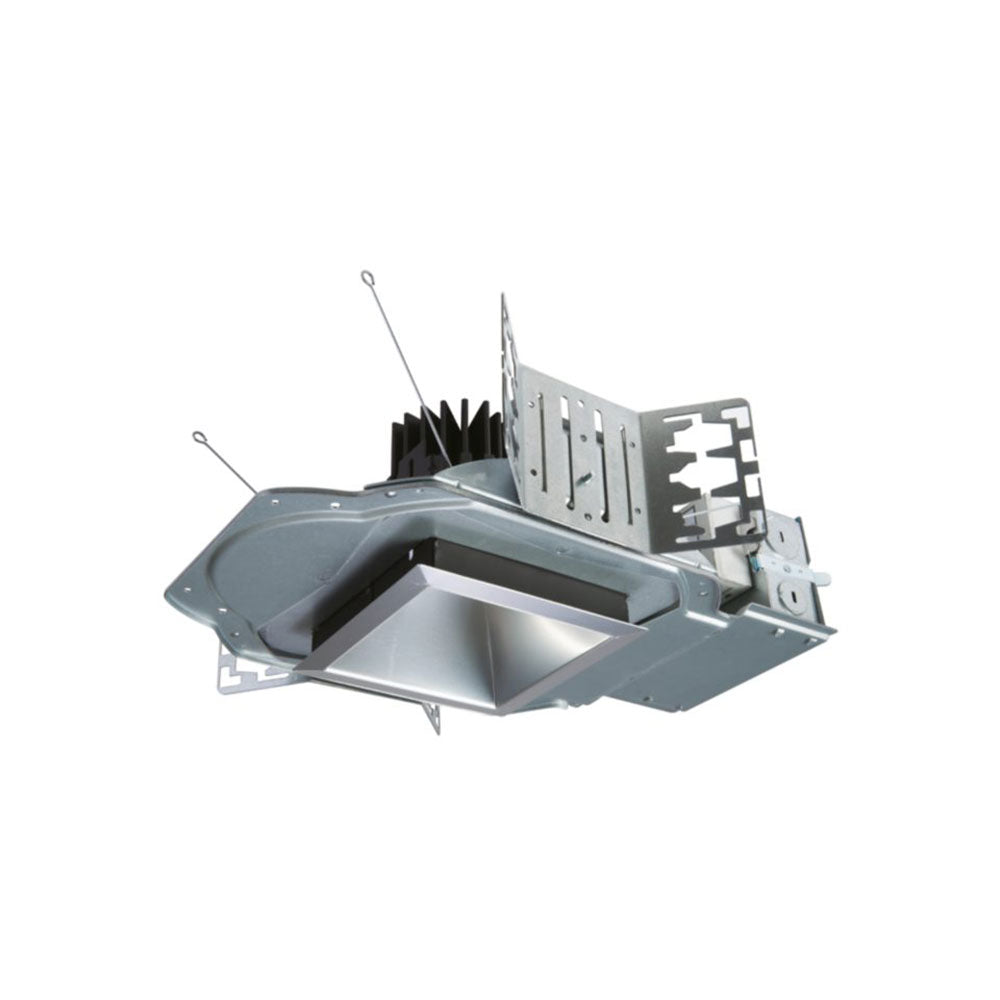

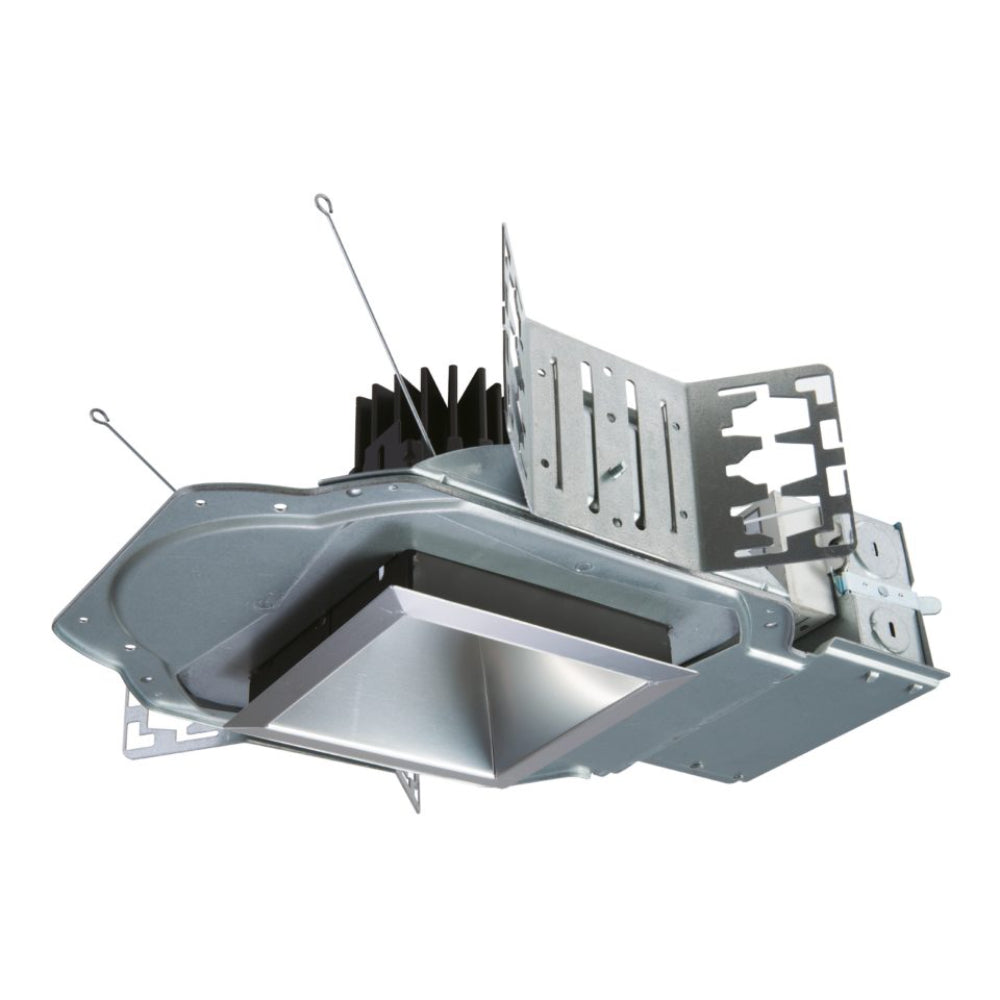

Portfolio Lighting LDSSQ4C 4 Inch Recessed Downlight
Glare-free, even illumination with exceptional performanceThe 4" new construction recessed shallow downlight, is designed with a two-stage system producing smooth distribution with excellent light control and low aperture brightness. The luminaires are available with painted die cast aluminum reflectors with light output of up to 4,000 lumen. A standard 0-10V driver dims to 1% and a multitude of optional drivers are available.
Numerous color temperature choicesThis comprehensive line offers a choice of multiple color temperatures from 2400K to 5000K in 80, 90 and 97 CRI to satisfy specific application needs.
Features of Portfolio LDSSQ4C- Square new construction downlight for shallow plenum space; ENERGY STAR® qualified
- Excellent light control and low aperture brightness
- Lumens: 1,000-4,000, 0-10V dimming down to 1%
- CRI: 90, 97 or 98, D2W™ option from 3000K to 1850K
- 6 color temperatures: 2400K, 2700K, 3000K, 3500K, 4000K and 5000K CCT
- W2N Tunable White 2700K-6500K or 2000K-5000K
- Painted die-cast and non-conductive reflectors
- Optional snap in or remote driver
- WaveLinx and DLVP connected lighting systems compatibility
- Plaster lathing ring accessory offered for flush reflector transition
Product Files
Click for Portfolio LDSSQ4C | EU4C | 4LBSSQ spec sheet ![](https://cdn.shopify.com/s/files/1/1916/1697/files/pdf-icon2_thumb_ce6aac8a-5dd6-4090-9d7b-a071ab3e51c1.png?5597370559161569354")
Click for Portfolio LDSSQ4C | EU4C | 4LBSSQ VividTune and 98 CRI spec sheet
Click for Portfolio Performance LED brochure
Click for WaveLinx LITE Brochure
Click for Portfolio LDSSQ4 / LDSSQ6 Installation Instructions
Click for Portfolio Plug-in Driver Replacement Installation Instructions
Click for Portfolio Square Plaster Lathing Ring Accessory Installation Instructions
Click for Portfolio Square Trim Upper Reflector Installation Instructions
Click for Portfolio Square Knife Edge/Rimless Millwork Ring installation instructions
Click for Portfolio 4-inch Downlighting VividTune spec sheet
Click for Portfolio D010 Drivers Dimming Guide
Click for Portfolio D010TR 0-10V Drivers Dimming Guide
Click for Portfolio D010TR Phase Drivers Dimming Guide
Click for Portfolio DE010 Drivers Dimming Guide
