Description

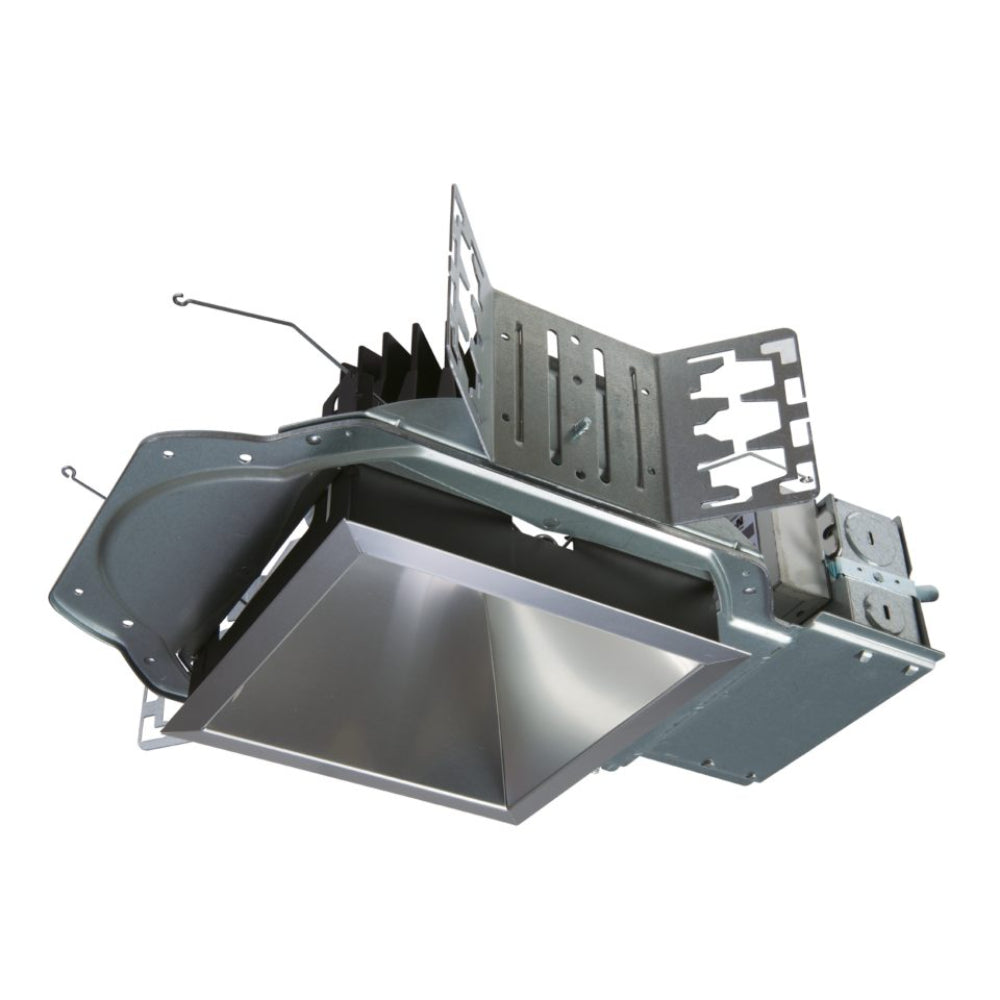

Portfolio Lighting LDSSQ6C 6" Shallow General Illumination Square Downlight
Glare-free, even illumination with exceptional performance
The 6" new construction recessed shallow downlight, is designed with a two-stage system producing smooth distribution with excellent light control and low aperture brightness. The luminaires are available with painted die cast aluminum reflectors with light output of up to 4,000 lumen. A standard 0-10V driver dims to 1% and a multitude of optional drivers are available.
Ideal for these spaces
- Commercial Downlight
- Healthcare
- Retail
- Education
- Hospitality
- Residential
Numerous color temperature choices
This comprehensive line offers a choice of multiple color temperatures from 2400K to 5000K in 80, 90 and 97 CRI to satisfy specific application needs.
VividTune fine-tuning of light
Whether you're looking to optimize productivity or simply add dramatic flair, VividTune's tunable white technology allows you to adjust the color temperature from warm white to cool white, creating an environment that fosters productivity and concentration.
D2W™ Dim-to-warm solution
Bring the warm, dim glow reminiscent of traditional incandescent and halogen sources into your space, for a fraction of the energy consumption, with our Dim-to-Warm solution.
Features
- Square new construction downlight for shallow plenum space; ENERGY STAR® qualified
- Excellent light control and low aperture brightness
- Lumens: 1,000-4,000, 0-10V dimming down to 1%
- CRI: 90, 97 or 98, D2W™ option from 3000K to 1850K
- 6 color temperatures: 2400K, 2700K, 3000K, 3500K, 4000K and 5000K CCT
- W2N Tunable White 2700K-6500K or 2000K-5000K
- Painted die-cast reflectors
- Optional snap in or remote driver
- WaveLinx and DLVP connected lighting systems compatibility
- Plaster lathing ring accessory offered for flush reflector transition
Product Files
Click for Portfolio Performance LED Brochure
Click for WaveLinx LITE Brochure
Click for Portfolio LDSSQ4 / LDSSQ6 installation instuctions
Click for Portfolio Square Plaster Lathing Ring Accessory installation instuctions
Click for Portfolio Square Trim Upper Reflector installation instuctions
Click for Portfolio Plug-in Driver Replacement installation instuctions
Click for Portfolio Square Knife Edge/Rimless Millwork Ring Installation Instructions
Click for Portfolio LD4C/LD6C Wiring Diagrams Installation Instructions
Click for Portfolio EM6 Test Switch Instruction Sheet
Click for Commercial Downlighting Product Guide
Click for Portfolio Product Selection Guide
Click for WaveLinx LITE Indoor Ambient Luminaire Sell Sheet
Click for Portfolio 6-inch Downlighting VividTune Specification Sheet
Click for Portfolio D010 Drivers Dimming Guide
Click for Portfolio D010TR 0-10V Drivers Dimming Guide
Click for Portfolio D010TR Phase Drivers Dimming Guide
