Description
Portfolio Lighting 2" Standard Cylinder LSR2B, LSSQ2B Round and Square LED
Small size, powerful performance

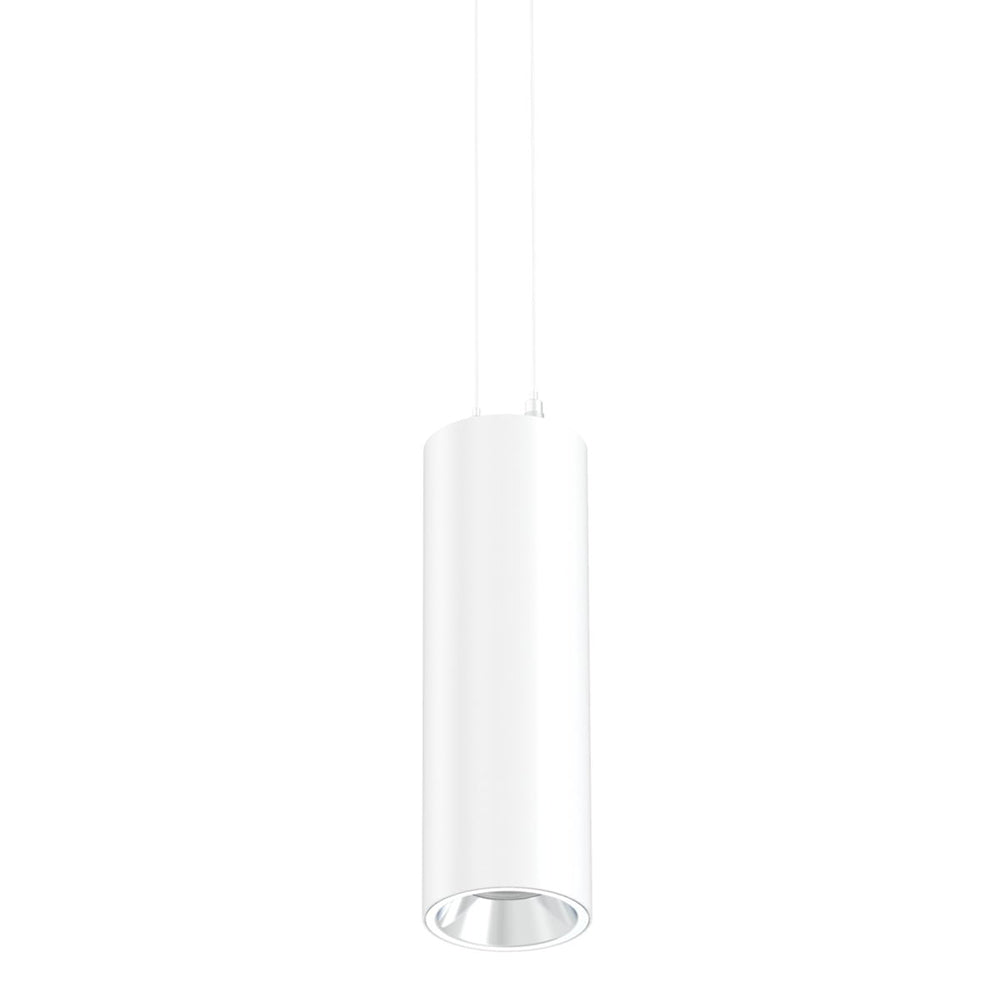

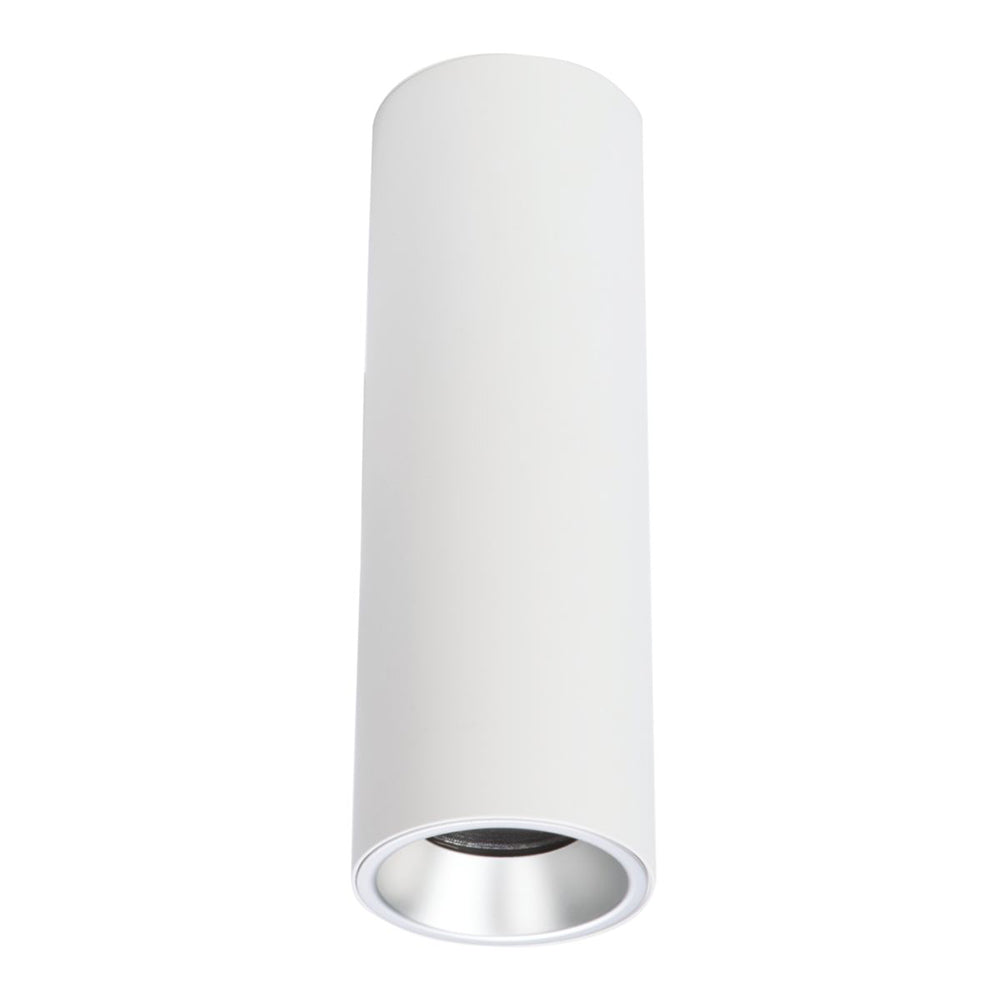

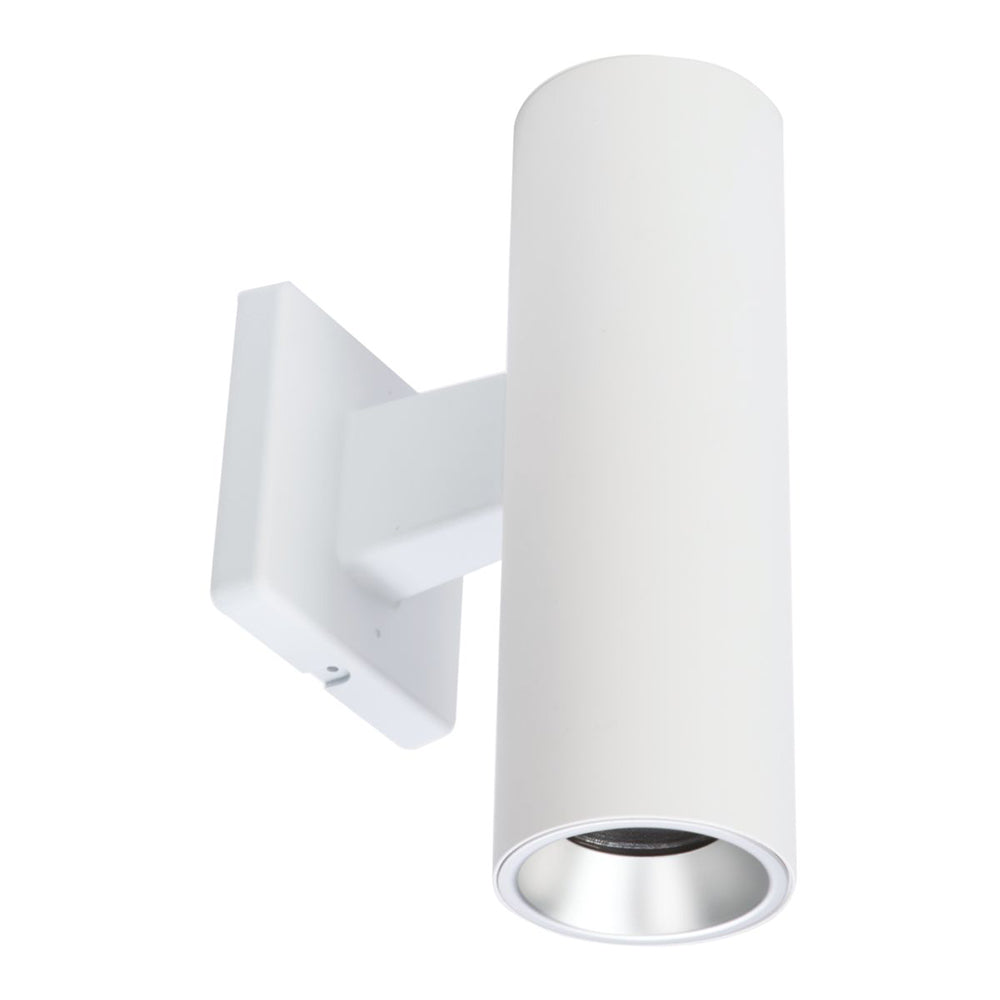

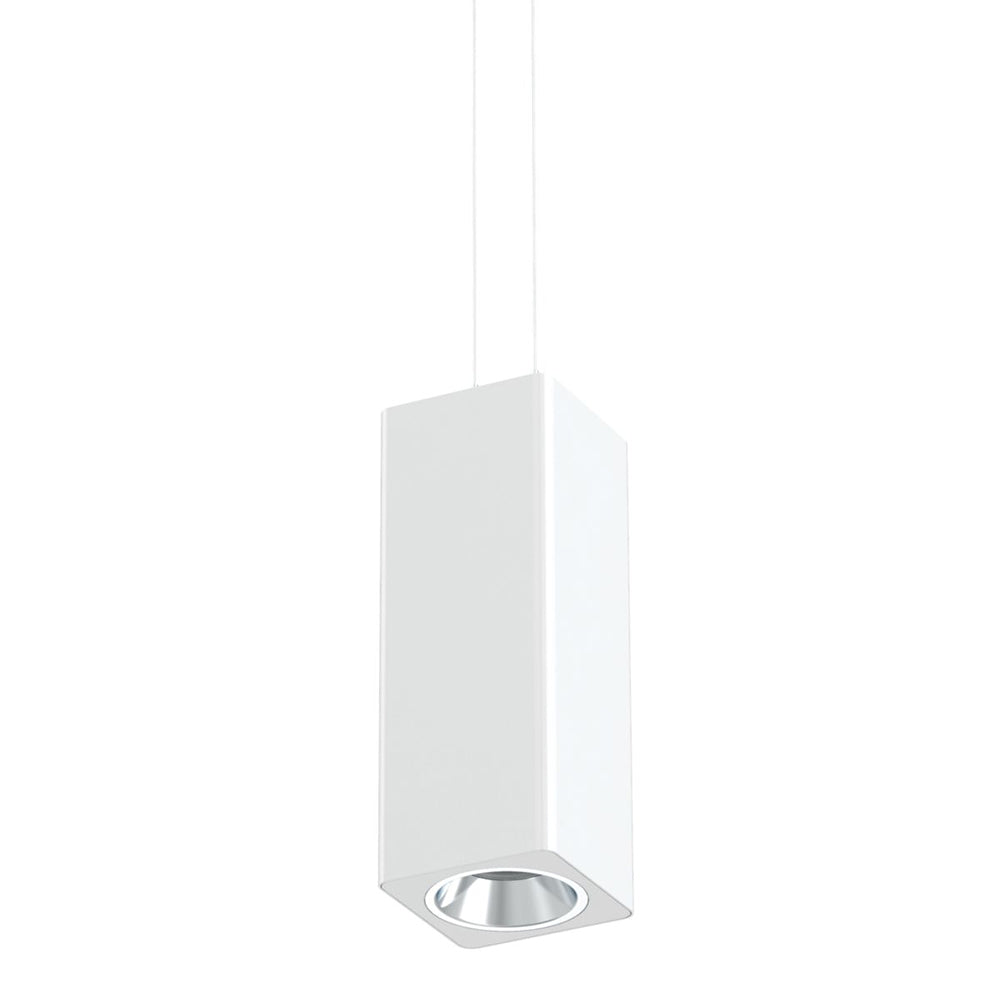

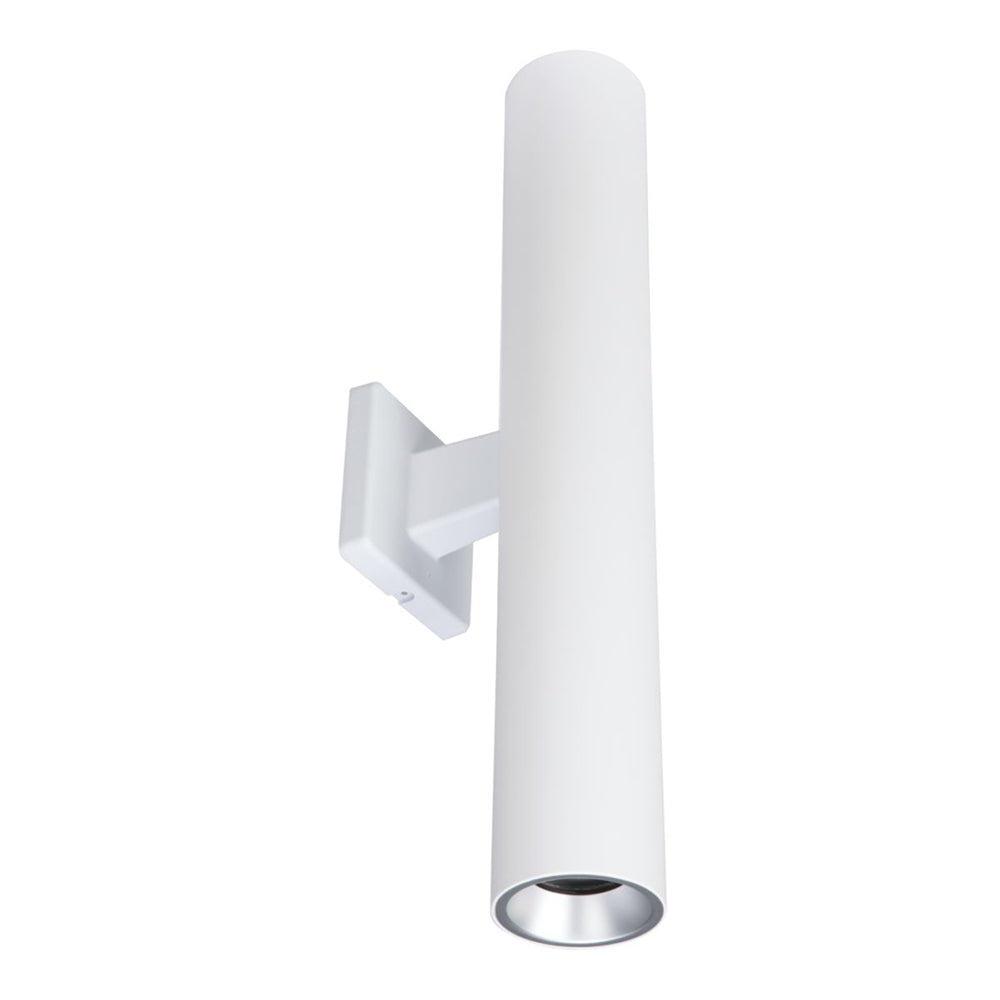

Designed to compliment any space, the 2"" LED round and square cylinders are offered in wall- or ceiling-mount with optional pendant kits. Optical system provides superior light control and low aperture brightness while delivering over 80 lm/W. The cylinders are available in multiple lumen packages, color temperatures and a variety of finishes. Standard 0-10V driver dims to 1% with a multitude of optional remote drivers available. The 2-inch cylindersare ideal for replacing existing incandescent cylinders with energy-saving LED.
Ideal for these spaces
- Commercial Downlight
- Healthcare
- Retail
- Education
- Hospitality
- Residential
High-performing optical system
Taking a total systems approach, Portfolio LED downlight components are specifically engineered for the latest in LED technology, ensuring optimal luminaire efficacy and quality performance.
D2W™ Dim-to-warm solution
Bring the warm, dim glow reminiscent of traditional incandescent and halogen sources into your space, for a fraction of the energy consumption, with our Dim-to-Warm solution.
Numerous color temperature choices
This comprehensive line offers a choice of multiple color temperatures from 2400K to 5000K in 80, 90 and 97 CRI to satisfy specific application needs.
Features
- Distributions: 15°, 25°, 40° and 55°
- Ceiling, wall, stem, aircraft cable, LuxWire power over cable
- Extruded aluminum housing, Die-cast or spun aluminum reflectors
- 6 color temperatures: 2400K, 2700K, 3000K, 3500K, 4000K and 5000K CCT
- CRI: 80, 90 or 97, D2W™ option from 3000K to 1850K
- Lumens: 500, 1,000 1,500 and 2,000
- Colors: Matte Black, Matte White, Bronze and Silver paint finishes
- Standard 0-10V dimming down to 1%, ENERGY STAR® qualified

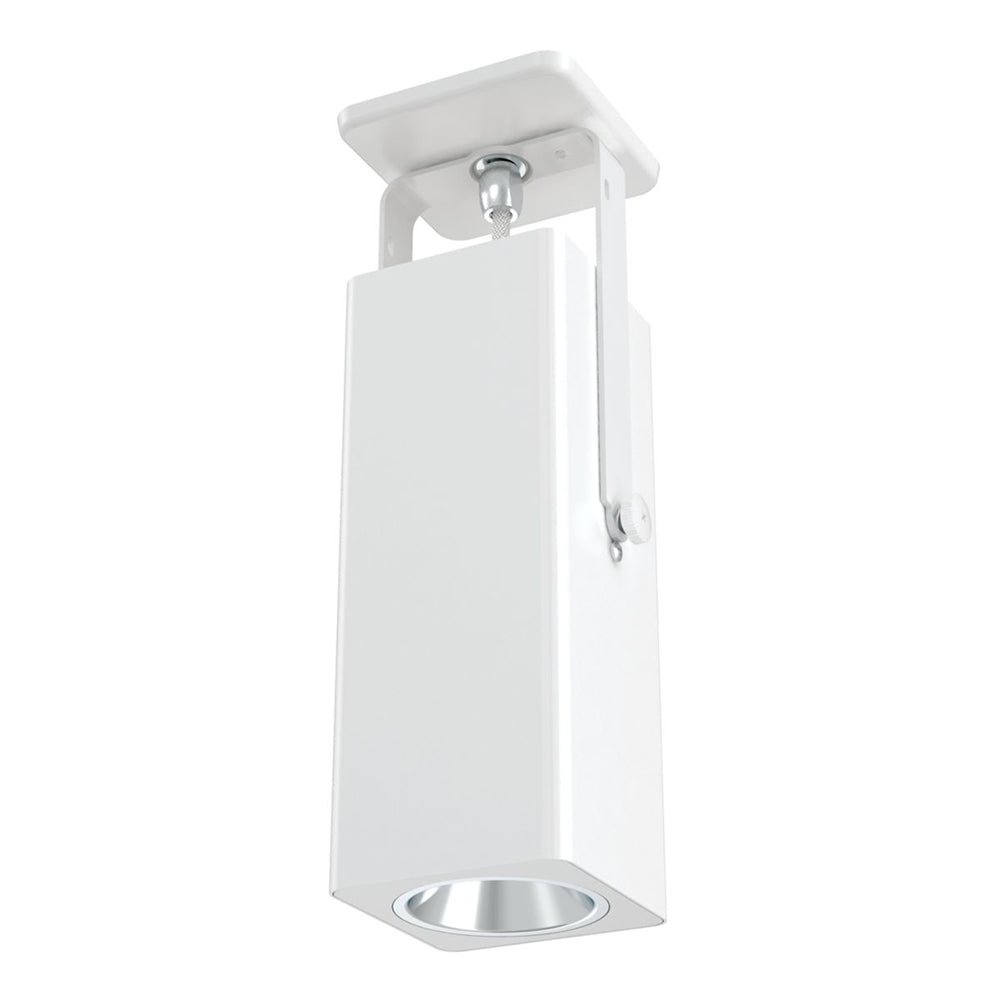

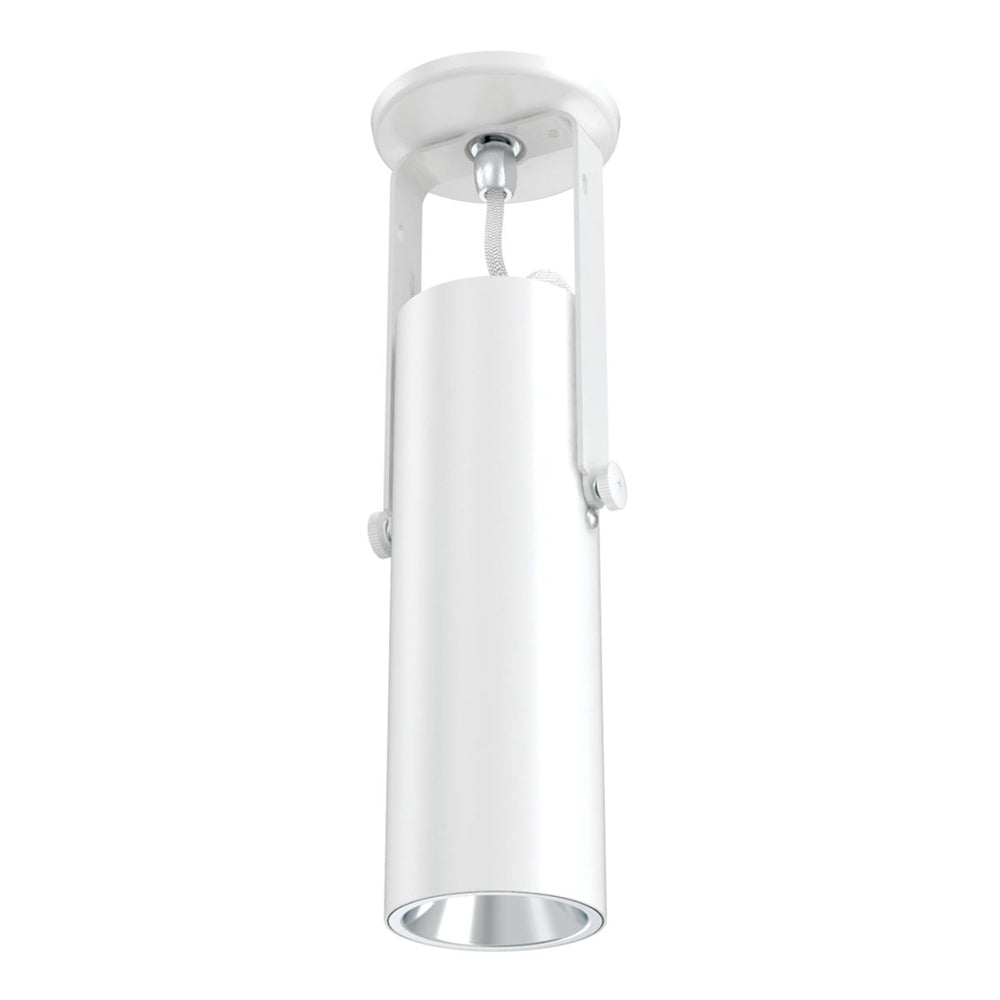

- Down, up/down and adjustable yoke
- Integral or remote driver options
Product Files
Click for Portfolio LSR2B / LSSQ2B 2-inch Cylinder specification sheet
Click for Portfolio Cylinder brochure
Click for Portfolio LD2/LDA2 2-inch downlight brochure
Click for Portfolio LSR2B / LSSQ2B Commercial LED Rough-In Installation Instructions
Click for Portfolio LSRUD2B/ LSSQUD2B Commercial LED Rough-In Installation Instructions
Click for Portfolio LSRWM2B / LSSQWM2B Commercial LED Rough-In Installation Instructions
Click for Portfolio Remote Driver installation instructions
Click for Portfolio Up/Down Cylinder Wet Location Lens installation instructions
Click for Portfolio Wiring Diagrams and Instructions LER*4B, LESQ*4B, LER*6B, LESQ*
Click for Portfolio Conduit Cutout Canopy for Surface Mounted J-Box installation instructions
Click for Commercial Downlighting Product Guide
Click for Portfolio Product Selection Guide
