Description

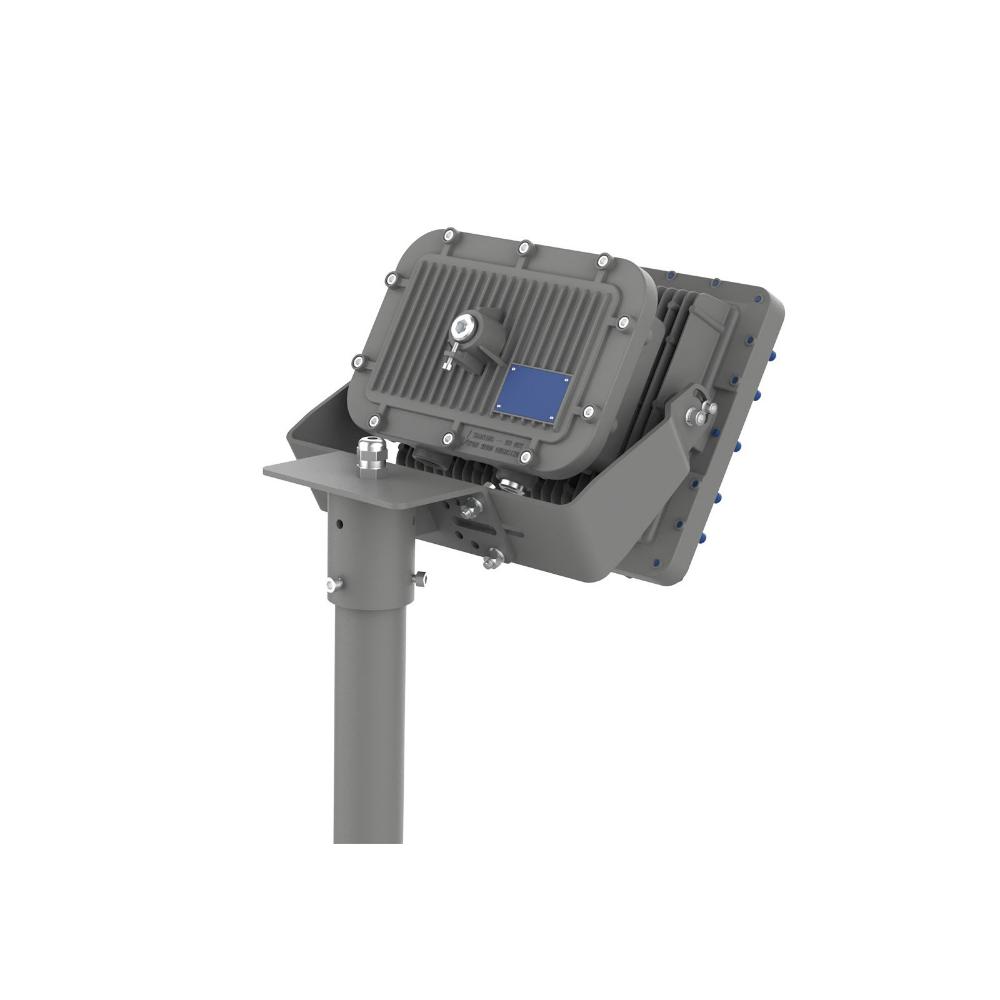

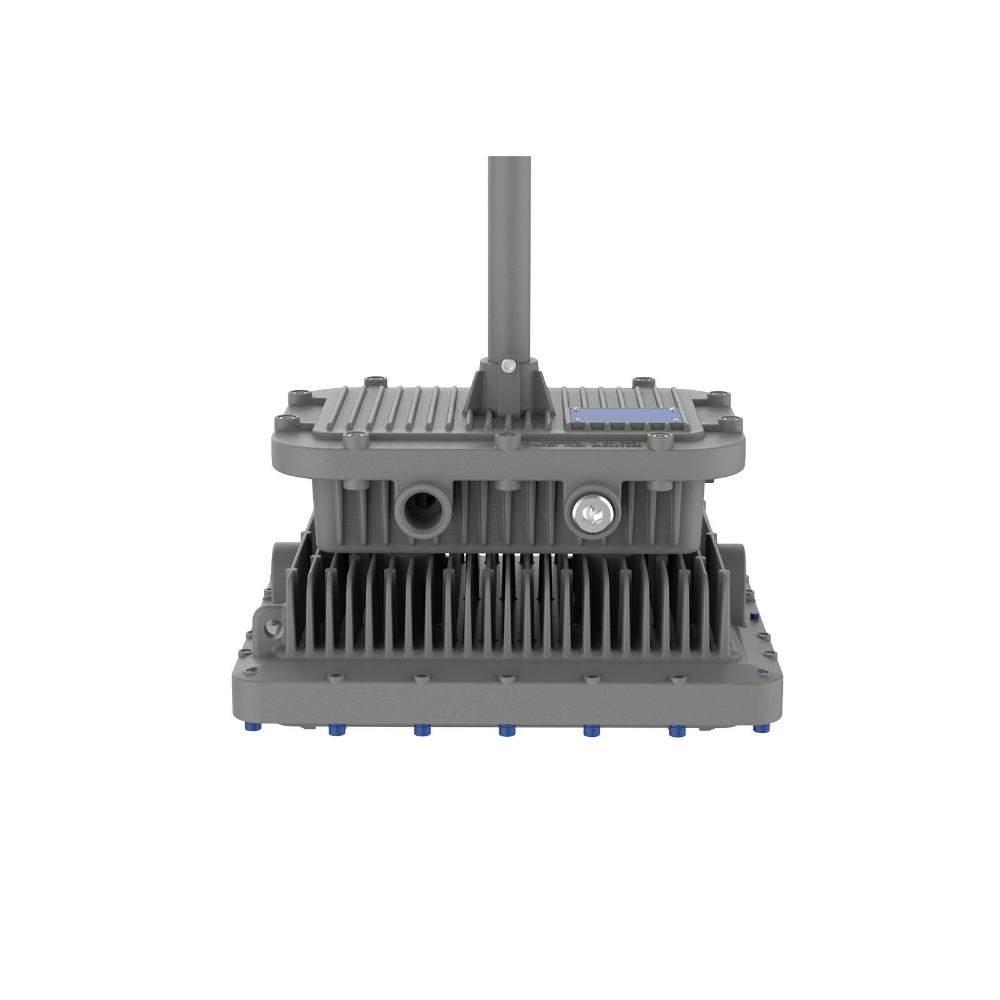

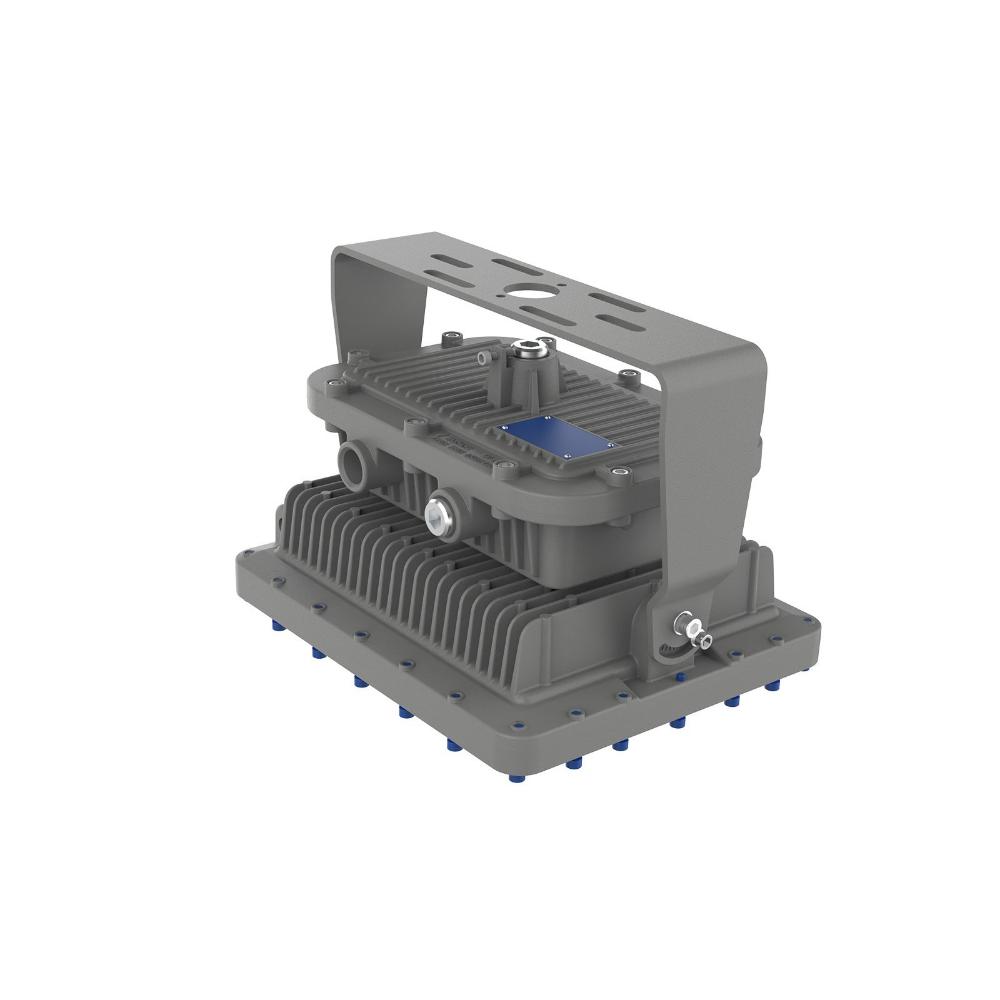

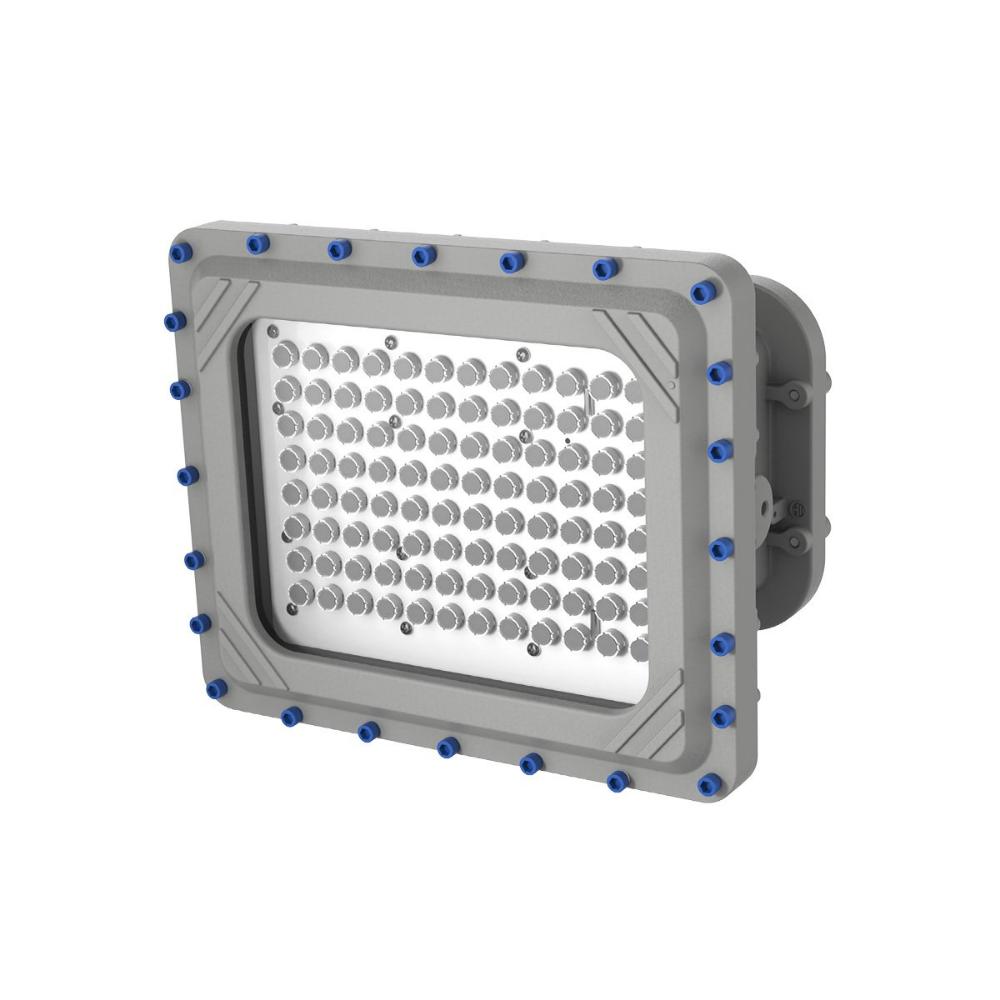

Red Sky Lighting Block Harsh Series Flood Light
Engineered for harsh environments, the Block Harsh Series delivers up to 150 lm/W and 121,000-hour life at 140°F. Its rugged, NEMA 4X-rated housing resists corrosion, vibration, dust, and salt. With 10kV surge protection, dimmable driver, and multiple optics, it ensures safe, efficient lighting in extreme industrial settings-ideal for petrochemical plants, marine platforms, and coastal facilities.
Specifications
Electrical Parameters
- Power (W): 80W, 100W, 120W, 150W
- Voltage(V): 100-277V AC, 347-480V AC
- Frequency: 50/60Hz
- Power Factor: ≥0.90
- THD: <20%
- L70: 121,000 hrs@140°F
- Dimming: 0-10V, Range 10-100%
- Surge Protection: 10KV
- Warranty: LEDs: 10 years, Driver: 7 years
Optical Parameters
- Lumen Output: 11,777Lm, 14,416Lm , 17,416Lm , 21,141Lm
- Lumen Efficacy: 146Lm/W
- Available Beam Angle: 25° / 60° / 120°
- Correlated Color Temperature (CCT): 3000K/4000K/5000K
- Color Rendering Index (CRI): 80 CRI
Mechanical Parameters
- Hardware: Stainless steel 316
- Lens Material: Tempered Glass
- Mounting Options: Pendant, Yoke, Stanchion
- Product Weight: 80/100W: 33.5lbs/15.2kg, 120/150W: 33.7lbs/15.3kg
- Cable Entry: (3) 3/4" NPT
- Product Dimensions (LxWxH): 12.9 x 10.7 x 8.4 in (328 x 271 x 214 mm)
Environmental Parameters
- Ambient Operating Temperature: -40°F ~ +140°F (-40°C ~ +60°C)
Compliance
Ratings:
- UL 1598 Wet Locations
- UL 1598A Marine Outside Type (Salt Water)
- Salt Spray 720 hrs (ISO 9227)
- NEMA 4X
- IP66
- IK09
Certifications:
- UL1598
- UL1598A
- CSA C22.2 NO. 250.0
- FCC Part 15, Subpart B
Product Files
Click for Red Sky Lighting BLK2 HS Specification
Click for Red Sky Lighting BLK2 HS Installation Manual
Click for Red Sky Lighting BLK2 HS Certificate - UL1598 Non-Hazardous
Click for Red Sky Lighting BLK2 HS Certificate - UL1598A Marine
