Description

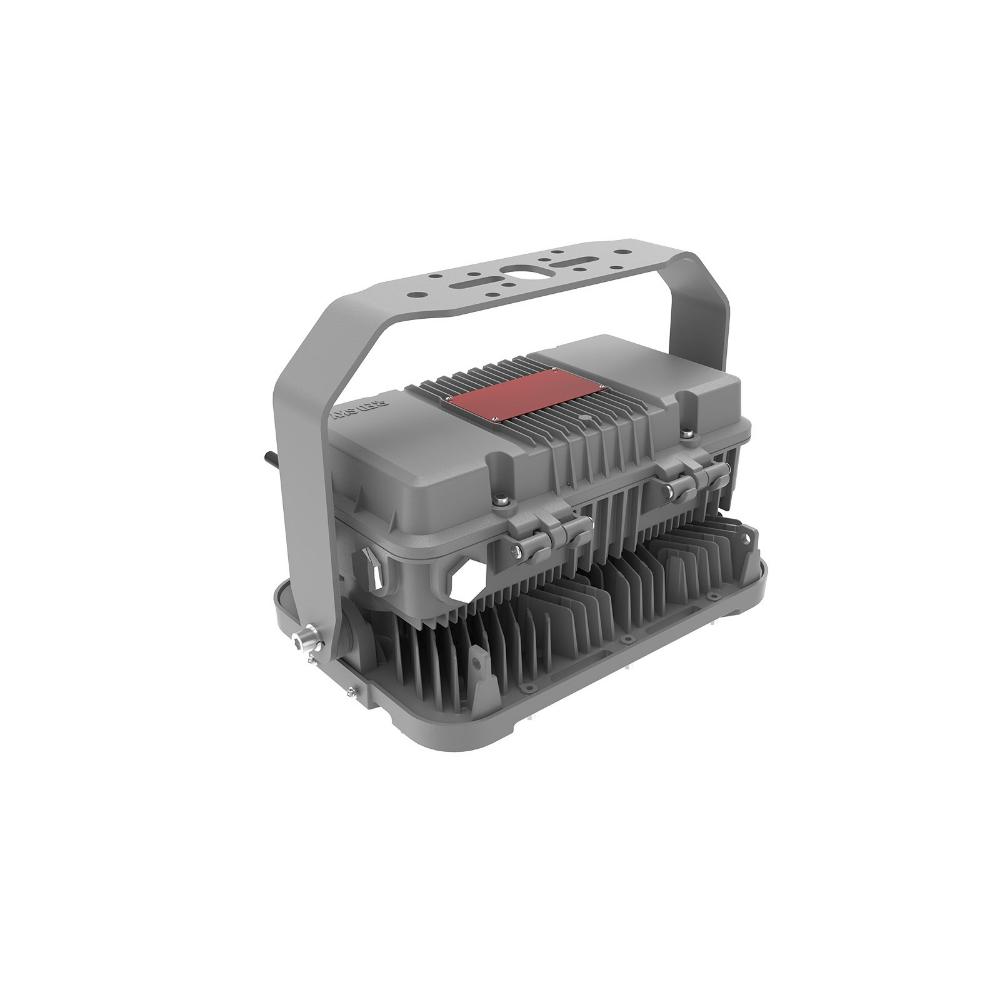

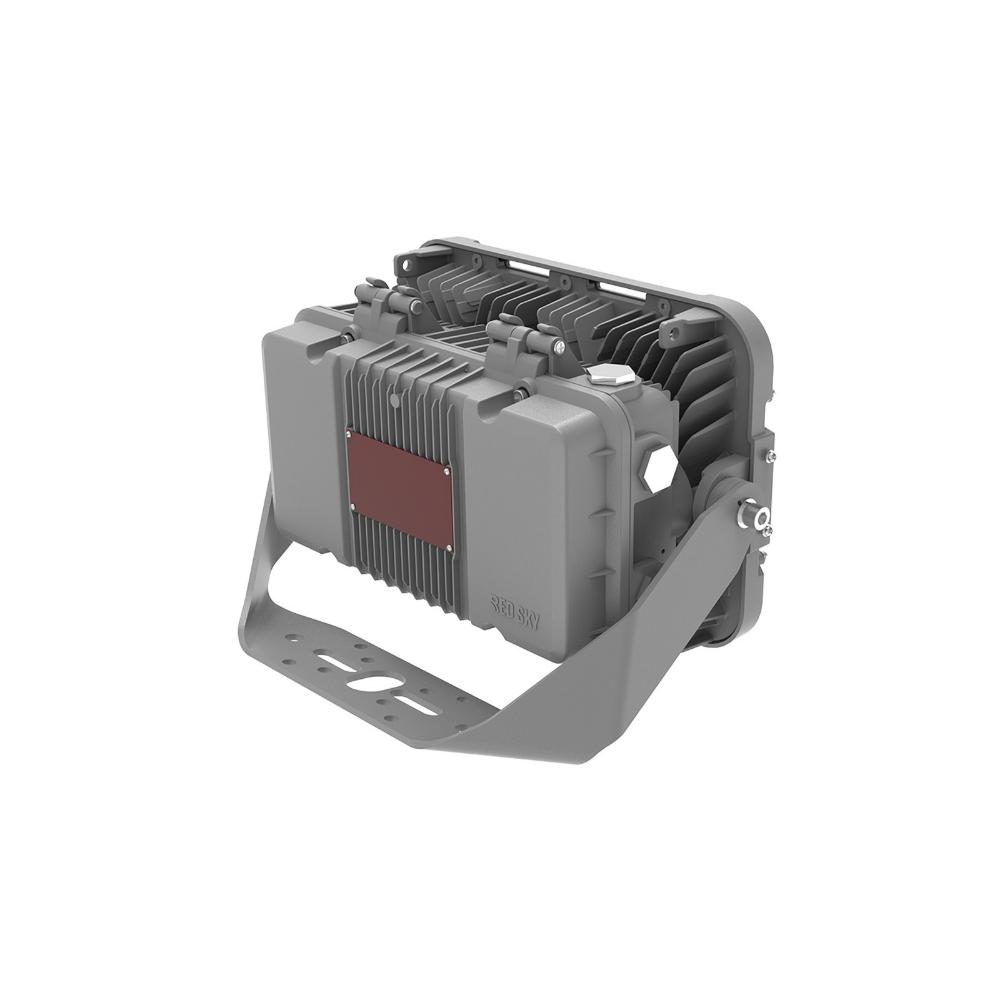

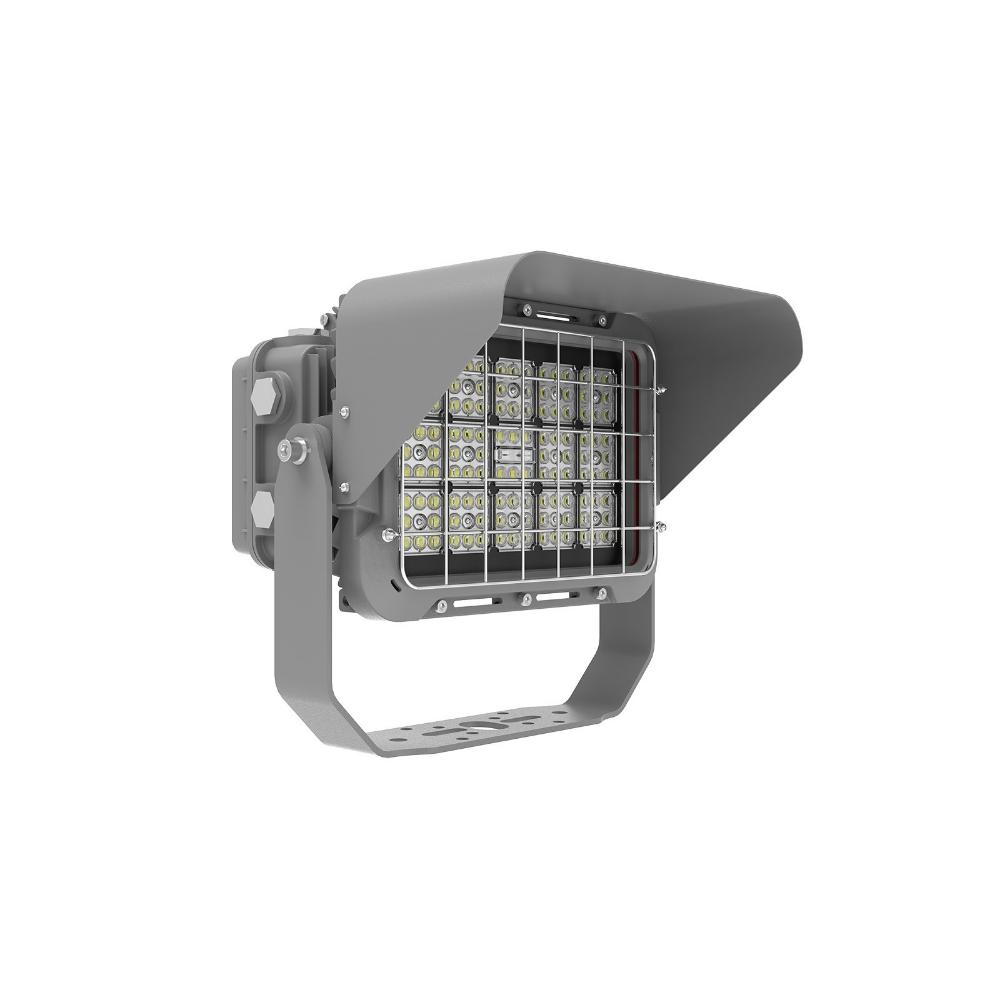

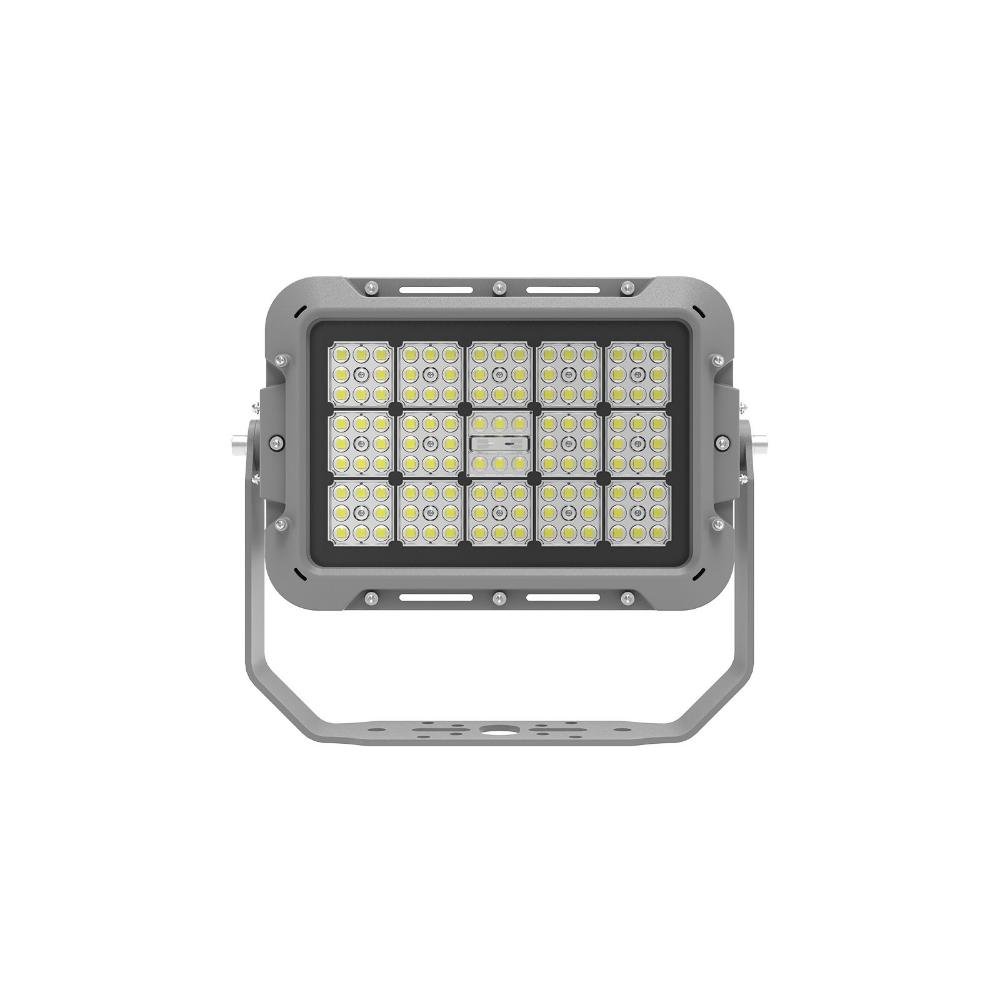

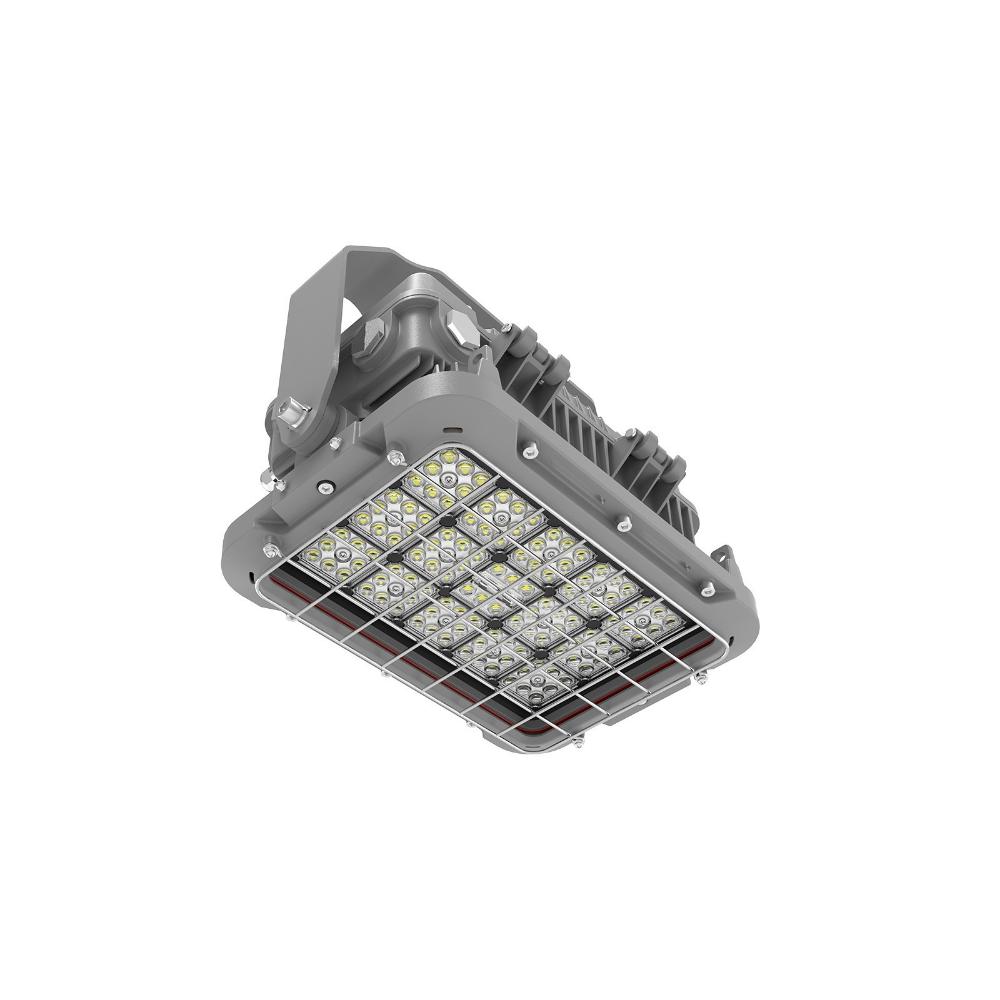

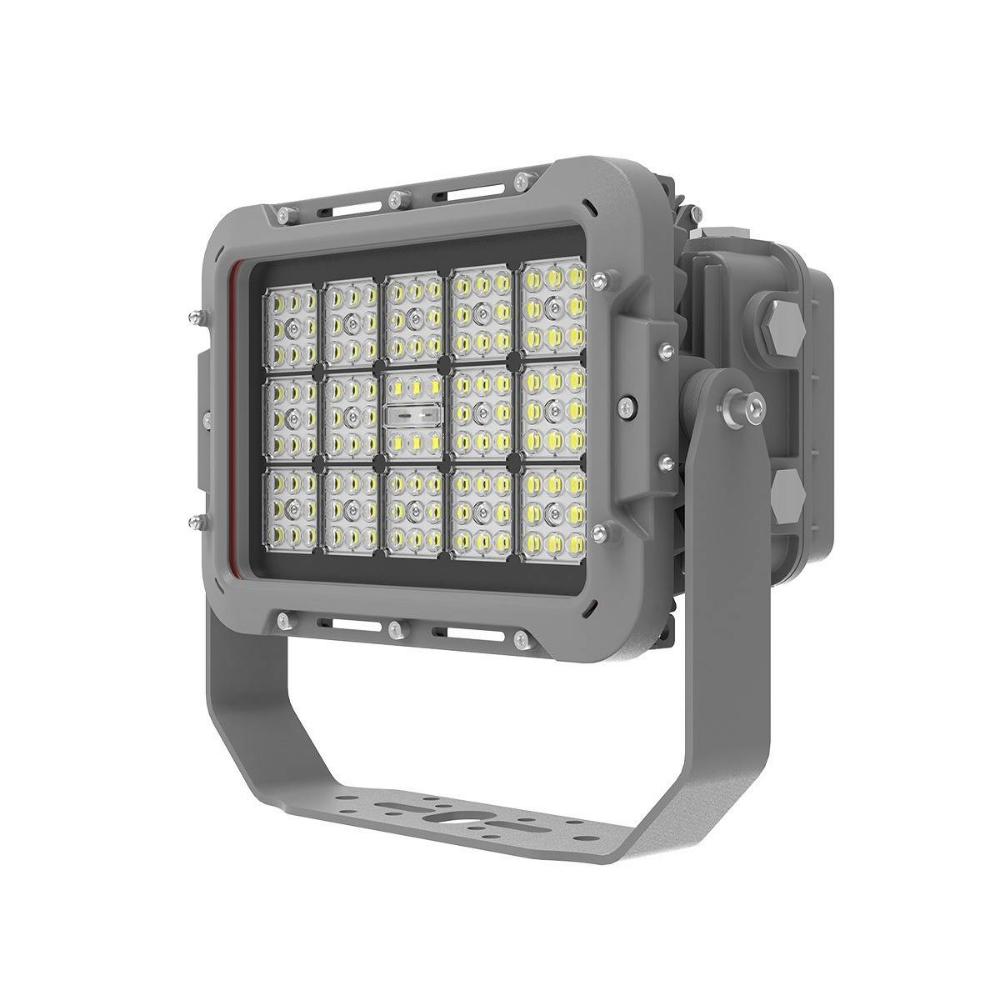

Red Sky Lighting Block Max Series Flood Light
The BLOCK MAX Series by Red Sky Lighting is a line of high-performance LED lighting fixtures designed for use in harsh and hazardous environments.These robust lights offer a wide lumen range from 7,000 to 30,000 lumens with an efficiency of 180 lumens per watt,ensuring both brightness and energy savings. They feature easy installation,a compact design,and multiple beam angles and color temperatures to suit various applications.
Specifications
Electrical Parameters
- Power: 40W, 90W, 115W, 145W, 180W
- Rated Input Current(220V AC): 0.202A, 0.455A, 0.581A, 0.733A, 0.909A
- Voltage(V): 100-277V AC
- Frequency: 50/60Hz
- Power Factor: ≥0.90
- THD: <20%
- L70: >102,000 hrs@55°C
- Dimming & Auxiliary Power: 0-10V，300mA@12Vdc
- Surge Protection: L/N-FG 6KV，L-N 4KV
- Supply Wire: 1mm²~4mm²
- Charge Time: 24 hours
- Emergency Run Time: 40/90W: 5000Lm@90mins,2500Lm@180mins
- Battery: Ni-CD Rechargeable Battery
- Warranty: Driver：5 years, Battery: 1 years
Optical Parameters
- Lumen Output: 7,162Lm, 15,523Lm, 20,741Lm, 25,800Lm, 31,164Lm
- Lumen Efficacy: 180Lm/W
- Available Beam Angle: 30° / 60° / 90° / 120°
- Correlated Color Temperature (CCT): 3000K/4000K/5700K
- Color Rendering Index (CRI): Ra≥70
Mechanical Parameters
- Housing Material: Copper-free (< 0.4%) die-cast aluminum
- Hardware: Stainless steel 316
- Lens Material: 40/90W: Clear Glass/Diffuse Glass** 115/145/180W: Clear Glass

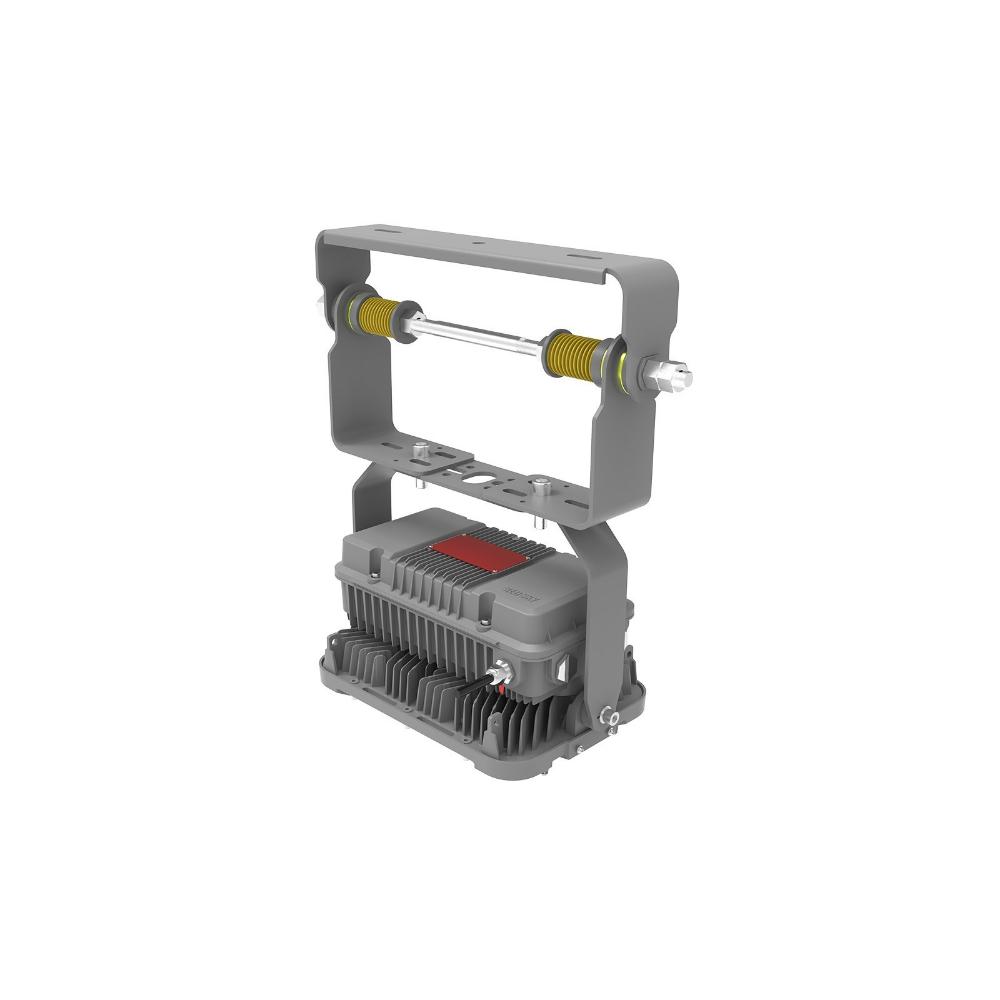

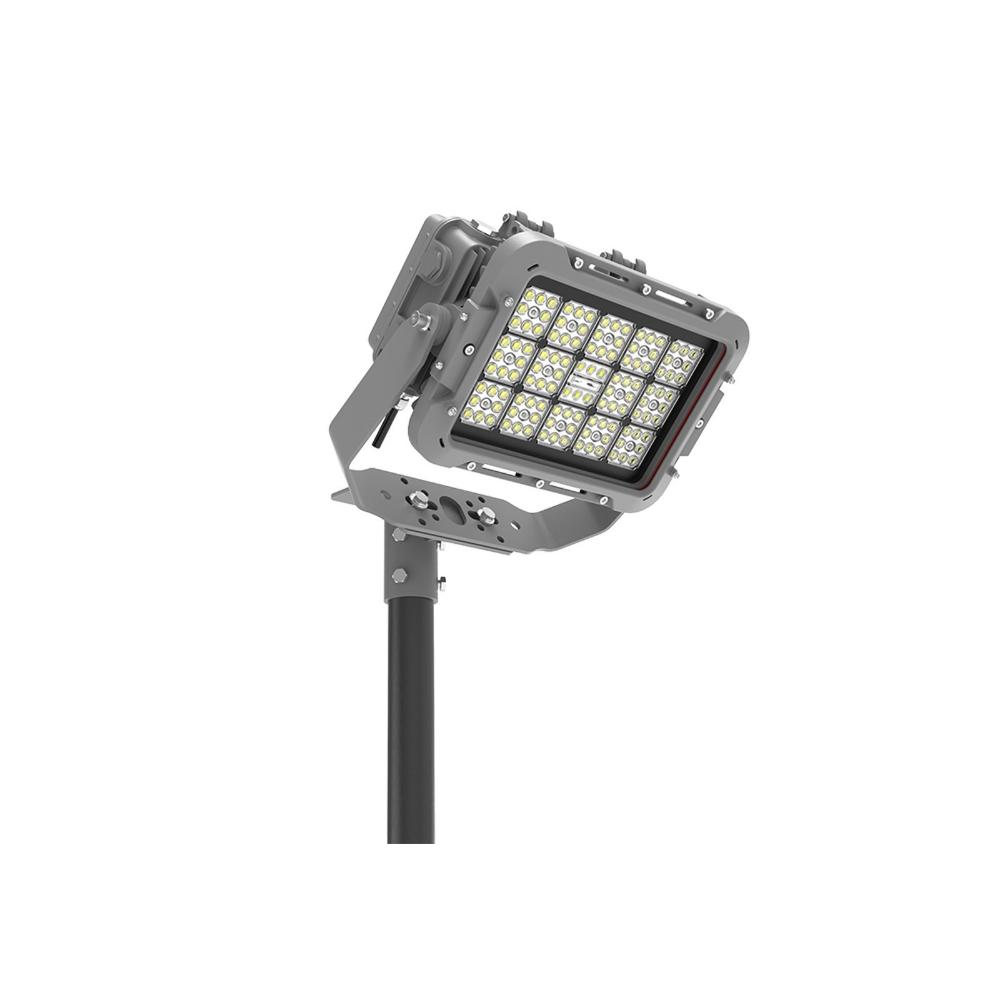

- Mounting Options: Straight Yoke, Angled Yoke, Stanchion
- Product Weight: 40/90W: 25.8lbs/11.7kg, 31.1lbs/14.1kg@EM 115/145/180W:27.6lbs/12.6kg
- Package Weight: 40/90W:27.9lbs/12.7kg, 33.2lbs/15.1kg@EM 115/145/180W:29.7lbs/13.6kg
- Cable Entry: (4) M20/M25 x 1.5
- Product Dimensions (LxWxH): 16.3 x 9.9 x 11.2 in (413 x 251 x 285 mm)
- Package Dimensions (LxWxH): 19.7 x 13.4 x 11.8 in (500 x 340 x 300 mm)
Environmental Parameters
- Corrosion resistance: Salt Spray 720 hrs (ISO 9227)
- Vibration Resistance: IEC60068-2-6 3g
- Ambient Operating Temperature: -4°F ~ +131°F (-20°C ~ 55°C)@standard, 32°F ~ +131°F (0°C ~ 55°C)@EM
- T-Code Rating: 40/90W:Gas-T5; Dust-85°C 115/145/180W:Gas-T4; Dust-T85°C
- EPA wind rating (FT2): 1.753/0.16(Yoke), 1.888/0.18(Stanchion)
Compliance
Ratings:
- UL 1598 Wet Locations
- UL 1598A Marine Outside Type (Salt Water)
- IP67
- IK08
Certifications:
- UL1598
- UL1598A
- CSA C22.2 No. 250.0
