Description

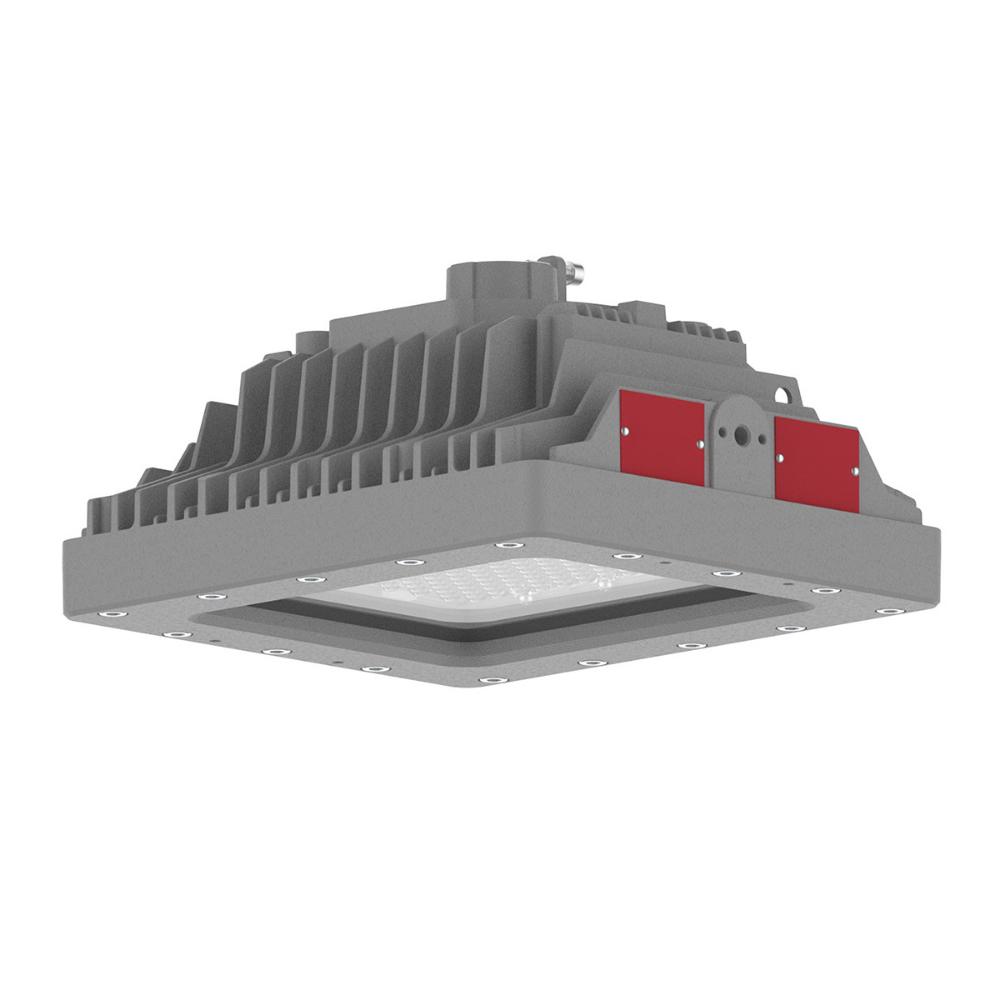

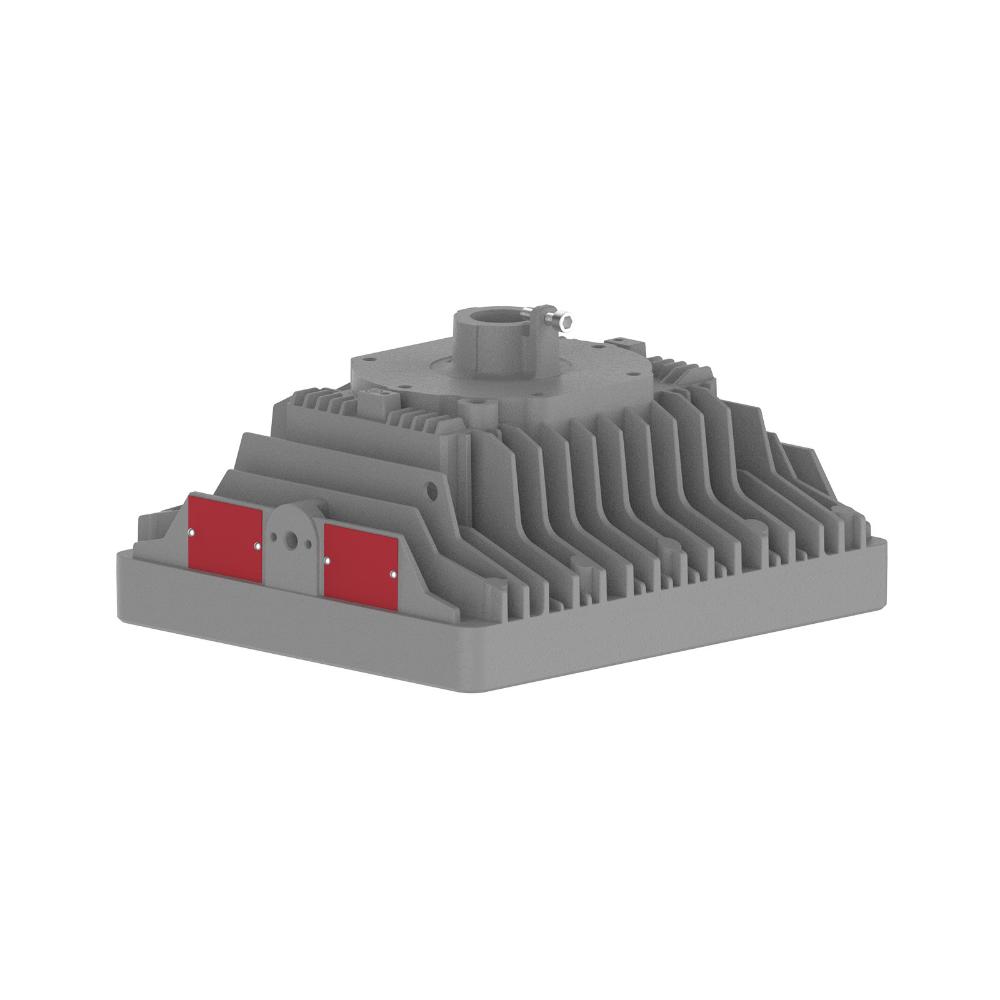

Red Sky Lighting Block Mini Series 2 H1 Flood Light
Block Mini Series H1 (BLM2 H1) is a compact explosion-proof LED luminaire designed for hazardous location applications requiring reliable performance, long service life, and simplified installation. Certified for Class I Division 1 & 2 and Zone 1 & 2 environments, it is suitable for areas where flammable gases, vapors, or combustible dusts may be present. Featuring a factory-sealed housing, advanced thermal management, and multiple mounting options, the BLM2 provides dependable illumination for a wide range of industrial and hazardous area applications.
Specifications
Electrical Parameters
- Power: 21W, 40W, 50W, 60W
- Voltage/Frequency: 120-277V AC 347-480V AC
- Frequency: 50/60Hz
- Power Factor: ≥0.90
- THD: <20%
- L70: 21W, 40W, 50W: 219,000 hrs@149°F, 60W: 127,000 hrs@147°F
- Surge Protection: 10KV
- Warranty: LEDs: 10 Years, Driver: 7 Years
Optical Parameters
- Lumen Output*: 2,977Lm, 5,617Lm , 6,945Lm, 8,100Lm
- Lumen Efficacy*: 140Lm/W
- Available Beam Angle: T2/T3/T5
- Correlated Color Temperature (CCT): 3000K/4000K/5000K
- Color Rendering Index (CRI): 80 CRI
Mechanical Parameters
- Hardware: Stainless steel 316
- Lens Material: Tempered Glass

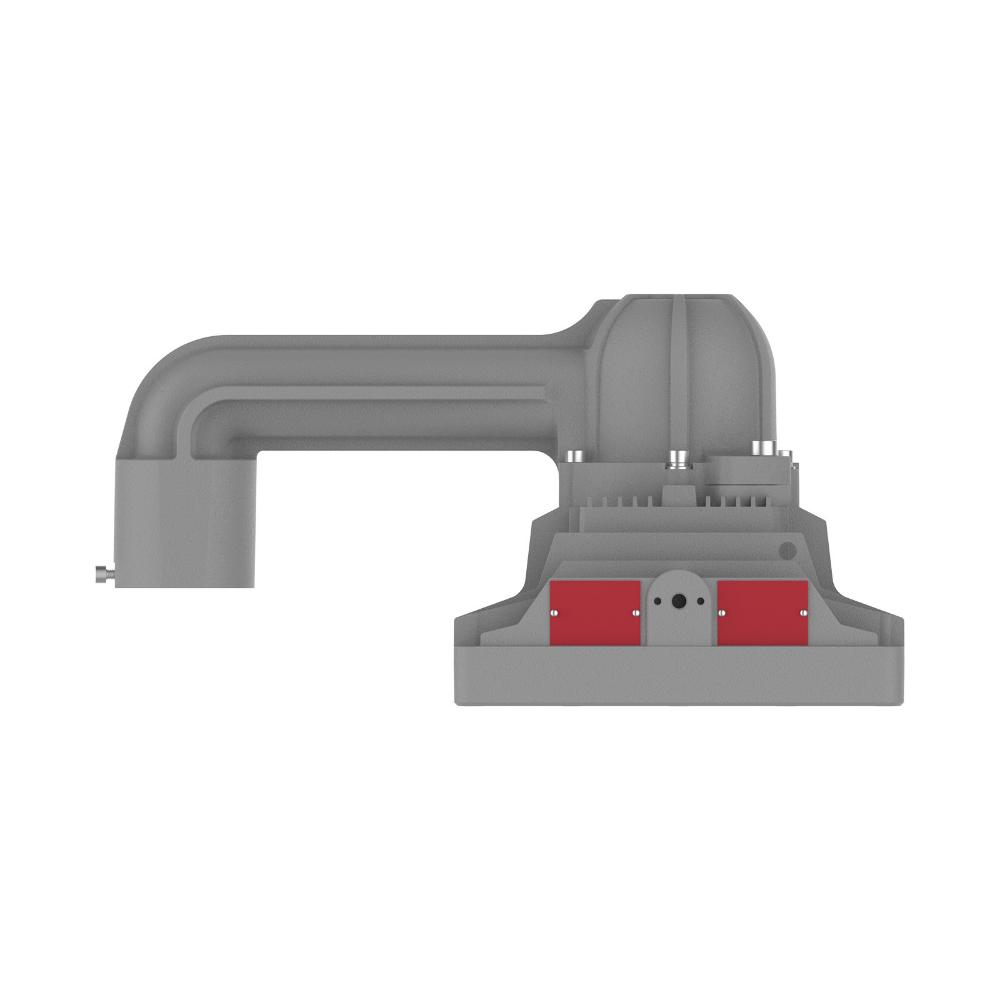

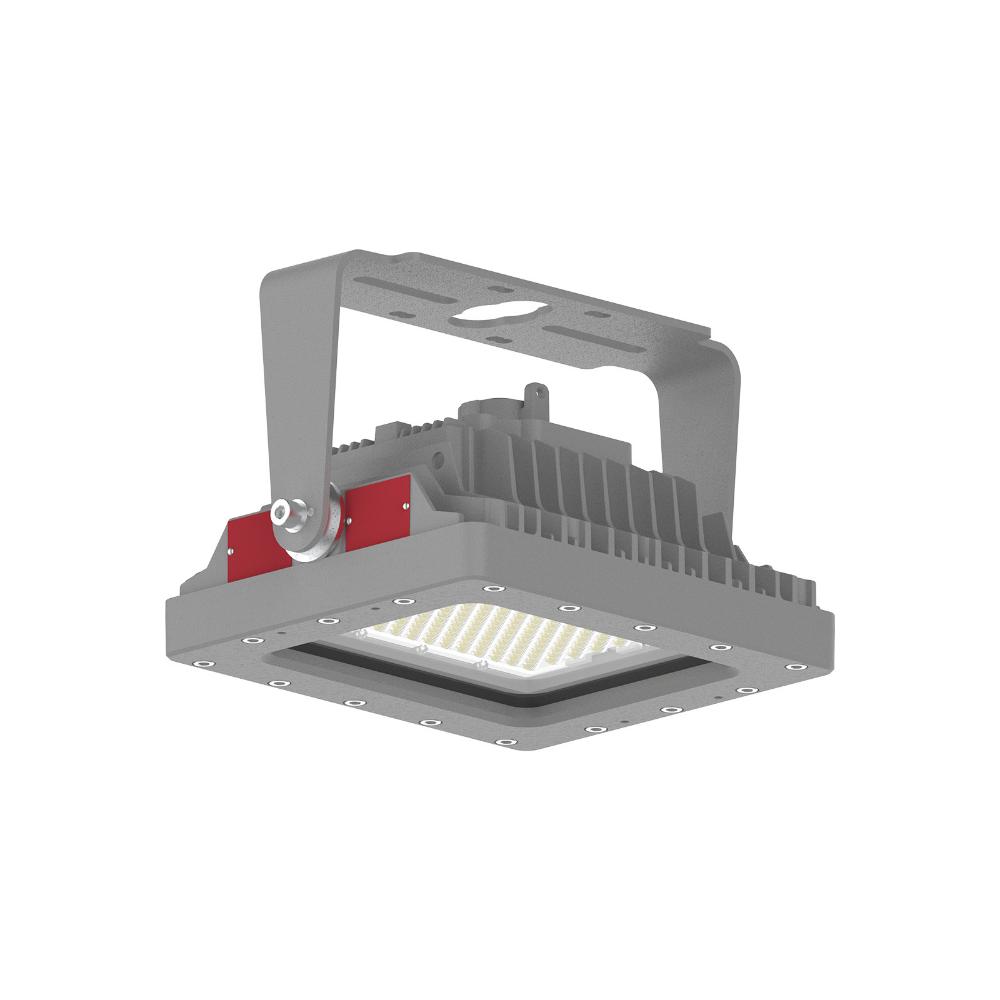

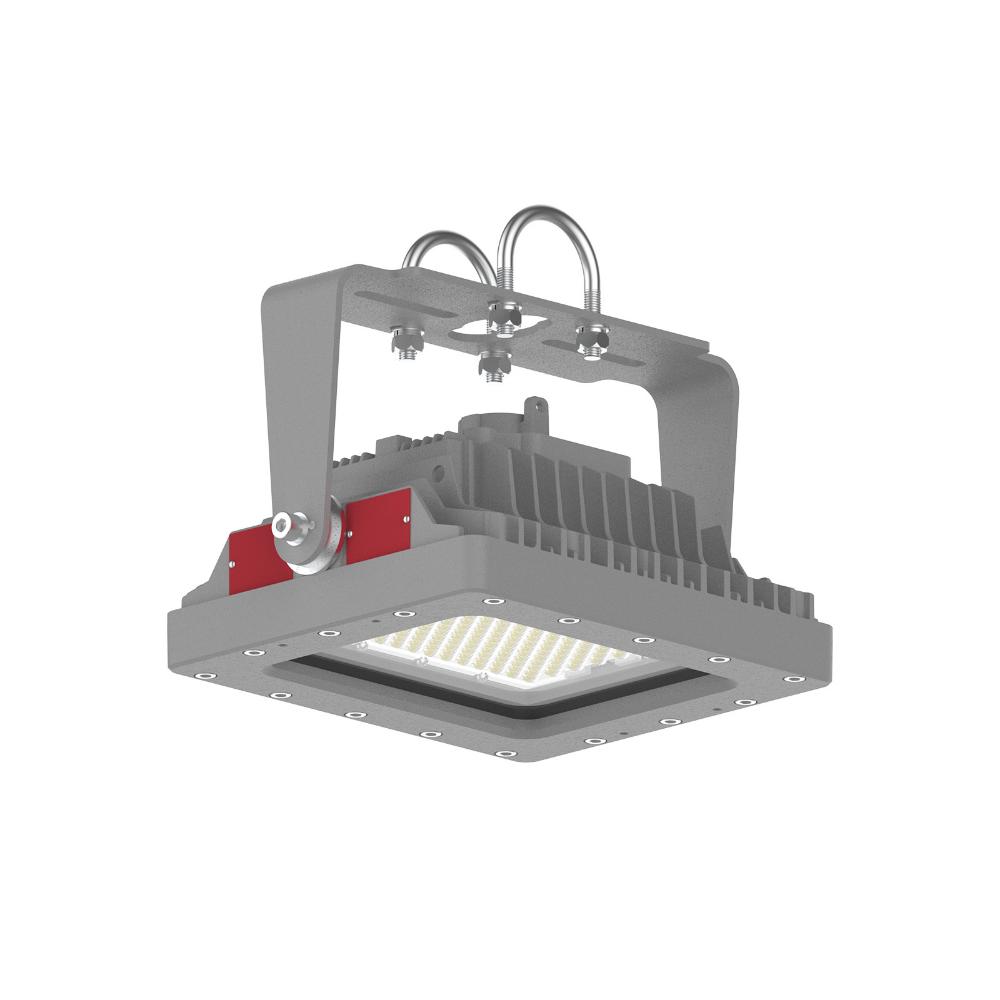

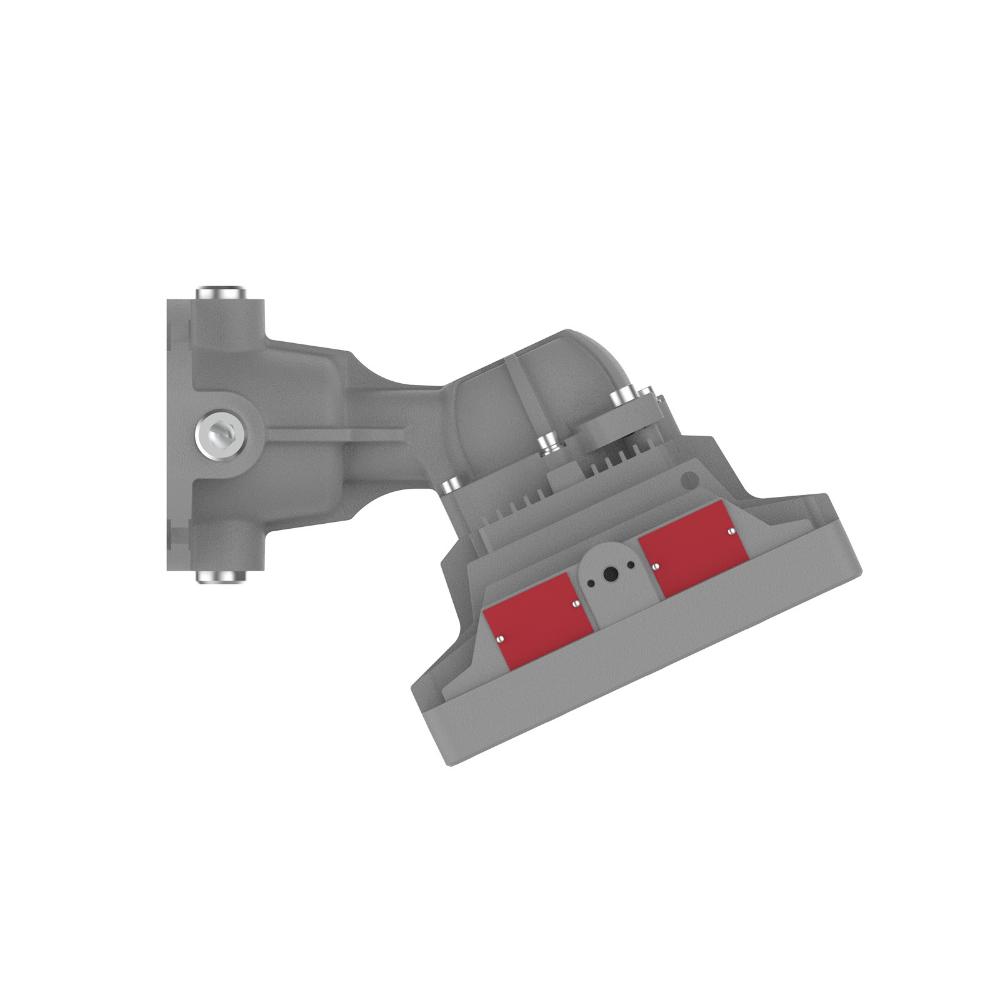

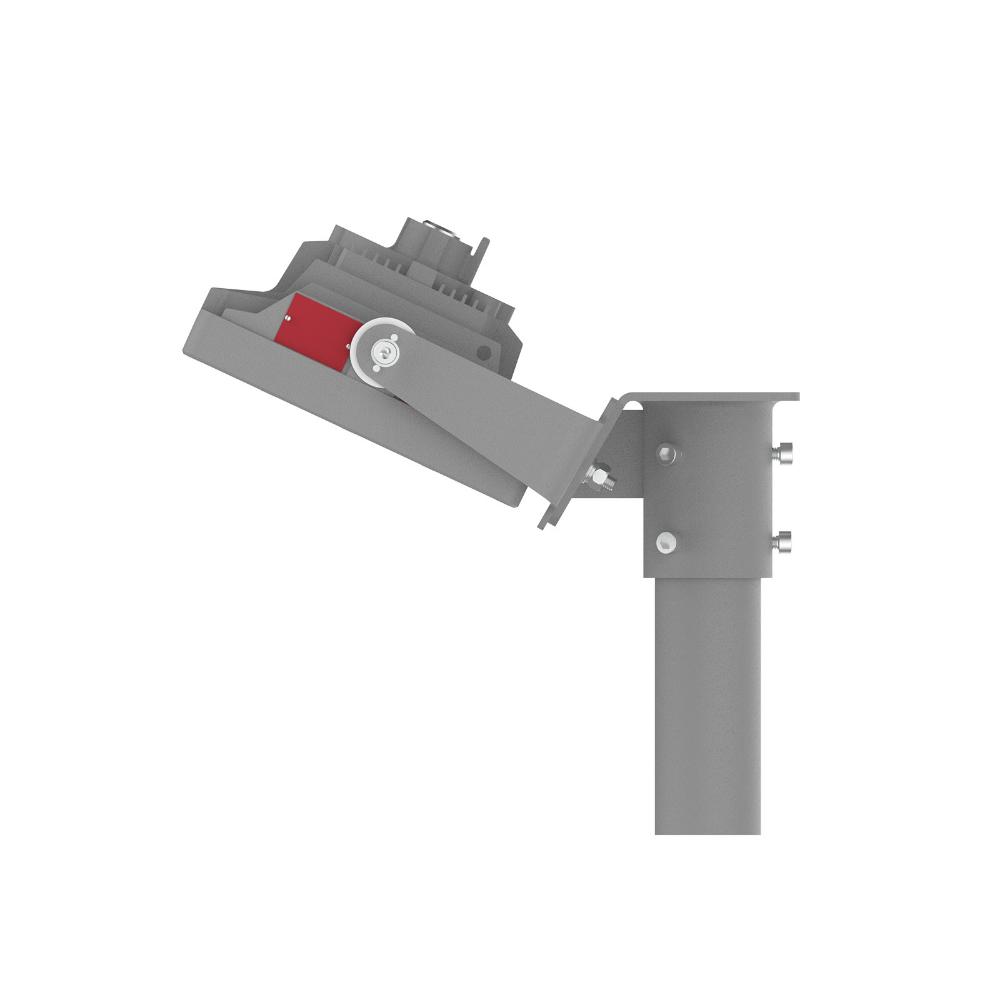

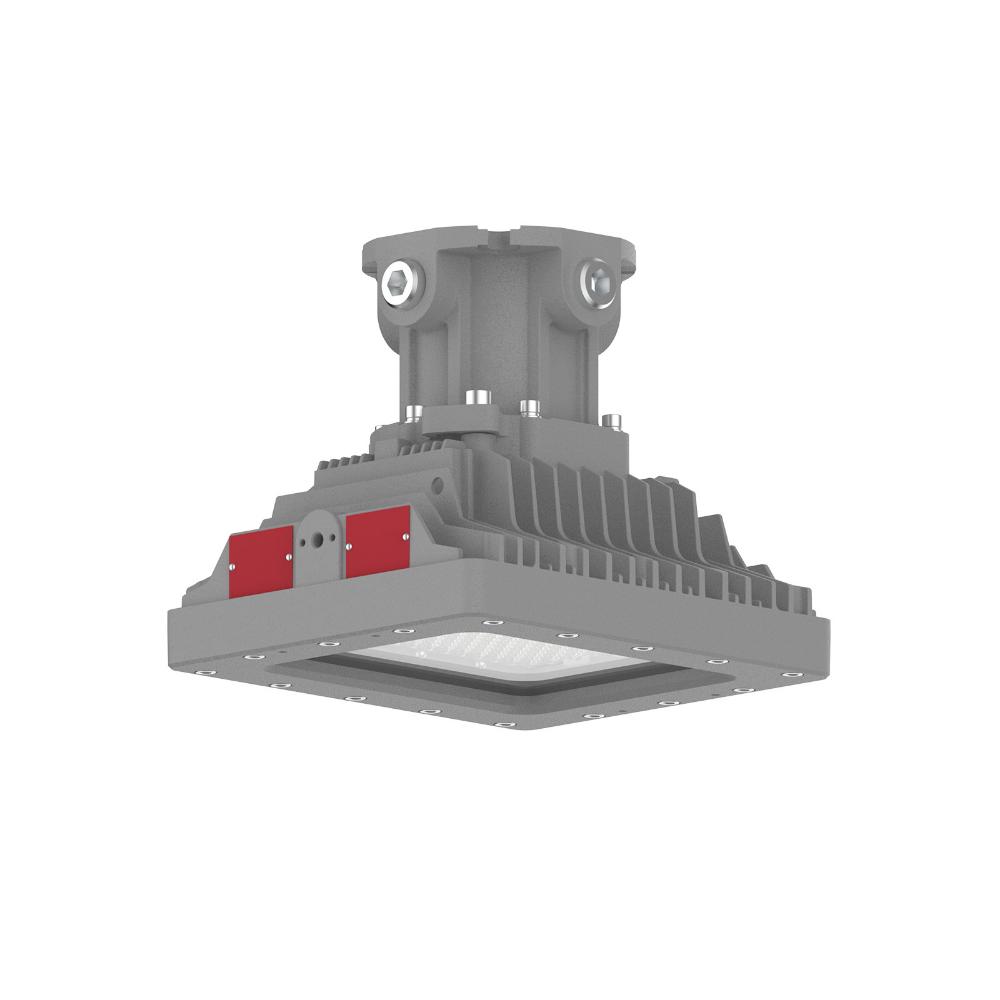

- Mounting Options: Pendant, Yoke, Ceiling, Stanchion, Wall, Pole, Pipe
- Product Weight: 11.7lbs/5.3kg, 11.9lbs/5.4kg, 12.8lbs/5.8kg, 12.8lbs/5.8kg
- Cable Entry: (1) 3/4" NPT w/3' 18/6 Leads(L/N/G,Dim+/Dim-/12V)
- Product Dimensions (LxWxH): 9.7 x 8.3 x 5.2in (245 x 210 x 132 mm)
Environmental Parameters
- Ambient Operating Temperature: -40°C~+65°C (-40°F~+149°F)
- T-Code Rating: 21W: C1D1-T6, CID2-T4A, CIID1-T6 40W: C1D1-T6, CID2-T4, CIID1-T6 50W: C1D1-T6, CID2-T4A, CIID1-T6 60W: C1D1-T5, CID2-T4, CIID1-T5
Compliance
Ratings:
- Class I, Division 1, Groups B, C , D;
- Class I, Division 2, Groups A, B, C , D;
- Class II, Division 1, Groups E, F, G.
- Class II Division 2, Groups F, G
- Class III
- Class I, Zone 1, Groups IIB, IIB plus hydrogen, IIC
- Class I, Zone 2, Groups IIA, IIB, IIC
- Zone 20 and 21
- Zone 22
- UL 1598 Wet Locations
- UL 1598A Marine Outside Type (Salt Water)
- NEMA 4X
- IP66& IP67
- IK08 (Glass)
- Salt Spray 720 hrs (ASTM B117)
- 3G vibration
Certifications:
- UL844
- UL1598
- UL 1598A
- CSA C22.2 No. 137
- CSA C22.2 No. 250.0
- FCC Part 15, Subpart B
