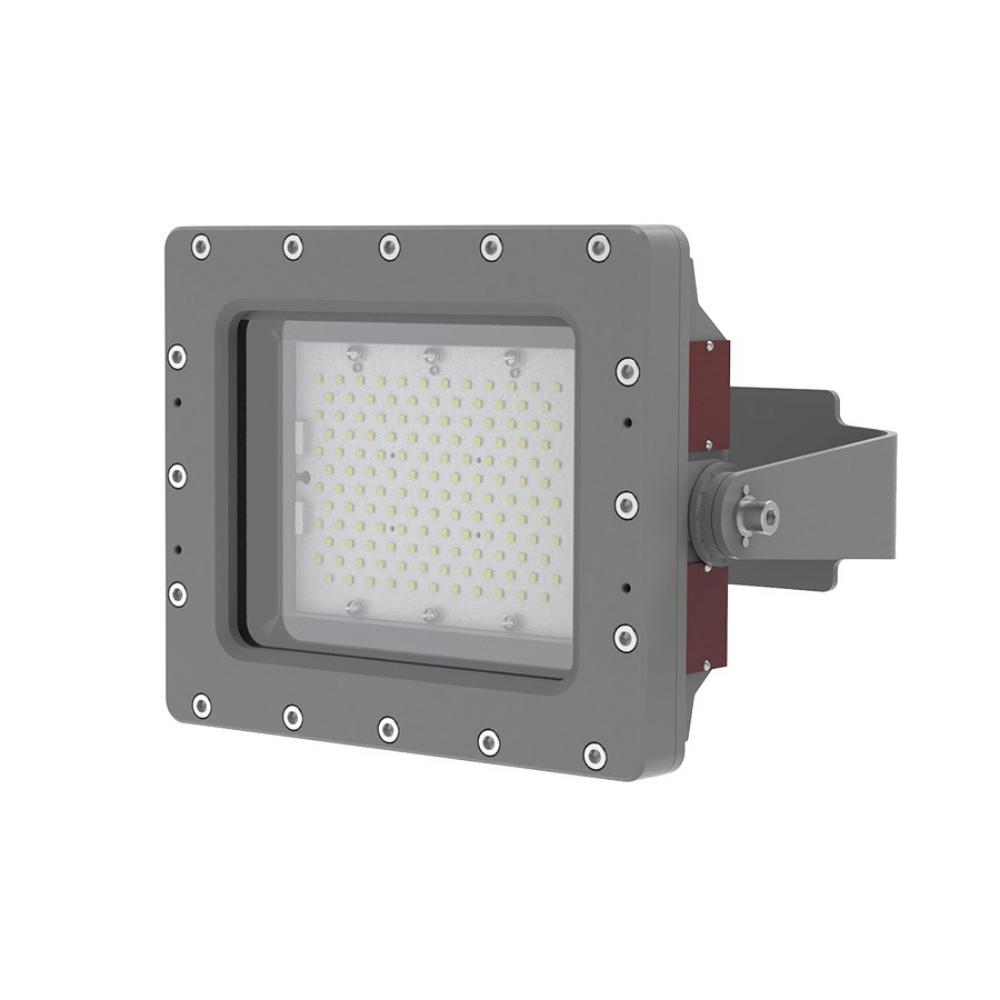

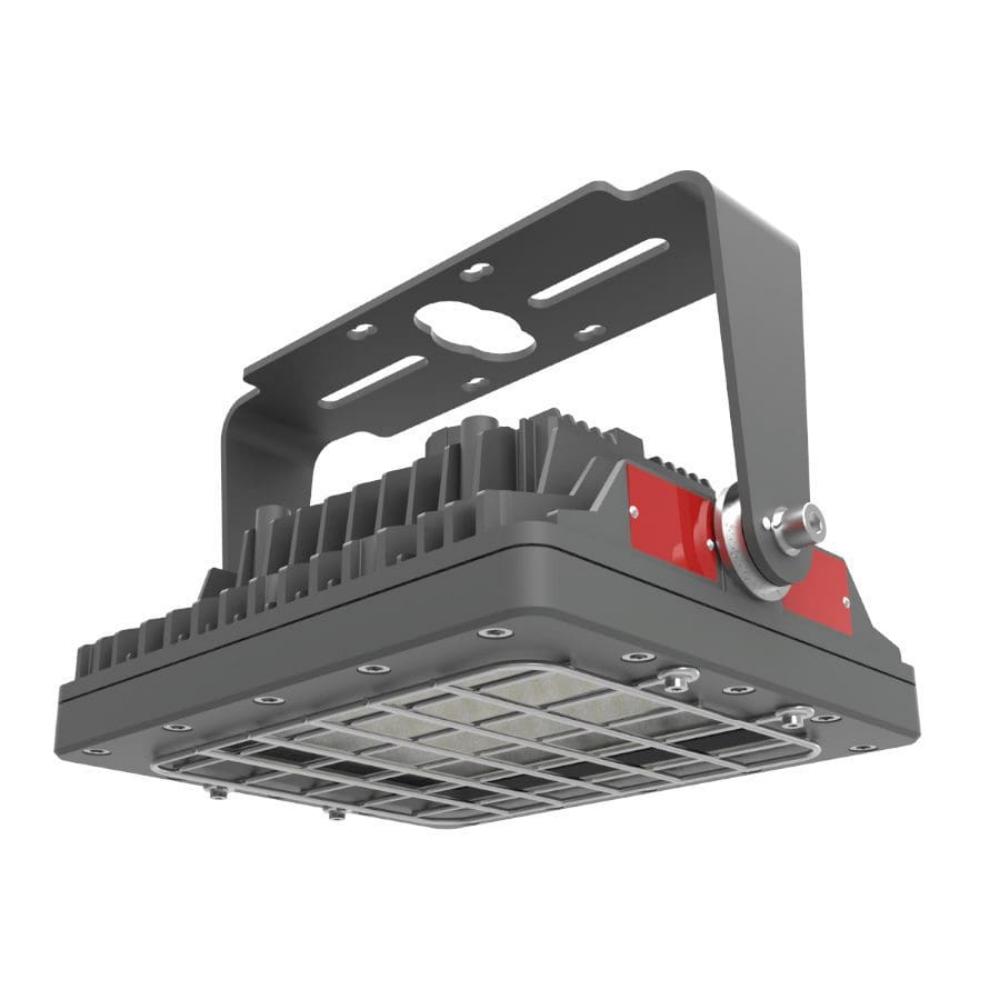

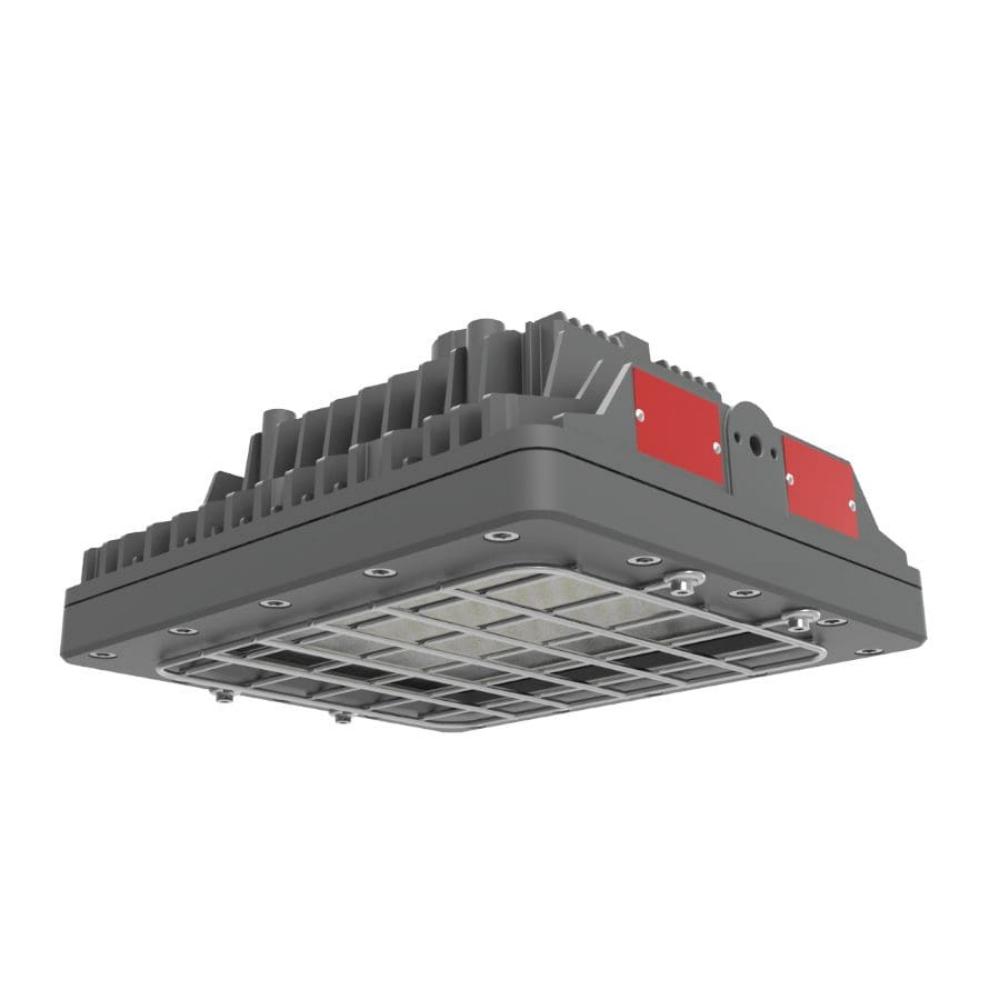

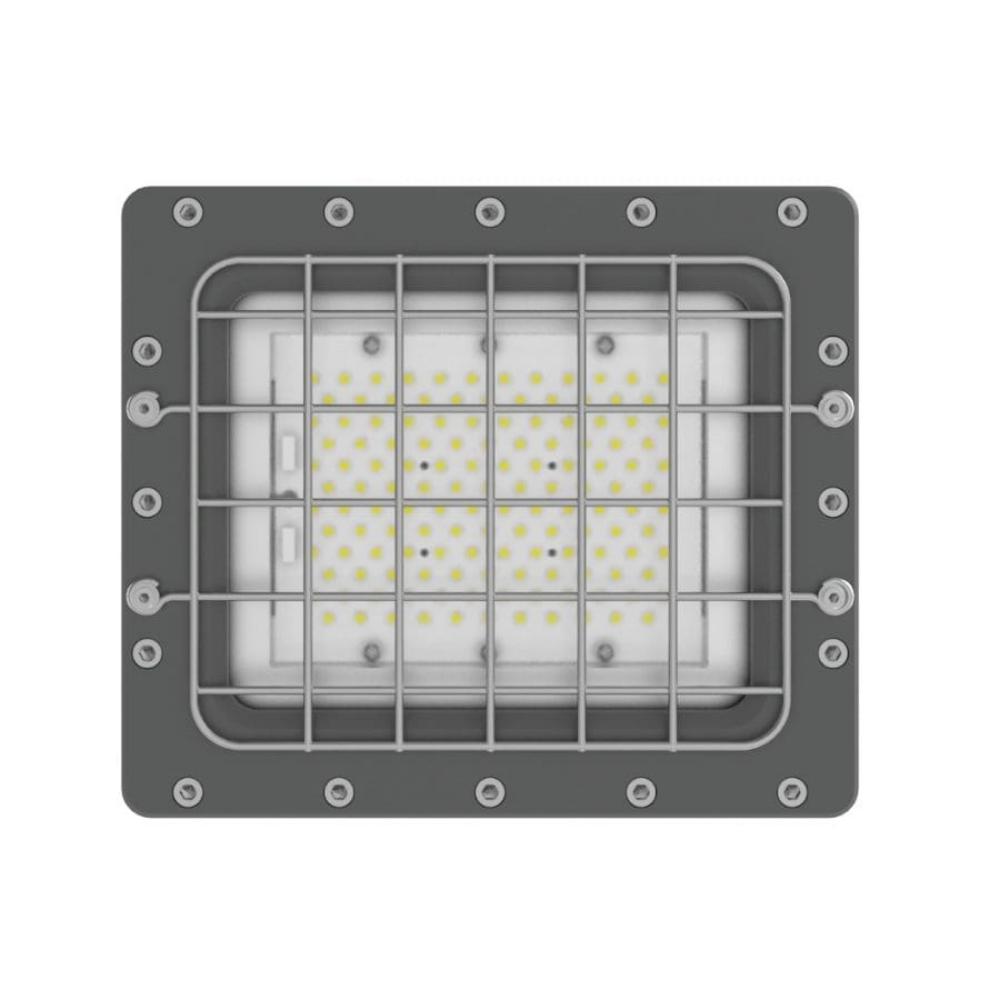

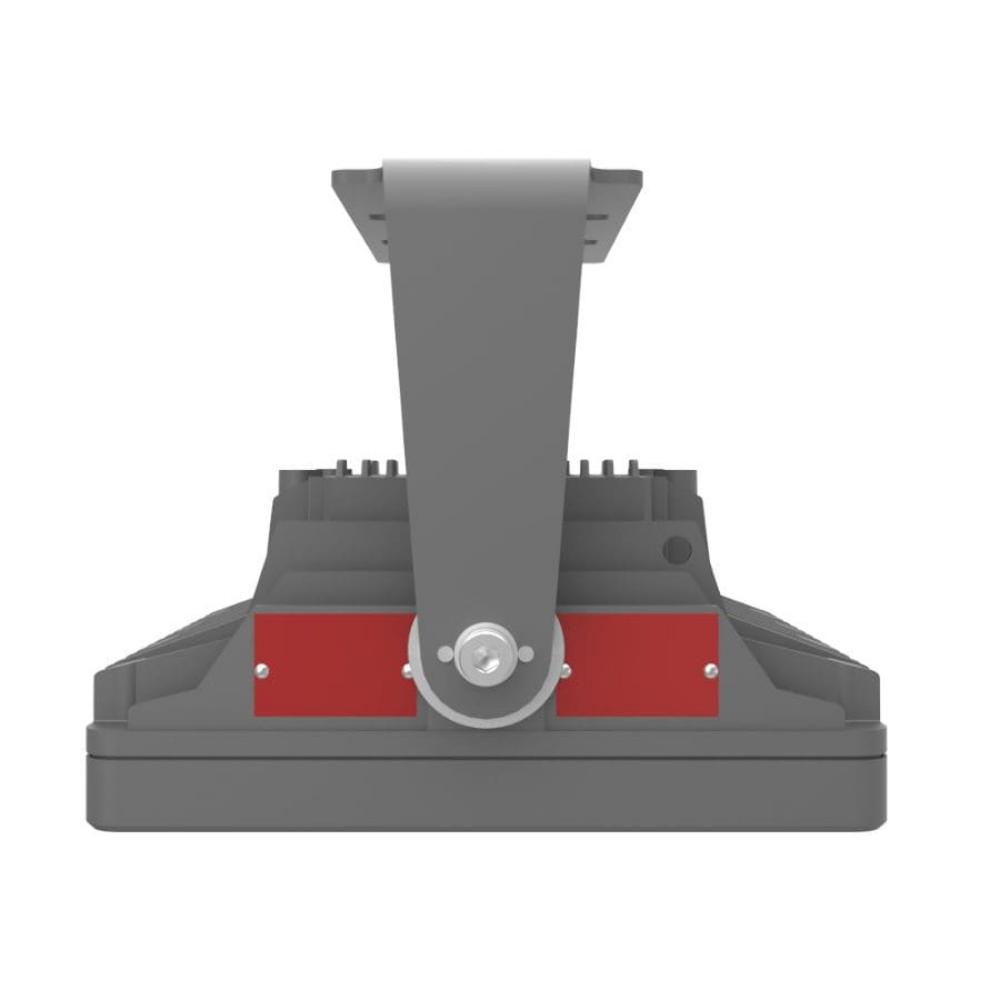

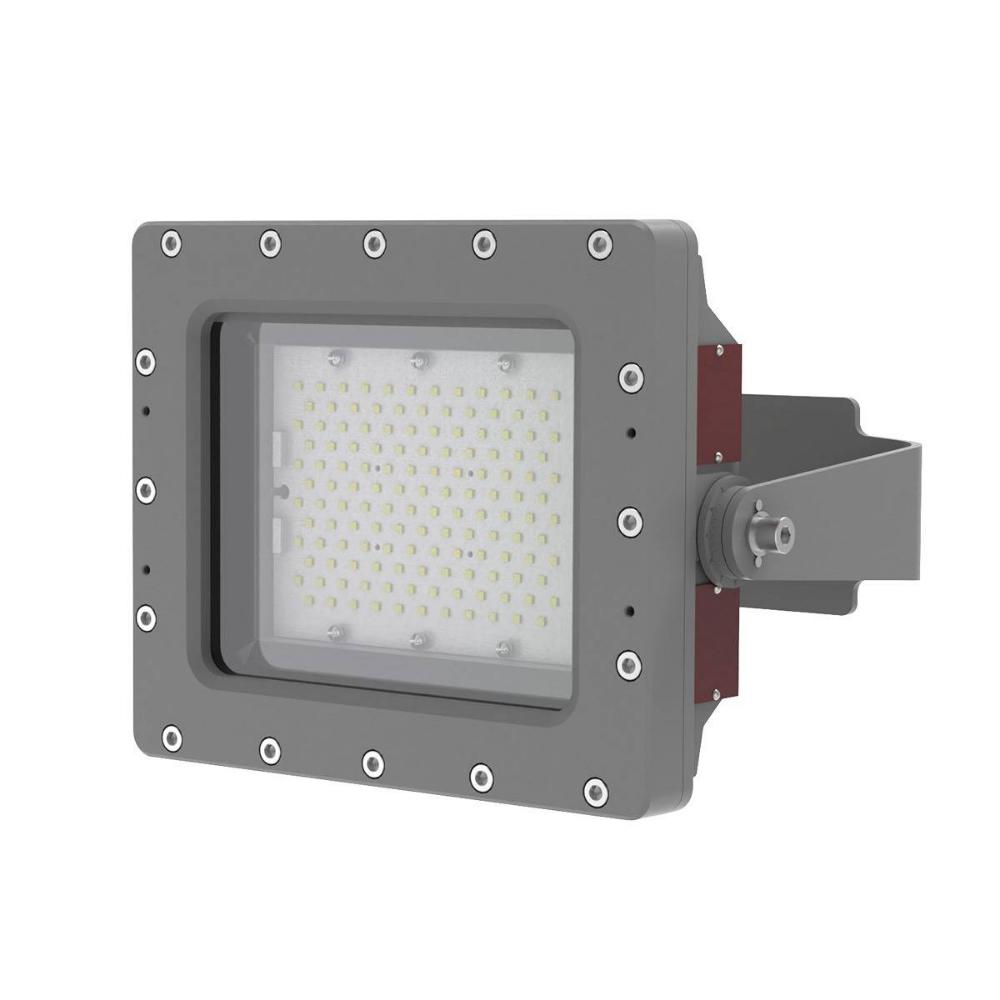

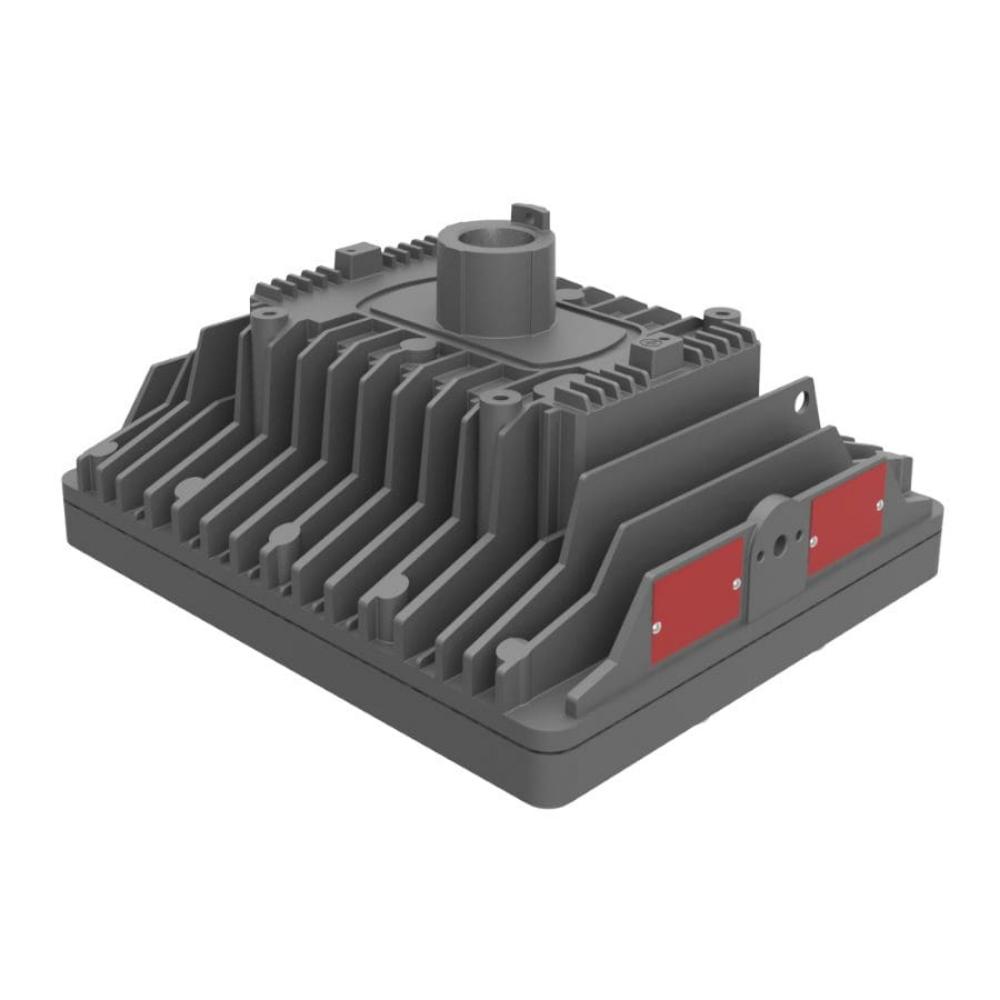

Red Sky Lighting Block Mini Series H1 Flood Light
Introducing the Block Mini Series H1 from Red Sky Lighting - a compact and powerful explosion-proof LED luminaire engineered for the most hazardous locations. This versatile lighting solution meets the stringent Class 1 Division 1 standard, certifying it for use in areas where flammable gases, vapors or liquids are present under normal operating conditions.
Specifications
Electrical Parameters
- Power (W): 21W, 40W, 50W, 60W
- Voltage (V): 21/40/60W: 120-277V AC 50W: 347-480V AC
- Frequency: 50/60Hz
- Power Factor: ≥0.90
- THD: <20%
- L70: 21/40/50W: 219,000 hrs@149°F 60W: 127,000 hrs@147°F
- Dimming: 0-10V, Range 10-100%
- Surge Protection: 10KV
- Warranty: LEDs: 10 Years,Driver: 7 Years
Optical Parameters
- Lumen Output: 2,977Lm, 5,617Lm, 6,945Lm, 8,100Lm
- Lumen Efficacy: 140Lm/W
- Available Beam Angle: T2/T3/T5
- Correlated Color Temperature (CCT): 3000K/4000K/5000K
- Color Rendering Index (CRI): 80 CRI
Mechanical Parameters
- Hardware: Stainless steel 316
- Lens Material: Tempered Glass
- Mounting Options: Pendant, Yoke
- Product Weight: 21W: 10.5lbs/4.8kg 40W: 10.8lbs/4.9kg 50/60W: 11.7lbs/5.3kg
- Cable Entry: (1) 3/4" NPT w/3' 18/6 Leads (L/N/G,Dim+/Dim-/12V)
- Product Dimensions (LxWxH): 9.7 x 8.3 x 5.1in (245 x 210 x 129 mm)
Environmental Parameters
- Ambient Operating Temperature: 21/40/50W: -40°C~+65°C(-40°F~+149°F) 60W: 64°C(147°F)
- T-Code Rating: 21/40W: C1D1-T6, CID2-T4A, CIID1-T6 50W: C1D1-T6, CID2-T4, CIID1-T6 60W: C1D1-T5, CID2-T4, CIID1-T5
Compliance
Ratings:
- Class I, Division 1, Groups B, C and D;
- Class I, Division 2, Groups A, B, C and D;
- Class II, Division 1, Groups E, F and G.
- Class II Division 2, Groups F, G
- Class III
- Class I, Zone 1, Group IIB
- Class I, Zone 2, Group IIC
- Zone 21, Group IIIC
- UL 1598 Wet Locations
- UL 1598A Marine Outside Type (Salt Water)
- 5G vibration
- IP66& IP67
- IK10 (PC) /IK08 (Glass)
- NEMA 4X
- Salt Spray 720 hrs (ISO 9227)
Certifications:
- UL844
- UL1598
- UL8750
- UL 1598A
- CSA C22.2 No. 137-18
- CSA C22.2 No. 250.0
- CSA C22.2 No. 250.13
- FCC Part 15, Subpart B
- DLC Premium*
