Description

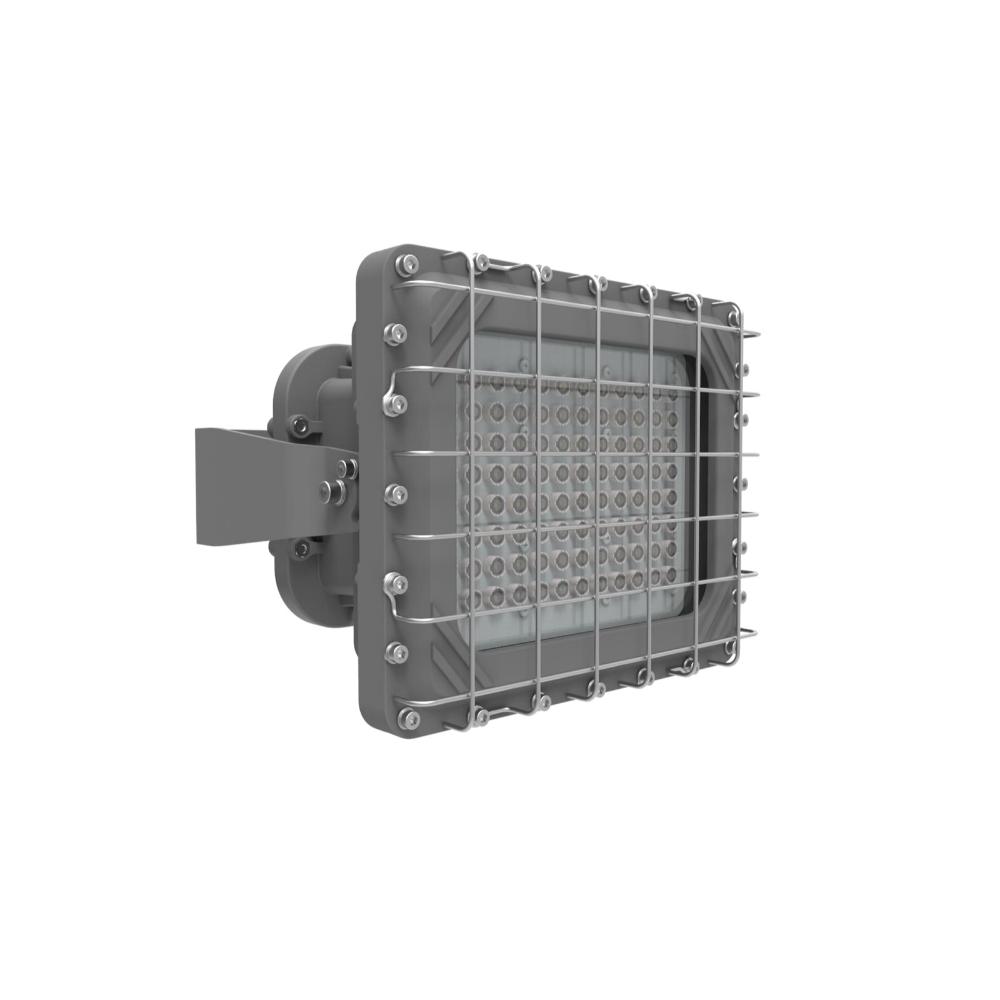

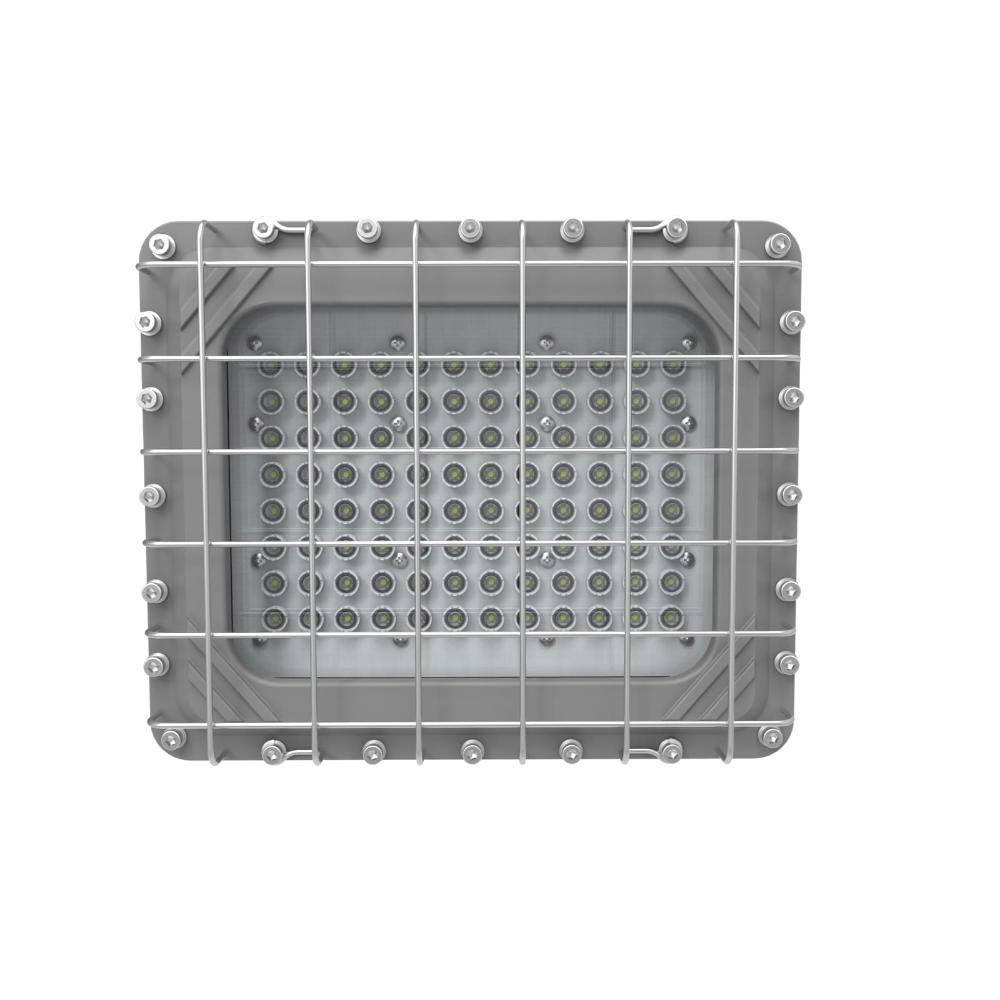

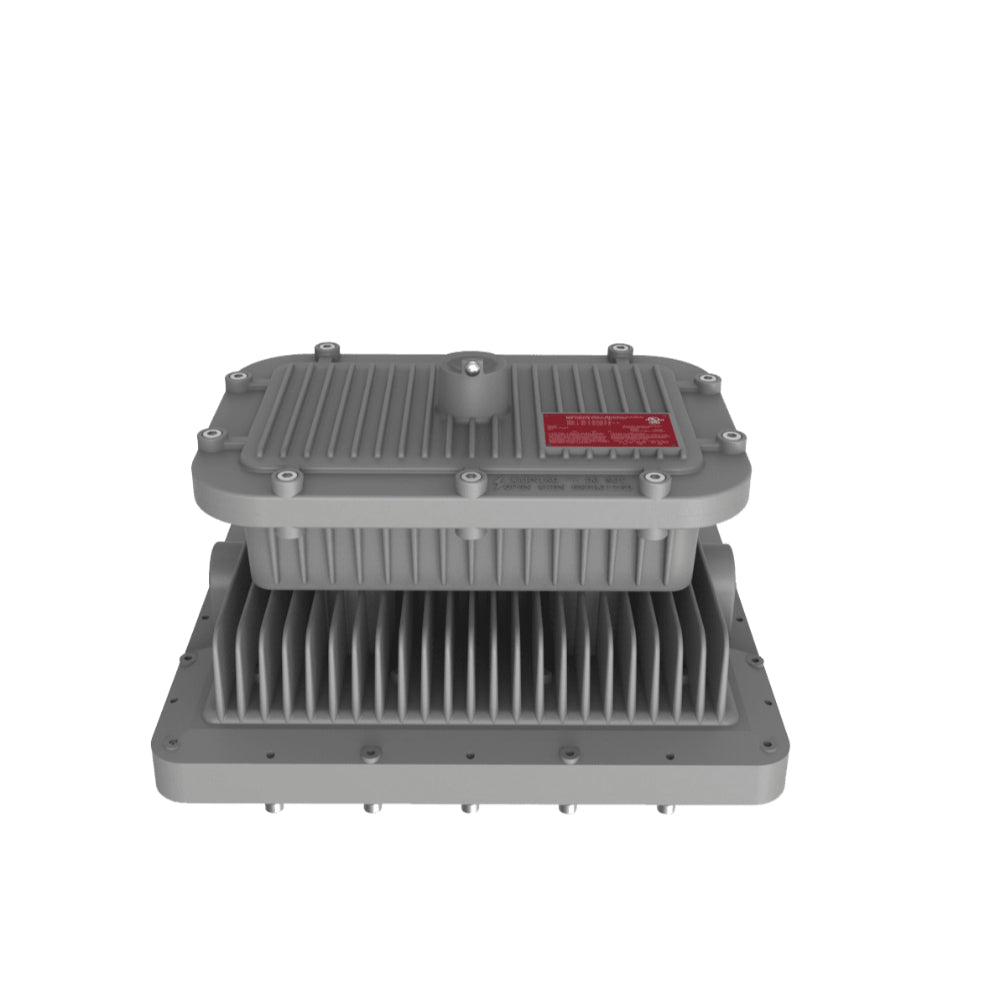

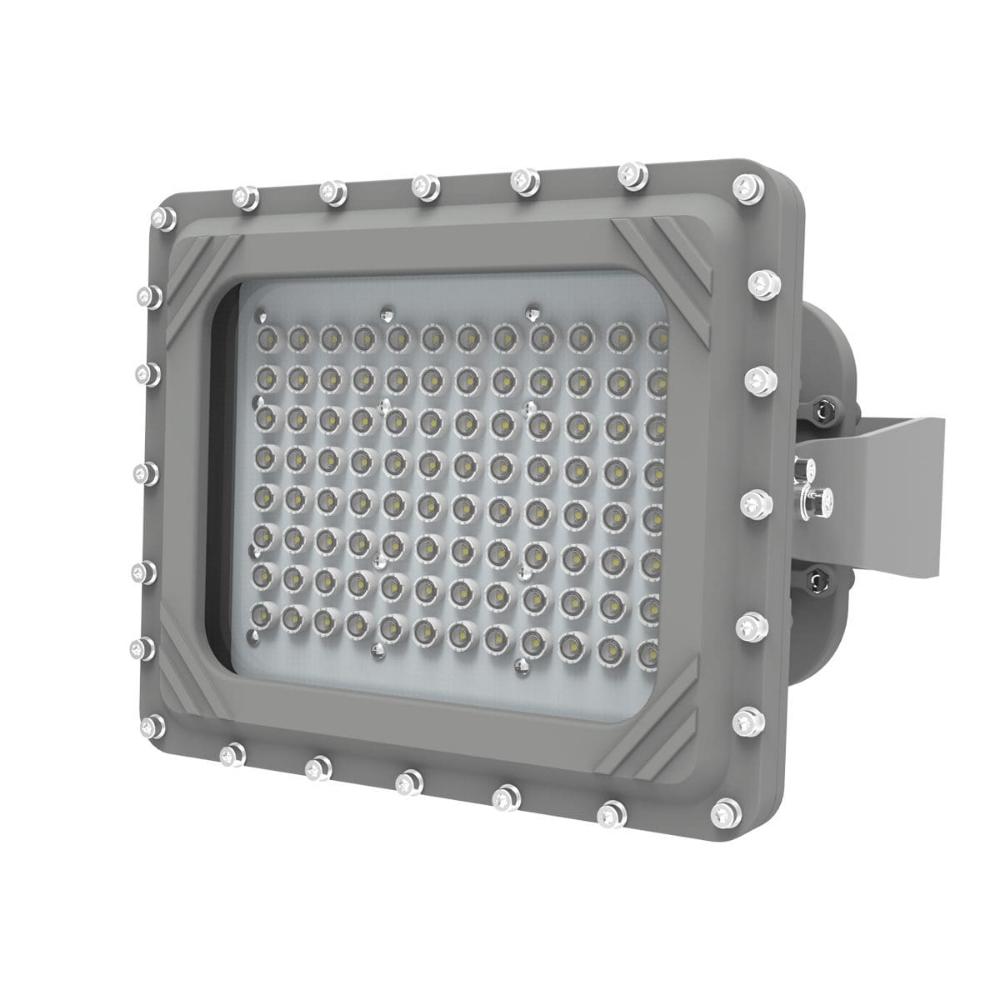

Red Sky Lighting Block Series C1 Flood Light
Block (BLK) C1 Series LED Luminaire is designed for installations where moisture, dirt, dust, corrosion and vibration may be present, or areas where wind, water, snow or high ambient can be expected.
They can be used in locations made hazardous by the presence of flammable vapors or gases or combustible dusts as defined by the IECEX.
BLK C1 Series is ideal for retrofit of existing HPS/MH and offers higher efficacy for increased energy savings, lower maintenance costs and shorter paybacks.
Specifications
Electrical Parameters
- Power (W): 80W, 100W, 150W
- Voltage(V): 100-240V AC
- Frequency: 50/60Hz
- Power Factor: ≥0.90
- THD: <20%
- L70: 420,000 hrs@50°C
- Surge Protection: L/N-FG 4KV, L-N 2KV
- Warranty: 5 Years
Optical Parameters
- Lumen Output: 80W: 10,288Lm 100W: 12,274Lm 150W: 18,646Lm
- Lumen Efficacy: 130Lm/W
- Available Beam Angle: 25° / 60° / 120°
- Correlated Color Temperature (CCT): 4000K/5700K
- Color Rendering Index (CRI): Ra>70
Mechanical Parameters
- Hardware: Stainless steel 316
- Lens Material: Tempered Glass

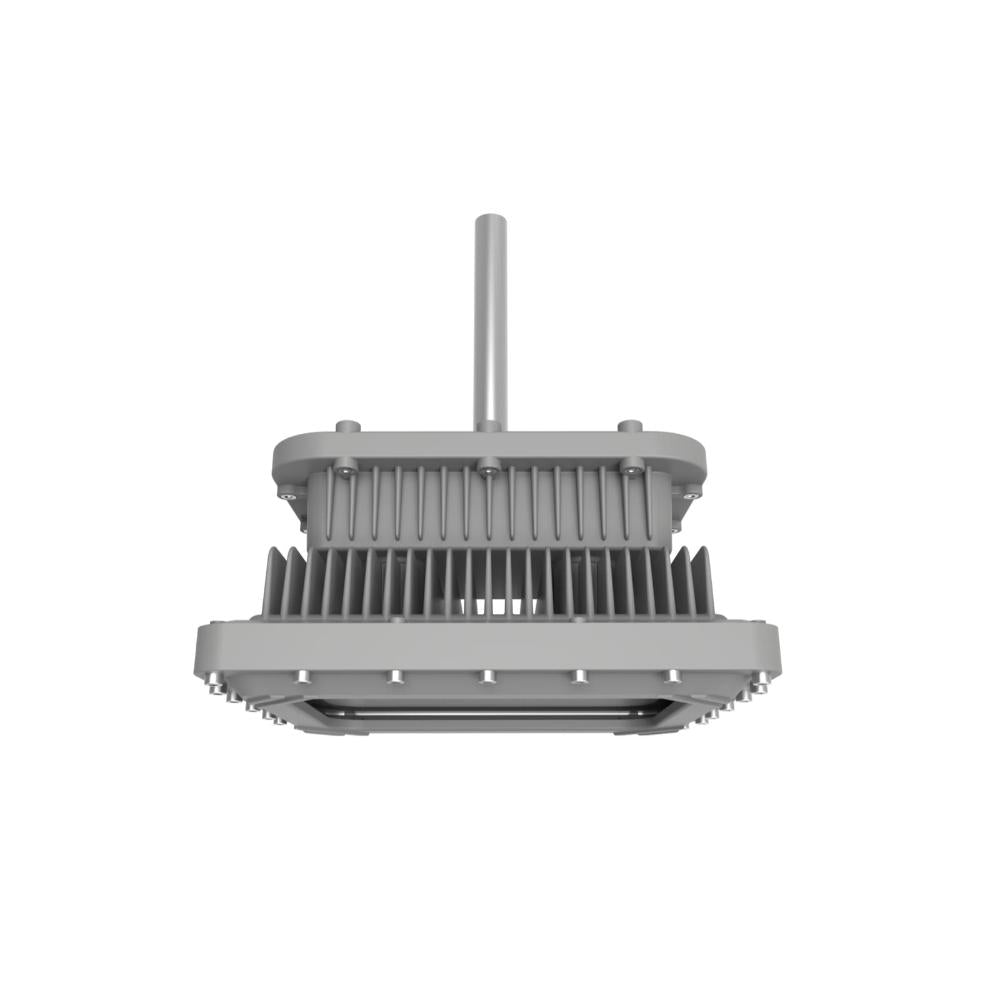

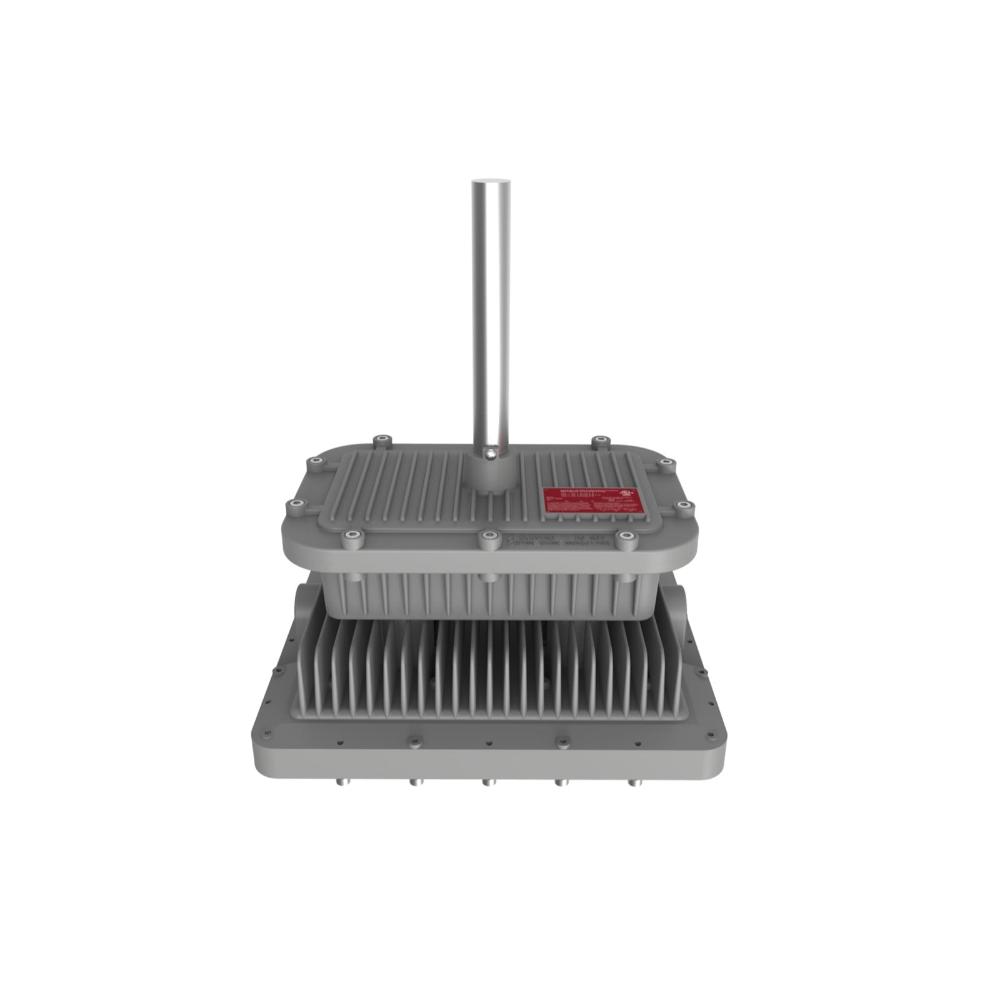

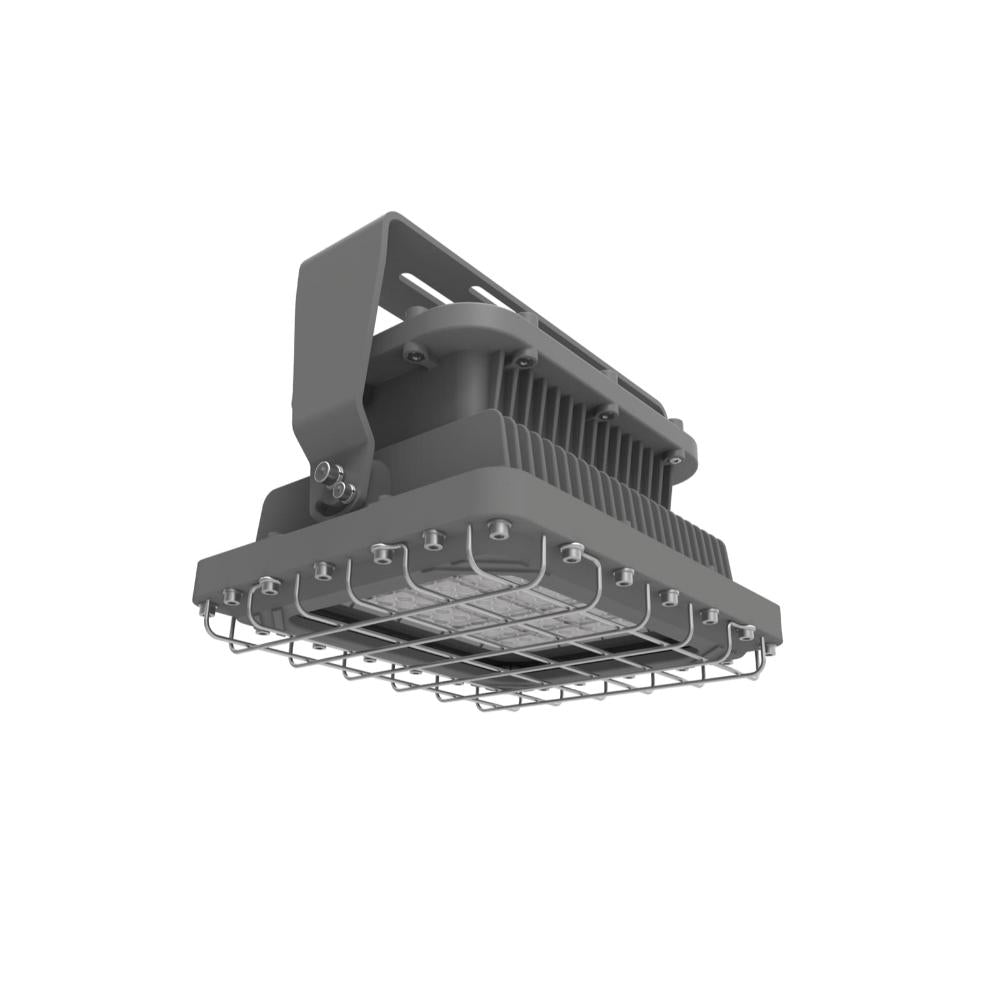

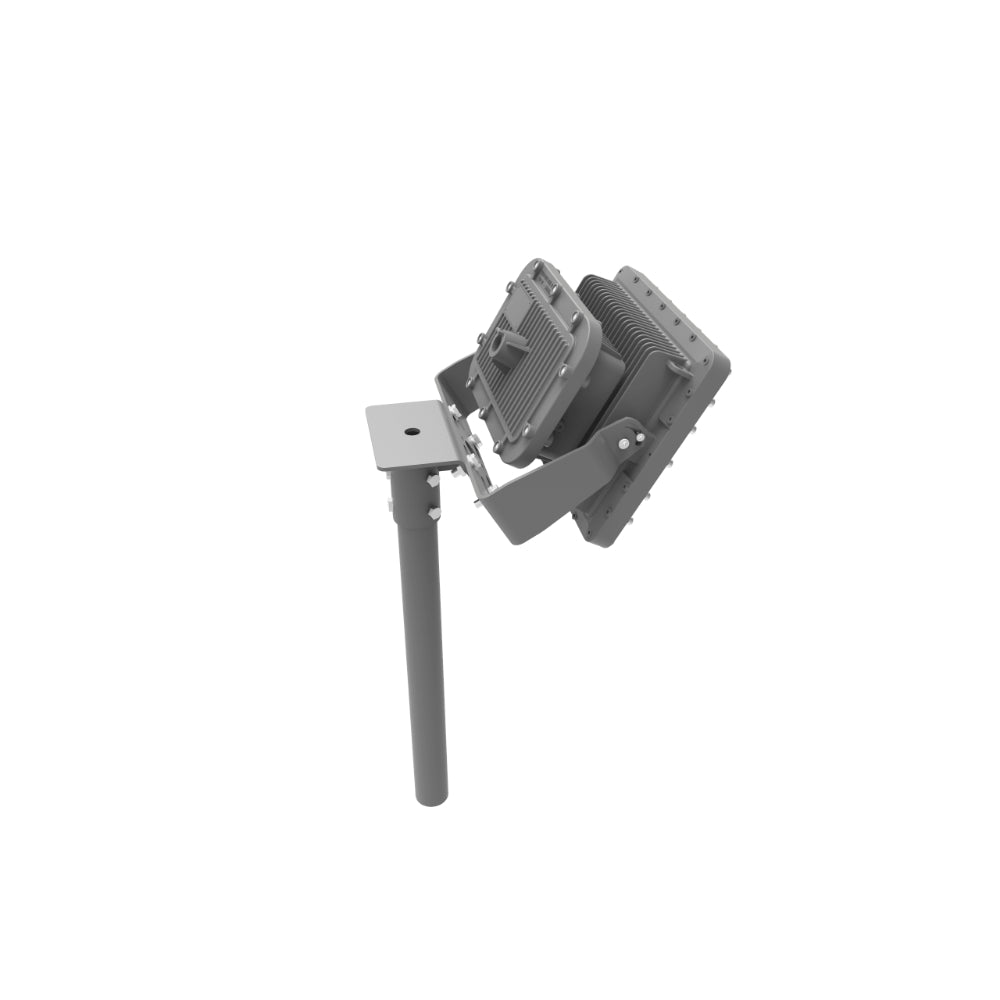

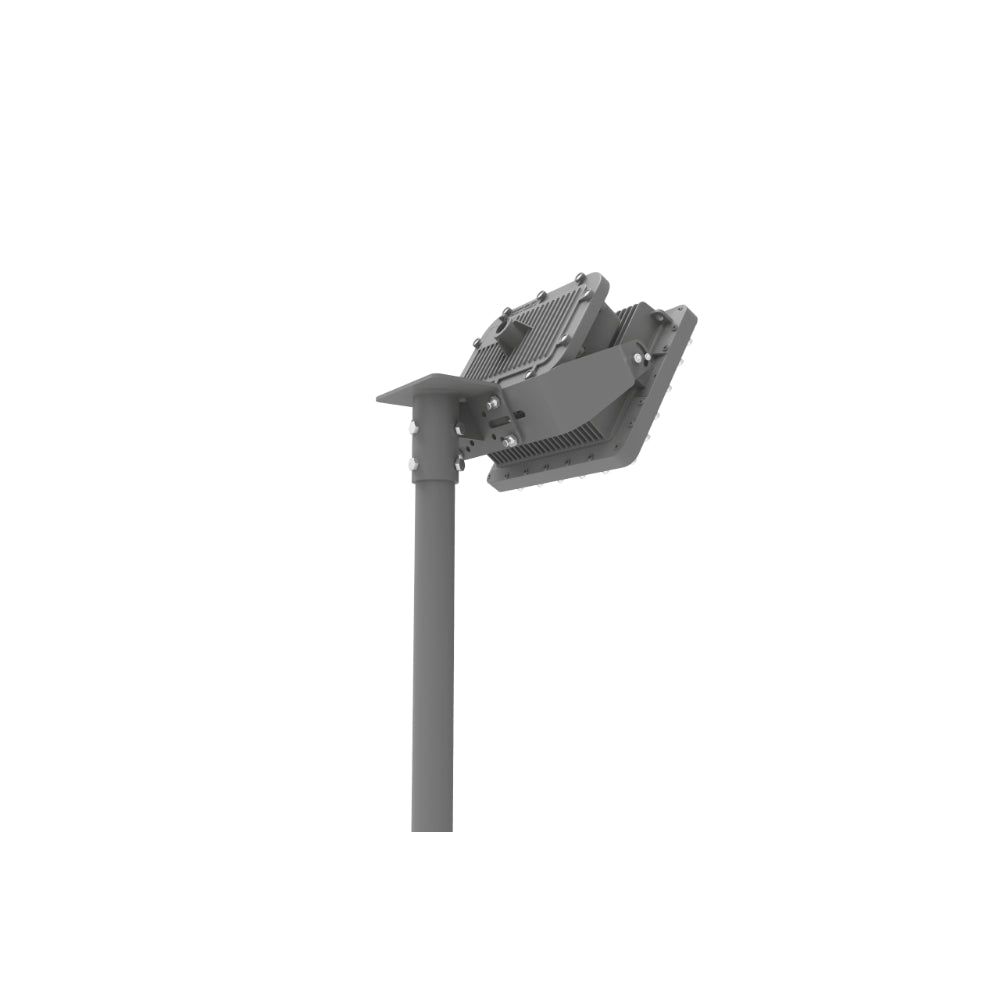

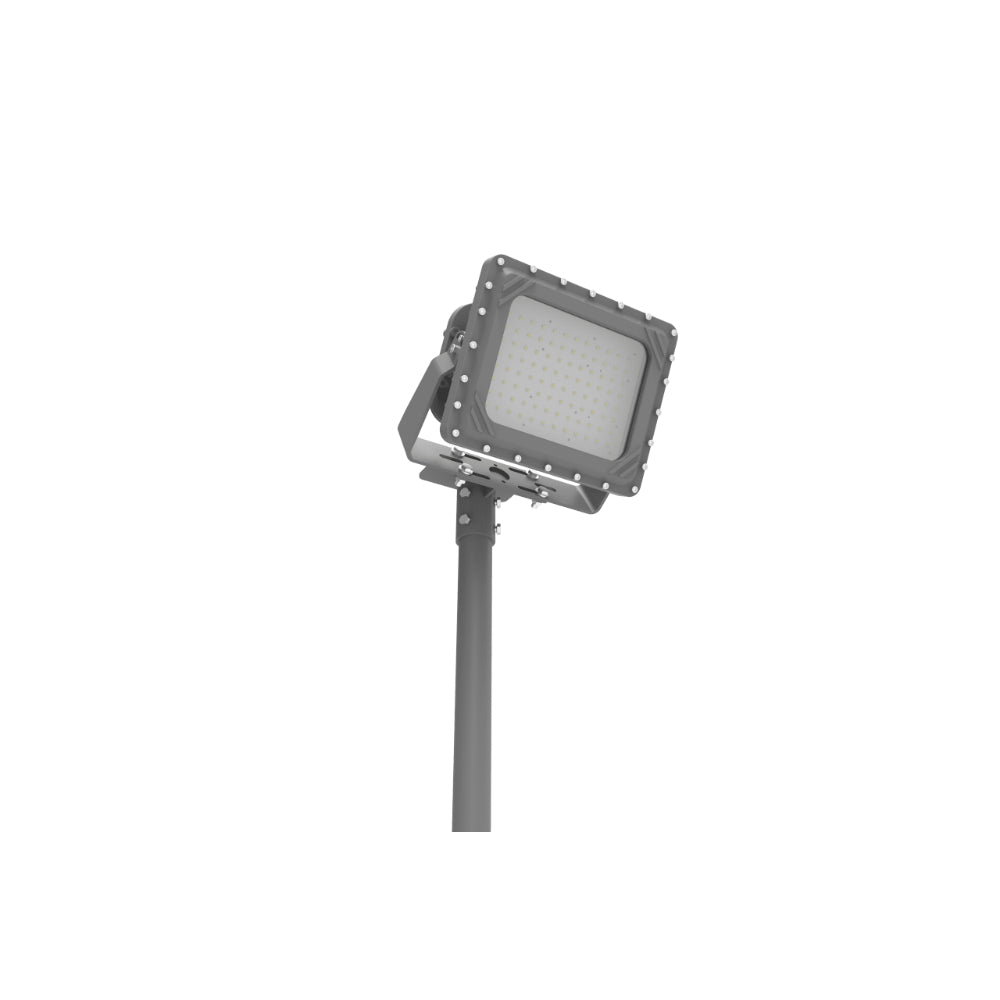

- Mounting Options: Yoke, Stanchion
- Product Weight: 80W :33.5lbs/15.2kg 100W :33.7lbs/15.3kg 150W :34.2lbs/15.5kg
- Cable Entry: (2) 3/4" NPT
- Product Dimensions (LxWxH): 12.9 x 10.7 x 6.9in (328 x 271 x 176mm)
Environmental Parameters
- Ambient Operating Temperature: -25°C ~ +50°C
- T-Code Rating: Gas - T6, Dust - 85°C
Compliance
Ratings:
- Zone 1&2
- Zone 21&22
- IP66
- IK09
- Salt Spray 720 hrs (ISO 9227)
Certifications:
- IECEx
- Ex db lIB T6 Gb
- Ex tb IIIC T85°C Db
- UKEX
- Il 2G Ex db IIB T6 Gb
- Il 2D Ex tb IIIC T85°C Db
