Description

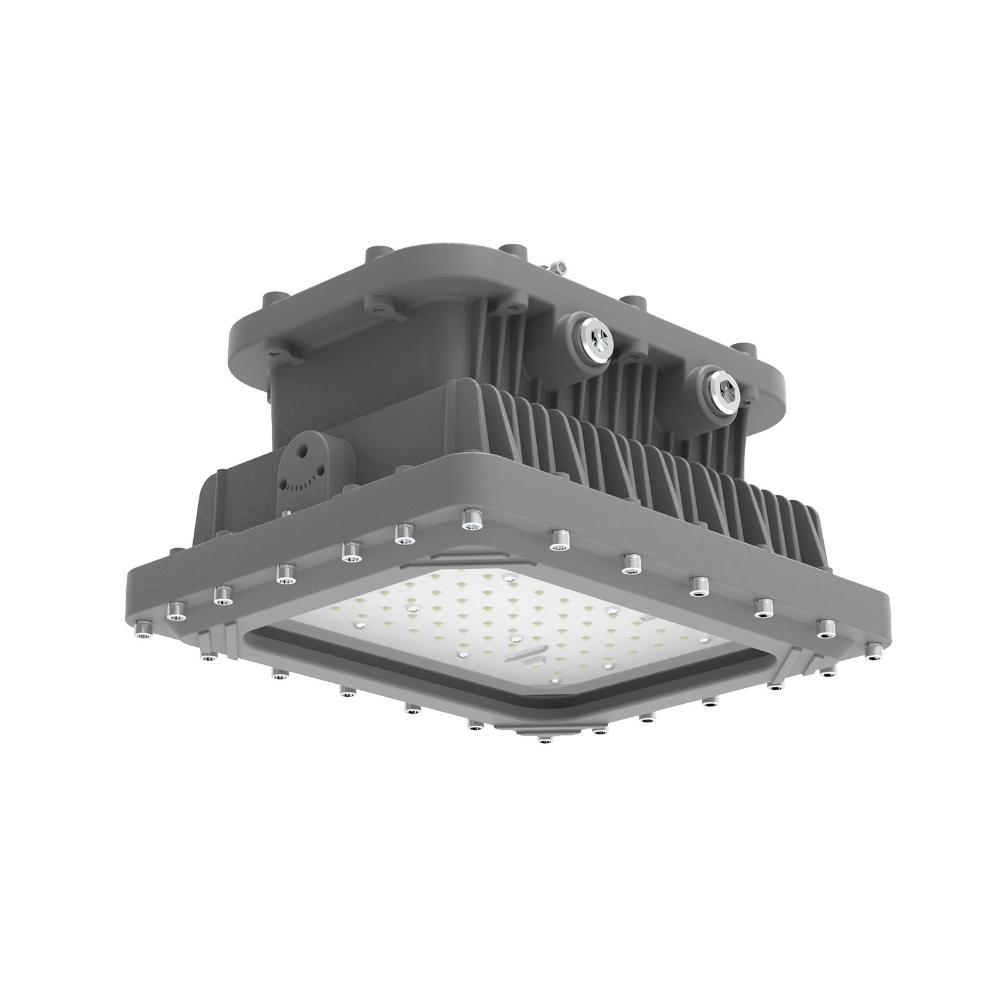

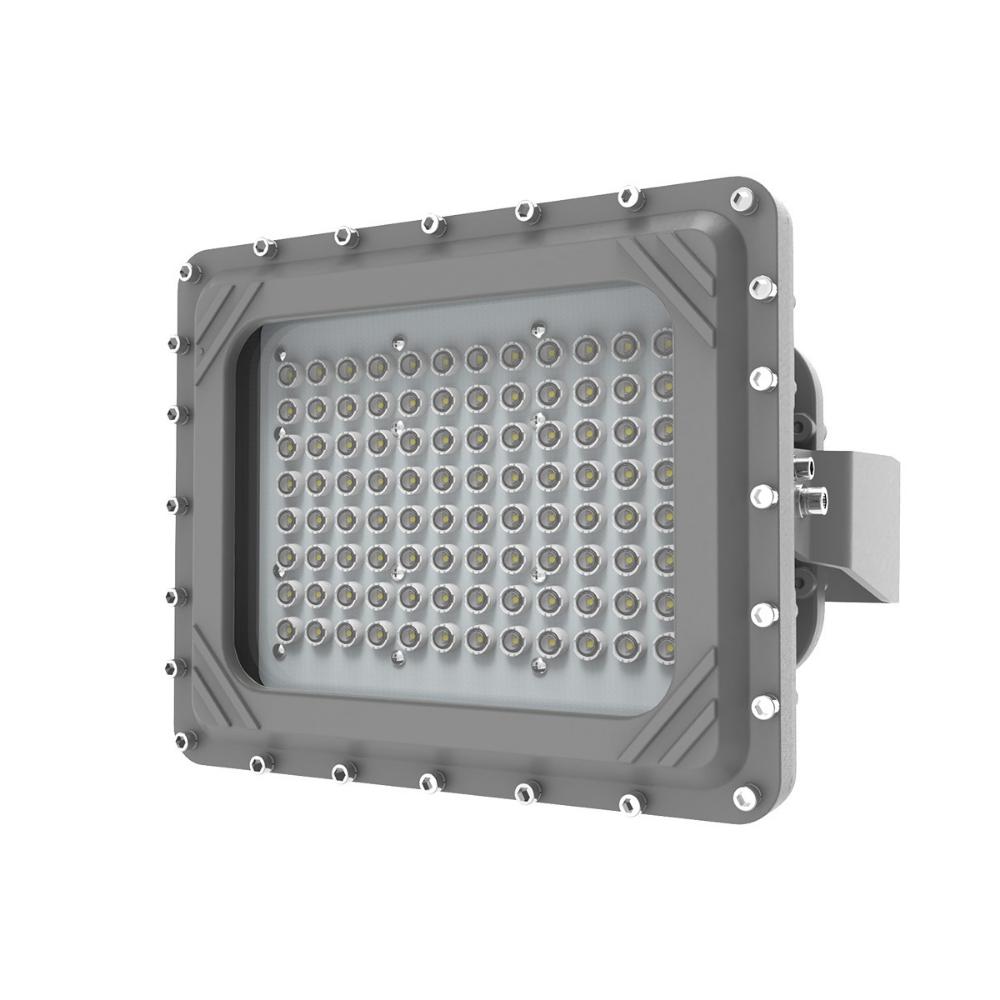

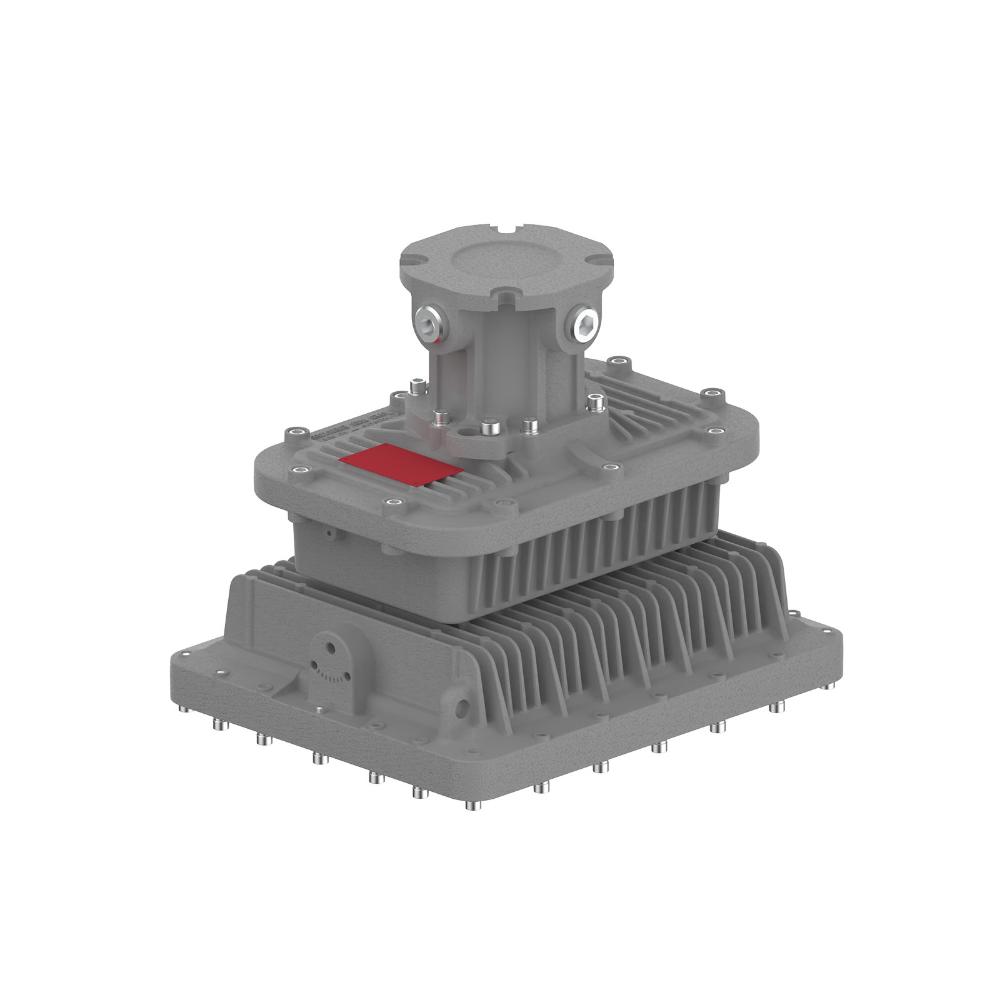

Red Sky Lighting Block Series H1 Flood Light
Designed for hazardous and corrosive environments, the upgraded Block Series H1 delivers high-performance illumination with enhanced thermal management and expanded mounting flexibility for retrofit and new installations.

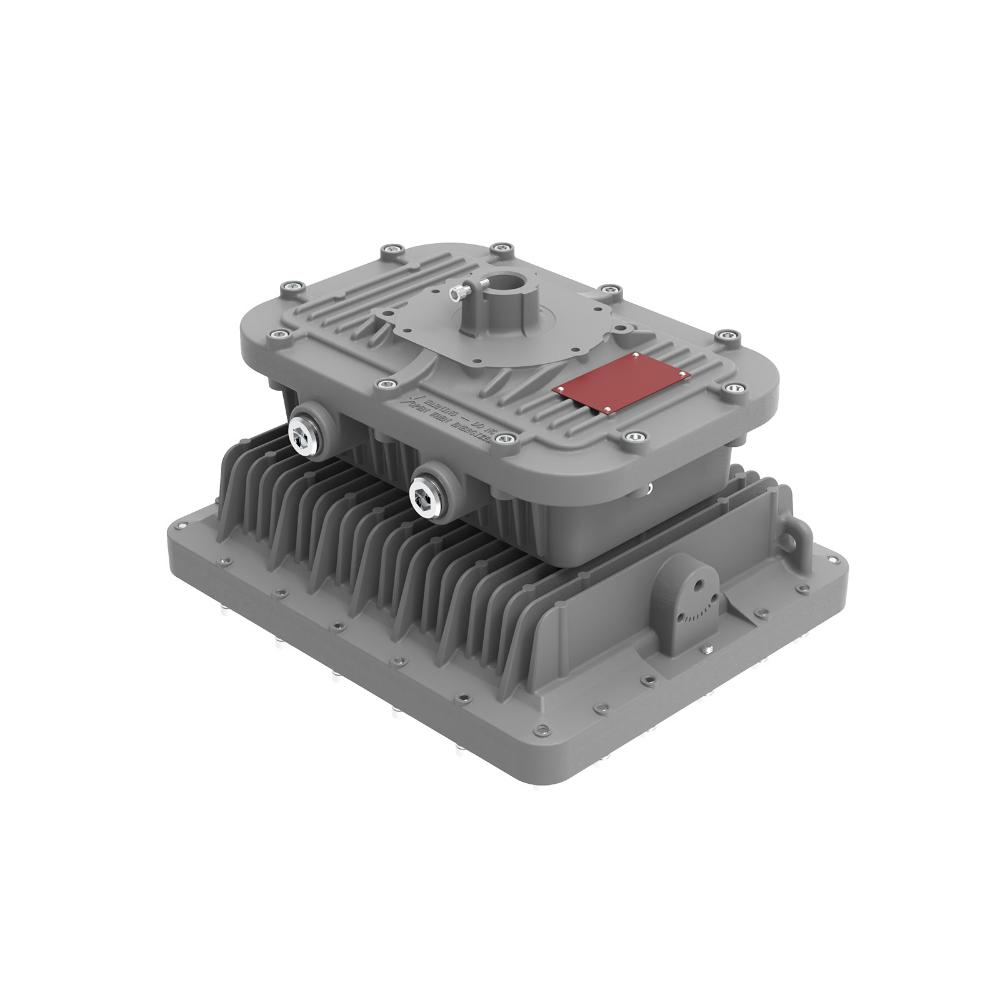

Rugged construction, separated LED and driver chambers, and superior heat dissipation ensure reliable operation in demanding industrial applications.
Specifications
Electrical Parameters
- Power (W): 80W, 100W, 120W, 150W
- Voltage(V): 100-277V AC, 347-480V AC
- Frequency: 50/60Hz
- Power Factor: ≥0.90
- THD: <20%
- L70: 121,000 hrs@140°F
- Dimming: 0-10V, Range 10-100%
- Surge Protection: 10KV
- Warranty: LEDs: 10 years, Driver: 7 years
Optical Parameters
- Lumen Output: 11,777Lm, 14,416Lm, 17,416Lm, 21,141Lm
- Lumen Efficacy: 146Lm/W
- Available Beam Angle: 25° / 60° / 120°
- Correlated Color Temperature (CCT): 3000K/4000K/5000K
- Color Rendering Index (CRI): 80 CRI
Mechanical Parameters
- Hardware: Stainless steel 316
- Lens Material: Tempered Glass

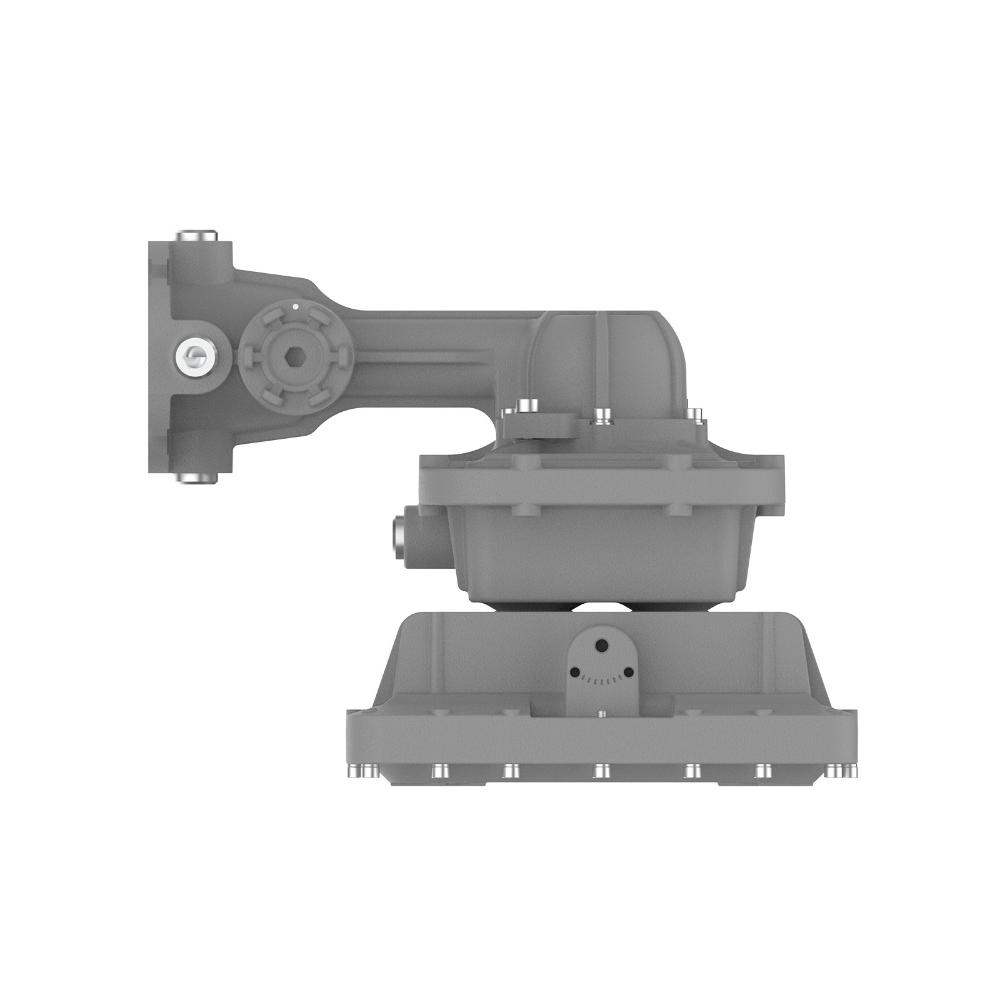

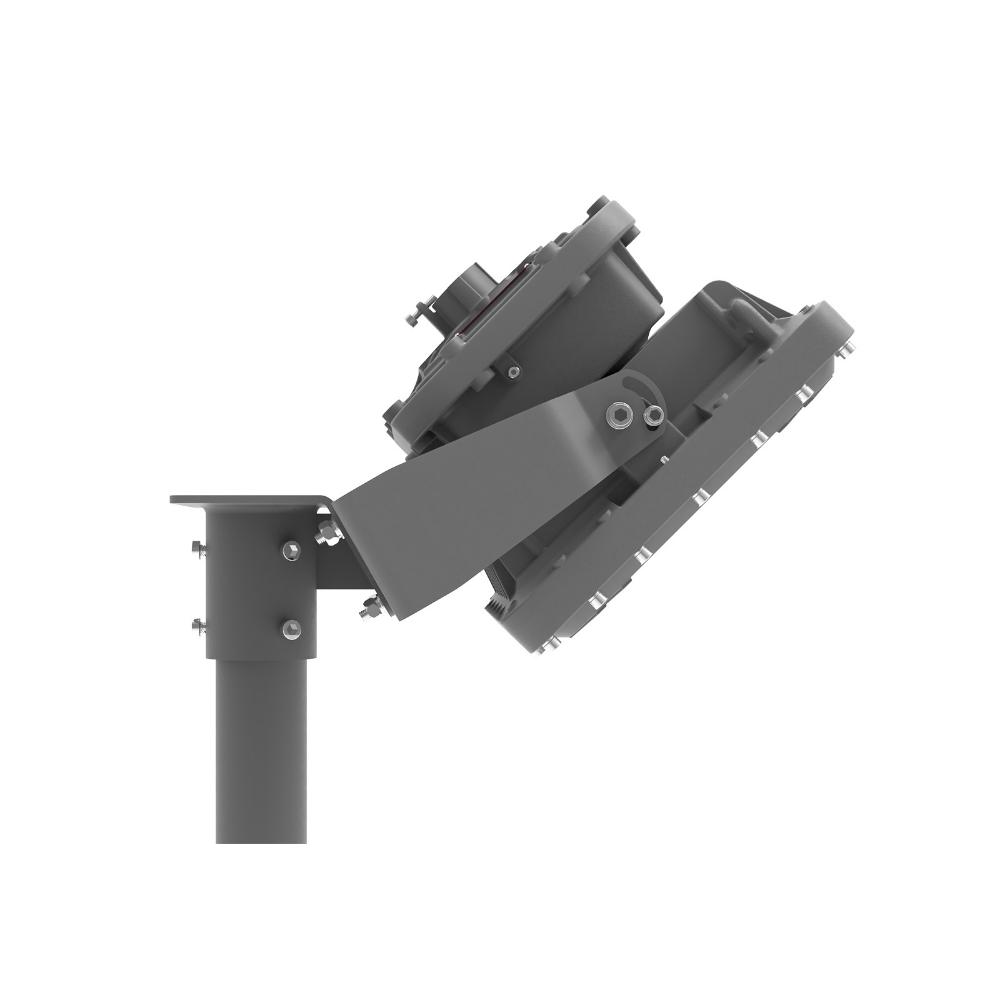

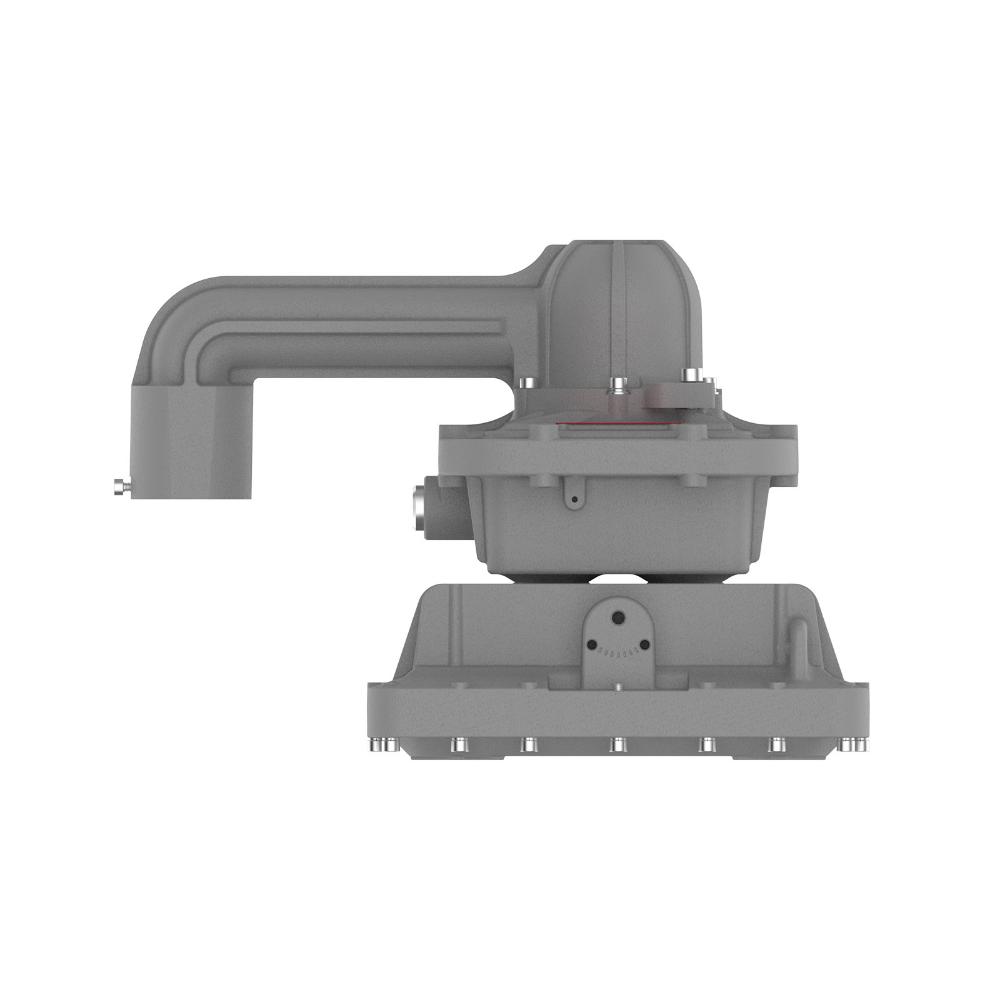

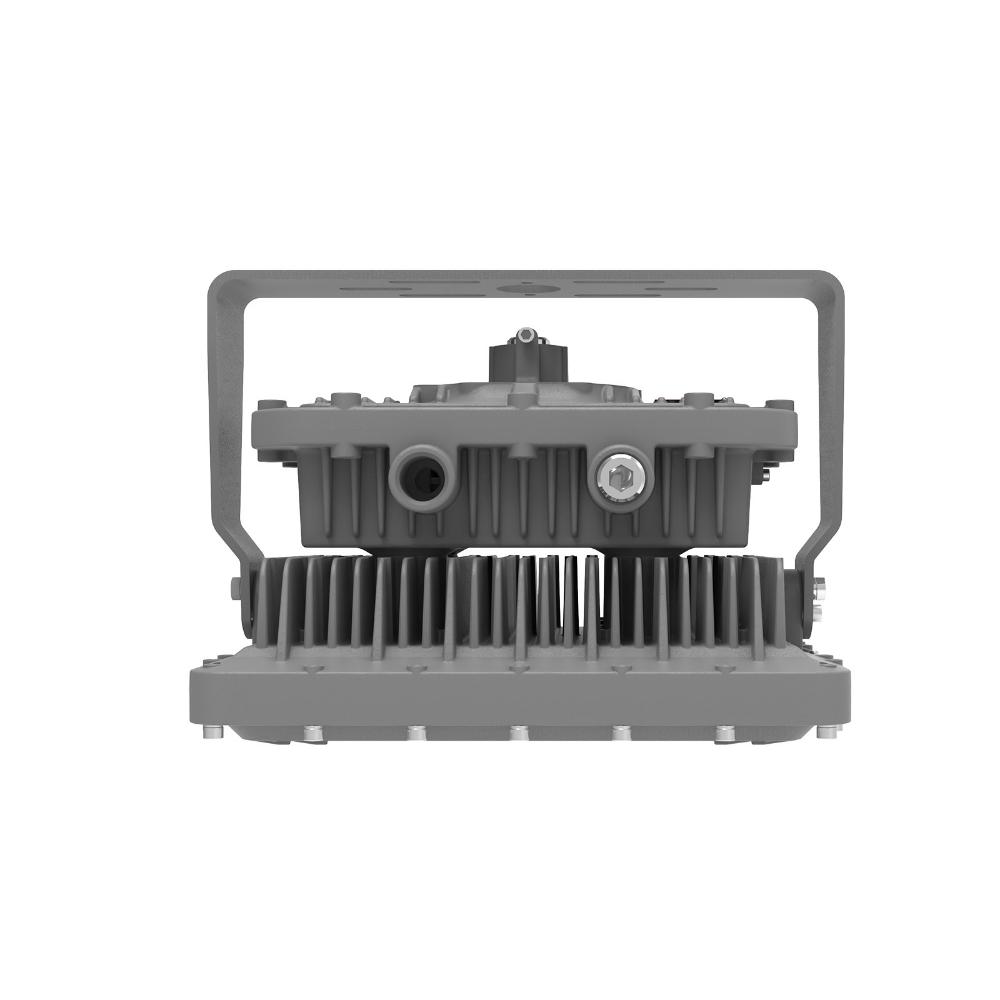

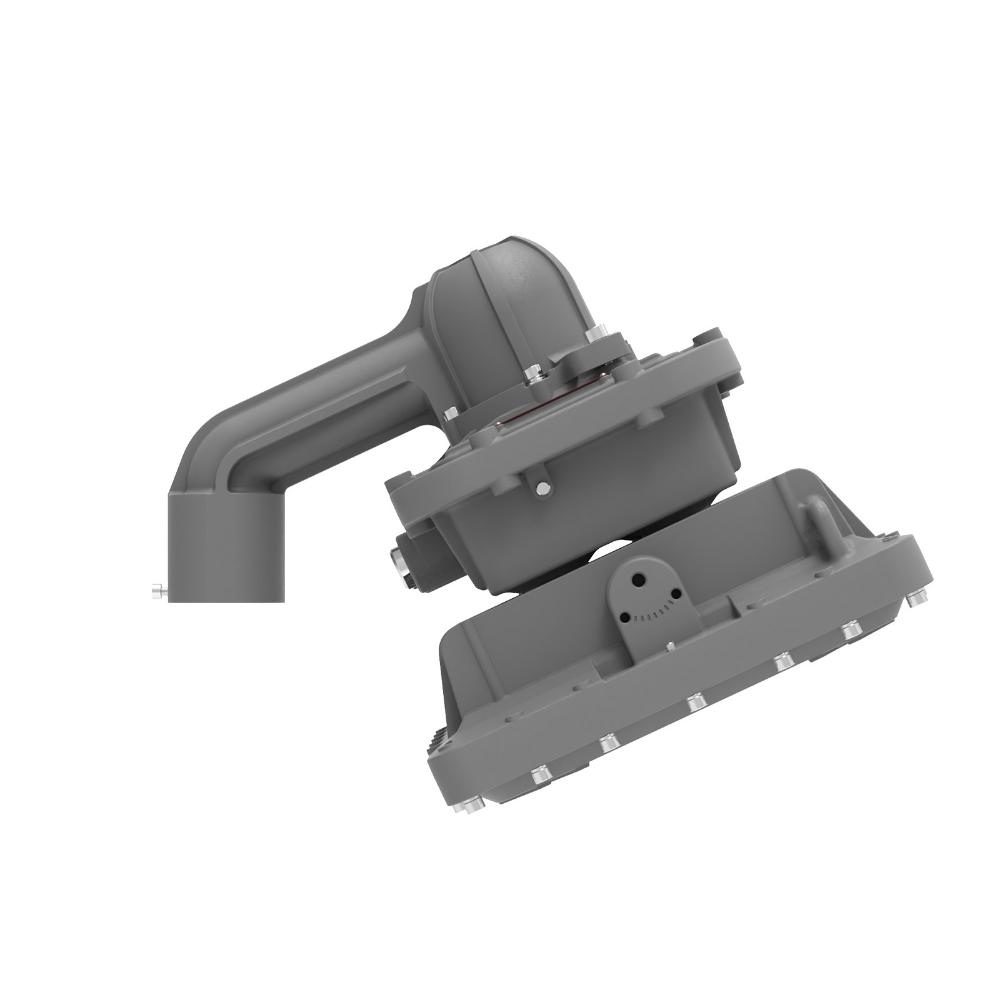

- Mounting Options: Pendant, Yoke, Pole, Stanchion, Ceiling, Wall
- Product Weight: 33.5lbs/15.2kg 33.7lbs/15.3kg
- Cable Entry: (3) 3/4" NPT
- Product Dimensions (LxWxH): 12.9 x 10.7 x 8.4in (328 x 271 x 214mm)
Environmental Parameters
- Ambient Operating Temperature: -40°F ~ +140°F (-40°C ~ +60°C)
- T-Code Rating: C1D1 - T6, C1D2 - T4A, C2D2 - T4A
Compliance
Ratings:
- Class I Division 1, Groups C, D
- Class I Division 2, Groups A, B, C, D
- Class II Division 2, Groups F, G
- Class III
- Class I, Zone 1, Group IIB
- Class I, Zone 2, Group IIC
- Zone 22, Group IIIB
- UL 1598 Wet Locations
- UL 1598A Marine Outside Type (Salt Water)
- IP66
- IK09
- NEMA 4X
- Salt Spray 720 hrs (ISO 9227)
Certifications:
- UL844
- UL1598
- UL1598A
- CSA C22.2 No.250.0
- CSA C22.2 No.137
- FCC Part 15, Subpart B
- DLC Standard
Product Files
Click for Red Sky Lighting BLK2 H1 Specification
Click for Red Sky Lighting BLK2 H1 Installation Maunal
Click for Red Sky Lighting BLK2 H1 Certificate - UL844 Hazardous
Click for Red Sky Lighting BLK2 H1 Certificate - UL1598-Non-Hazardous
Click for Red Sky Lighting BLK2 H1 Certificate - UL1598A-Marine
