Description

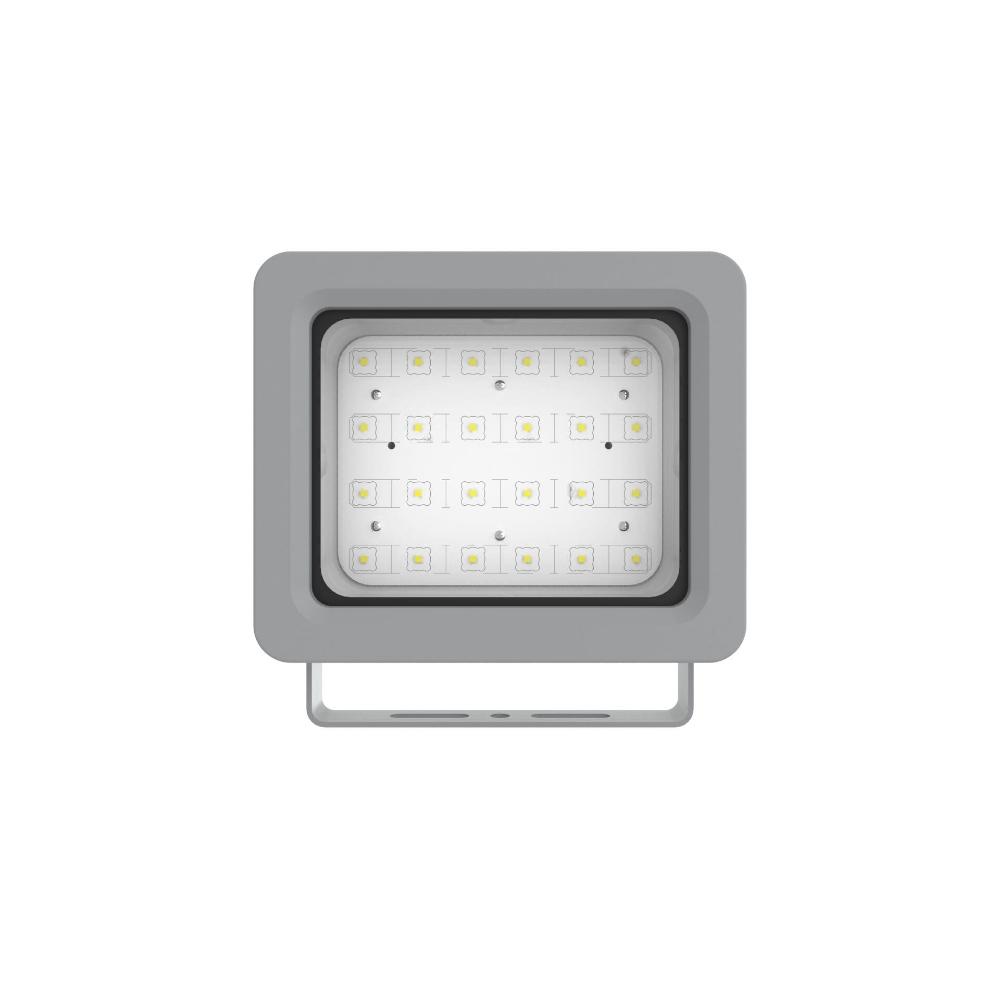

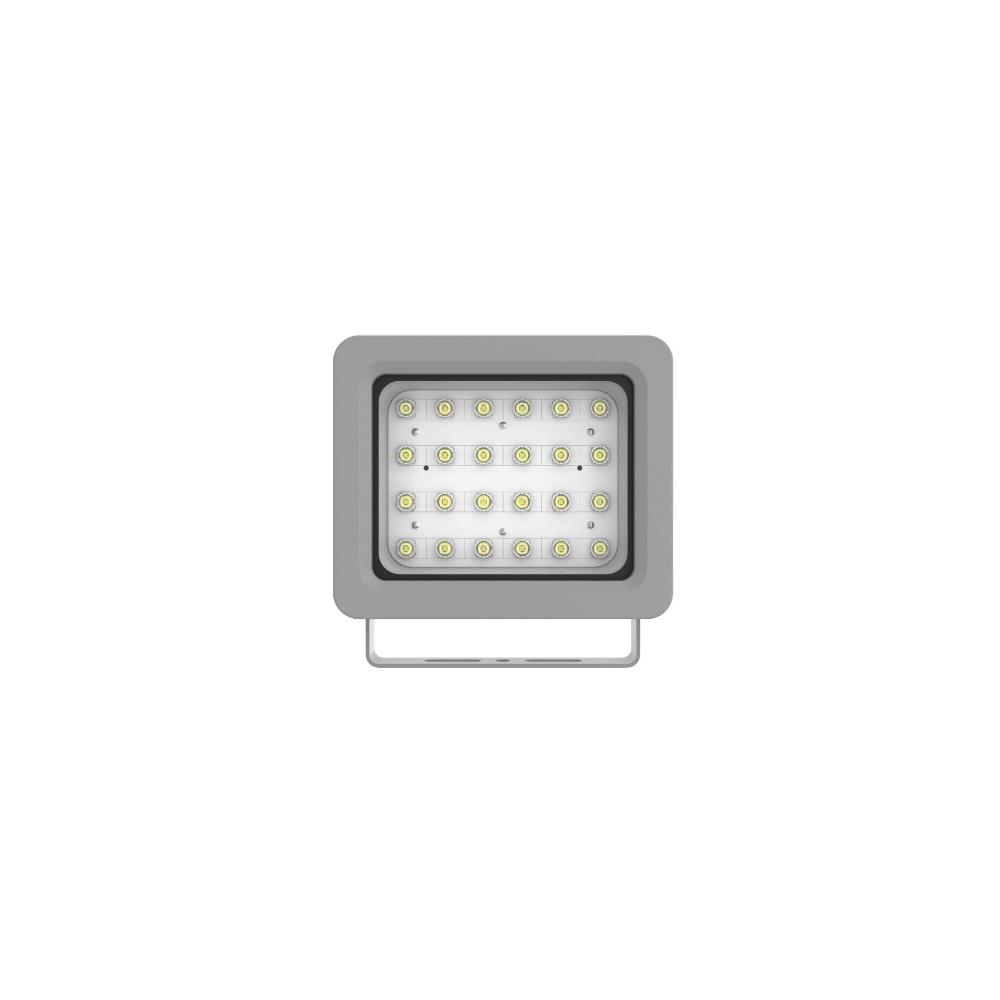

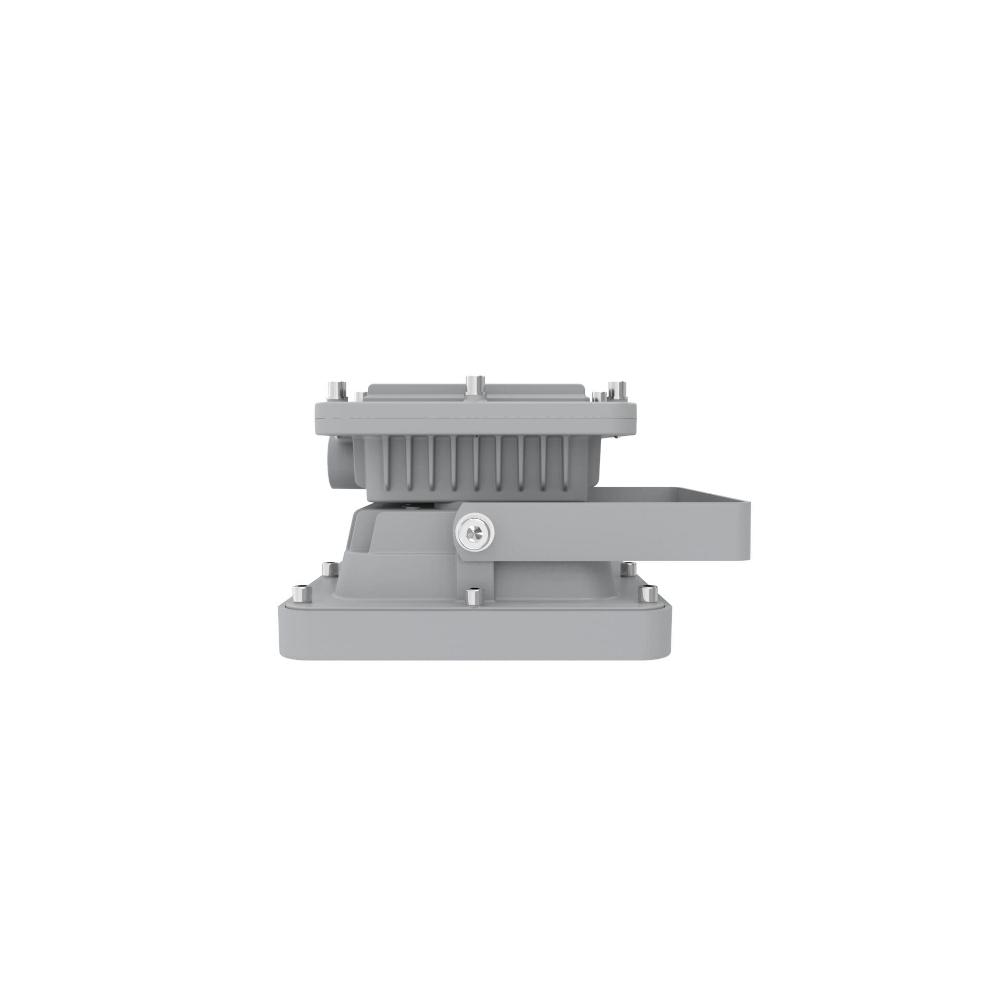

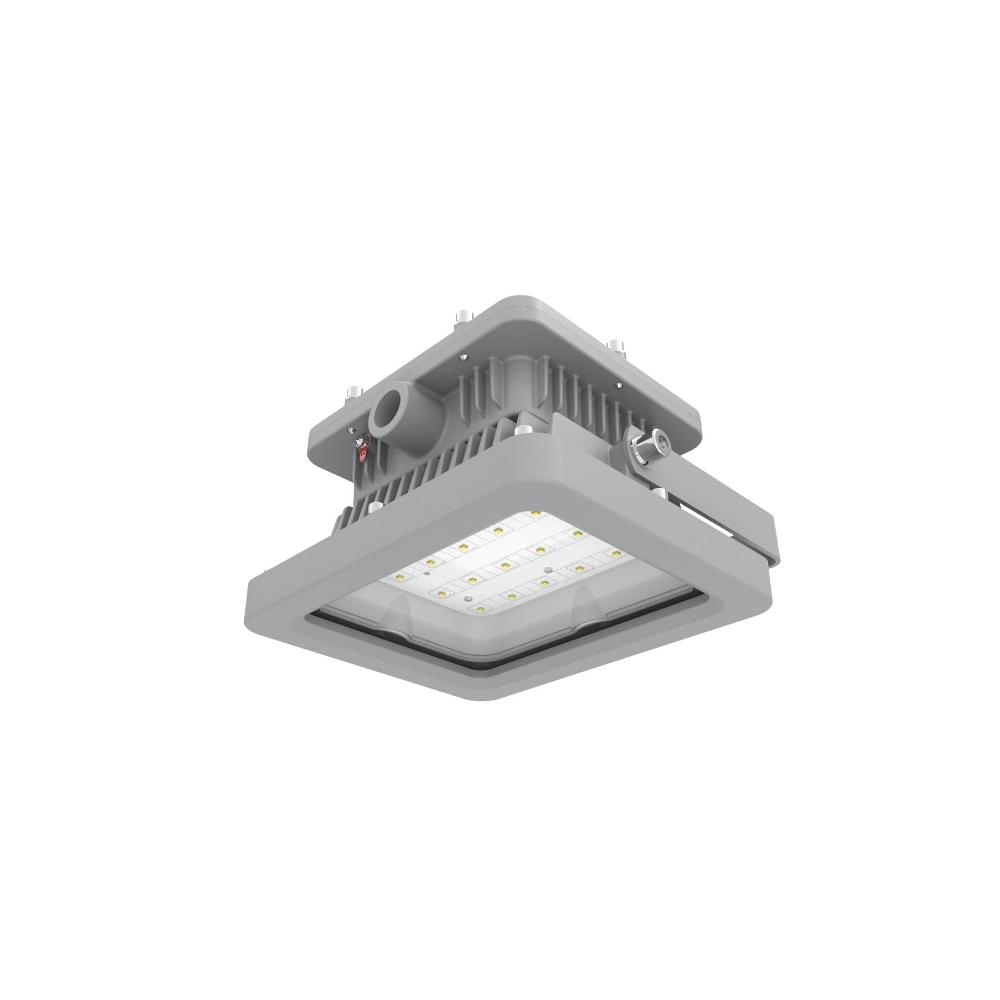

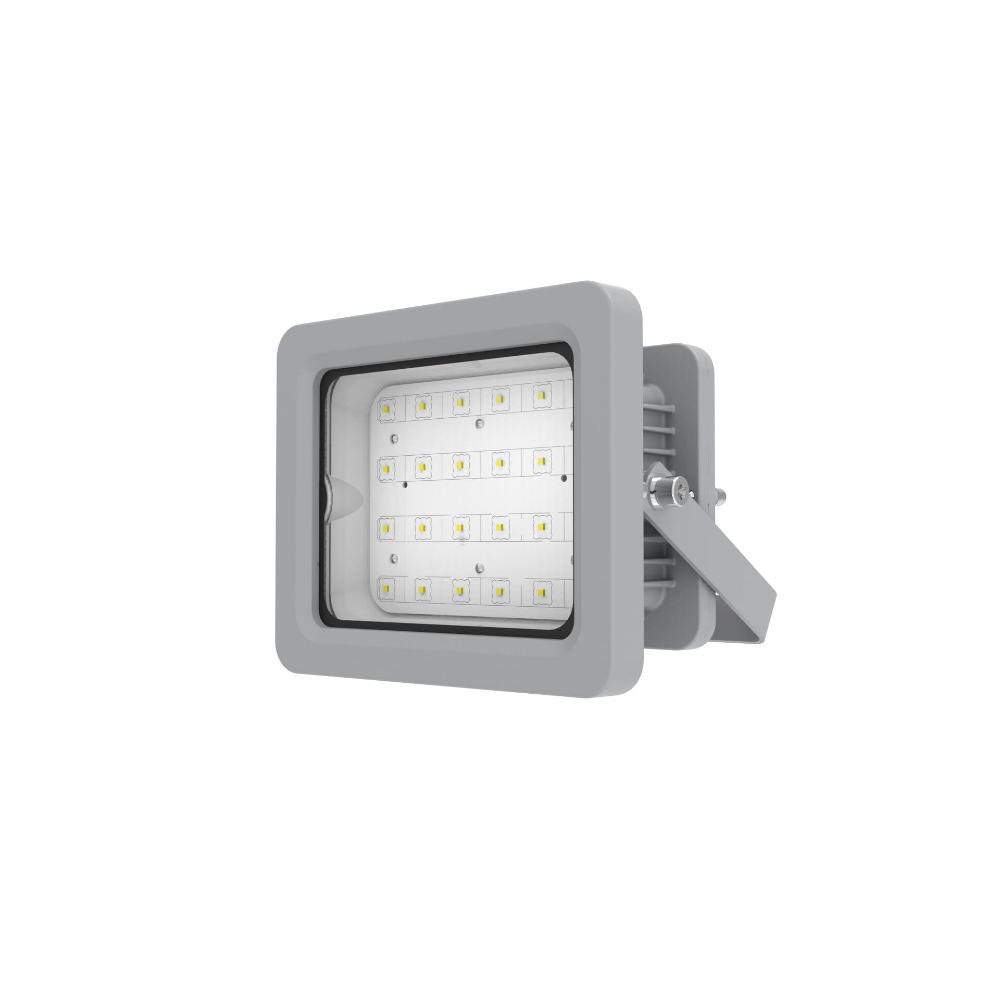

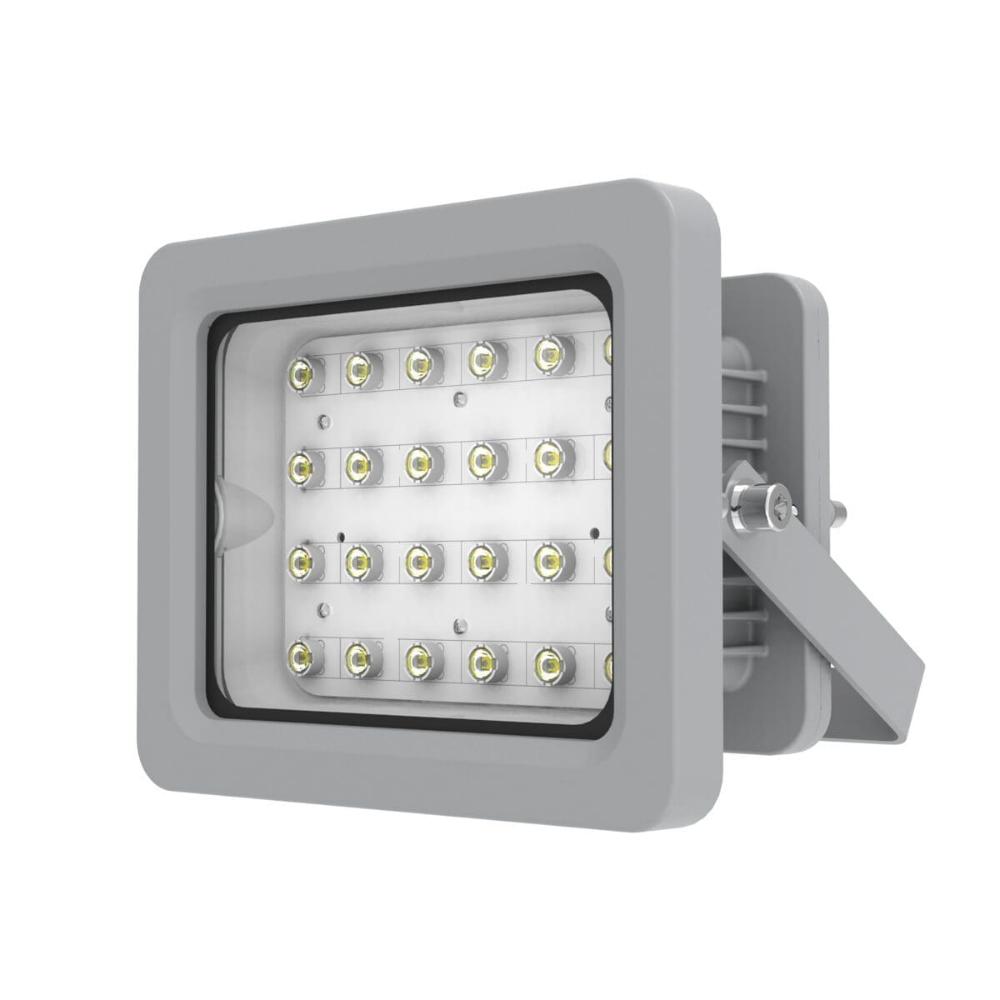

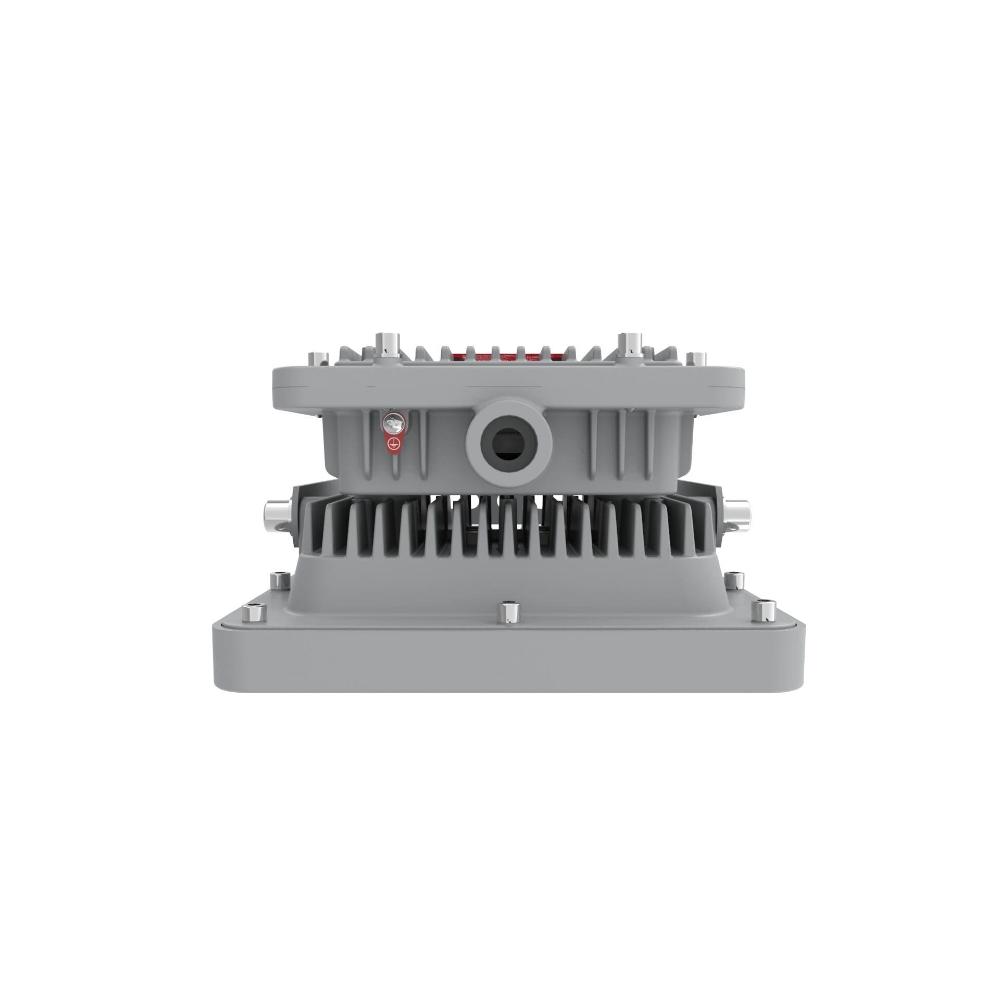

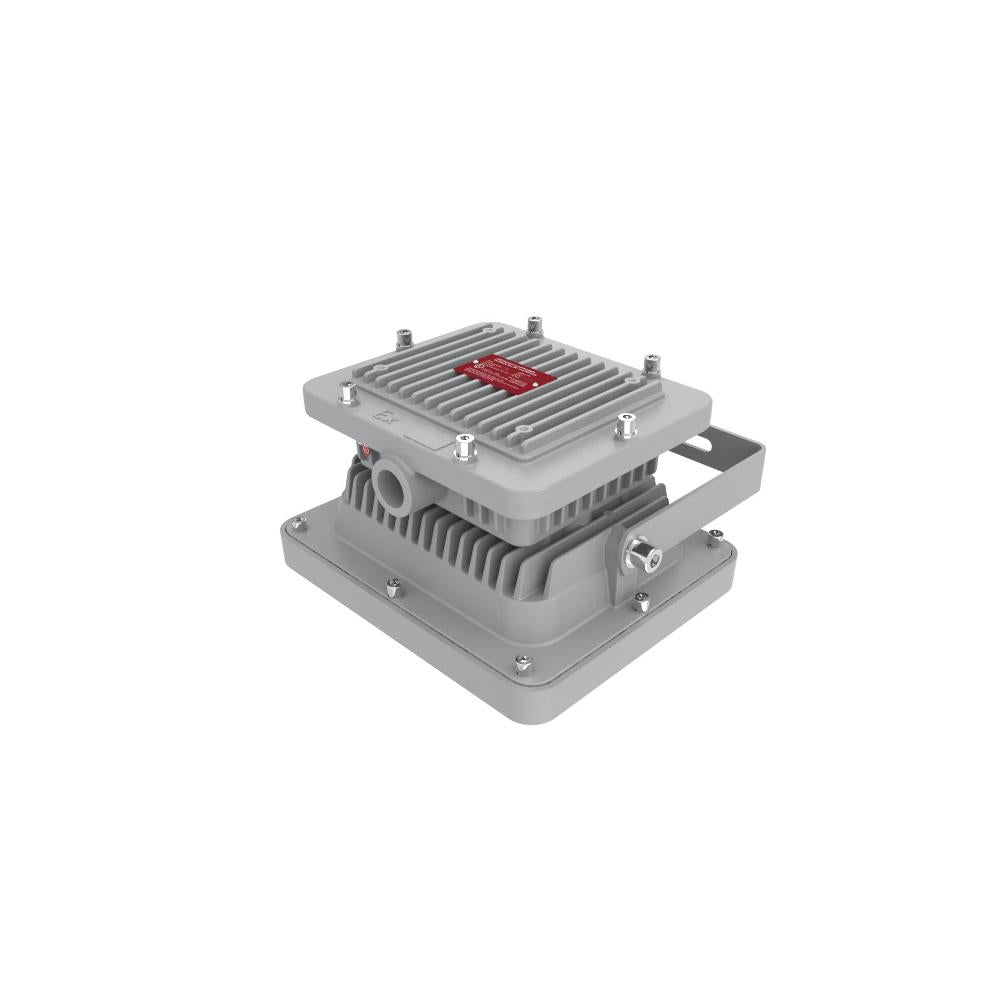

Red Sky Lighting Block Series X1 Flood Light
ATEX certified
Specifications
Electrical Parameters
- Power (W): 20W, 40W, 60W, 80W, 100W, 120W, 150W
- Voltage(V): 100-240V AC
- Frequency: 50/60Hz
- Power Factor: ≥0.90
- THD: <20%
- L70: 20/40/60W: 440,000 hrs@50°C 80/100/120/150W: 450,000 hrs@50°C
- Surge Protection: 20/40/60W : L/N-FG 2KV, L-N 1KV 80/100/120/150W : L/N-FG 4KV, L-N 2KV
- Warranty: 5 Years
Optical Parameters
- Lumen Output*: 2,399Lm, 5,260Lm, 5,944Lm, 8,815Lm, 10,733Lm, 15,807Lm, 18,863Lm
- Lumen Efficacy*: 20/40/60W: 120Lm/W 80/100/120/150W: 130Lm/W
- Available Beam Angle: 25° / 60° / 120°
- Correlated Color Temperature (CCT): 4000K/5700K
- Color Rendering Index (CRI): Ra>70
Mechanical Parameters
- Hardware: Stainless steel 316
- Lens Material: Tempered Glass
- Mounting Options: Yoke, Stanchion
- Product Weight: 20/40/60W: 10.1lbs/4.6kg 80/100/120/150W: 33.3lbs/15.1kg
- Cable Entry: 20/40/60W: (1) 3/4" NPT 80/100/120/150W: (2) 3/4" NPT
- Product Dimensions (LxWxH): 20/40/60W: 9.6 x 8 x 5.6in (243 x 203 x 141mm) 80/100/120/150W: 13.2 x 11 x 6.6in (336 x 279 x 168mm)
Environmental Parameters
- Ambient Operating Temperature: -30°C ~ +50°C
- T-Code Ratin: Gas - T5, Dust - 95°C
Compliance
Ratings:
- Zone 1,21
- Zone 2,22
- IP66
- IK08
- Salt Spray 720 hrs (ISO 9227)
Certifications:
- ATEx
- II 2G Ex d IIB T5 Gb
- II 2D Ex tb IIIC 95°C Max Db IP 66
- CE EMC/LVD
Product Files
Click for Red Sky Lighting BLK X1 Specification
Click for Red Sky Lighting BLK X1 Installation Manual
Click for Red Sky Lighting BLK X1 Certificate - ATEX Hazardous
