Description

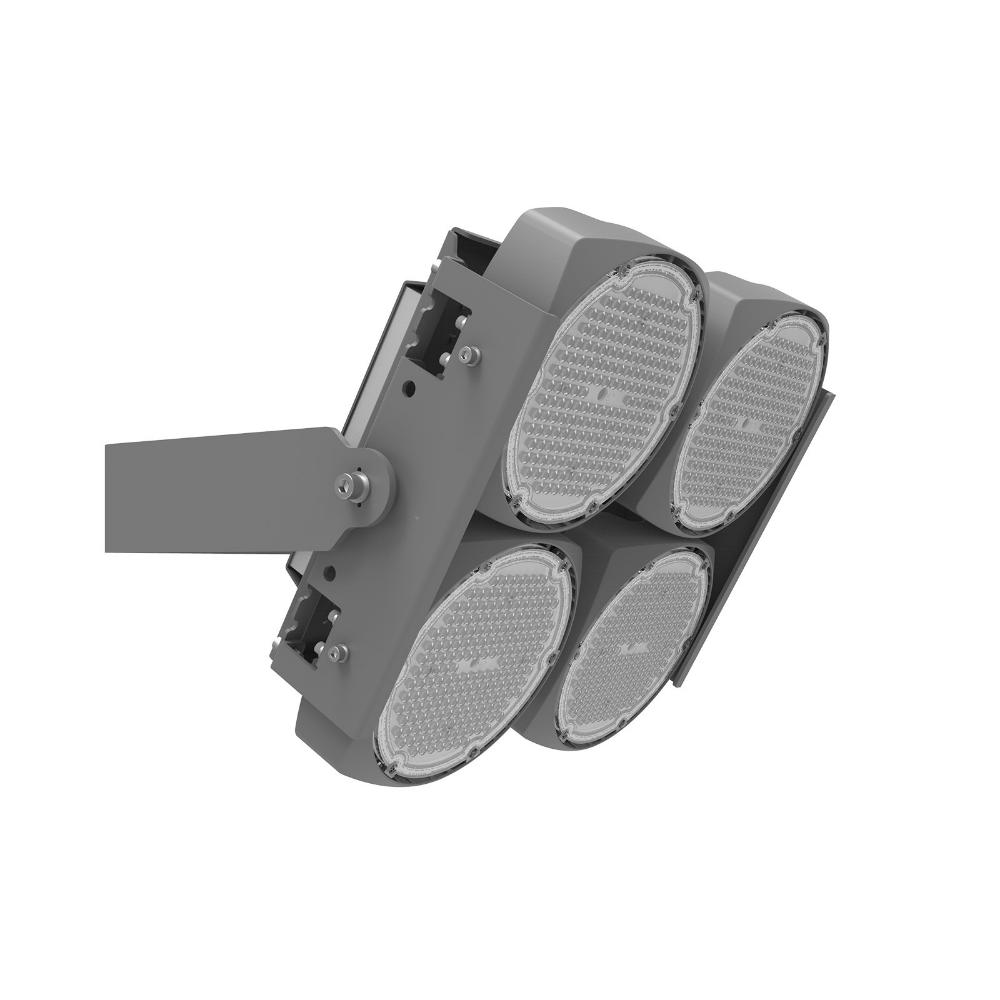

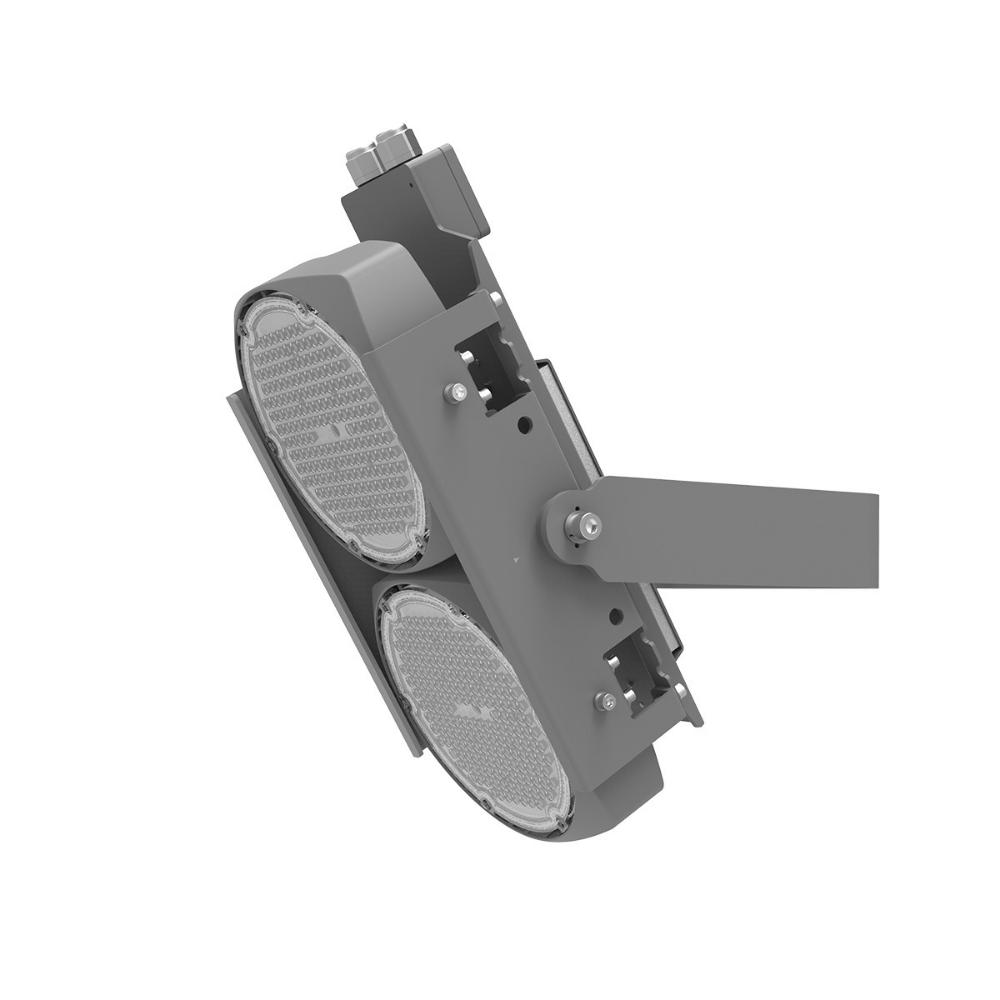

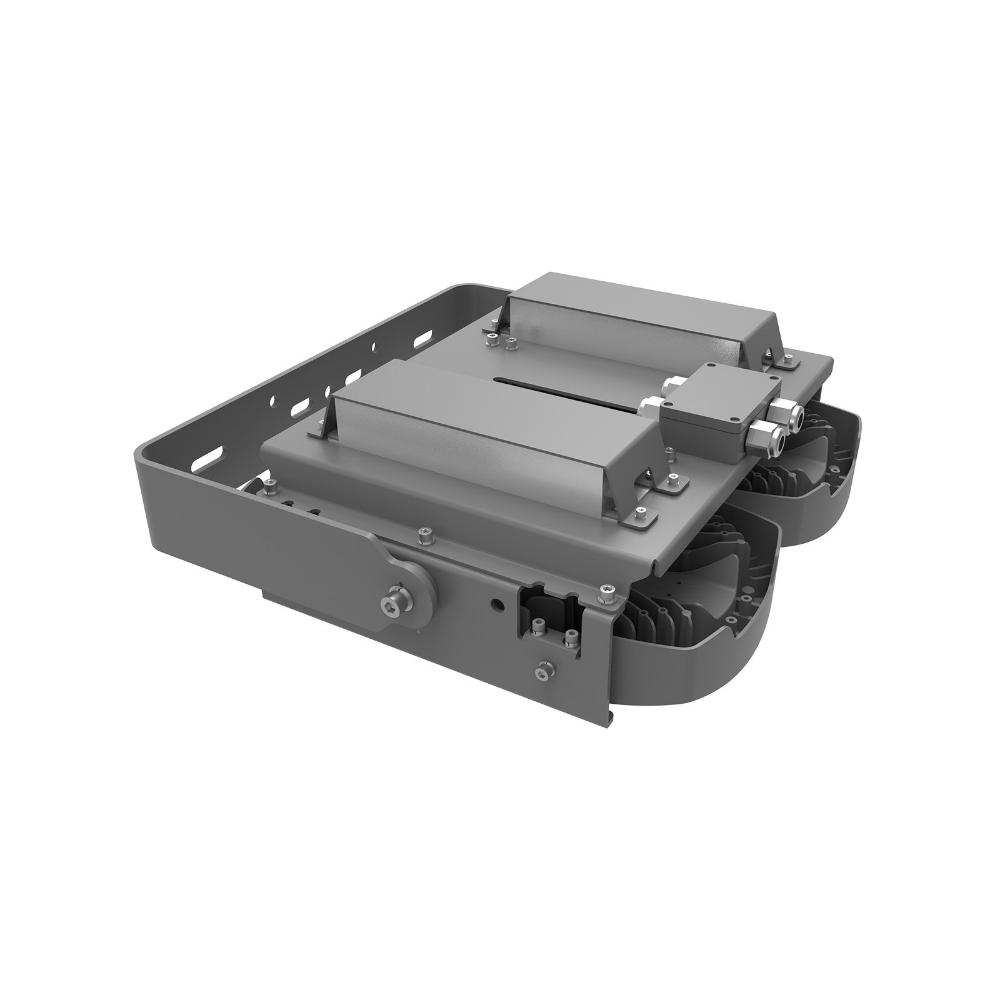

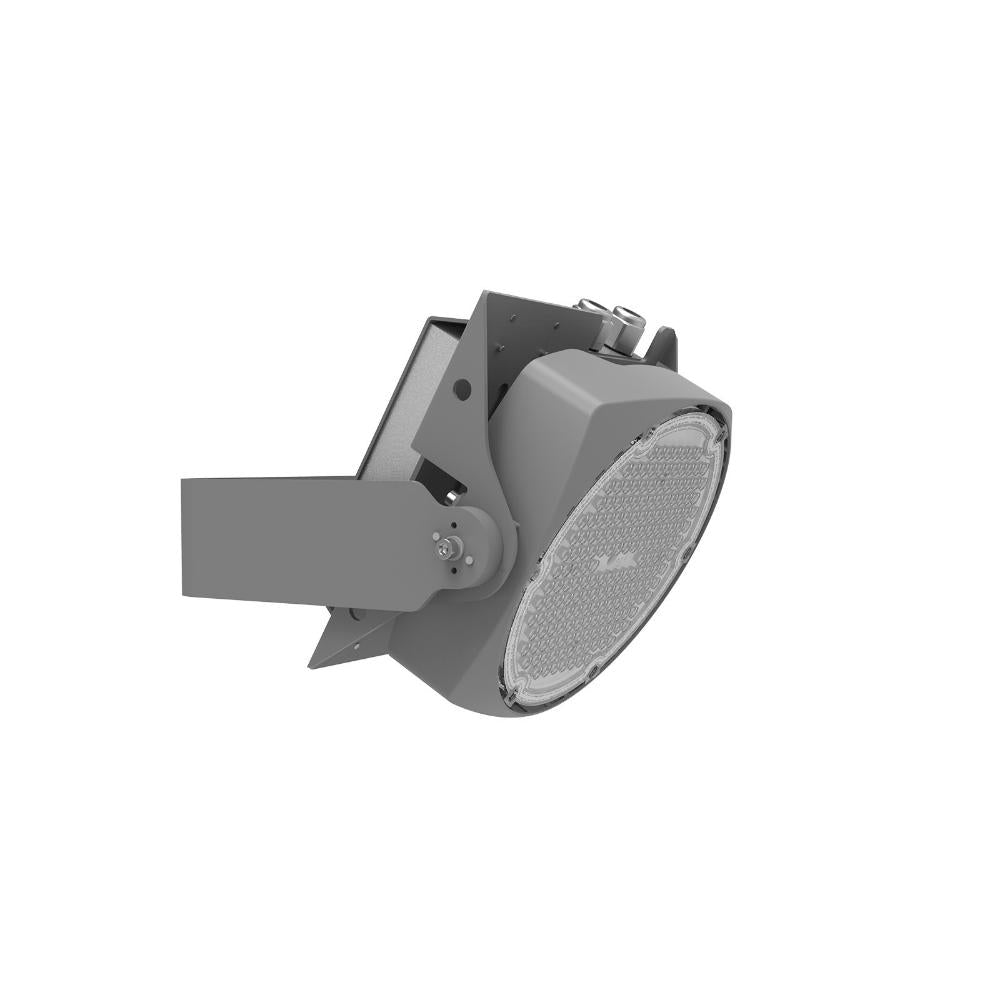

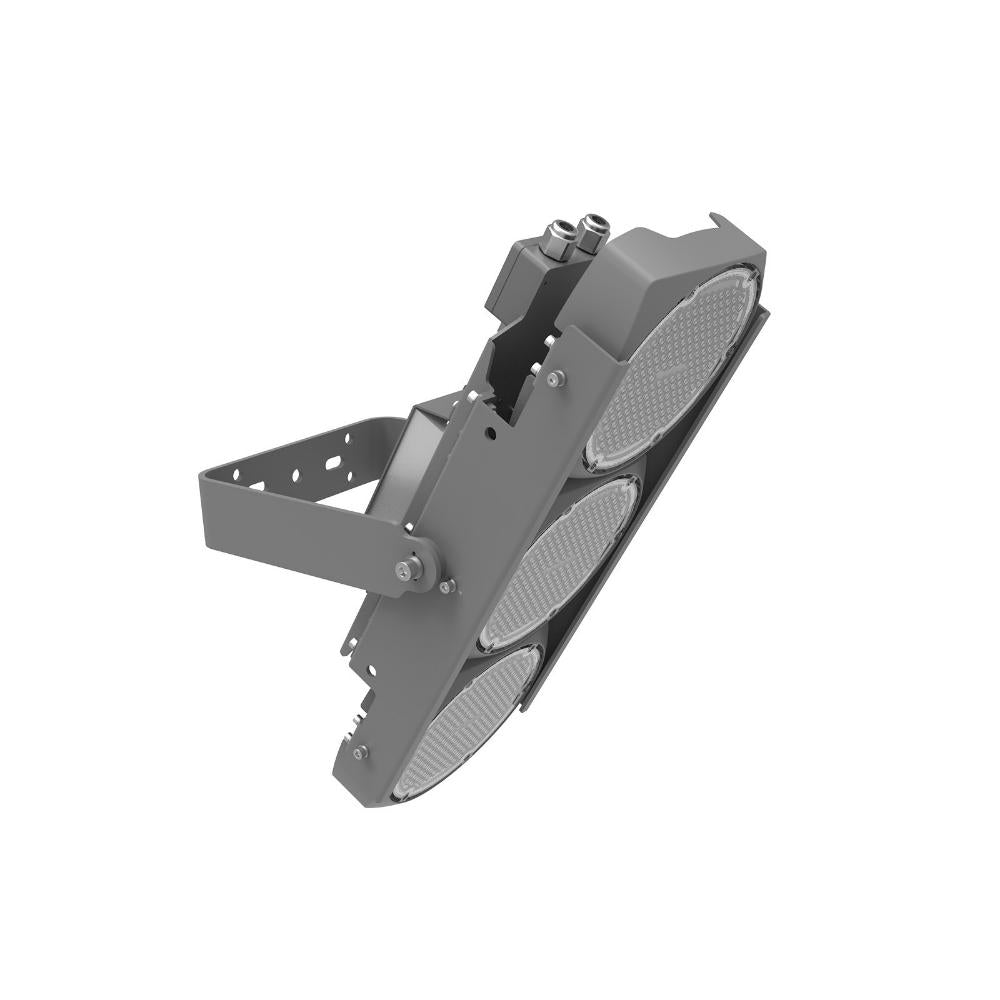

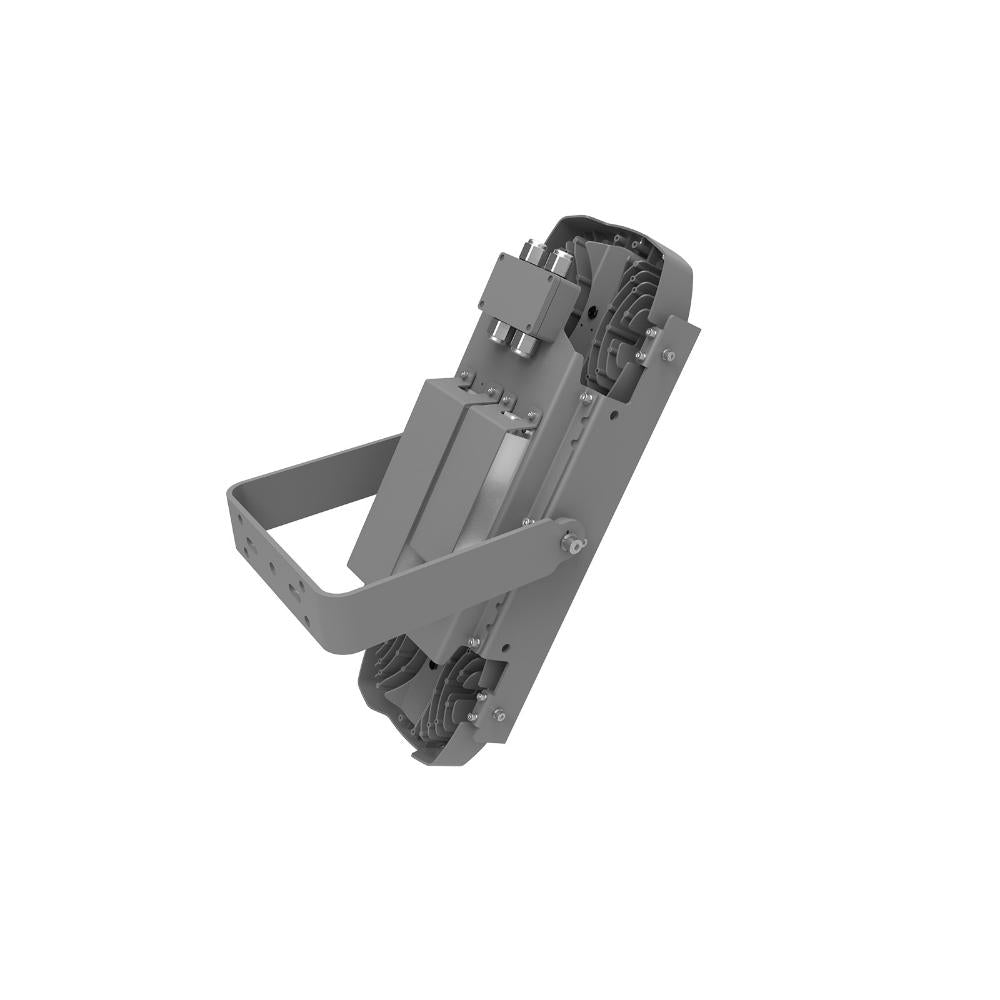

Red Sky Lighting Crane Master Series Flood Light
Crane Master Series LED Luminaire combines optical performance, energy efficiency, and outstanding versatility to meet the requirements of field lighting solutions in fixed lighting for all types of high pole lights, port cranes, traveling cranes, and sites with large vibrations, also delivers a wide range of light outputs.
Crane Master Series offers higher efficacy for increased energy savings, lower maintenance costs and shorter paybacks.
Specifications
Electrical Parameters
- Power (W): 150W, 300W, 420W, 560W
- Voltage(V): 100-240V AC
- Frequency: 50/60Hz
- Power Factor: ≥0.90
- THD: < 20%
- L70: 130,000 hrs@50°C
- Warranty: 5 Years
Optical Parameters
- Lumen Output: 20,439Lm, 42,425Lm, 58,852Lm, 79,230Lm
- Lumen Efficacy: 140Lm/W
- Available Beam Angle: 30°/60°/90°/30*120°(PC)/ 120°(Glass)
- Correlated Color Temperature (CCT): 4000K/5700K
- Color Rendering Index (CRI): Ra>70
Mechanical Parameters
- Hardware: Stainless steel 316
- Lens Material: Tempreted Glass or Clear PC
- Mounting Options: Yoke
- Product Weight: 16.5lbs/7.5kg 30.9lbs/14kg 39.7lbs/18kg 50.7lbs/23kg
- Cable Entry: (2) M20
- Product Dimensions (LxWxH): 150W: 10.2 x 9.1 x 5.8in(260 x 230 x 148mm) 300W: 22 x 11 x 6.7in(559 x 280 x 171mm) 420W: 24.9 x 11 x 6.7in(632 x 280 x 171mm) 560W: 19.2 x 16.5 x 6.7in(487 x 420 x 171mm)
Environmental Parameters
- Ambient Operating Temperature: -40°C~+55°C
- Optimal Operating Temperature: 25°C
Compliance
Ratings:
- IP67
- IK08
- Salt Spray 720 hrs (ISO 9227)
- IEC60068-2-6 5g
Certifications:
- CE EMC/LVD
- UKCA
- ROHS
