Description

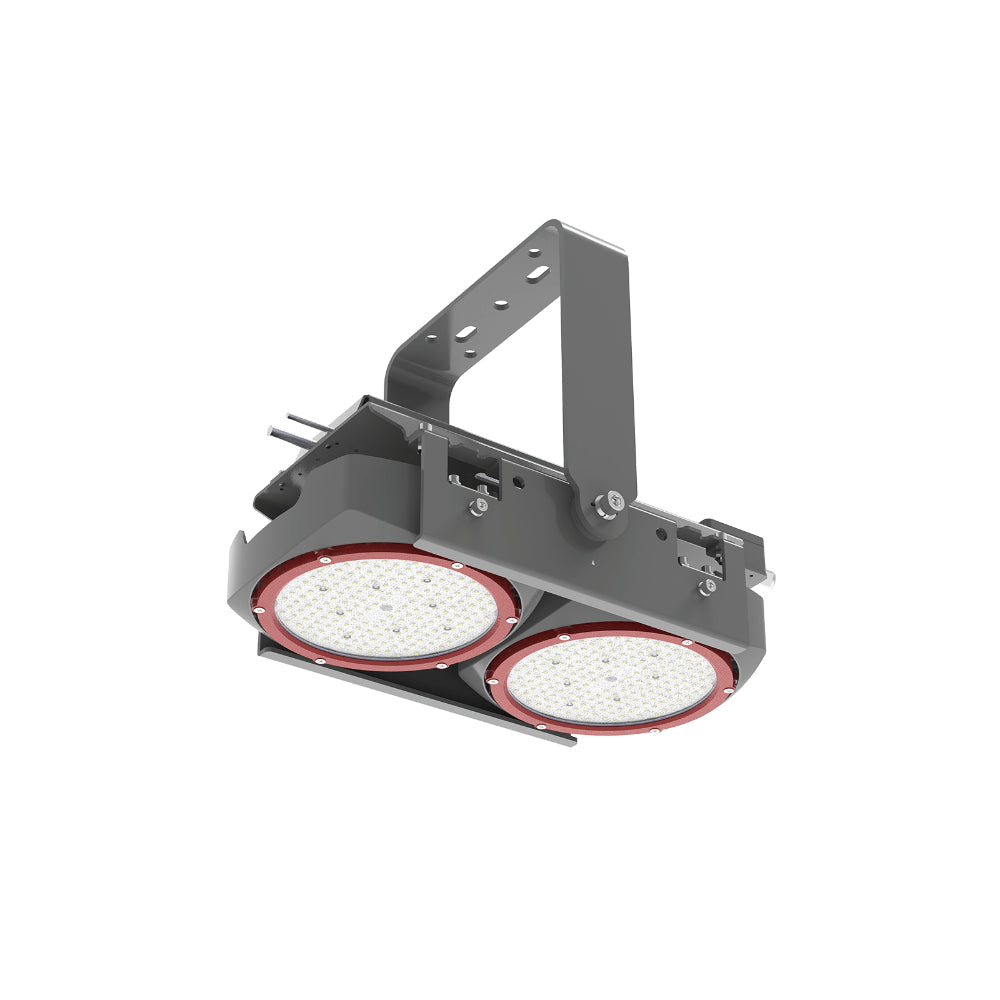

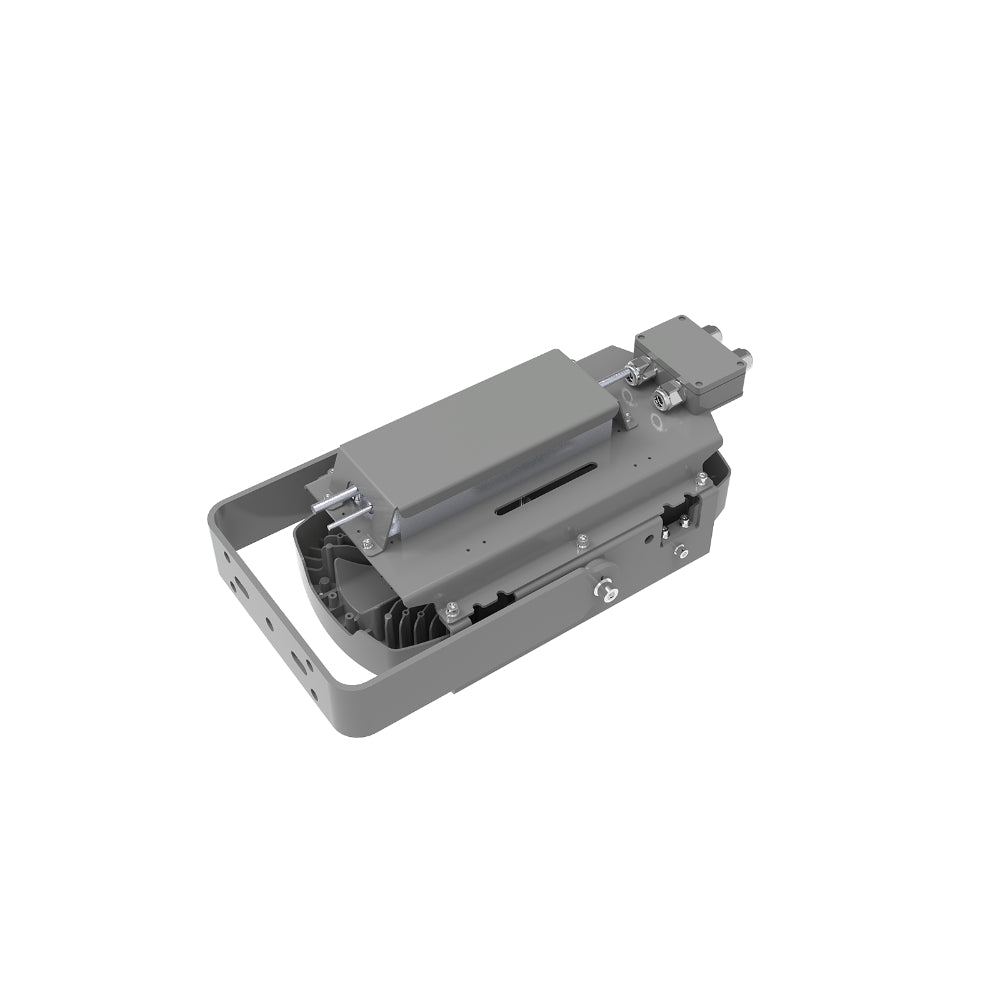

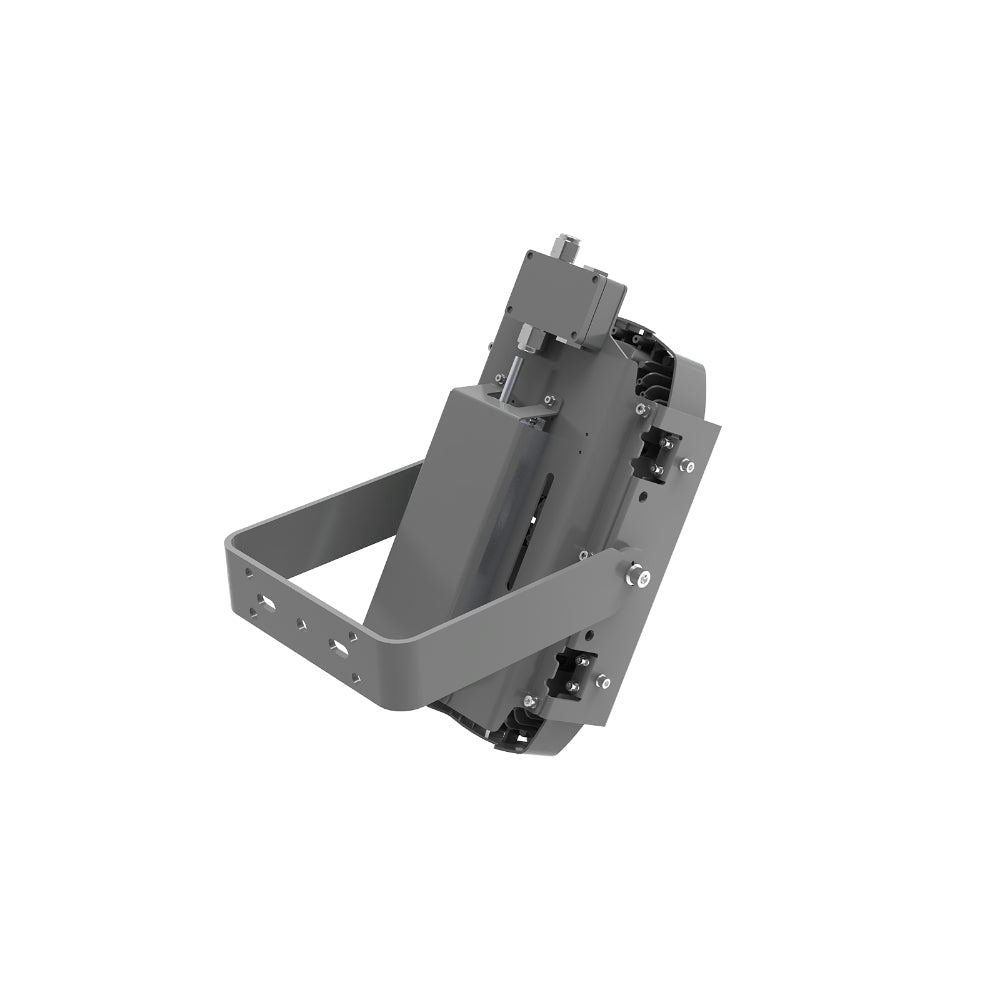

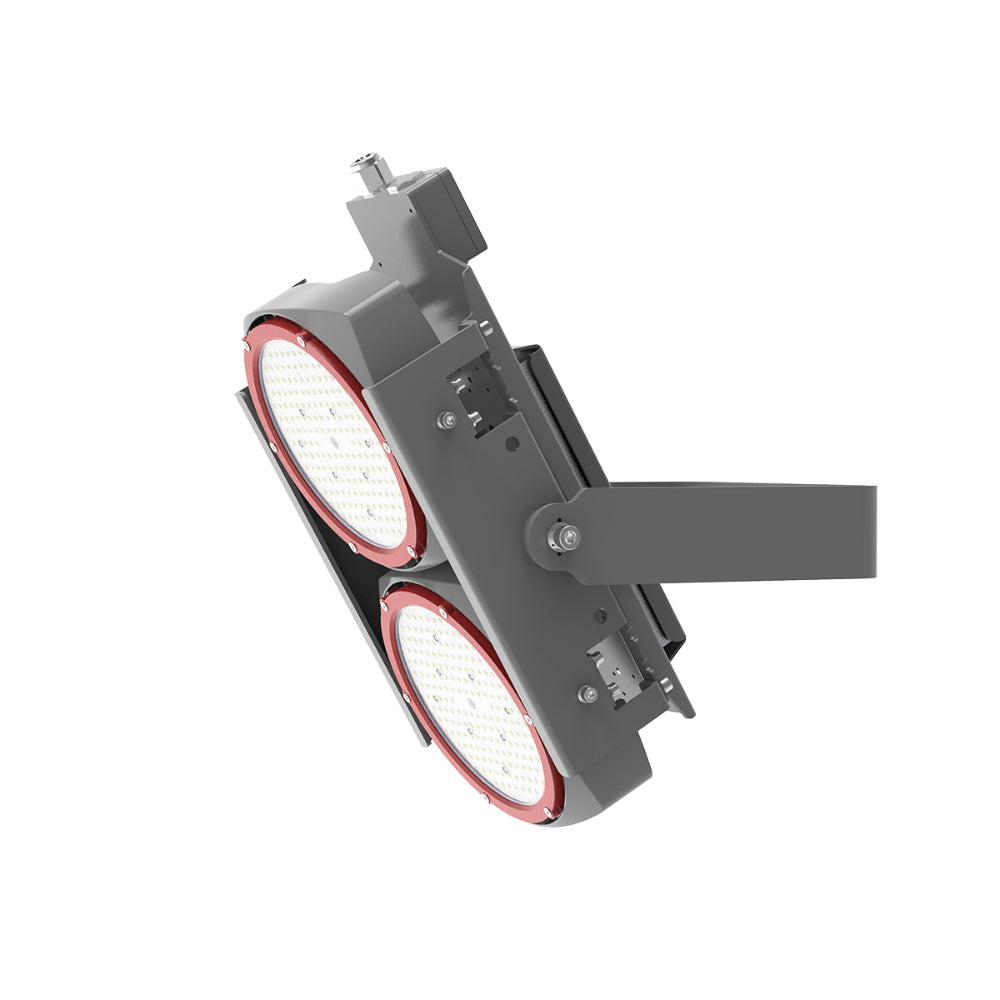

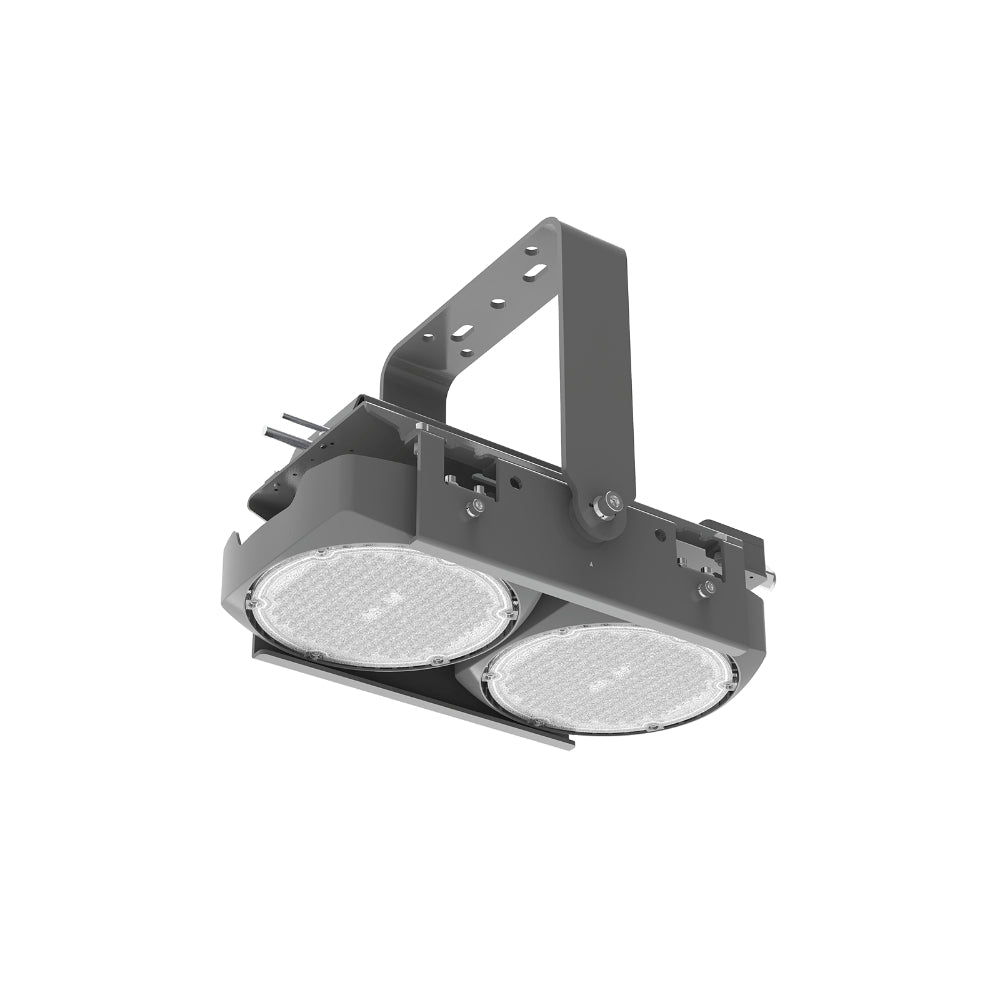

Red Sky Lighting Crane Master Series UL Flood Light
The RED SKY Crane Master Series UL is a high-performance LED floodlight designed for harsh and hazardous environments. With 43,000 lumens, IP67 and UL1598/1598A ratings, and up to five beam angles, it ensures reliable illumination across industrial applications. Built in the USA with fast delivery and robust safety features, it's ideal for marine, oil & gas, and heavy industry.
Specifications
Electrical Parameters
- Power (W): 300W
- Voltage(V): 100-277V AC, 347-480V AC
- Frequency: 50/60Hz
- Power Factor: >90%
- THD: <20%
- L70: 140,000 Hours@50℃
- Warranty: Standard: 5 Years
Optical Parameters
- Lumen Output*: 40,501Lm
- Lumen Efficacy*: 136Lm/W @5000K
- Available Beam Angle: 30°/60°/90°/30*120°(PC)/120°(Glass)
- Correlated Color Temperature (CCT): 3000K/4000K/5000K/5700K
- Color Rendering Index (CRI): 80 CRI
Mechanical Parameters
- Hardware: Stainless steel 316
- Lens Material: Clear Glass or Clear PC
- Mounting Options: Yoke
- Product Weight: 30.9lbs/14kg
- Cable Entry: 2 x M20
- Product Dimensions (LxWxH): 20.78 x 11.46 x 6.55 in (527.7 x 291.2 x 166.3 mm)
Environmental Parameters
- Ambient Operating Temperature: -40°F ~ +131°F (-40°C ~+ 55°C)
Compliance
Ratings:
- UL 1598 Wet Locations
- UL 1598A Marine Outside Type (Salt Water)
- IP67
- IK08
Certifications:
- UL1598
- UL1598A
- CSA C22.2 NO. 250.0
Product Files
Click for Red Sky Lighting CMF UL Specification
Click for Red Sky Lighting CMF UL Installation Maunal
Click for Red Sky Lighting CMF UL Certificate - UL1598 Non-Hazardous
Click for Red Sky Lighting CMF UL Certificate - UL1598A Marine
