Description

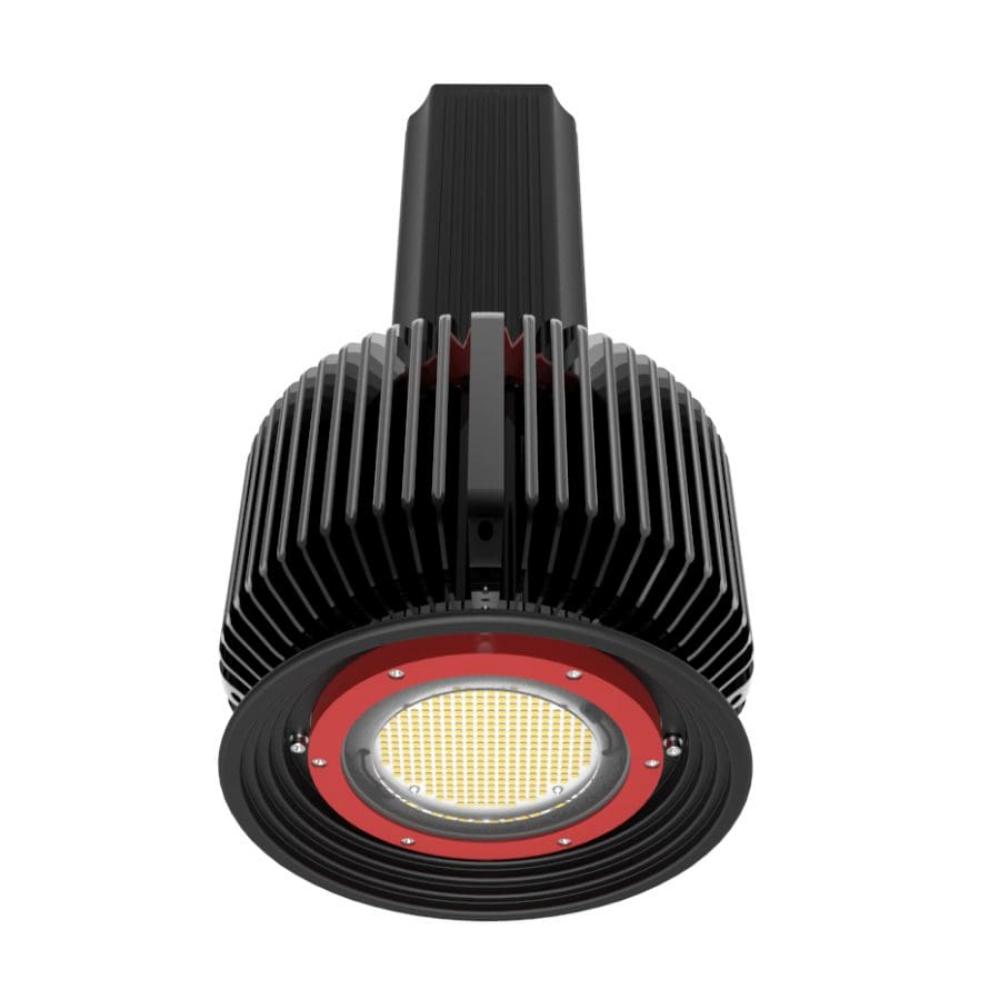

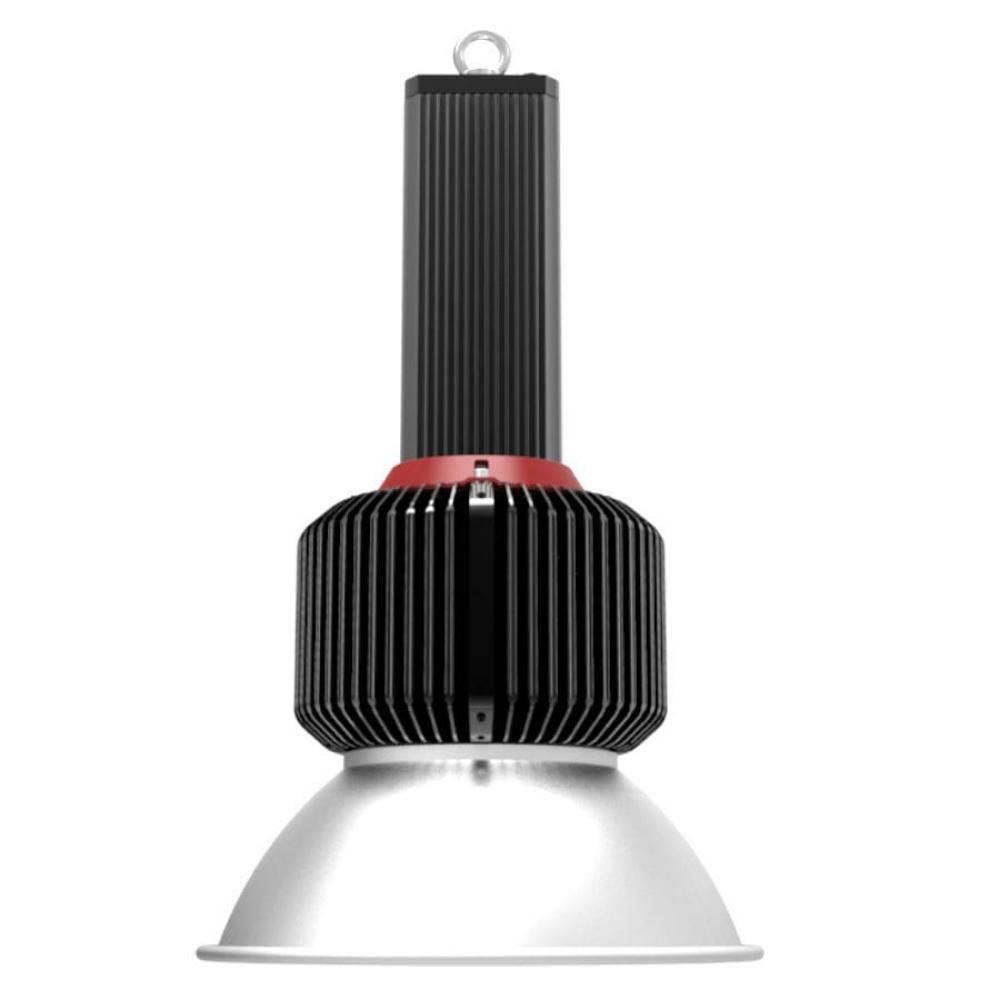

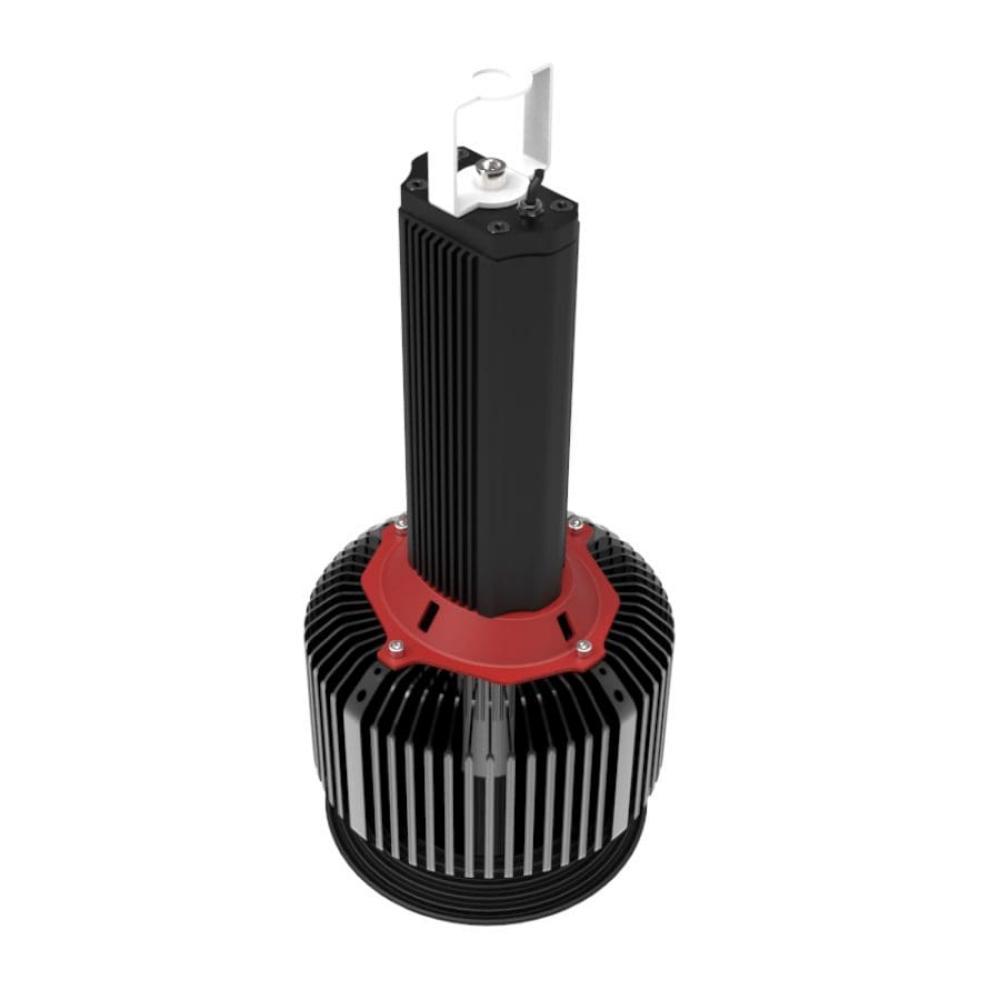

Red Sky Lighting High Bay Hot Series Ceiling Light
Introducing the High Bay Hot Series by Red Sky Lighting, the lighting solution designed to excel in high temperature
environments. This series has been rigorously tested and verified by UL, demonstrating an impressive lumen maintenance of up to 95.9% after 10,000 hours of continuous operation at an ambient temperature of 176°F (80°C).
Specifications
Electrical Parameters
- Power (W): 150W
- Voltage(V): 120-277V AC, 347-480V AC
- Frequency: 50/60Hz
- Power Factor: ≥0.90
- THD: <20%
- L70: 130,000 hrs@176°F
- Surge Protection: 10KV
- Warranty: Standard: 3 Years, Extended: 5 Years
Optical Parameters
- Lumen Output: 22,158Lm
- Lumen Efficacy: 150Lm/W
- Available Beam Angle: 60°/ 110°
- Correlated Color Temperature (CCT): 5000K
- Color Rendering Index (CRI): Ra≥70
Mechanical Parameters
- Hardware: Stainless steel 316
- Lens Material: Tempered glass

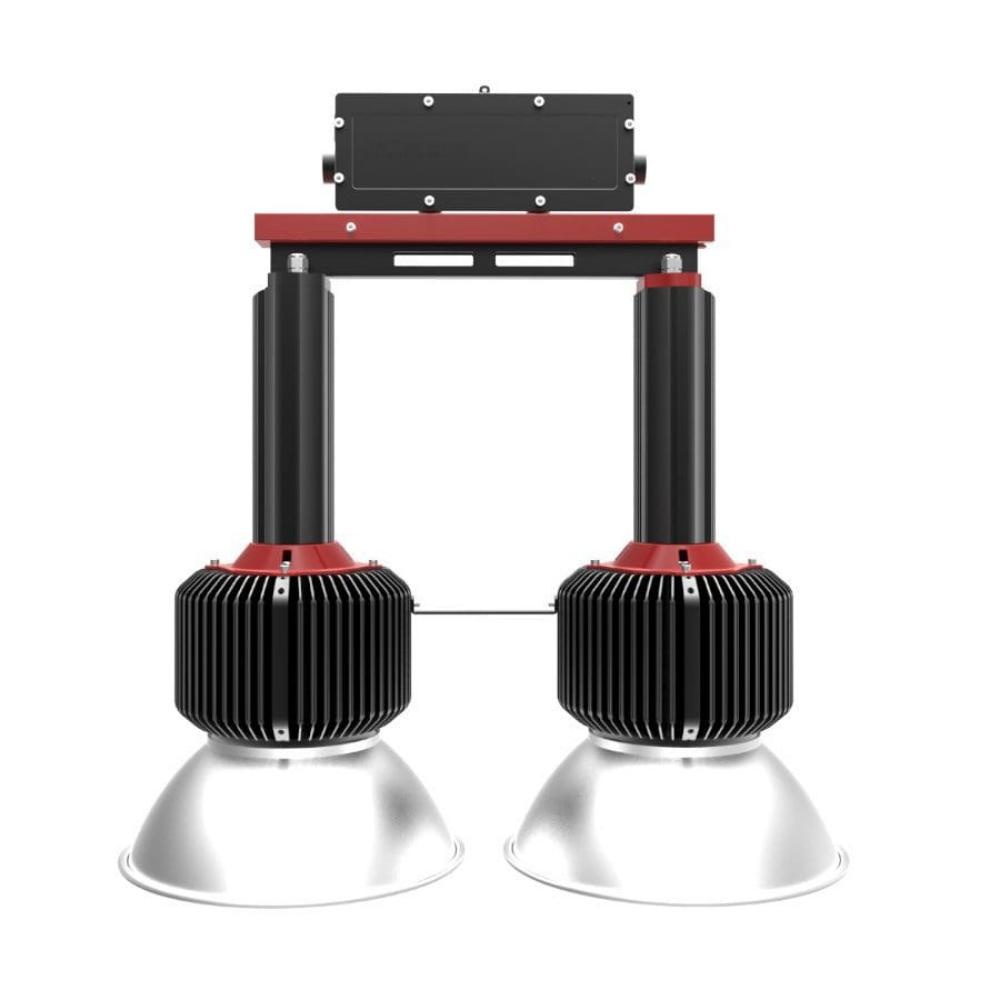

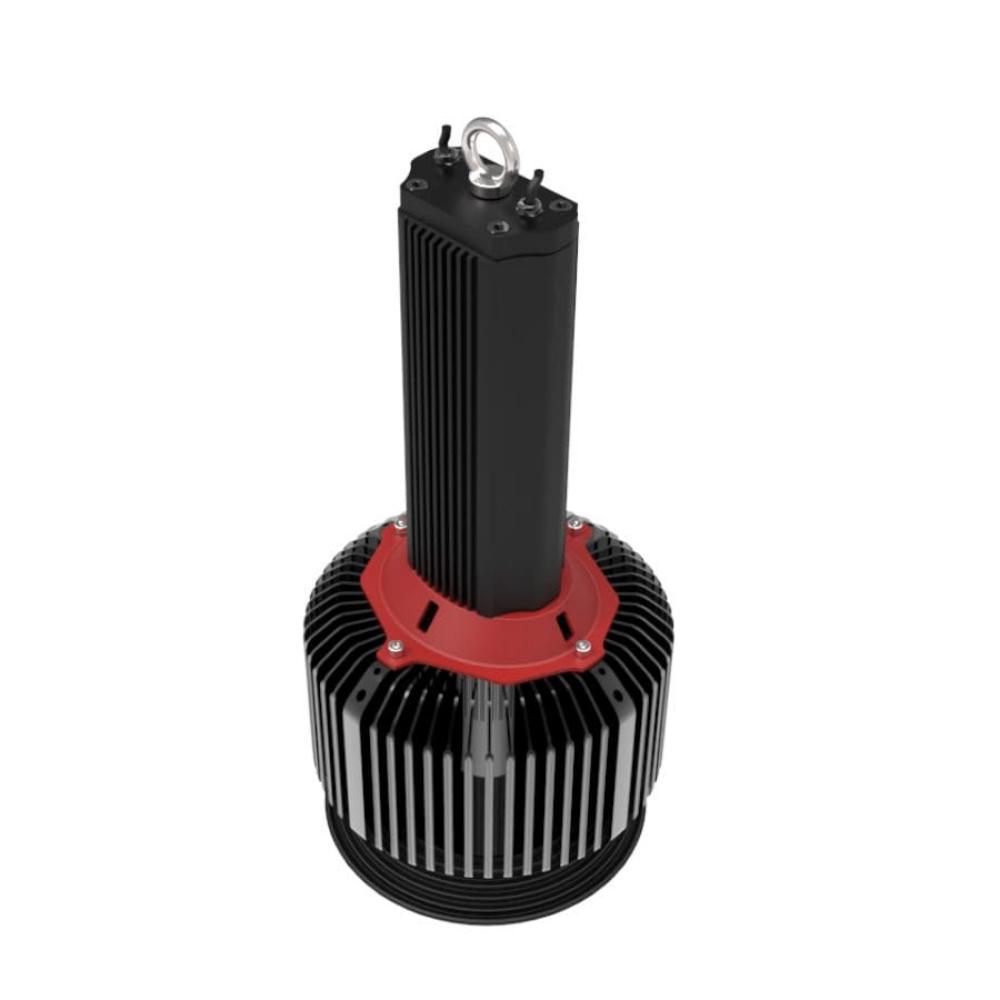

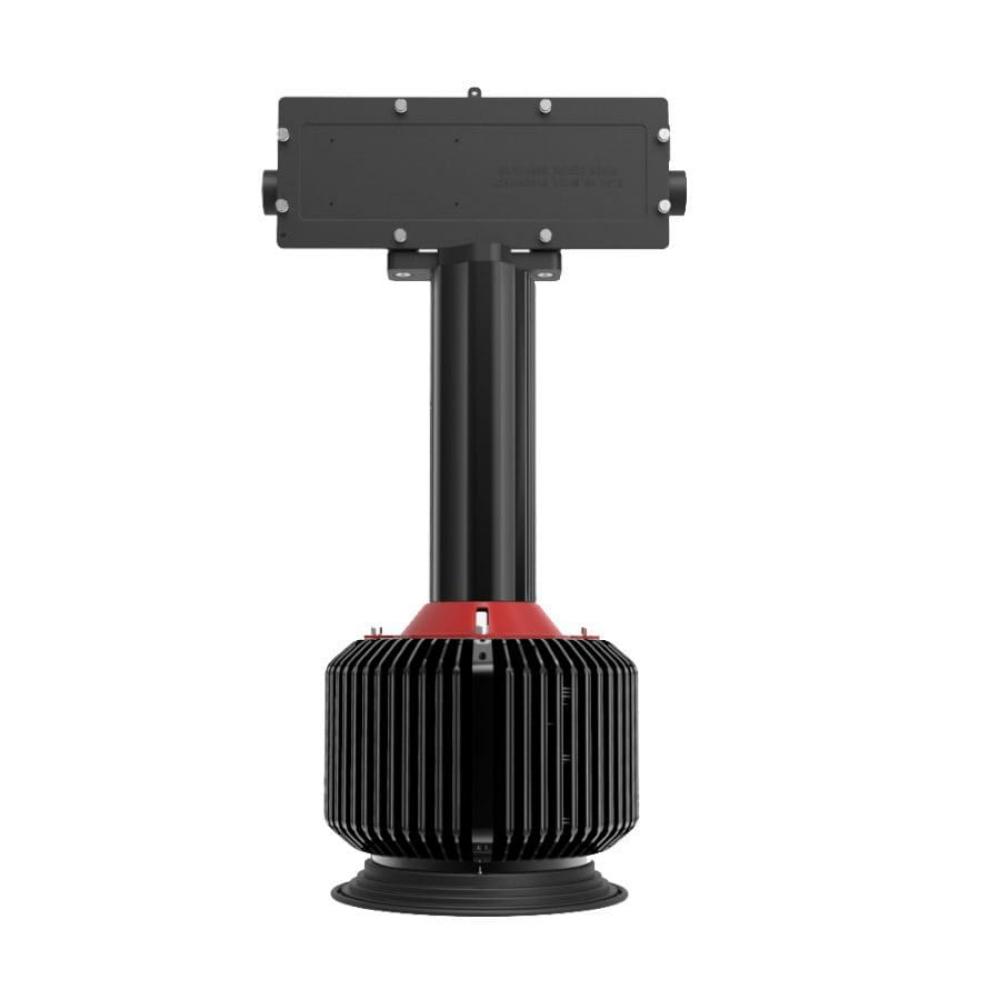

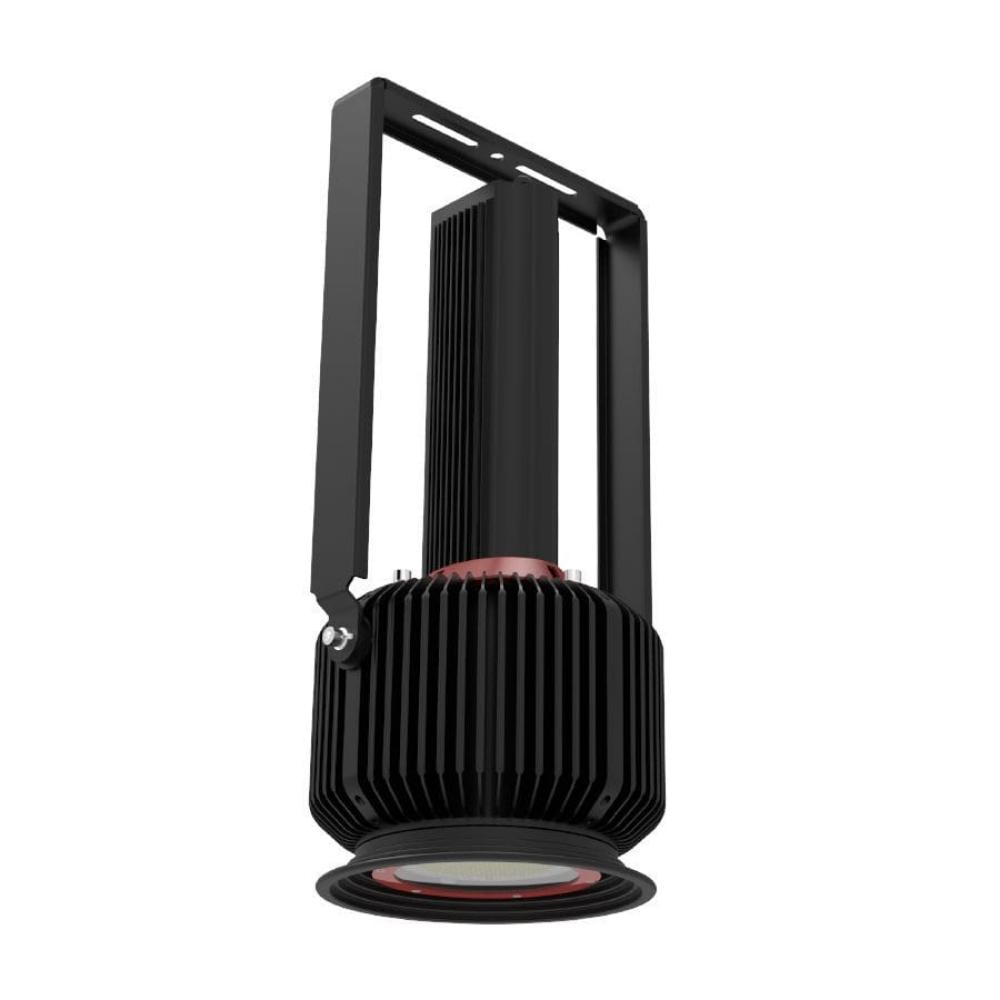

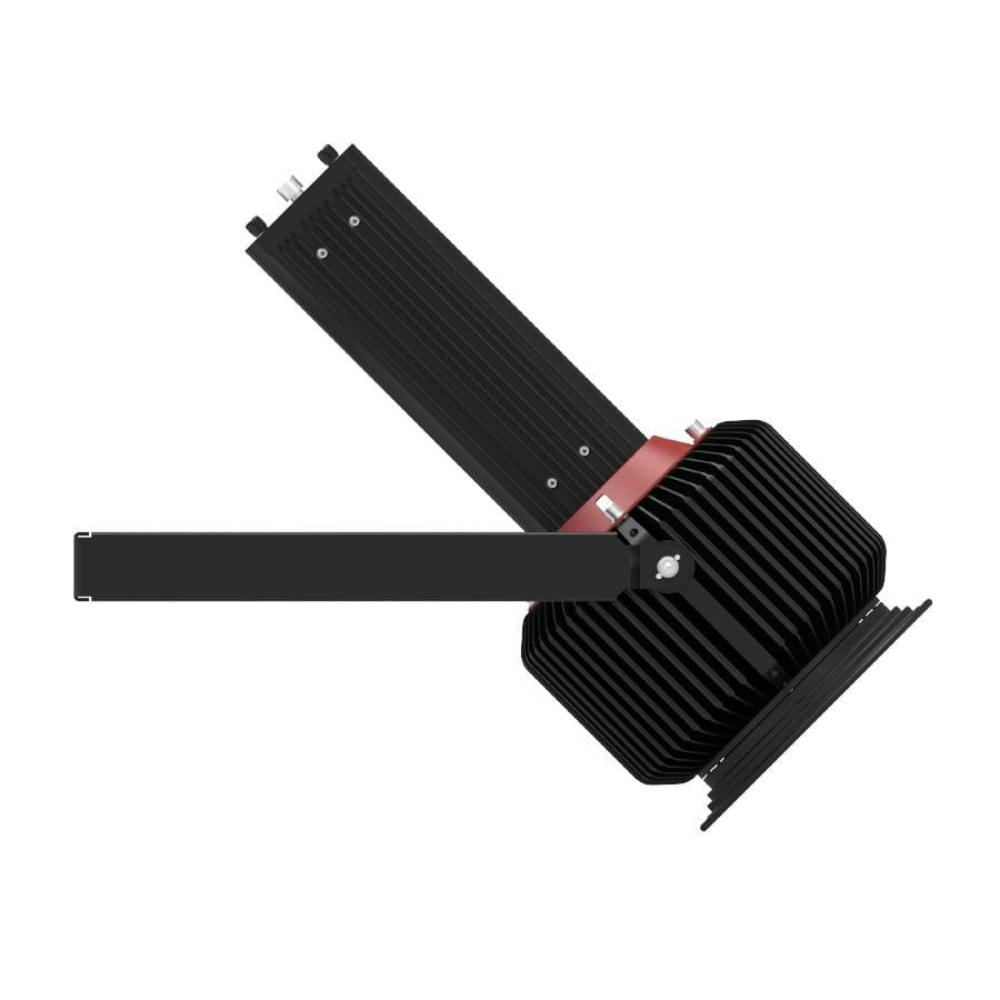

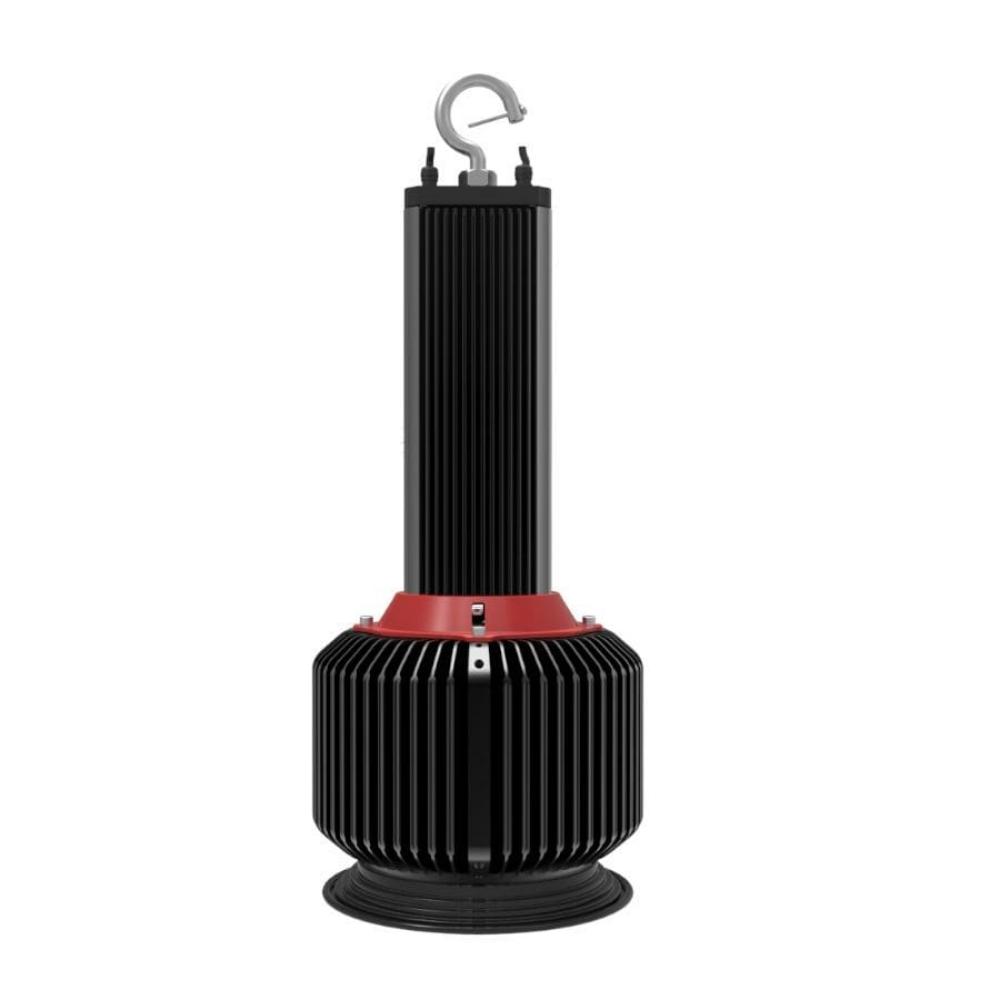

- Mounting Options: Hook, Yoke, Twin
- Product Weight: 23.8lbs/10.8kg
- Wiring: 5ft 3 x 18 AWG STW 600V Power cord
- Product Dimensions: Φ10.2 x 22.6in (Φ260 x 573mm)
Environmental Parameters
- Maximum Ambient Temperature: 176°F (80°C)
- Ambient Operating Humidity: 10%～90% RH
Compliance
Ratings:
- UL 1598 Damp Locations
- IP66/IP67
- IK08
- Salt Spray 720 hrs (ISO 9227)
Certifications:
- UL1598
- UL8750
- CSA C22.2 No. 250.0-08
- CSA C22.2 No. 250.13-14
- FCC Part 15, Subpart B
Product Files
Click for Red Sky Lighting HBH Specification
Click for Red Sky Lighting HBH Installation Manual
Click for Red Sky Lighting HBH Certificate - UL1598 Non-Hazardous
