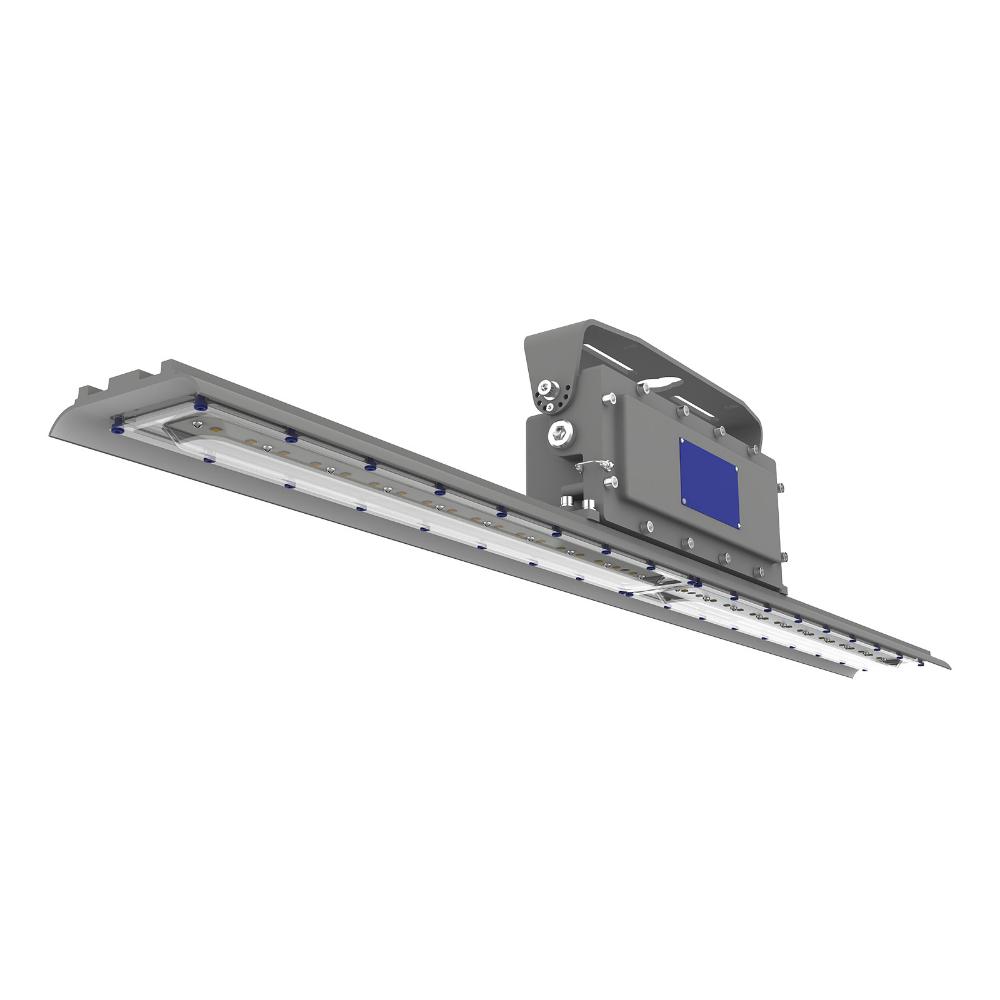

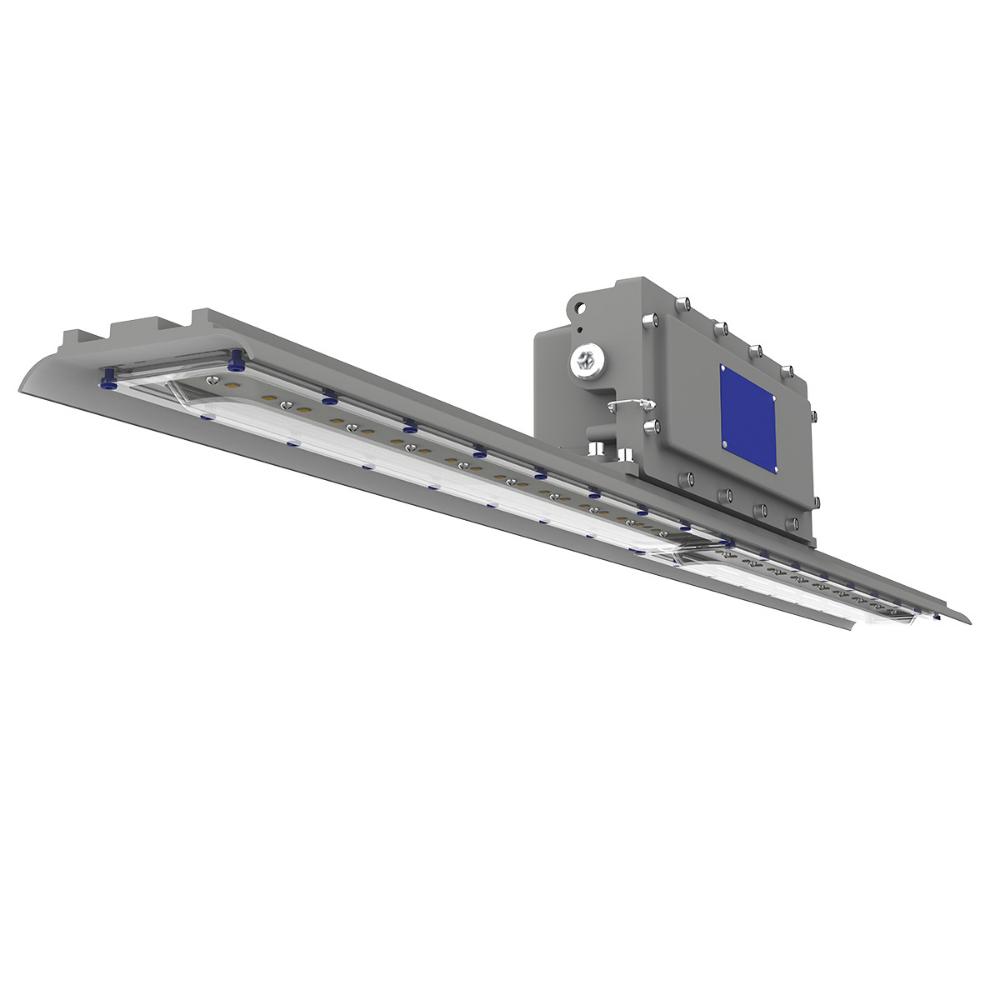

Red Sky Lighting Linear Emergency Harsh Series Light
The LNR EM HS combines high-efficiency illumination with dependable emergency operation in a slim linear form. Delivering up to 150 lm/W, it features 90-minute emergency runtime, IP66 protection, IK08 impact resistance, and durable marine-grade construction. Multiple mounting options provide flexibility for demanding industrial settings where reliable light and emergency readiness are essential.
Specifications
Electrical Parameters
- Power (W): 40W, 80W
- Voltage(V): 120-277V AC
- Frequency: 50/60Hz
- Power Factor: ≥0.90
- THD: <20%
- L70: 120,000 hrs@122°F
- Surge Protection: 10KV
- Emergency Run Time*: 90mins
- Warranty: LEDs:10 Years, Driver:7 Years, Battery:3 Years
Optical Parameters
- Lumen Output*: 5,857Lm, 12,291Lm
- Lumen Efficacy*: 150Lm/W
- Available Beam Angle: 110°
- Correlated Color Temperature (CCT): 4000K/5000K
- Color Rendering Index (CRI): 80 CRI
Mechanical Parameters
- Hardware: Stainless steel 316
- Lens Material: Polycarbonate

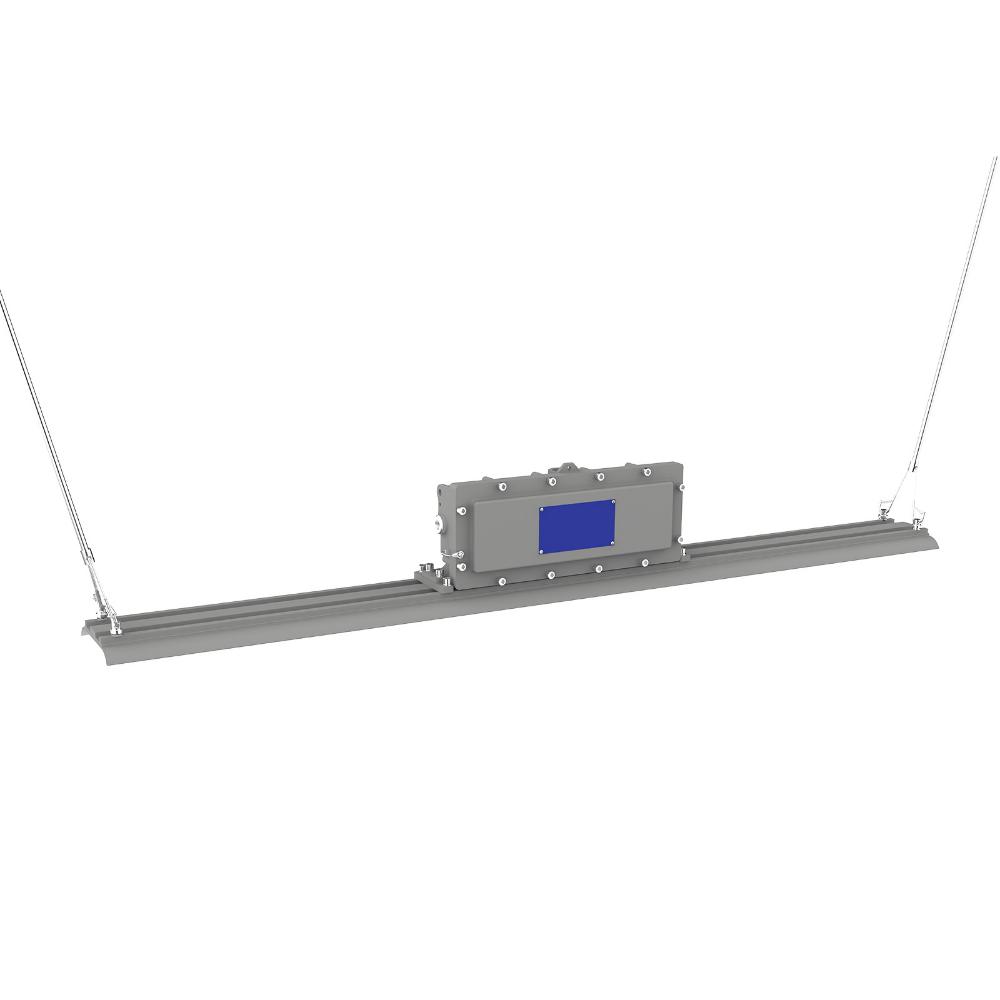

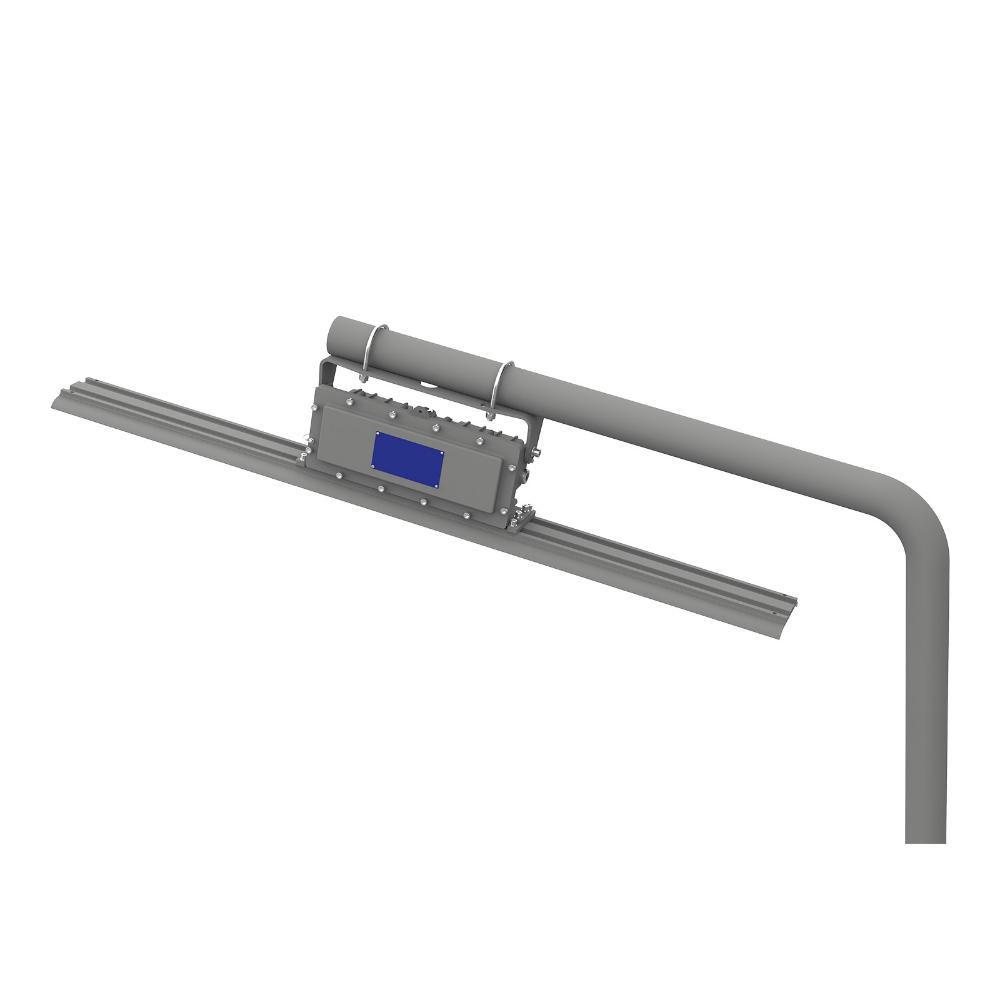

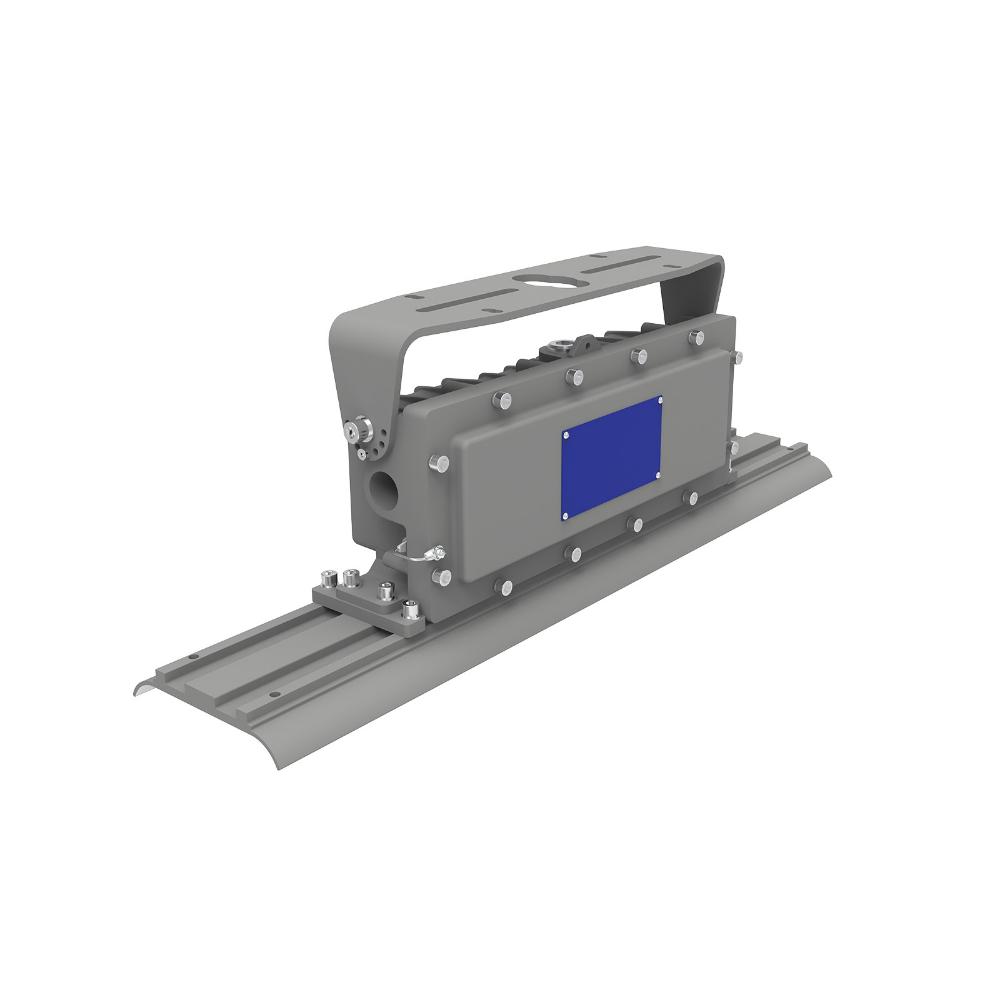

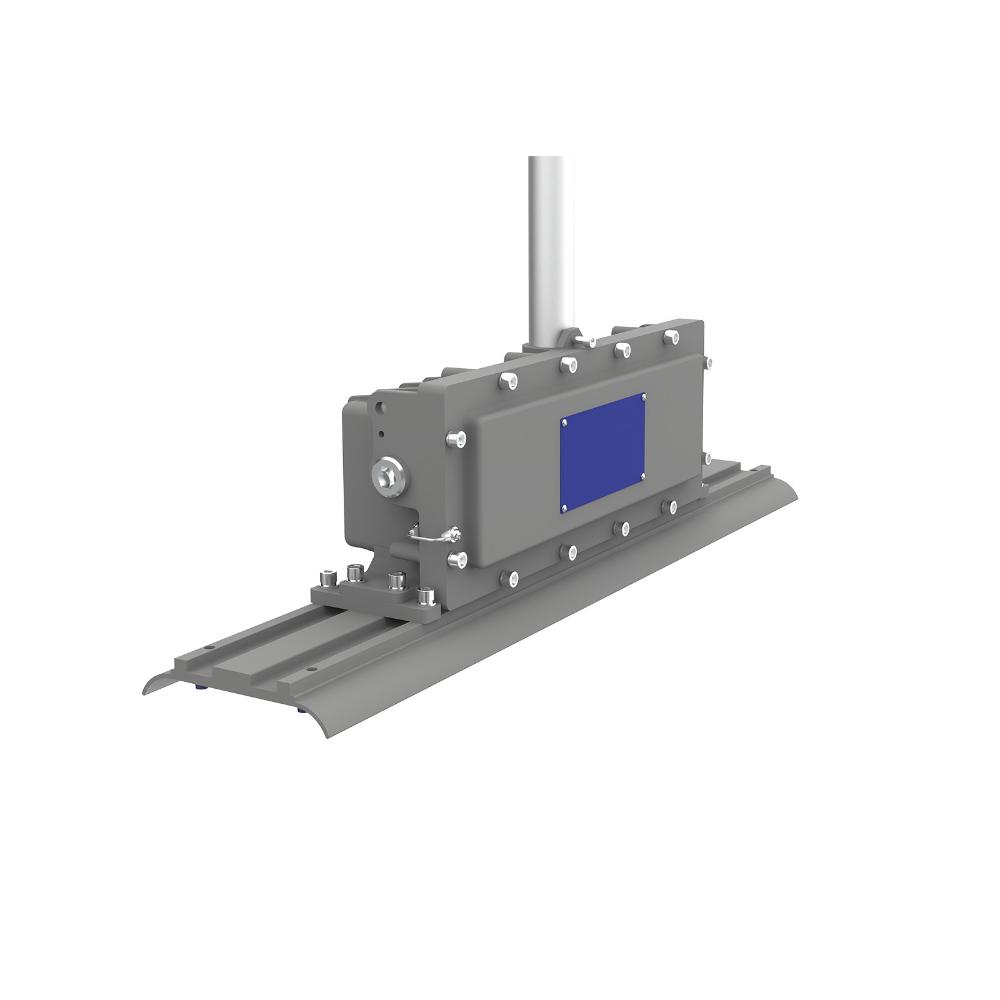

- Mounting Options: Pendant, Yoke, Chain, Pole
- Product Weight: 16.5lbs/7.5kg, 18.3lbs/8.3kg
- Cable Entry: (3) 3/4" NPT
- Product Dimensions (LxWxH): 23.6 x 5.0 x 6.8in(600 x 127 x 173 mm), 47.2 x 5.0 x 6.8in(1200 x 127 x 173 mm)
Environmental Parameters
- Ambient Operating Temperature: 32°F~+122°F(0°C~+50°C)
Compliance
Ratings:
- IP66
- IK08 (PC)
- Salt Spray 720 hrs (ASTM B117)
- NEMA 4X
Certifications:
- UL 924
- CSA C22.2 No. 141-15
- FCC Part 15, Subpart B
