Description

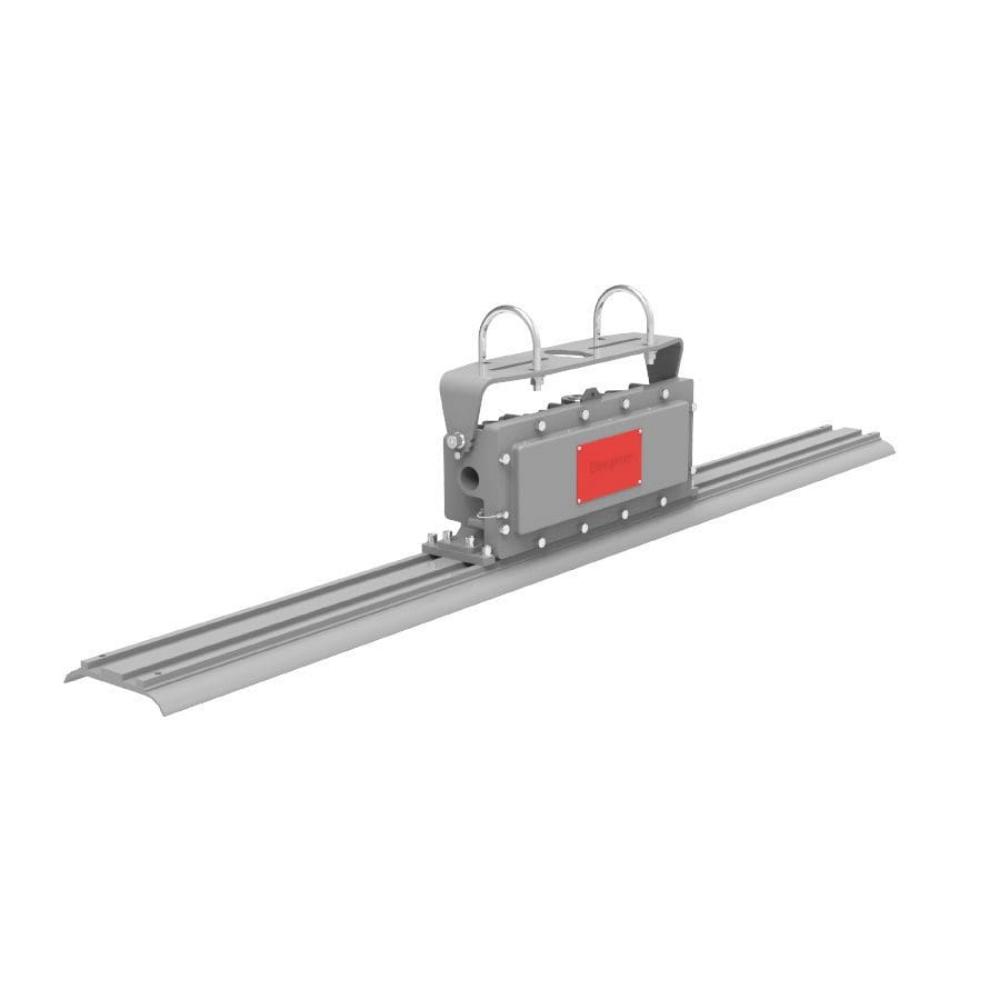

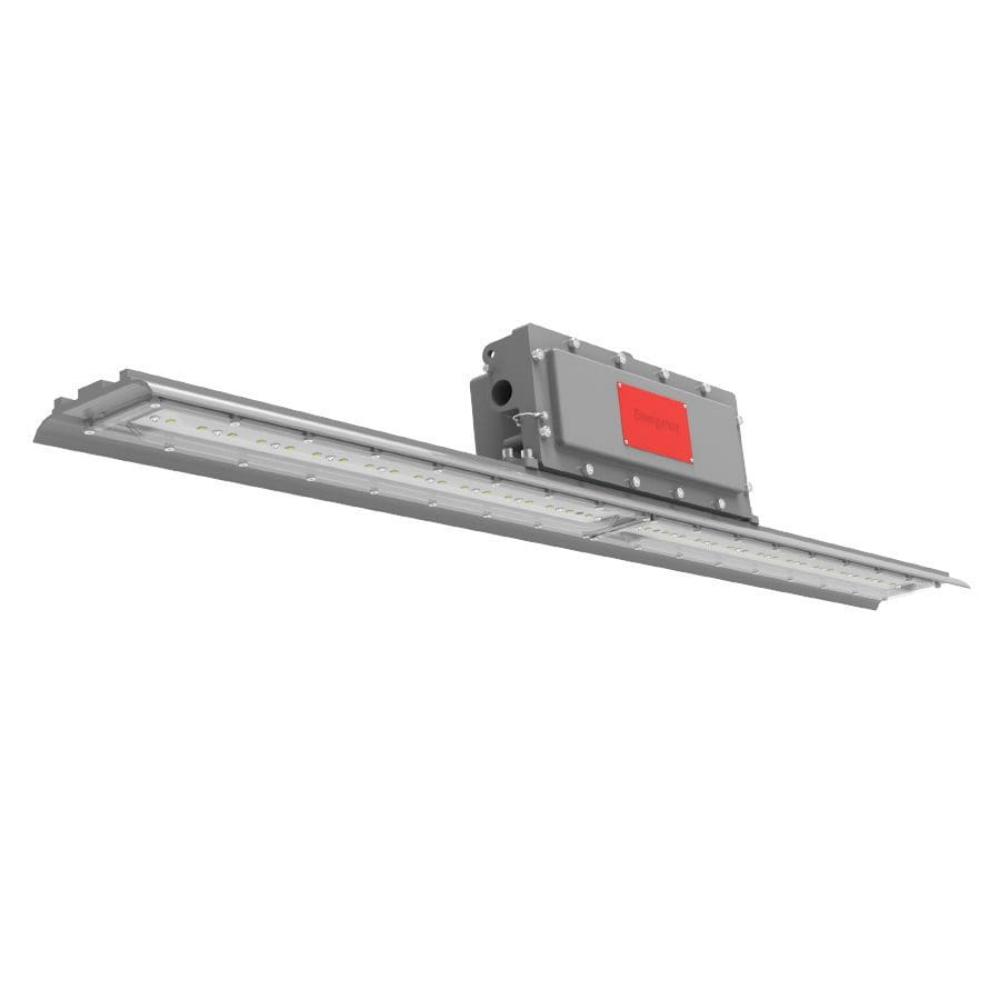

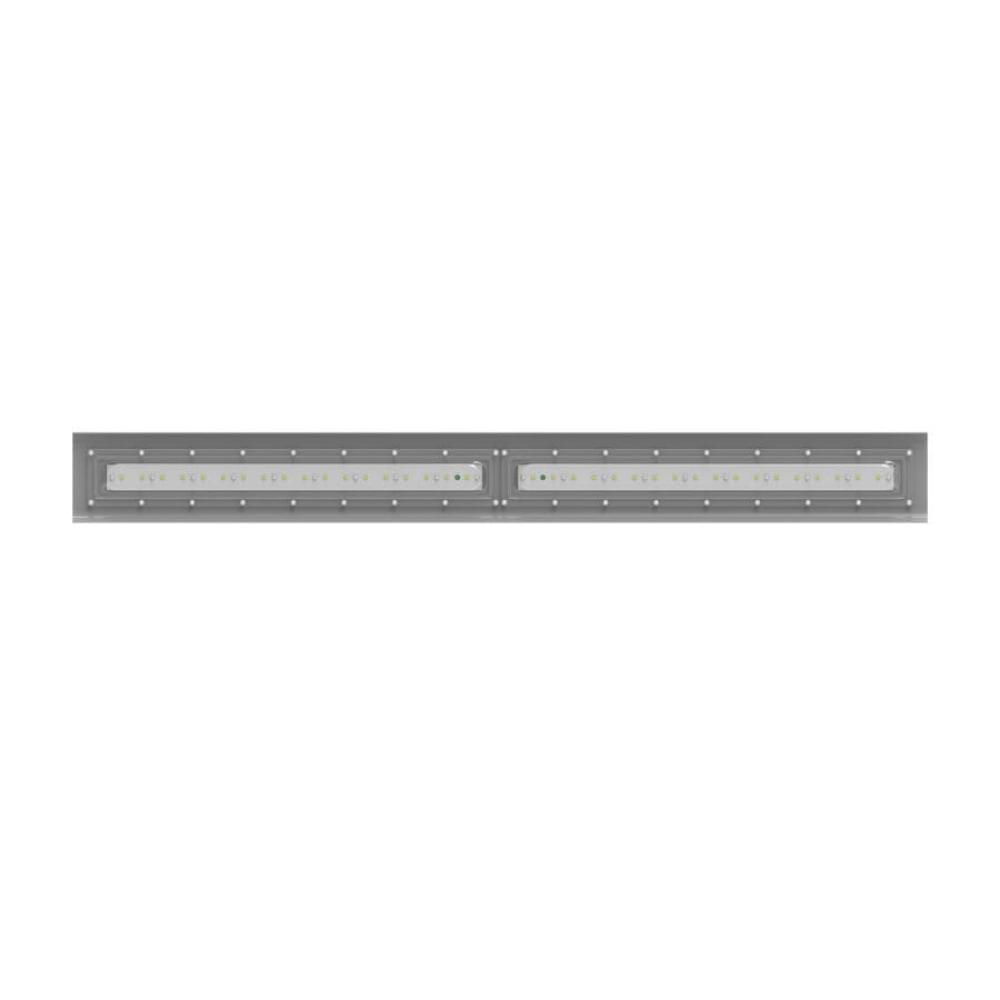

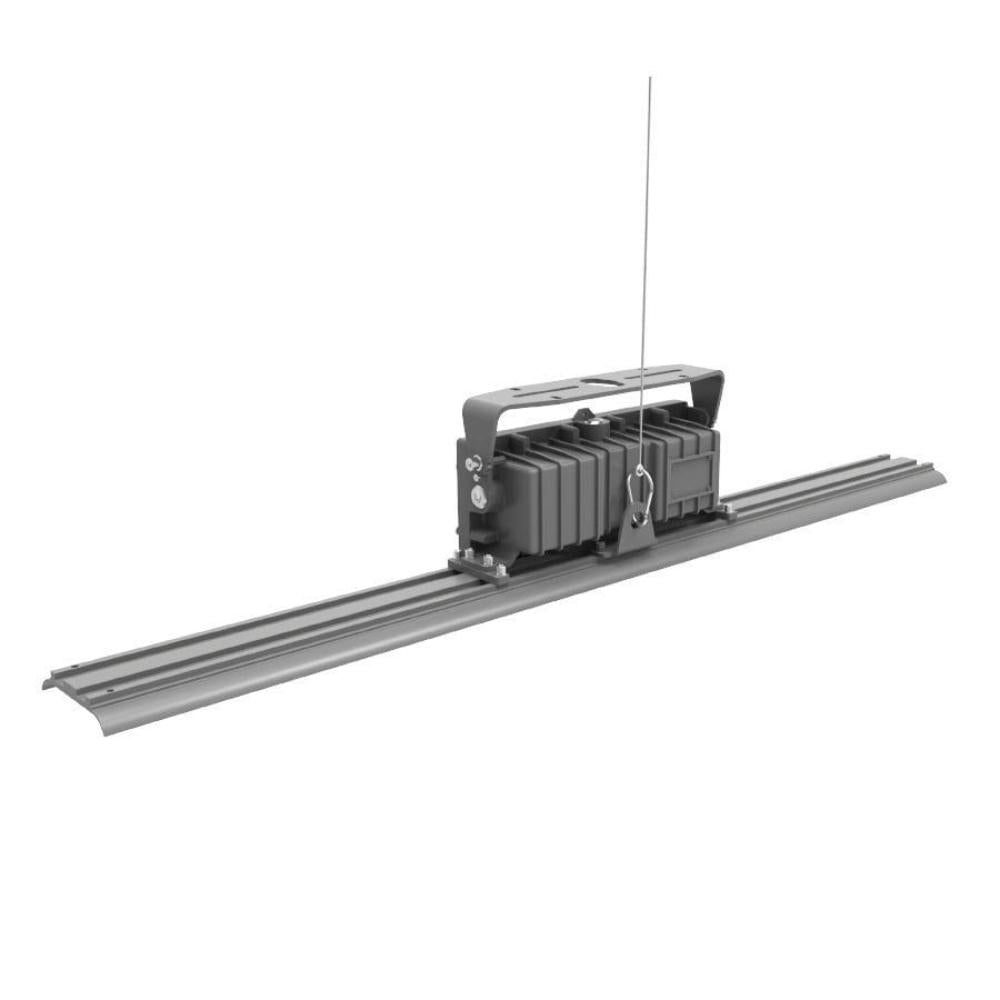

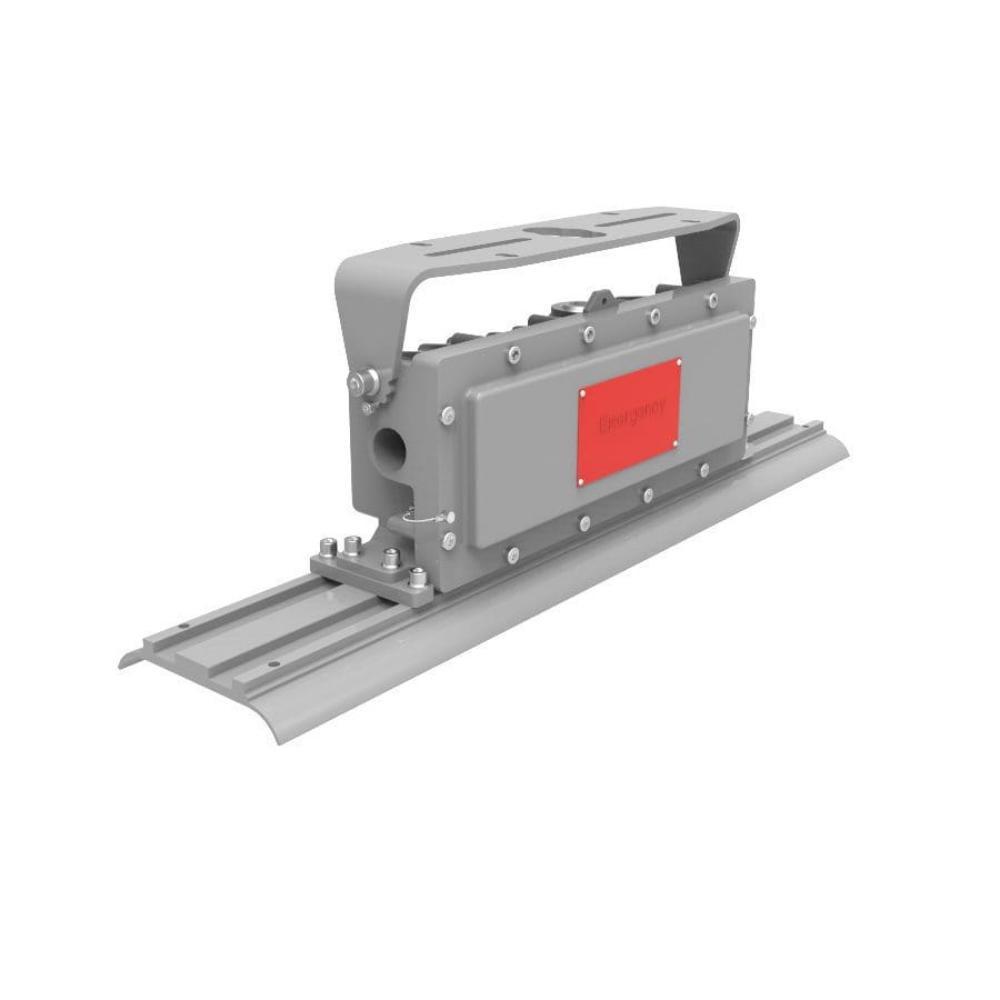

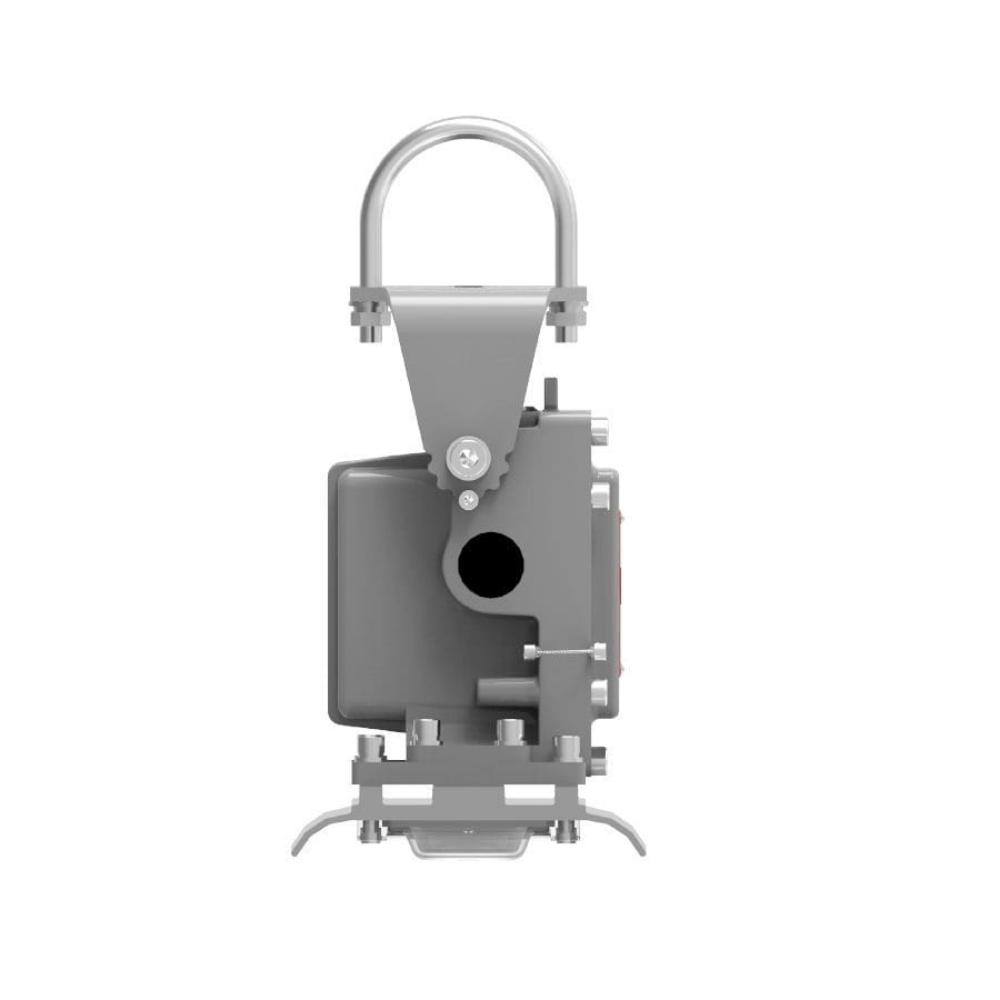

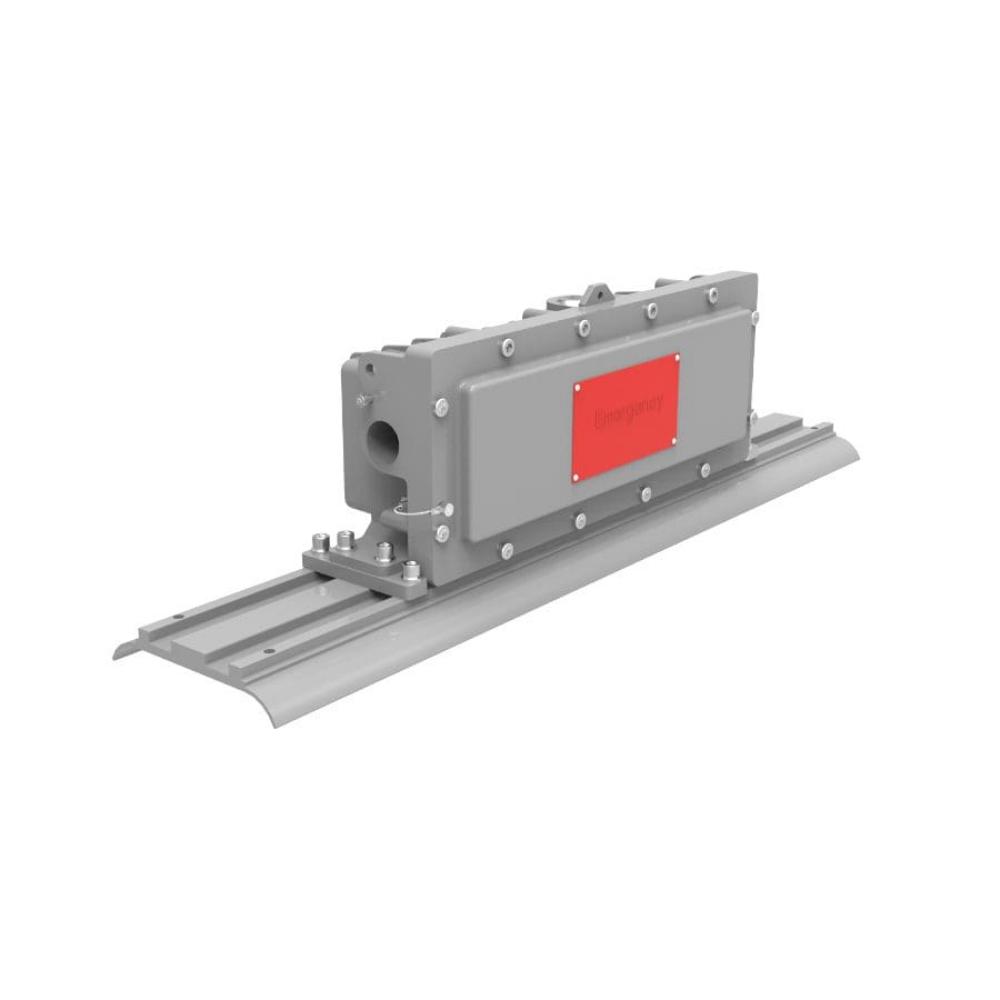

Red Sky Lighting Linear Emergency Series Light
When the power goes out, keep hazardous locations safe and illuminated. Bringing the same robustness, cost-efficiency, and safety, the Linear Tuff now boasts a 90 Minute emergency battery backup. Suitable for petrochemical facilities, drilling rigs, platforms, loading docks, mining, oil and gas refineries, tunnels, and other hazardous locations.
Specifications
Electrical Parameters
- Power (W): 40W, 80W
- Voltage(V): 120-277V AC
- Frequency: 50/60Hz
- Power Factor: ≥0.90
- THD: <20%
- L70: 118,000 hrs@122°F
- Surge Protection: 10KV
Optical Parameters
- Lumen Output: 5,857Lm , 12,291Lm
- Lumen Output (EM)*: 2,778Lm , 2,822Lm
- Lumen Efficacy: 150Lm/w
- Available Beam Angle: 110°
- Correlated Color Temperature (CCT): 4000K/5000K
- Color Rendering Index (CRI): 80 CRI
Mechanical Parameters
- Hardware: Stainless steel 316
- Lens Material: Polycarbonate
- Mounting Options: Pendant, Yoke, Chain, Pole
- Product Weight: 40W: 16.5lbs/7.5kg 80W: 18.3lbs/8.3kg
- Cable Entry: (3) 3/4" NPT
- Product Dimensions (LxWxH): 40W: 23.6 x 5.0 x 6.8in(600 x 127 x 173mm) 80W: 47.2 x 5.0 x 6.8in(1200 x 127 x 173mm)
Warranty/Certifications
- Ambient Operating Temperature: 32°F~+122°F(0°C~+50°C)
Compliance
Ratings:
- Class I, Division 2, Groups A, B, C, D
- Class II Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
- Class I, Zone 2, Group IIC
- Zone 21, Group IIIC
- UL 1598 Wet Locations
- UL 1598A Marine Outside Type (Salt Water)
- NEMA 4X
- IP66
- IK08
- Salt Spray 720 hrs (ISO 9227)
Certifications:
- UL844
- UL1598
- UL1598A
- CSA C22.2 No.250.0
- CSA C22.2 No.137
- FCC Part 15, Subpart B
- DLC Standard
Product Files
Click for Red Sky Lighting LNR EM Specification
Click for Red Sky Lighting LNR EM Installation Manual
Click for Red Sky Lighting LNR EM Certificate - UL924 Emergency Non-Hazardous
Click for Red Sky Lighting LNR EM Certificate - UL844 Emergency Hazardous
