Description

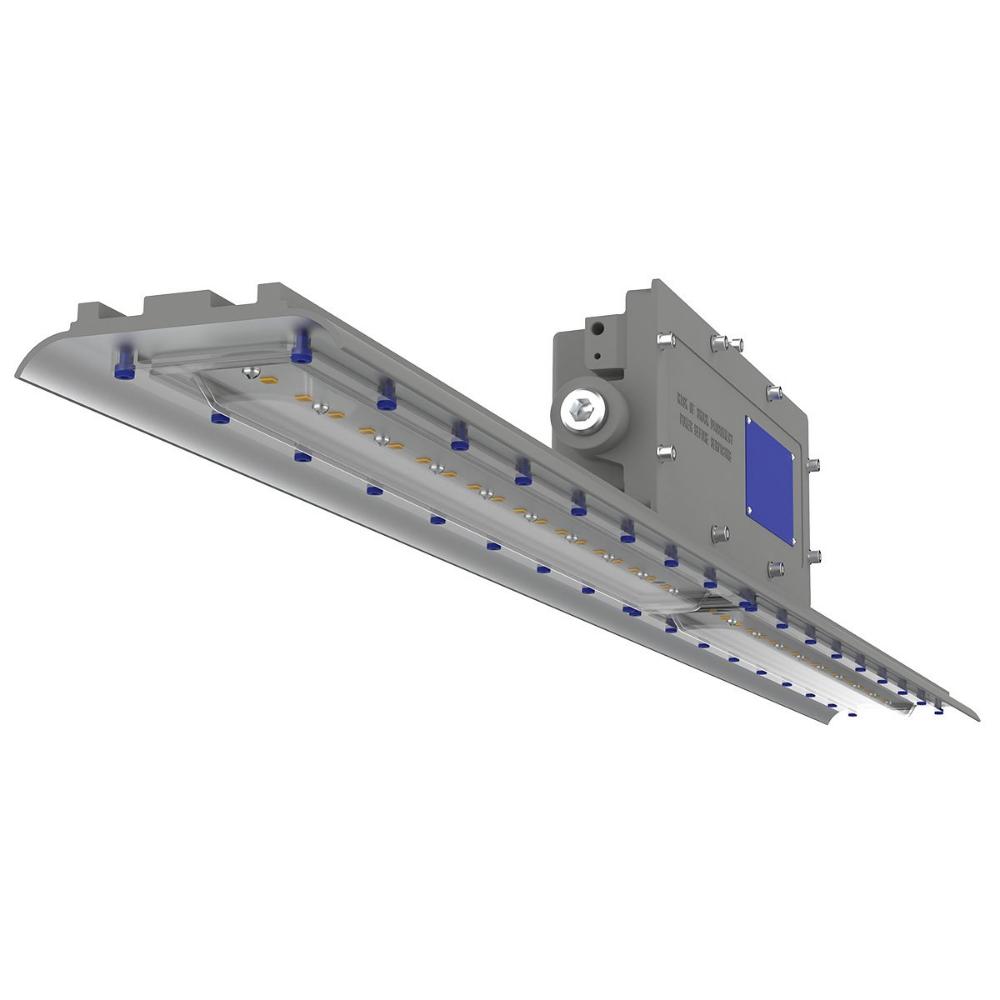

Red Sky Lighting Linear Harsh Series Light
Built with rugged copper-free aluminum and NEMA 4X protection, the Linear Harsh Series resists heat, moisture, dust, and vibration in extreme industrial environments. It delivers 147,000+ hours of light, operates from -40°F to 149°F, and offers up to 150 lm/W. With multiple mounting options and a 10-year warranty, it's a durable, energy-efficient solution for harsh locations.
Specifications
Electrical Parameters
- Power (W): 30W, 40W, 60W, 80W
- Voltage(V): 100-277V AC, 347-480V AC
- Frequency: 50/60Hz
- Power Factor: ≥0.90
- THD: <20%
- L70: 147,000 hrs@149°F
- Dimming: 0-10V, Range 10-100%
- Surge Protection: 10KV
- Warranty: LEDs: 10 years, Driver: 7 years
Optical Parameters
- Lumen Output: 4,142Lm, 5,403Lm, 8,802Lm, 11,536Lm
- Lumen Efficacy: 150Lm/W
- Correlated Color Temperature (CCT): 3000K/4000K/5000K
- Color Rendering Index (CRI): 80 CRI
Mechanical Parameters
- Hardware: Stainless steel 316
- Lens Material: Polycarbonate

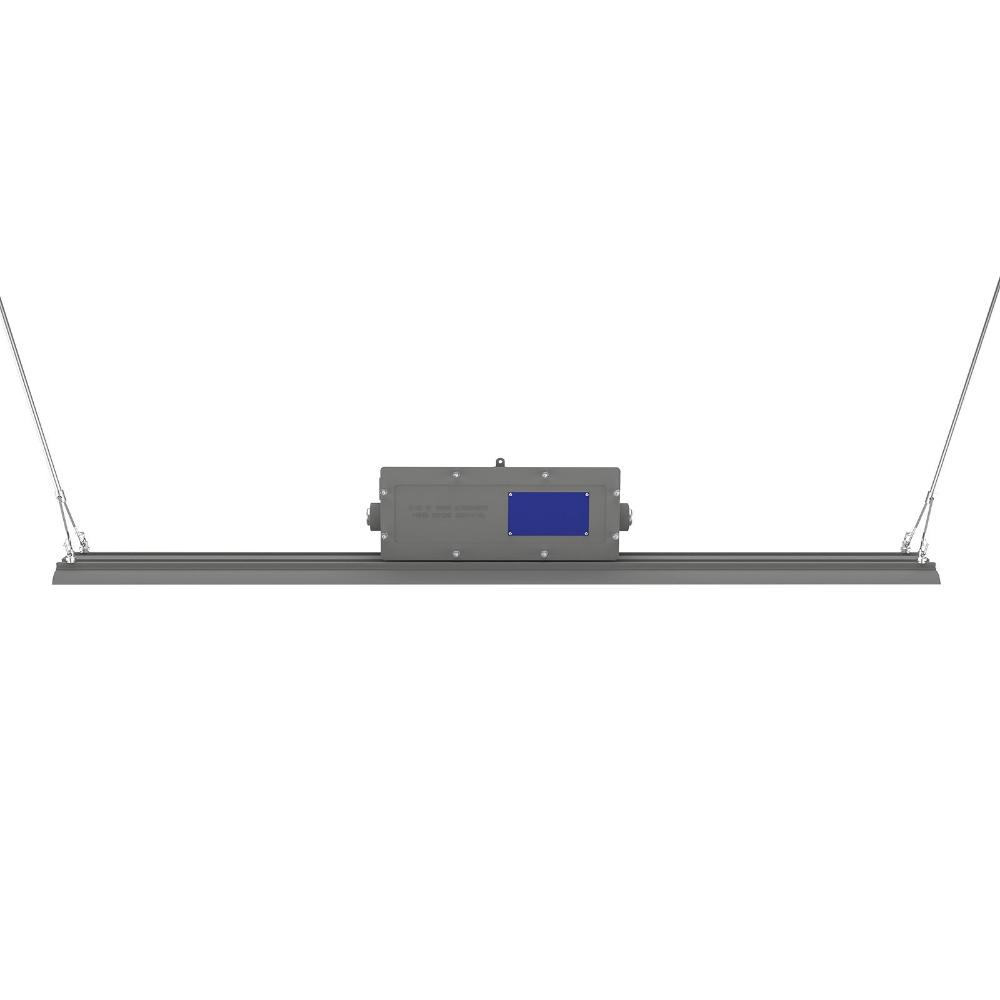

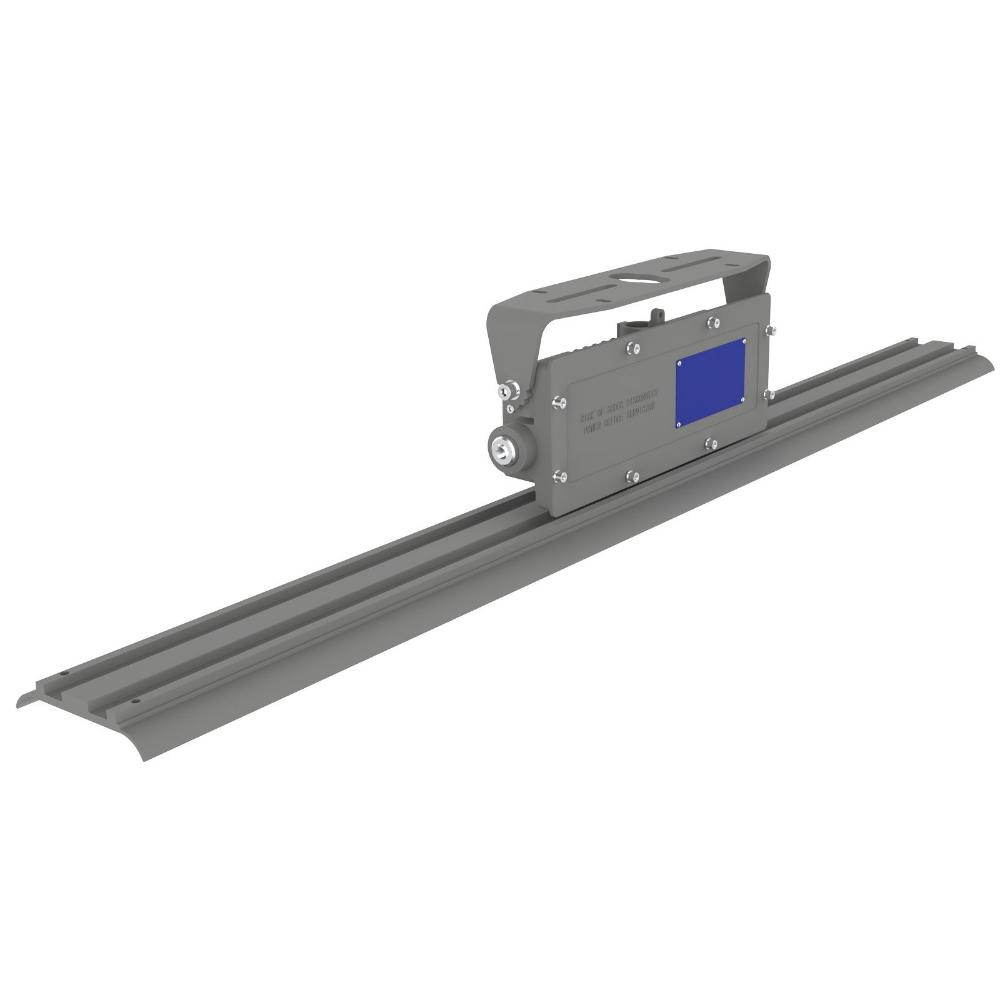

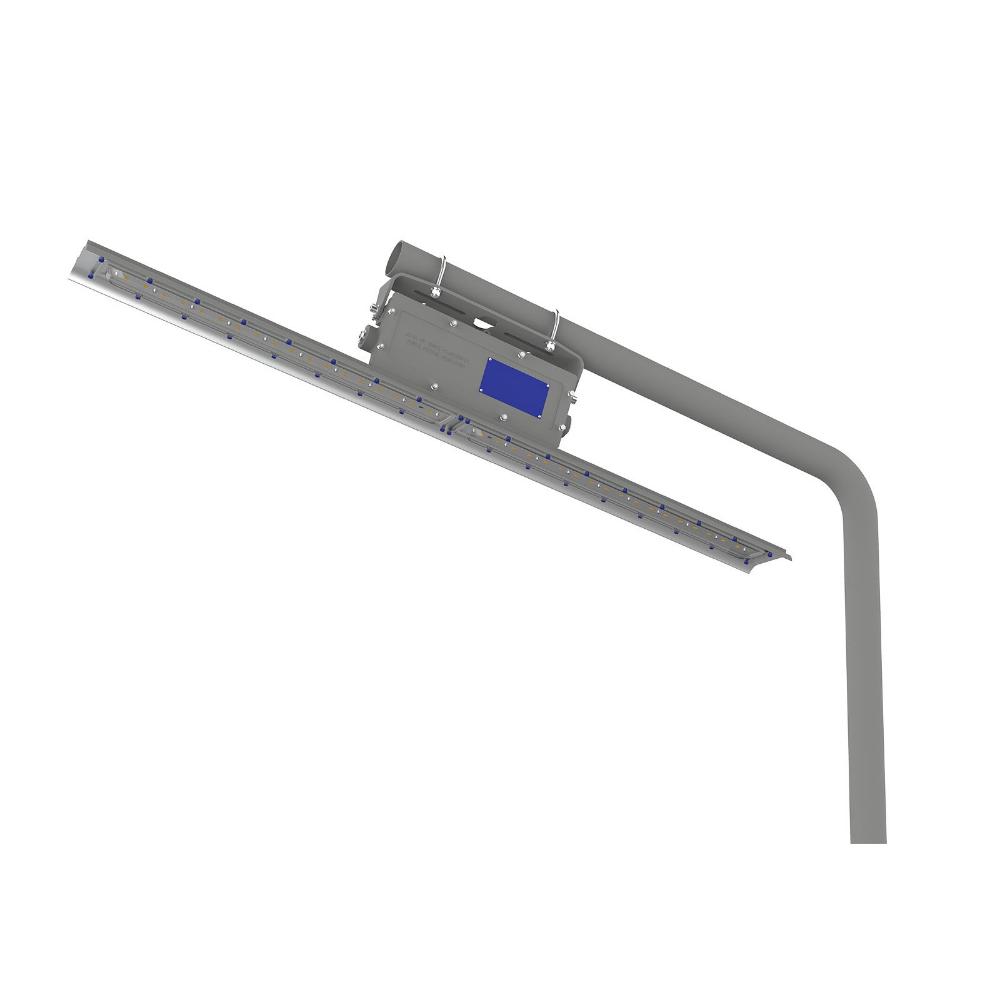

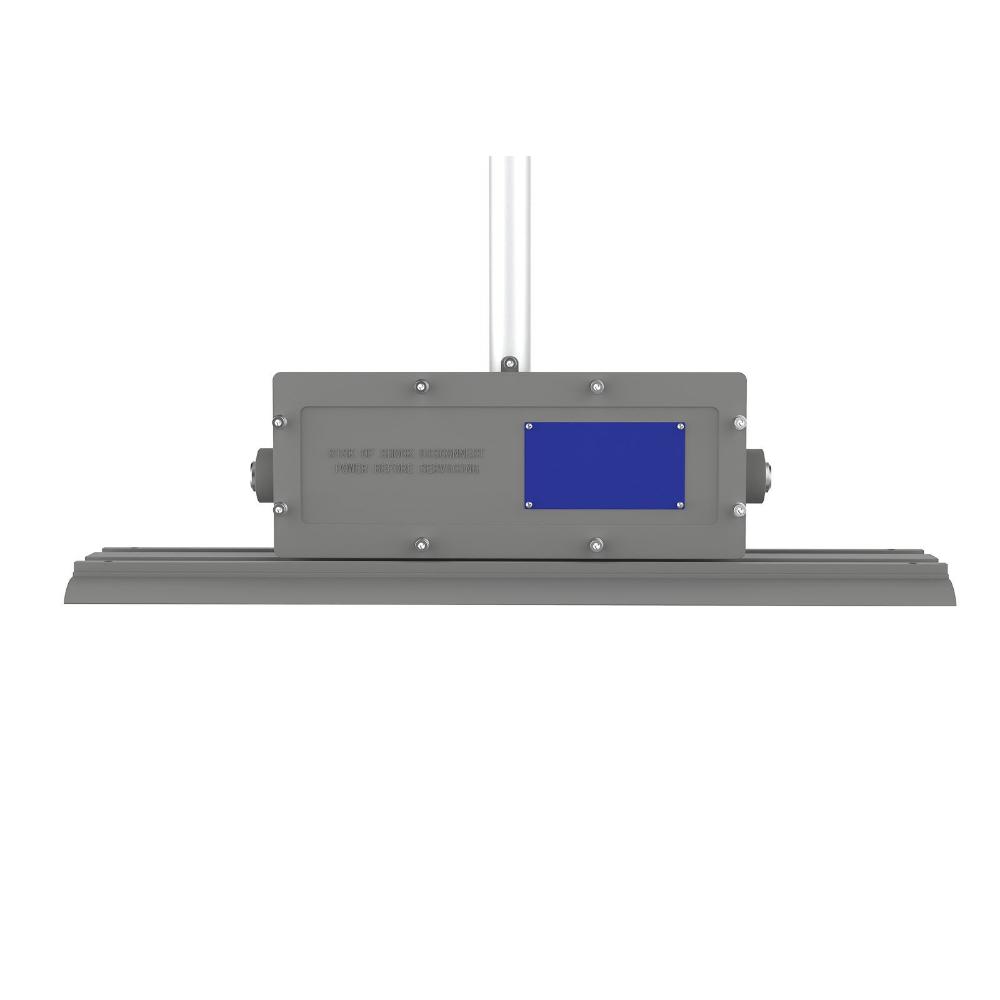

- Mounting Options: Pendant, Yoke, Chain, Pole, Stanchion
- Product Weight: 11.0lbs/5.0kg, 14.68lbs/6.66kg
- Cable Entry: (3) 3/4" NPT
- Product Dimensions (LxWxH): 23.6 x 5.0 x 6.6in(600 x 127 x 168 mm), 47.2 x 5.0 x 6.6in(1200 x 127 x 168 mm)
Environmental Parameters
- Ambient Operating Temperature: -40°F ~ 149°F (-40°C ~ 65°C)
Compliance
Ratings:
- UL 1598 Wet Locations
- UL 1598A Marine Outside Type (Salt Water)
- Salt Spray 720 hrs (ISO 9227)
- NEMA 4X
- IP66
- IK08
Certifications:
- UL1598
- UL1598A
- CSA C22.2 NO. 250.0
- DLC Standard
- FCC Part 15, Subpart B
Product Files
Click for Red Sky Lighting LNR2 HS Specification
Click for Red Sky Lighting LNR2 HS Installation Manual
Click for Red Sky Lighting LNR2 HS Certificate - UL1598 Non-Hazardous
Click for Red Sky Lighting LNR2 HS Certificate - UL1598A Marine
