Description

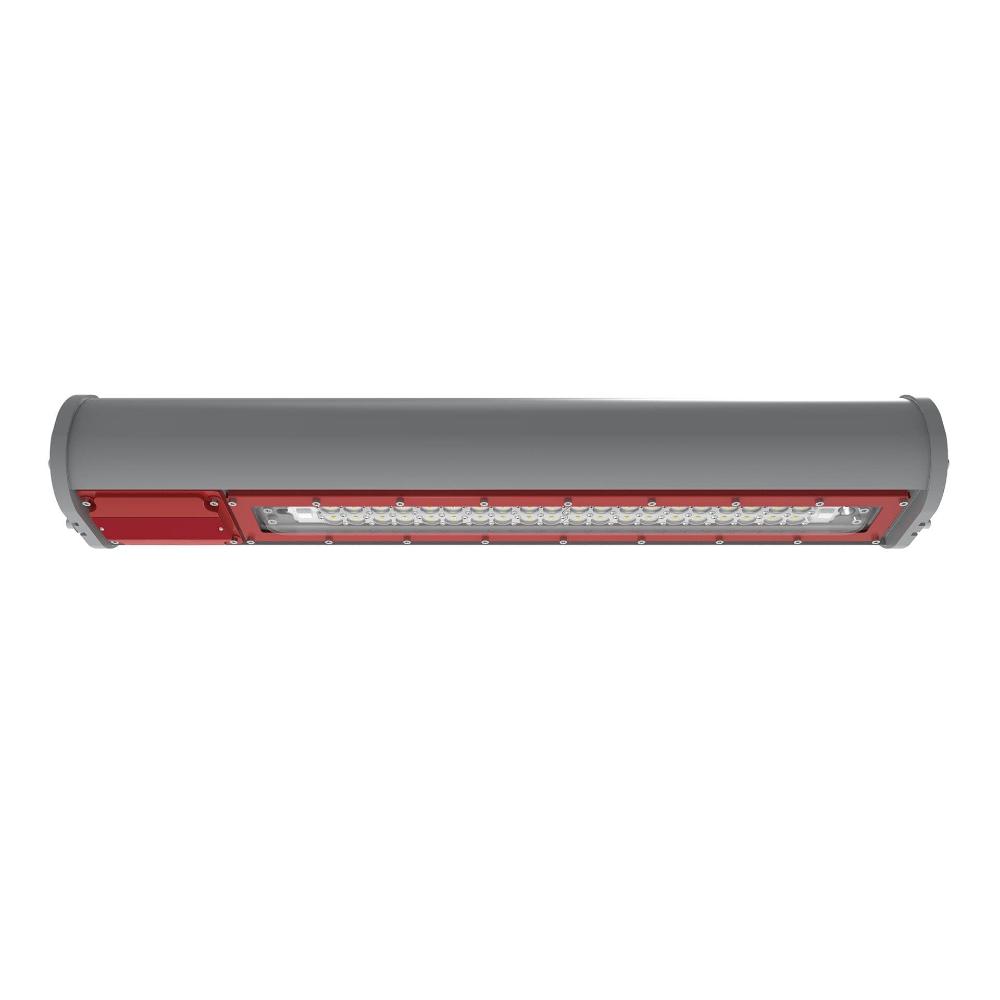

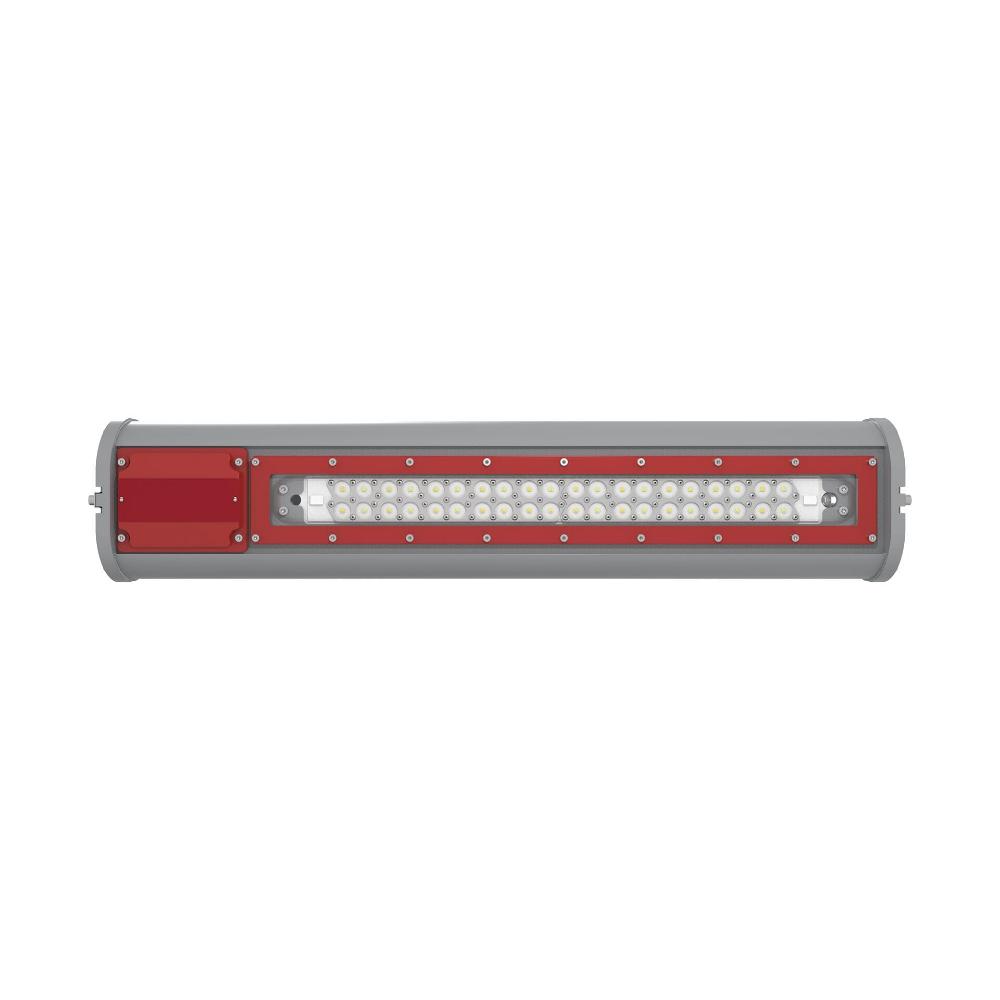

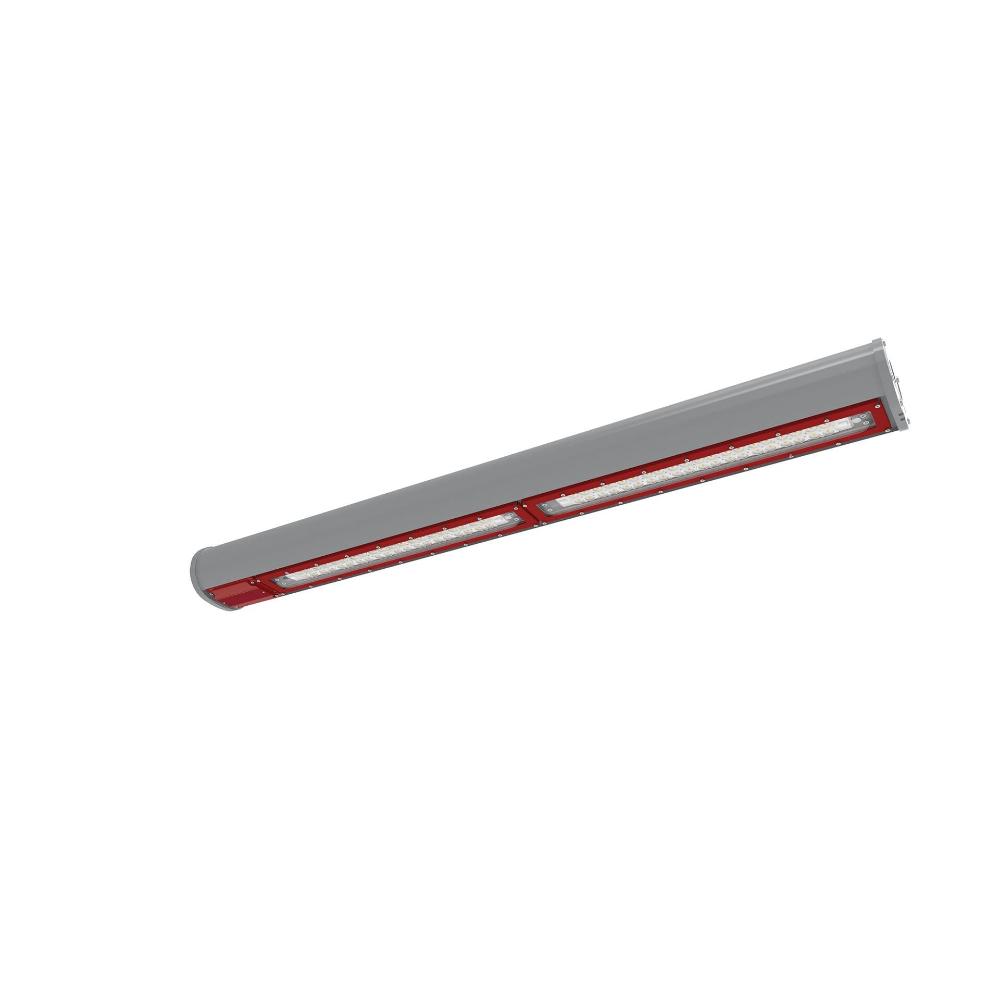

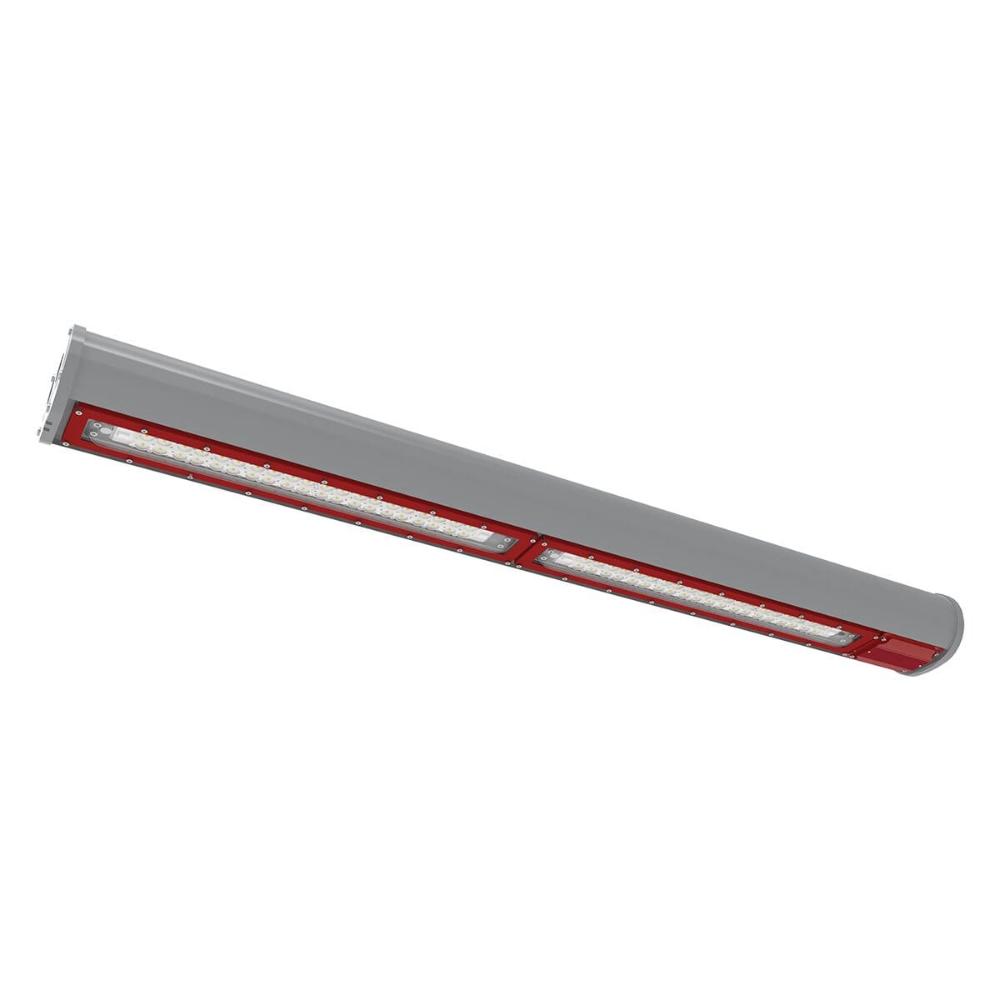

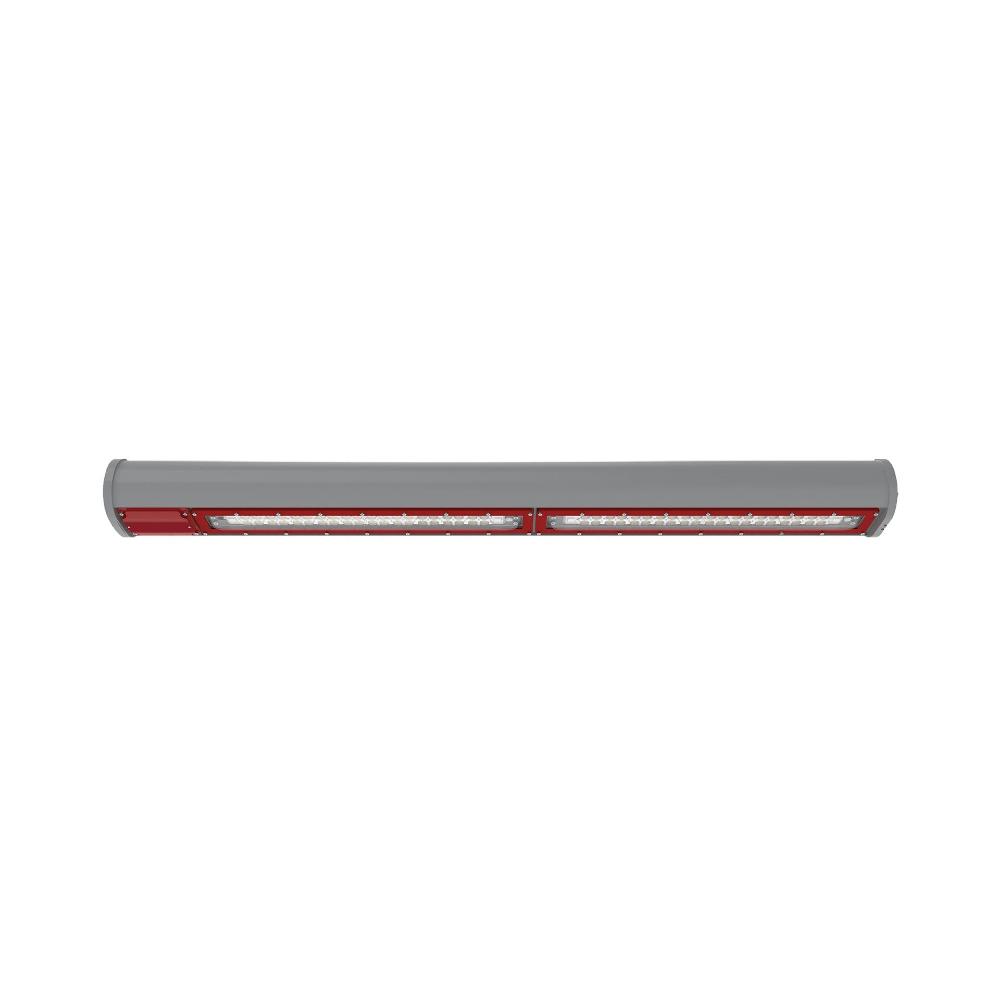

Red Sky Lighting Linear Low PRO Series Light
ATEX and IECEX certified
Specifications
Electrical Parameters
- Power (W): 20W, 40W, 50W, 60W, 80W, 100W
- Voltage(V): 120-277V AC
- Frequency: 50/60Hz
- Power Factor: ≥0.90
- THD: ≤20%
- L70: 470,000 hrs@55°C
- Dimming: 0-10V, Range 10-100%
- Surge Protection: 6KV
- Warranty: Fixture: 5 Years, Battery: 1 Year
Optical Parameters
- Lumen Output: 2,674 Lm, 4,886 Lm, 7,122 Lm, 8,231 Lm, 10,295 Lm, 12,158 Lm
- Lumen Output(EM): EM6-6W(1,087Lm@180Mins)/EM12-12W(1,962Lm@90Mins)
- Lumen Efficacy: 130Lm/W
- Available Beam Angle: 110°
- Correlated Color Temperature (CCT): 4000K/5700K Red/Green/Blue/Amber
- Color Rendering Index (CRI): Ra>70
Mechanical Parameters
- Hardware: Stainless steel 316
- Lens Material: Polycarbonate
- Mounting Options: Low Ceiling, High Ceiling, Wall, Eyebolt, Pole
- Product Weight: 20W: A: 6.3kg/13.89 lbs B: 6.7kg/14.77 lbs 40W: A: 6.3kg/13.89 lbs B: 6.7kg/14.77 lbs C:9.5kg/20.94 lbs 50/60/80/100W: C: 9.5Kg/20.94 lbs D: 9.9Kg/21.83 lbs
- Cable Entry: (4) M20/M25
- Product Dimensions (LxWxH): 20W: A: 747 x 158 x 111 B: 864 x 158 x 111 40W: A: 747 x 158 x 111 B: 864 x 158 x 111 C: 1332 x 158 x 111 50/60/80/100W: C: 1332 x 158 x 111 D:1449 x 158 x 111
Environmental Parameters
- Ambient Operating Temperature: -40°C~+55°C, -20°C~+50°C(Emergency)
- T-Code Rating: 20/40/50W: T6 (Gas Environment) T80°C (Dust Environment) 60/80/100W: T5 (Gas Environment) T80°C (Dust Environment)
Compliance
Certifications:
- ATEX & UKEX
- II 2G Ex db eb mb IIC T6/T5 Gb
- II 2D Ex tb IIIC T80°C Db
- IECEx
- Ex db eb mb IIC T6/T5 Gb
- Ex tb IIIC T80°C Db
- ROHS
- CE LVD/EMC
- EN62471
Product Files
Click for Red Sky Lighting LLP Specification
Click for Red Sky Lighting LLP Certificate - ATEX Hazardous
Click for Red Sky Lighting LLP Certificate - CE LVD&EMC
Click for Red Sky Lighting LLP Certificate - IECEx Hazardous
