Description

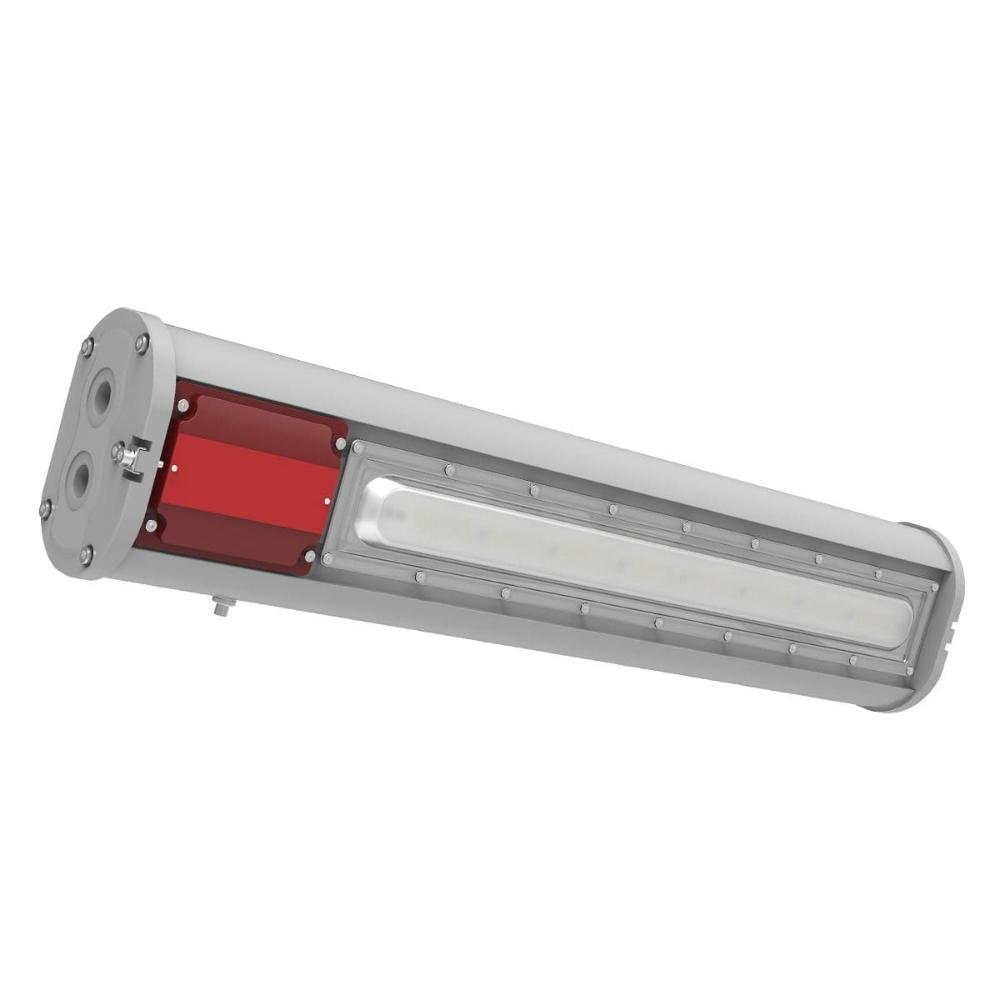

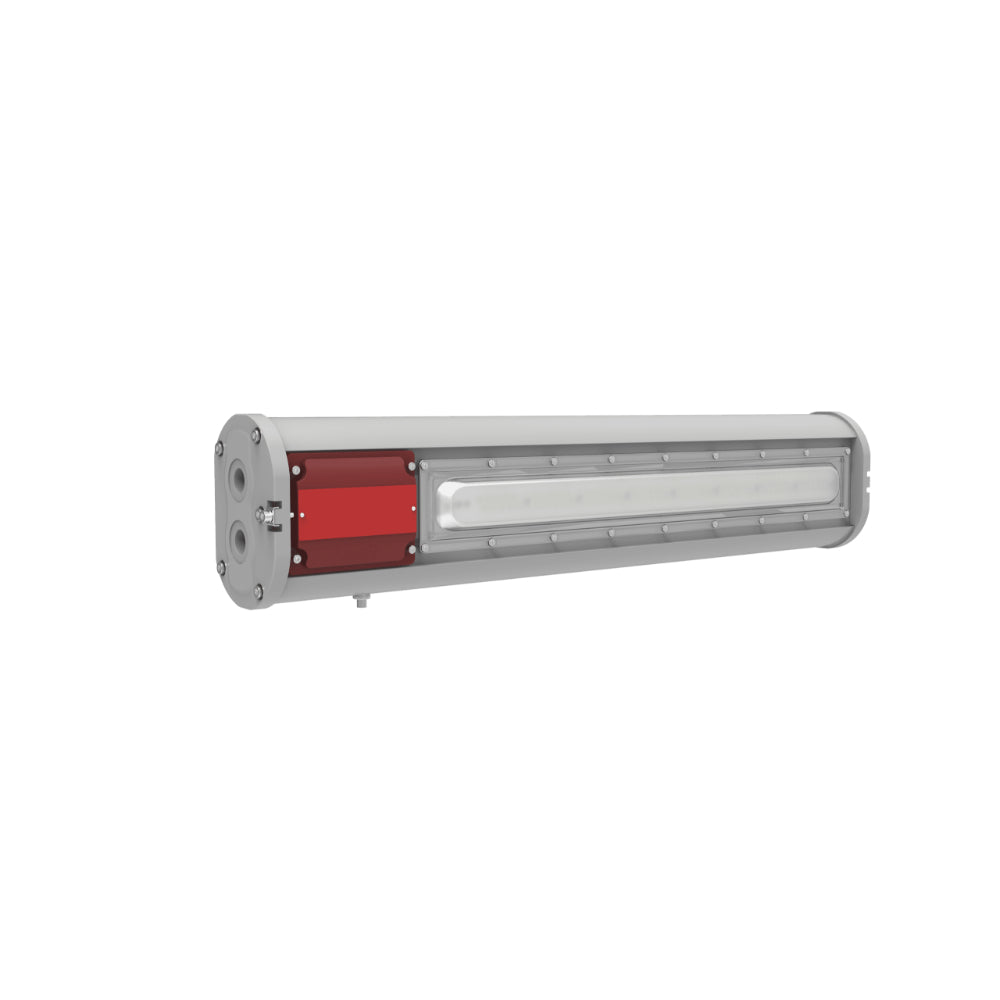

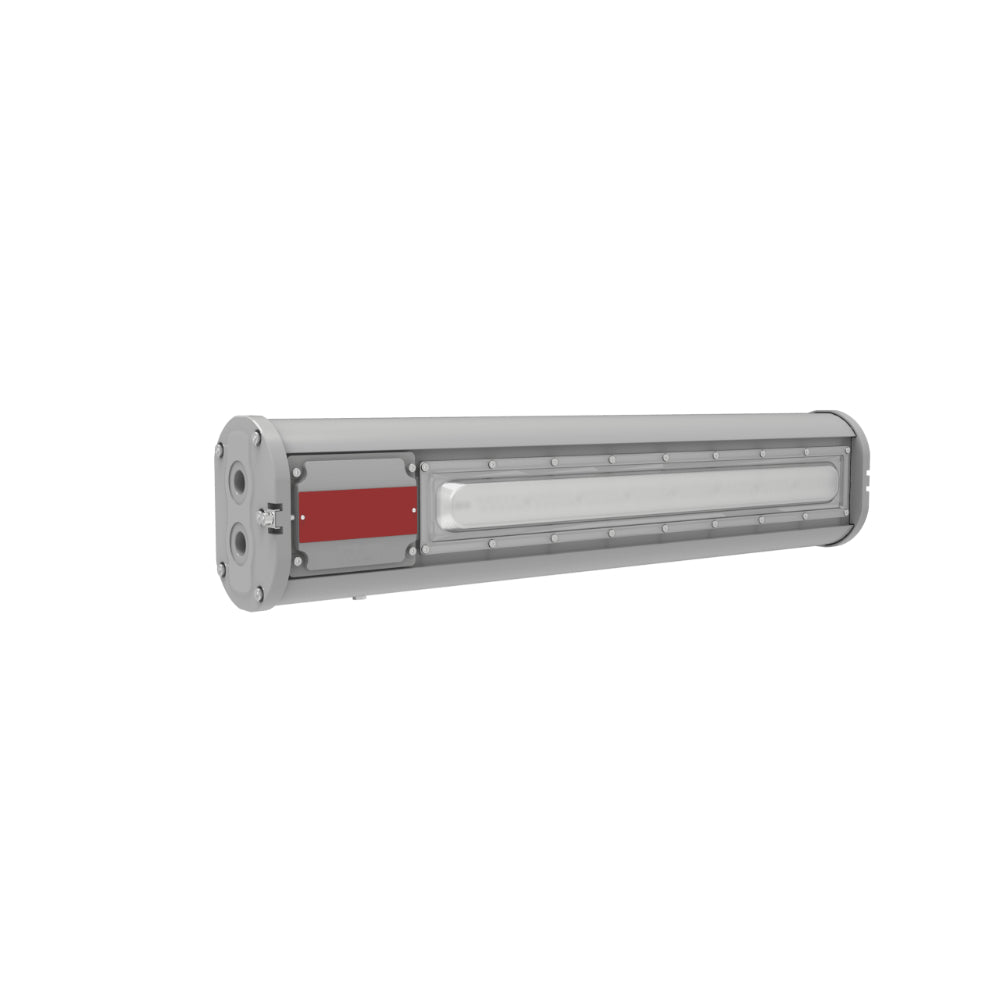

Red Sky Lighting Linear Series Harsh Light
Linear Harsh Series LED Luminaire is built for installations in heavy and harsh industrial applications where moisture, dirt, dust, corrosion and vibration may be present, or NEMA 3 and 4X areas where wind, water, snow or high ambient can be expected.
Linear Harsh Series is a perfect solution to replace existing fluorescent lighting systems (T12, T8 and T5HO) with four wattages from 3,500 to 13,000 lumens and provides up to 1,500 lumens illumination for 90 minutes of emergency lighting during a power outage.
Specifications
Electrical Parameters
- Power (W): 25W, 50W, 75W, 100W
- Voltage(V): 100-240V AC
- Frequency: 50/60Hz
- Power Factor: ≥0.90
- THD: <20%
- L70: 147,000 hrs@55°C
- Surge Protection: L/N-FG 6KV, L-N 4KV
- Warranty: 5 Years
Optical Parameters
- Lumen Output: 4,089Lm, 7,453Lm, 11,313Lm, 10,294Lm
- Lumen Efficacy: 150Lm/W
- Available Beam Angle: 110°
- Correlated Color Temperature (CCT): 4000K/5700K Red/Green/Blue/Amber
- Color Rendering Index (CRI): Ra>70
Mechanical Parameters
- Hardware: Stainless steel 316
- Lens Material: Polycarbonate
- Mounting Options: Low Ceiling, High Ceiling, Wall, Eyebolt, Pole
- Product Weight: 25/50W: 13.9lbs/6.3kg 75/100W: 21lbs/9.5kg
- Cable Entry: (4) M20/M25

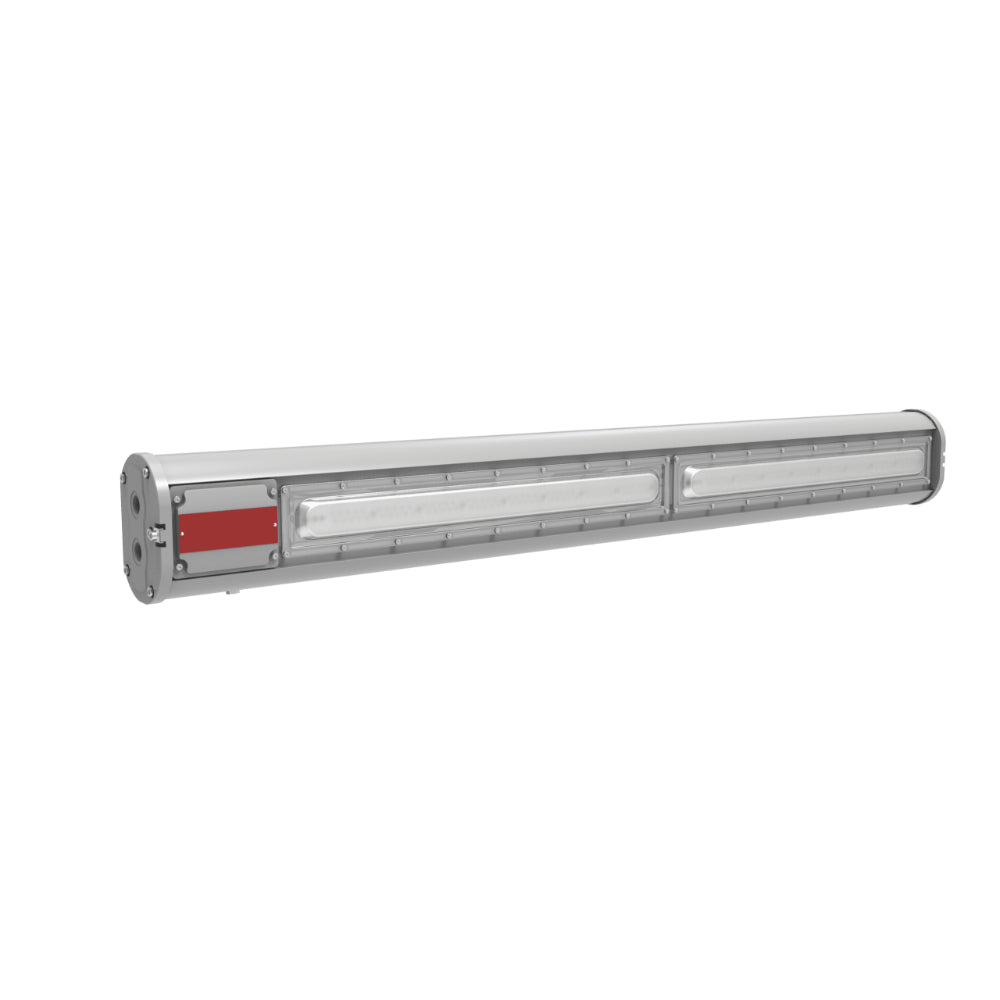

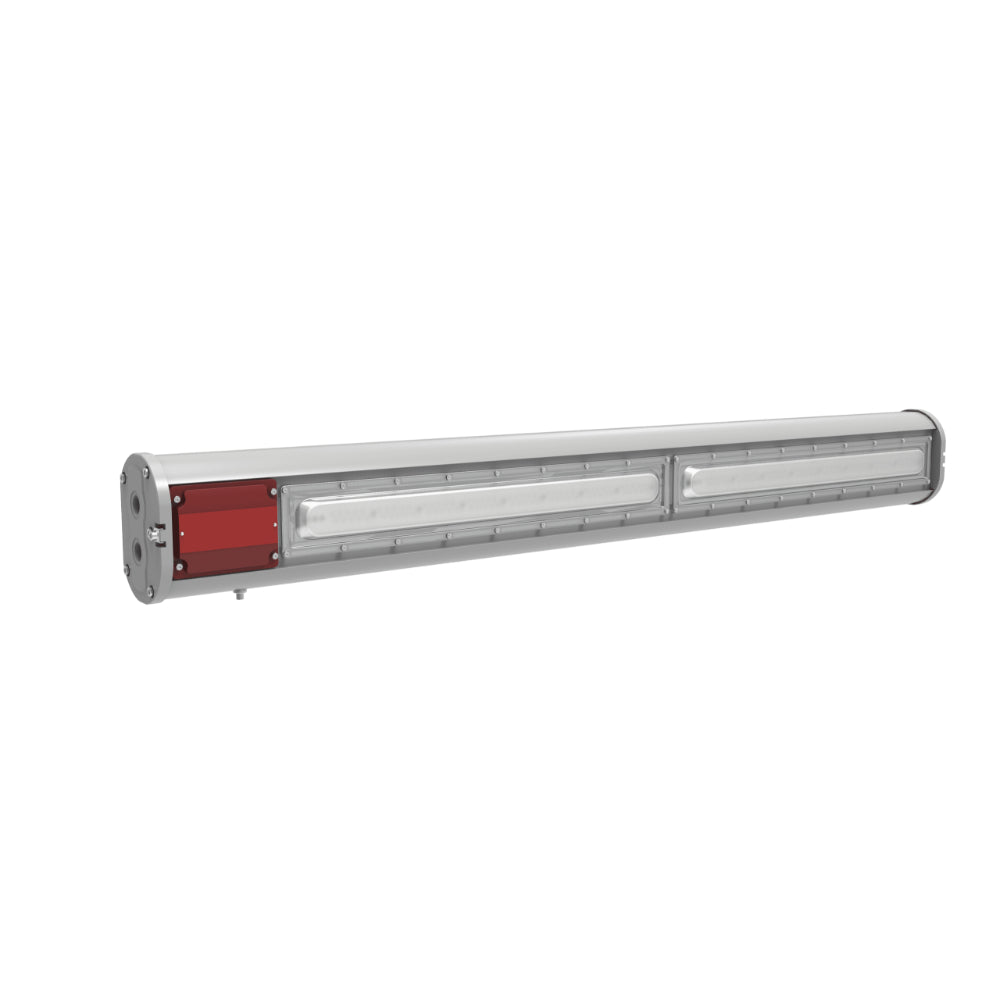

- Product Dimensions (LxWxH): 25/50W: 29.4 x 6.2 x 4.4in (747 x 158 x 111 mm) 75/100W: 52.4 x 6.2 x 4.4in (1332 x 158 x 111 mm)
Environmental Parameters
- Ambient Operating Temperature: -40°C~+55°C, 0°C~+50°C(Emergency)
- Ambient Operating Humidity: 5% - 95% RH
- Optimal Operating Temperature: 25°C
Compliance
Ratings:
- IP66
- IK08
Certifications:
- CE EMC/LVD
- UKCA
- ROHS
Product Files
Click for Red Sky Lighting LNH Specification
Click for Red Sky Lighting LNH Installation Manual
