Description

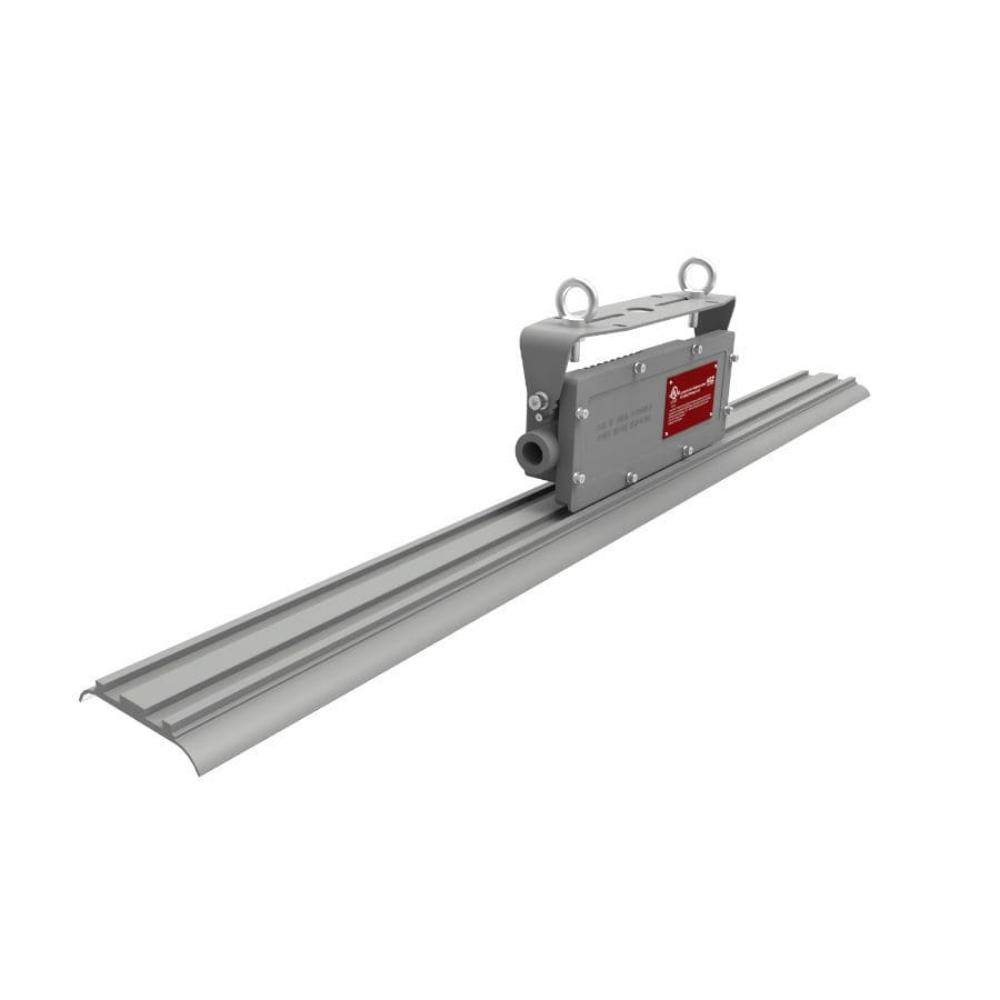

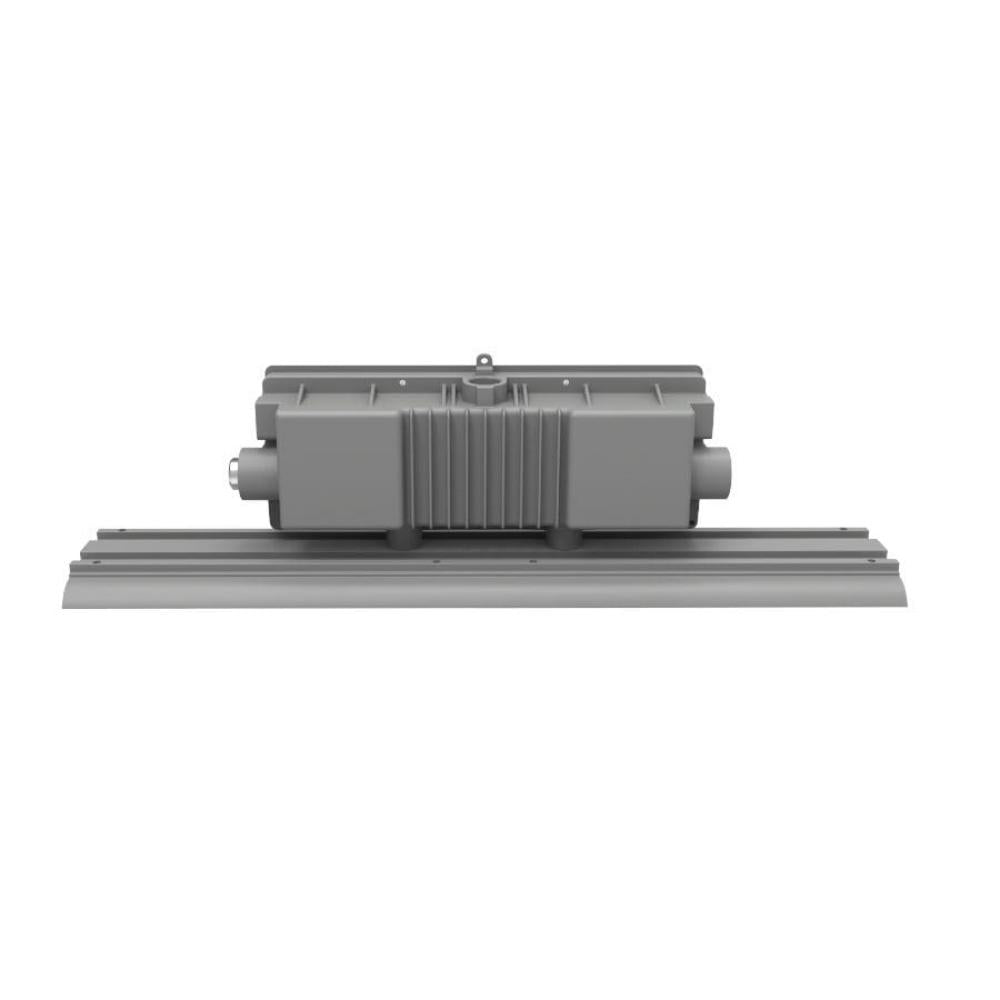

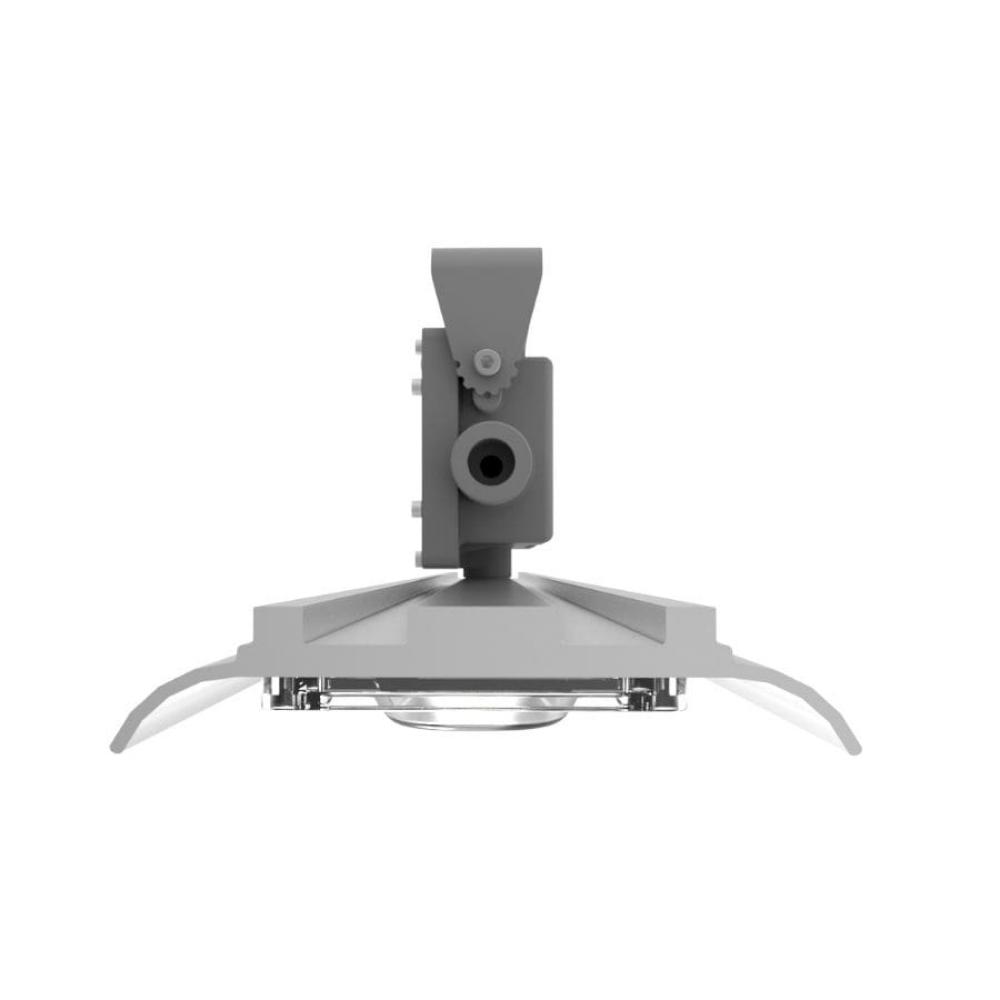

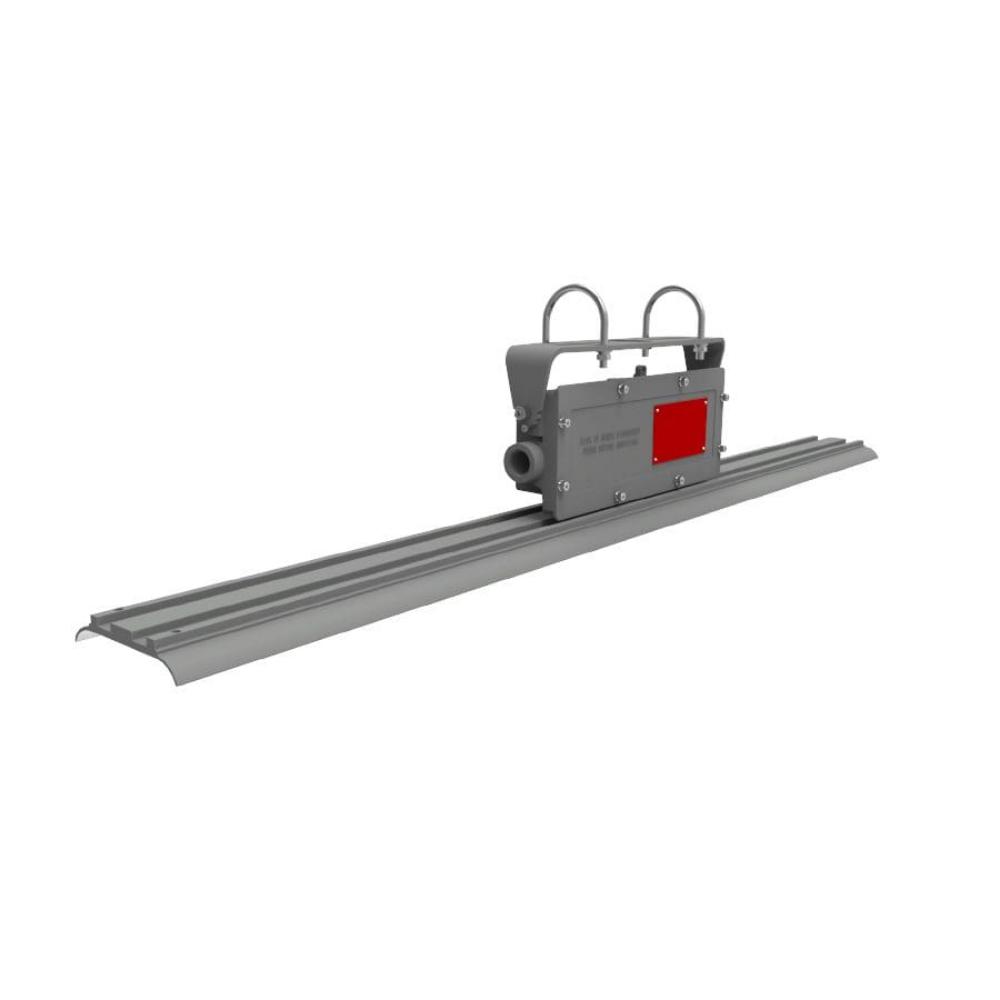

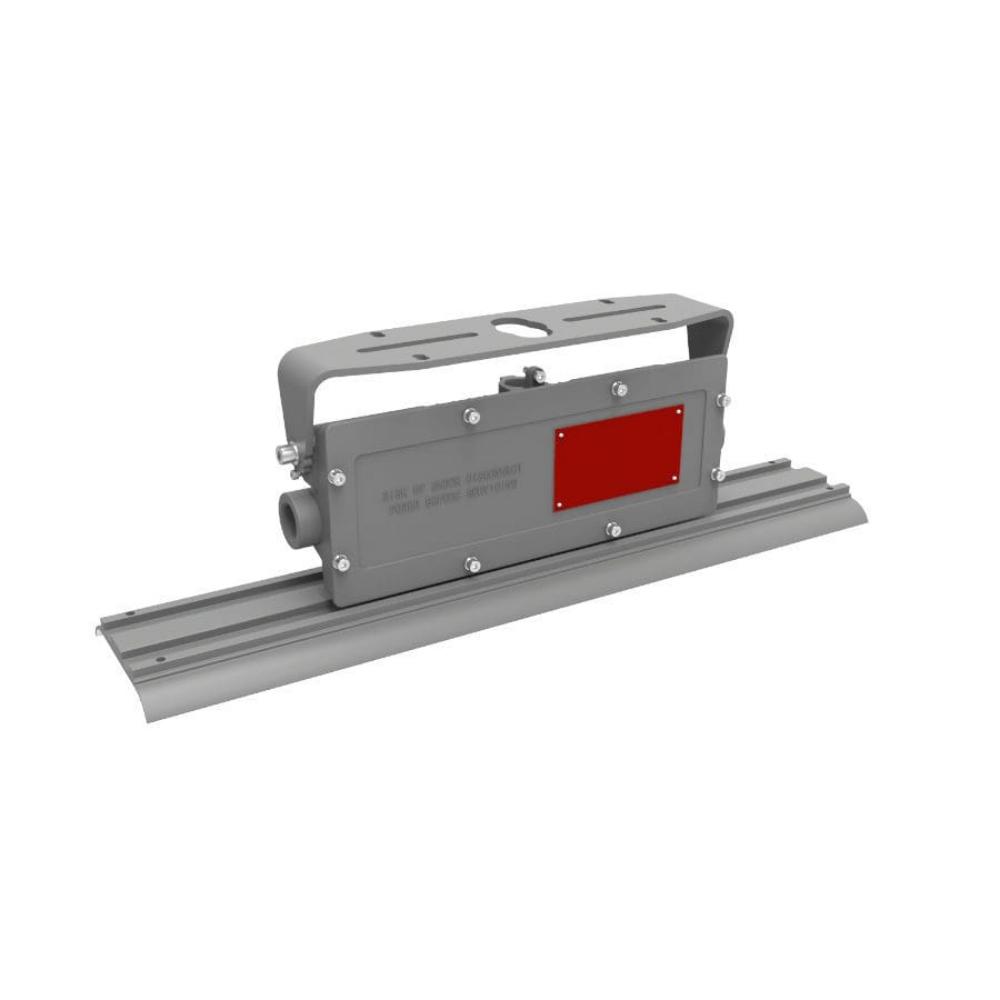

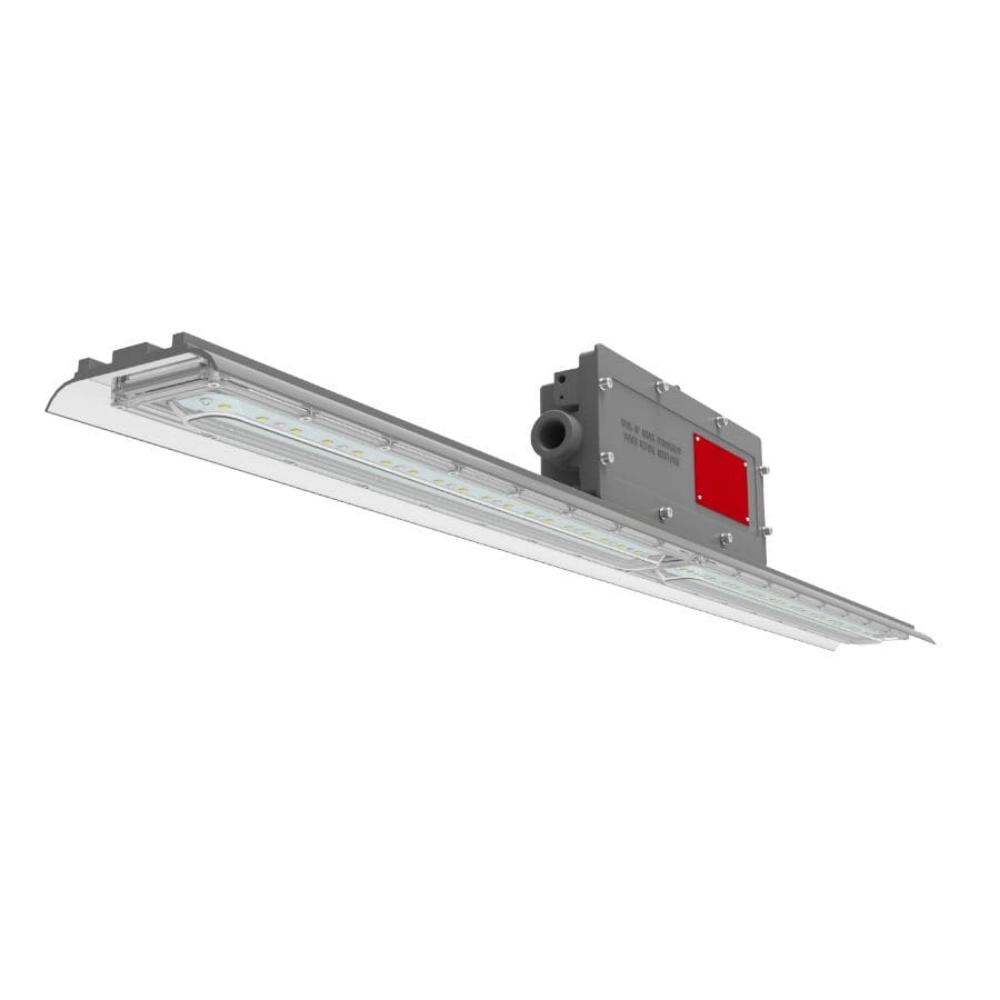

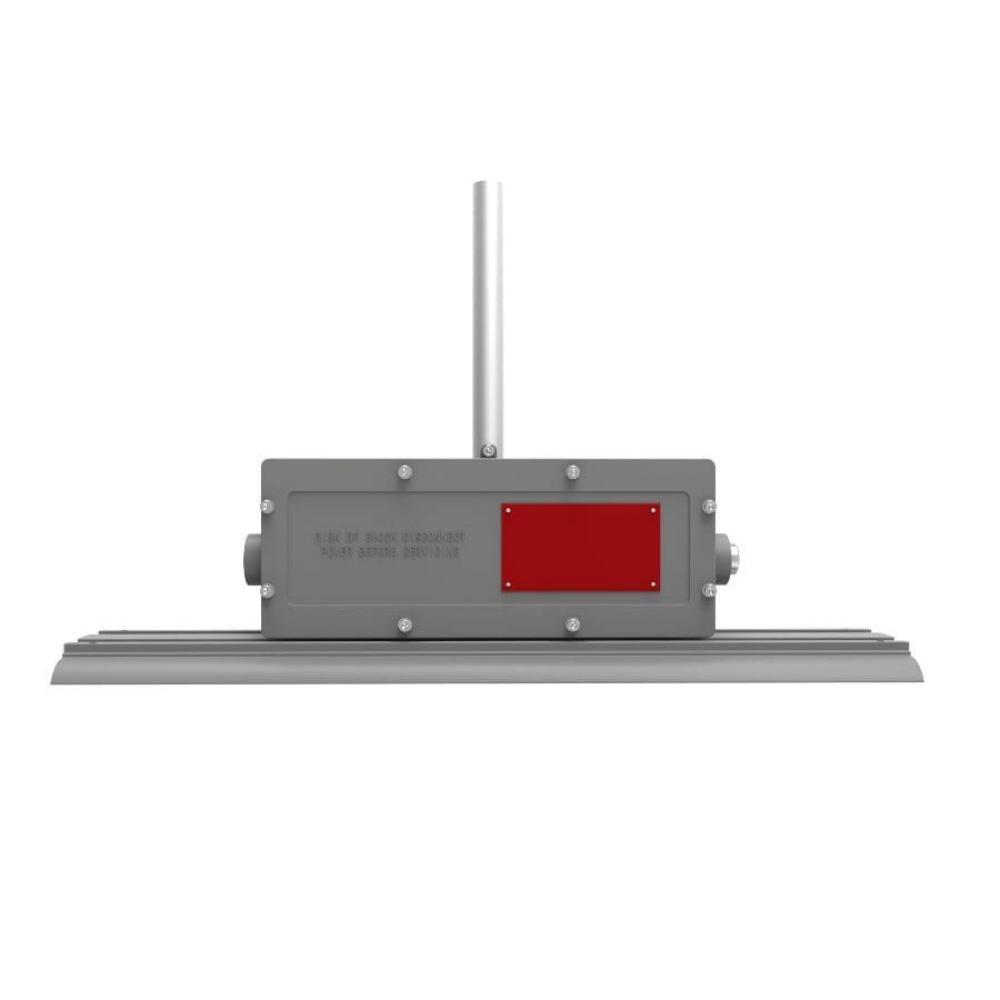

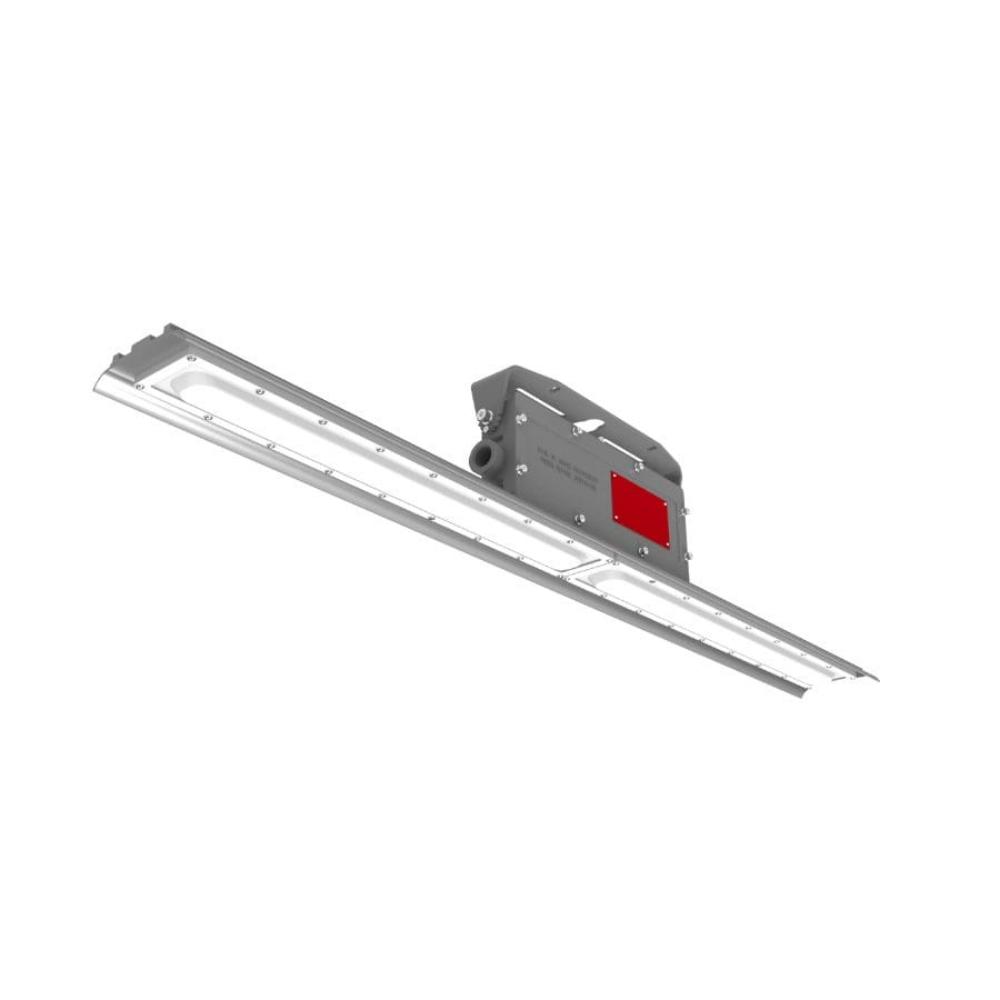

Red Sky Lighting Linear Series Light
With its rugged copper-free aluminum construction, the Linear Series is rated for hazardous environments up to Class I Division 2, protecting against combustible dust, gases, and vapors. Featuring a maintenance-free design, the Linear Series ensures over 147,000 hours of reliable light output at temperatures up to 149°F (65°C), while its robust design and quality enable operation under temperatures as low as -40°F (-40°C).
Specifications
Electrical Parameters
- Power (W): 30W, 40W, 60W, 80W
- Voltage(V): 100-277V AC, 347-480V AC
- Frequency: 50/60Hz
- Power Factor: ≥0.90
- THD: <20%
- L70: 147,000 hrs@149°F
- Dimming: 0-10V, Range 10-100%
- Surge Protection: 10KV
- Warranty: LEDs: 10 years, Driver: 7 years
Optical Parameters
- Lumen Output: 4,142Lm, 5,403Lm , 8,802Lm , 11,536Lm
- Lumen Efficacy: 150Lm/W
- Correlated Color Temperature (CCT): 3000K/4000K/5000K
- Color Rendering Index (CRI): 80 CRI
Mechanical Parameters
- Hardware: Stainless steel 316
- Lens Material: Polycarbonate

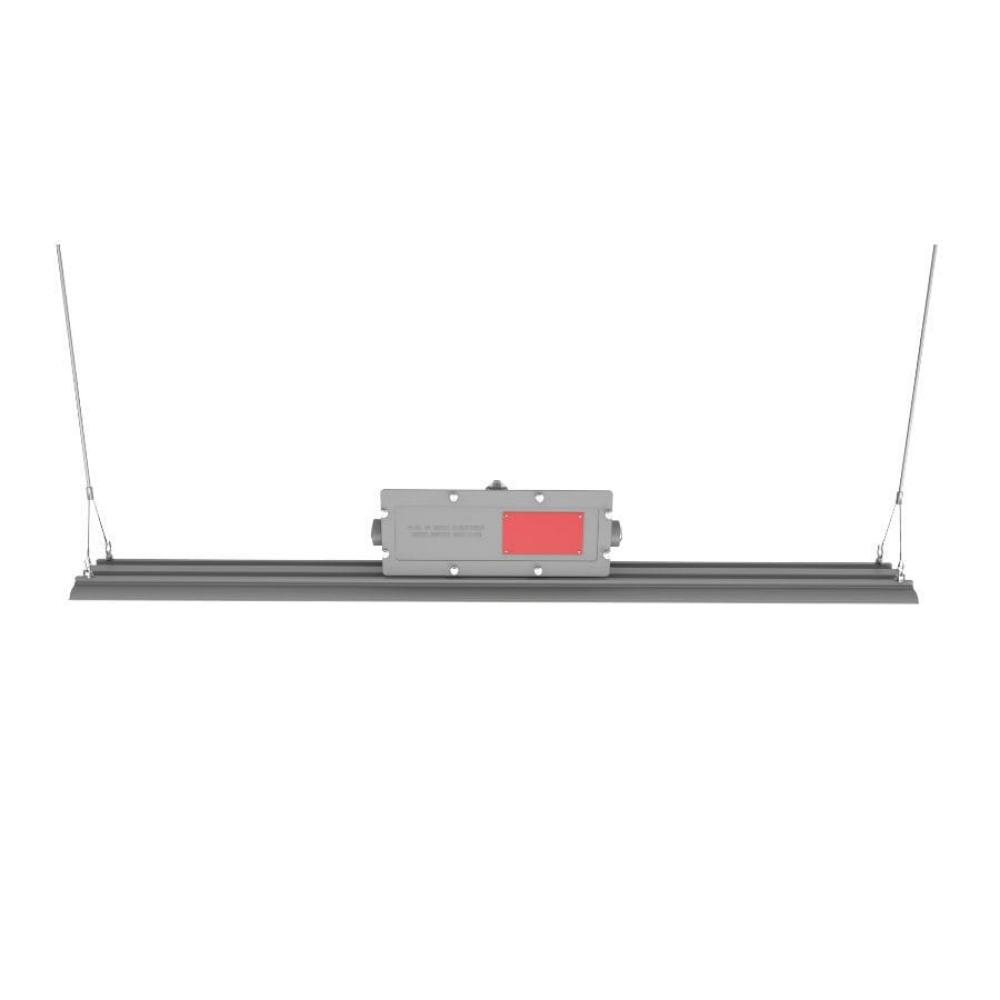

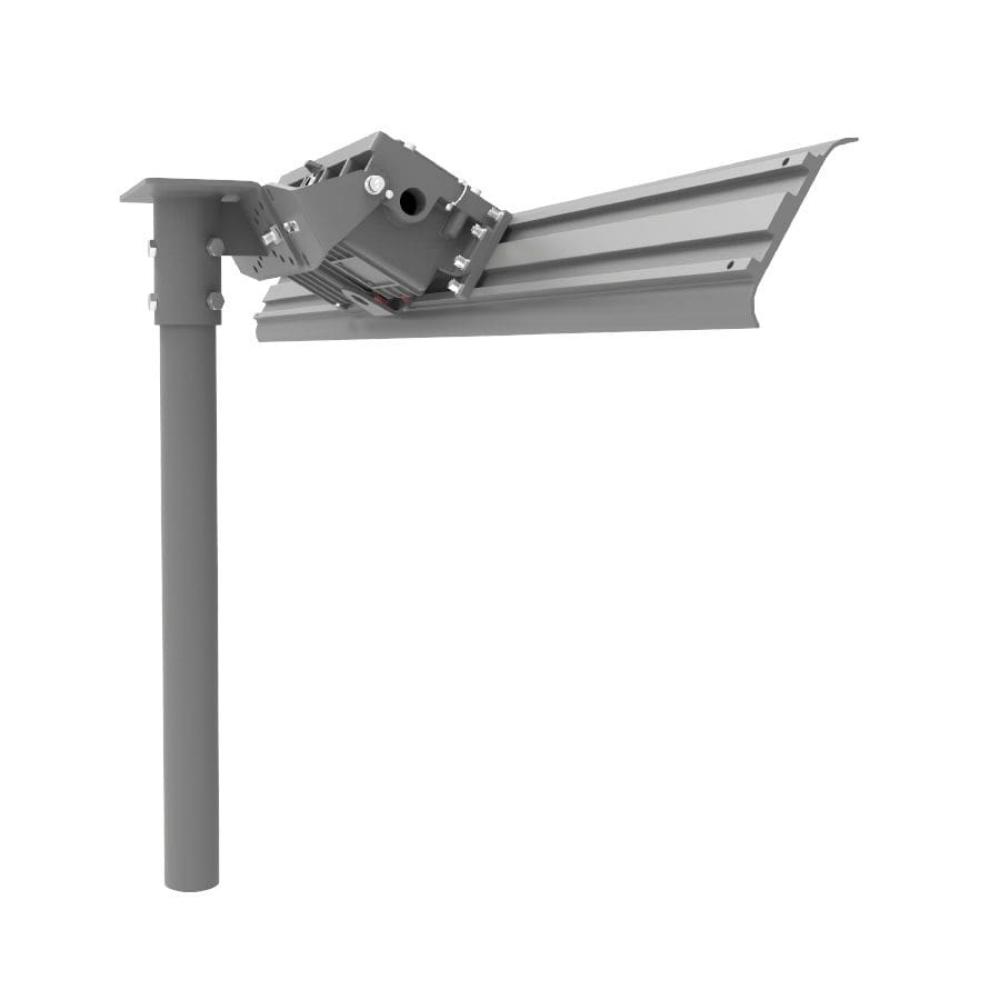

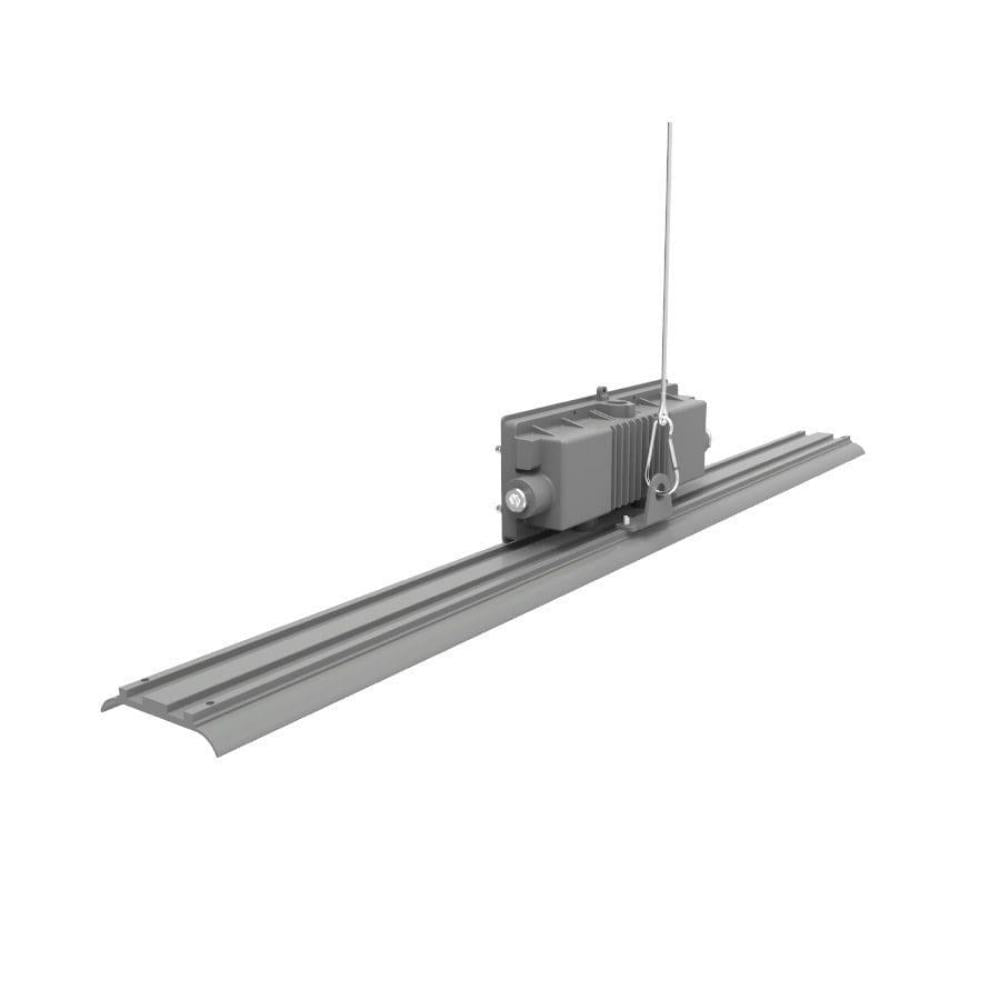

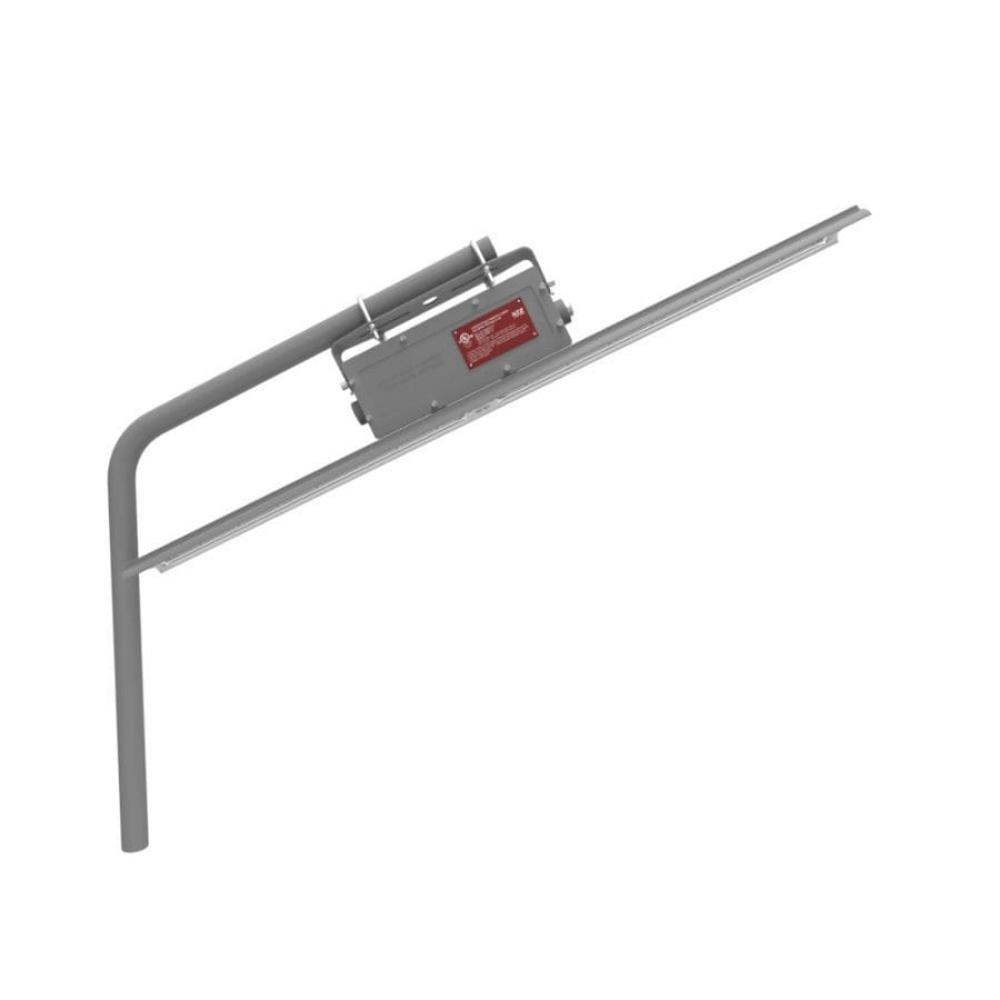

- Mounting Options: Pendant, Yoke, Chain, Pole, Stanchion
- Product Weight: 11.0lbs/5.0kg, 14.68lbs/6.66kg
- Cable Entry: (3) 3/4" NPT
- Product Dimensions (LxWxH): 23.6 x 5.0 x 6.6in(600 x 127 x 168 mm), 47.2 x 5.0 x 6.6in(1200 x 127 x 168 mm)
Environmental Parameters
- Ambient Operating Temperature: C1D2@-40°F ~ 149°F (-40°C ~ 65°C), C2D1@-40°F ~ 122°F (-40°C ~ 50°C)
- T-Code Rating: T4A
Compliance
Ratings:
- Class I Division 2, Groups A, B, C, D
- Class II Division 1 Group E, F, G
- Class II Division 2, Groups F, G
- Class III
- Class I, Zone 2, Group IIC
- Zone 21, Group IIIC
- UL 1598 Wet Locations
- UL 1598A Marine Outside Type (Salt Water)
- IP66
- IK08
- NEMA 4X
- Salt Spray 720 hrs (ISO 9227)
Certifications:
- UL844
- UL1598
- UL1598A
- CSA C22.2 No.250.0
- CSA C22.2 No.137
- FCC Part 15, Subpart B
- DLC Standard
