Description

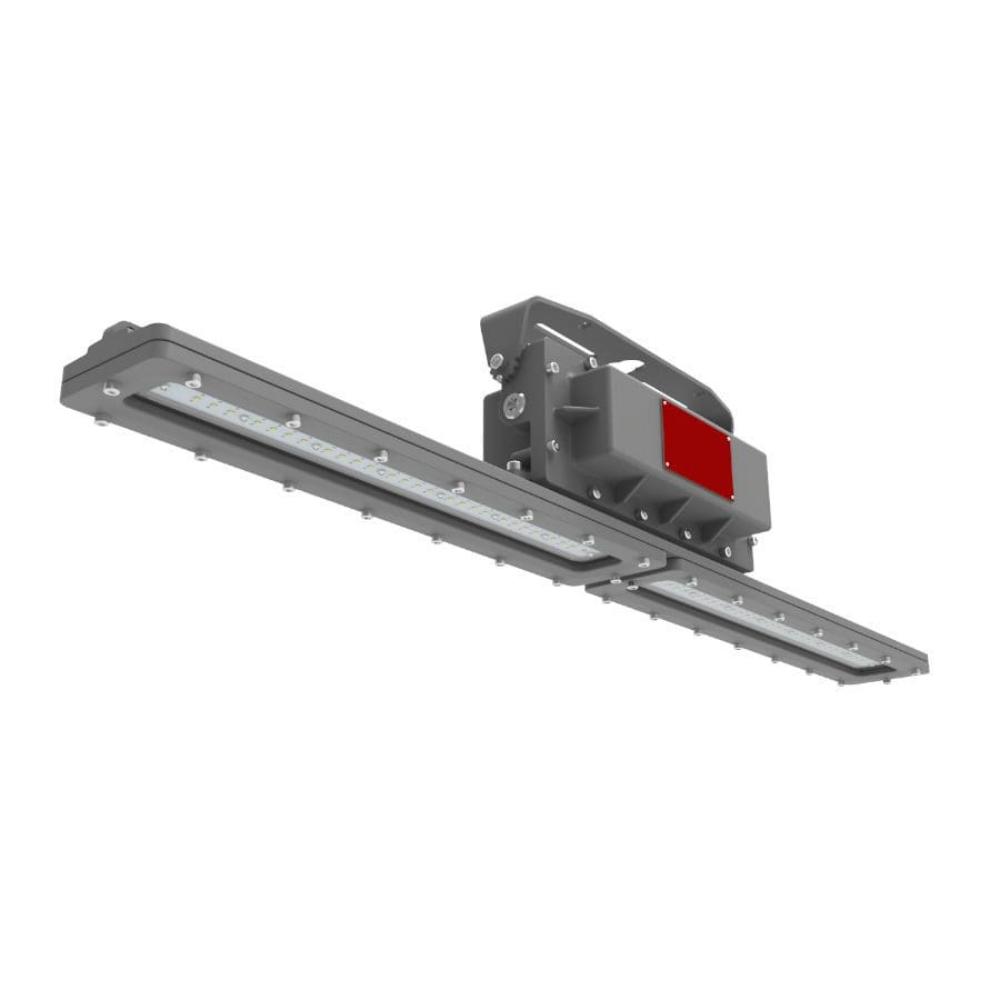

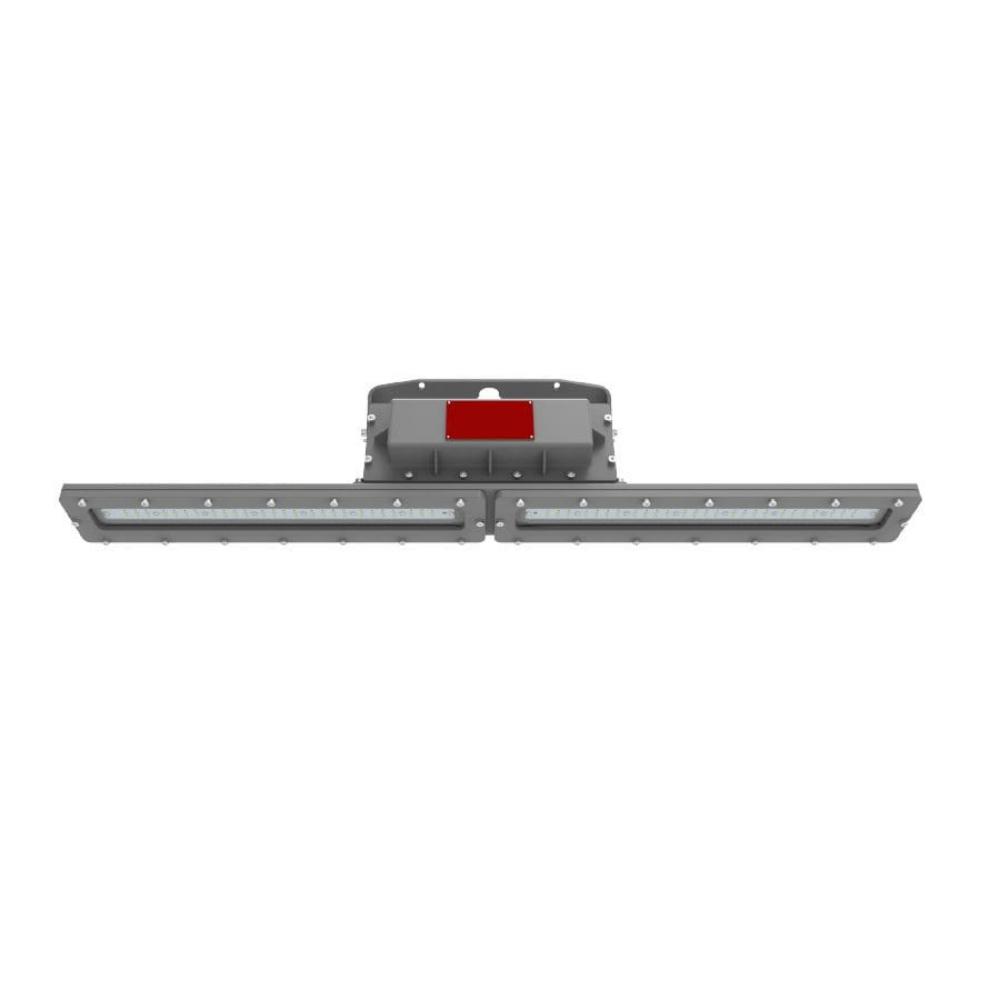

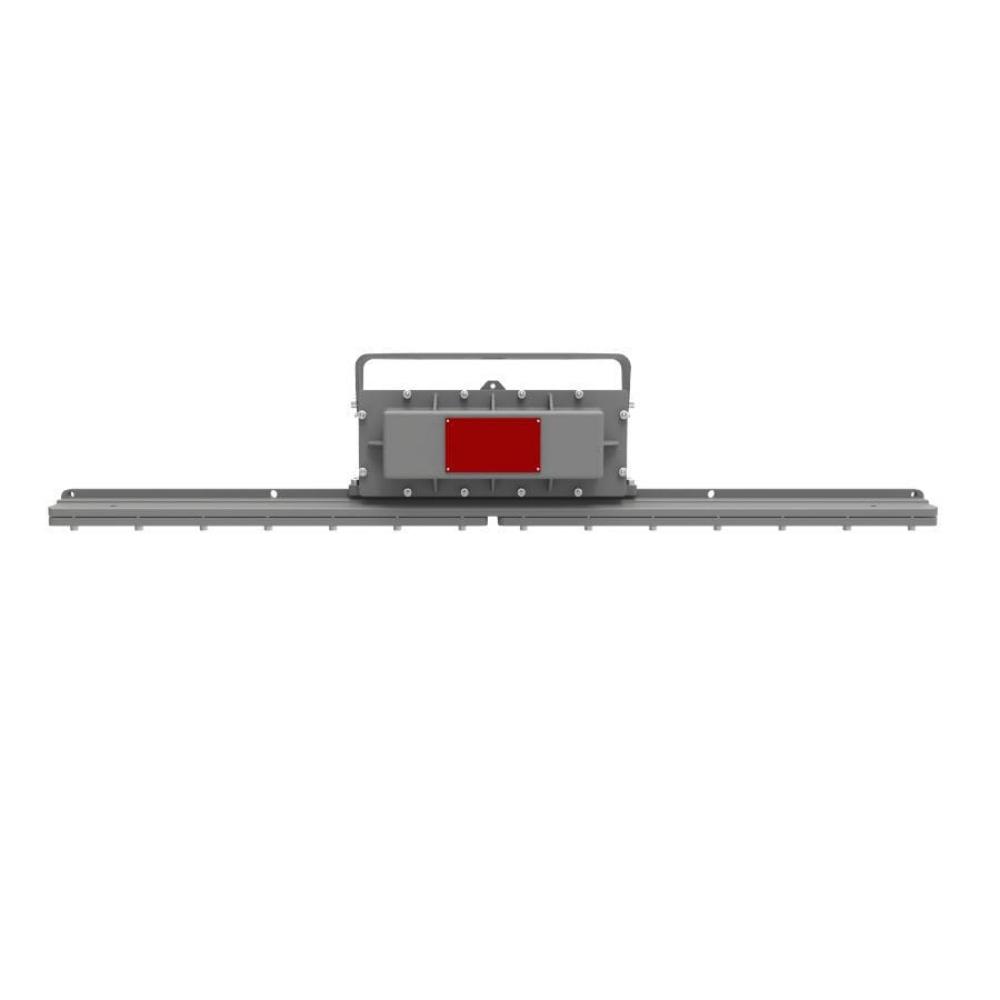

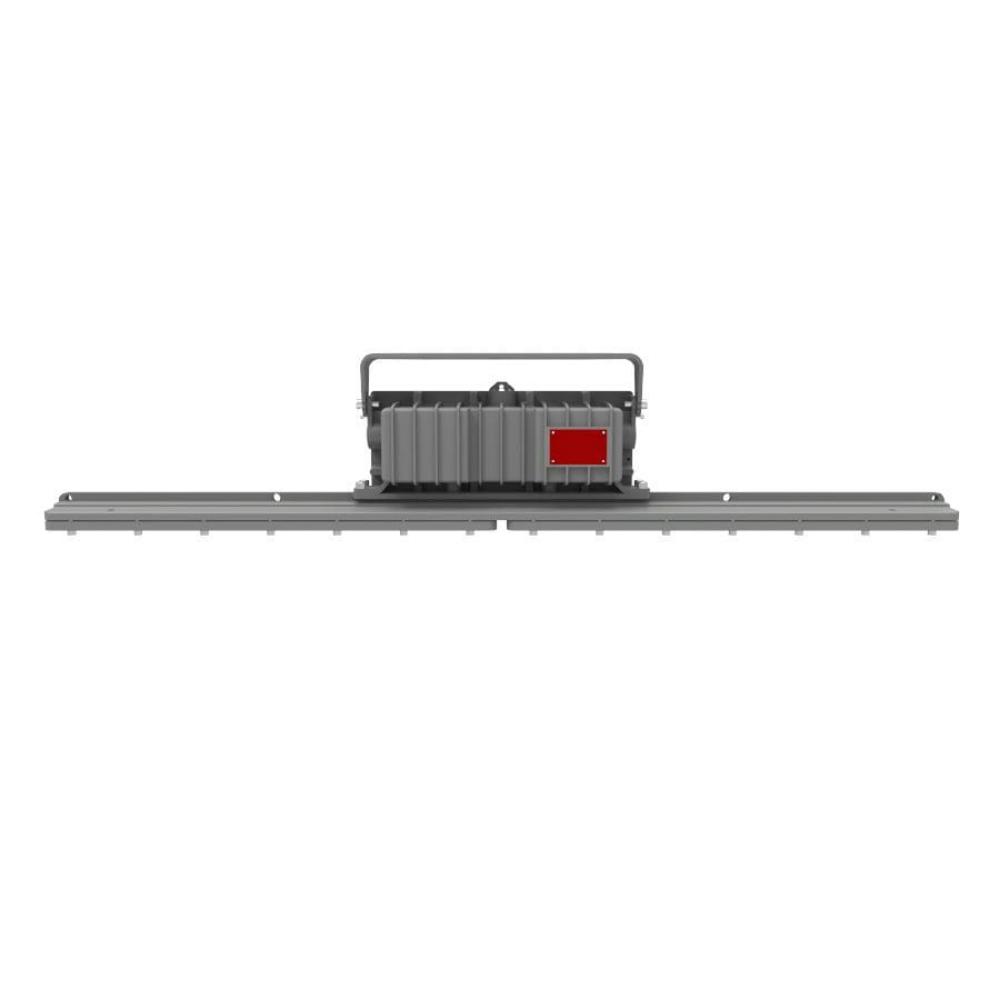

Red Sky Lighting Linear Tuff Emergency Series Light
When the power goes out, keep hazardous locations safe and illuminated. Bringing the same robustness, cost-efficiency, and safety, the Linear Tuff now boasts a 90 Minute emergency battery backup. Suitable for petrochemical facilities, drilling rigs, platforms, loading docks, mining, oil and gas refineries, tunnels, and other hazardous locations.
Specifications
Electrical Parameters
- Power (W): 80W
- Voltage(V): 120-277V AC
- Frequency: 50/60Hz
- Power Factor: ≥0.90
- THD: <20%
- L70: 480,000 hrs@113°F
- Surge Protection: 10KV
- Warranty: LEDs:10 Years, Driver:7 Years, Battery:5 Years
Optical Parameters
- Lumen Output: 11,140Lm
- Lumen Output (EM)*: 869Lm
- Lumen Efficacy: 140Lm/w
- Available Beam Angle: 60°/110°/T2
- Correlated Color Temperature (CCT): 3000K/4000K/5000K
- Color Rendering Index (CRI): 80 CRI
Mechanical Parameters
- Housing Material: Marine Grade Aluminum
- Hardware: Stainless steel 316
- Lens Material: Tempered Glass
- Mounting Options: Pendant, Yoke, Chain, Pole
- Product Weight: 26.9lbs/12.2kg
- Product Dimensions (LxWxH): 43.3 x 5.8 x 7.3in(1100 x 148 x 185mm)
- Cable Entry: (3)3/4" NPT
Warranty/Certifications
- Ambient Operating Temperature: -4°F~+113°F(-20°C~+45°C)
- T-Code Rating: C1D1-T6
Compliance
Ratings:
- Class I, Division 1, Groups C and D
- Class I, Zone 1, Group IIB
- IP66
- IK07
- Salt Spray 720 hrs (ISO 9227)
Certifications:
- UL 844
- CSA C22.2 No. 137
- CSA C22.2 No. 30
- UL 924
- CSA C22.2 No. 141-15
- FCC Part 15, Subpart B
Product Files
Click for Red Sky Lighting LNT EM Specification
Click for Red Sky Lighting LNT EM Installation Manual
Click for Red Sky Lighting LNT EM Certificate - UL924 Emergency Non-Hazardous
Click for Red Sky Lighting LNT EM Certificate - UL844 Emergency Hazardous
