Description

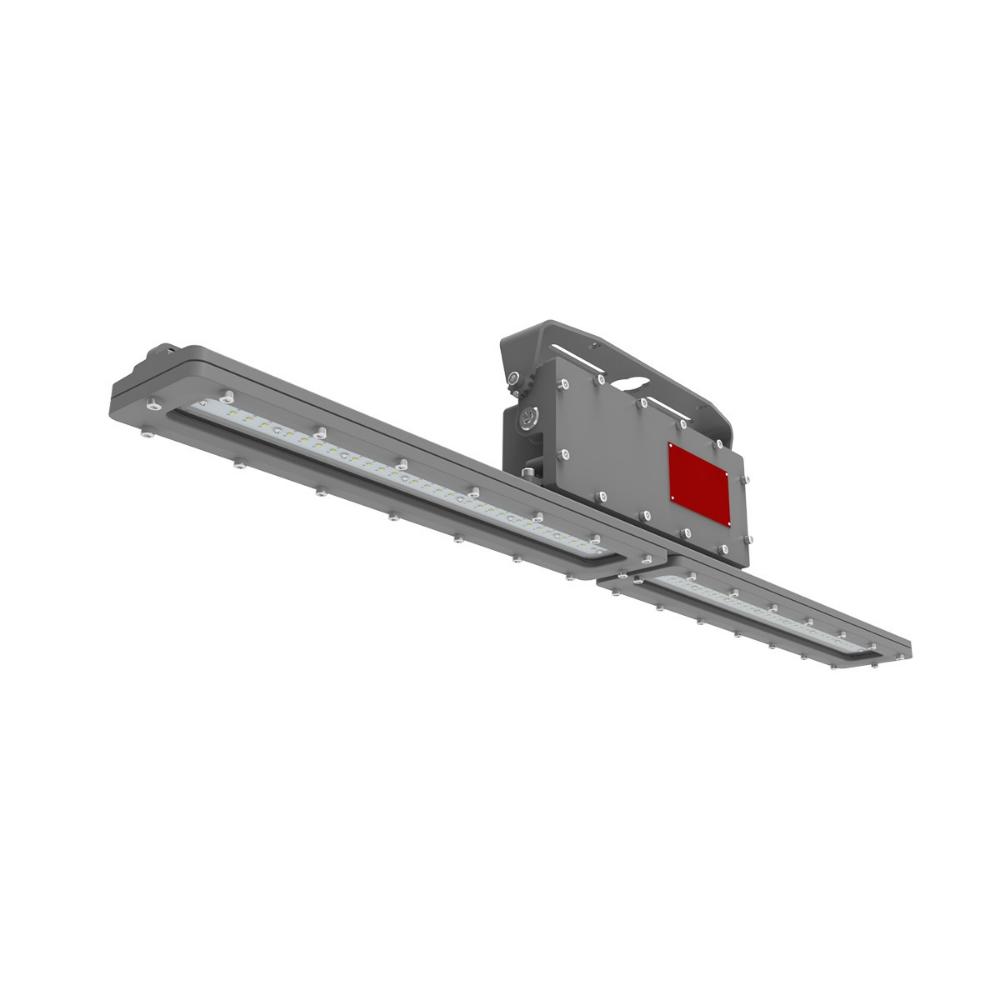

Red Sky Lighting Linear Tuff Series Light
The Linear Tuff Series from Red Sky Lighting is a versatile linear LED fixture designed to withstand the most demanding industrial environments. Available in durable 2-foot and 4-foot lengths, it offers high luminous efficacy of up to 150 lumens per watt along with a new retrofit bracket for improved compatibility.
Specifications
Electrical Parameters
- Power (W): 30W, 40W, 60W, 80W
- Voltage(V): 120-277V AC, 347-480V AC
- Frequency: 50/60Hz
- Power Factor: ≥0.90
- THD: <20%
- L70: 147,000 hrs@140°F
- Dimming: 0-10V, Range 10-100%
- Surge Protection: 10KV
- Warranty: LEDs: 10 years, Driver: 7 years
Optical Parameters
- Lumen Output: 4,245Lm , 5,592Lm , 8,972Lm, 11,875Lm
- Lumen Efficacy: 150Lm/W
- Available Beam Angle: 60° /110° /T2
- Correlated Color Temperature (CCT): 3000K/4000K/5000K
- Color Rendering Index (CRI): 80 CRI
Mechanical Parameters
- Hardware: Stainless steel 316
- Lens Material: Tempered Glass

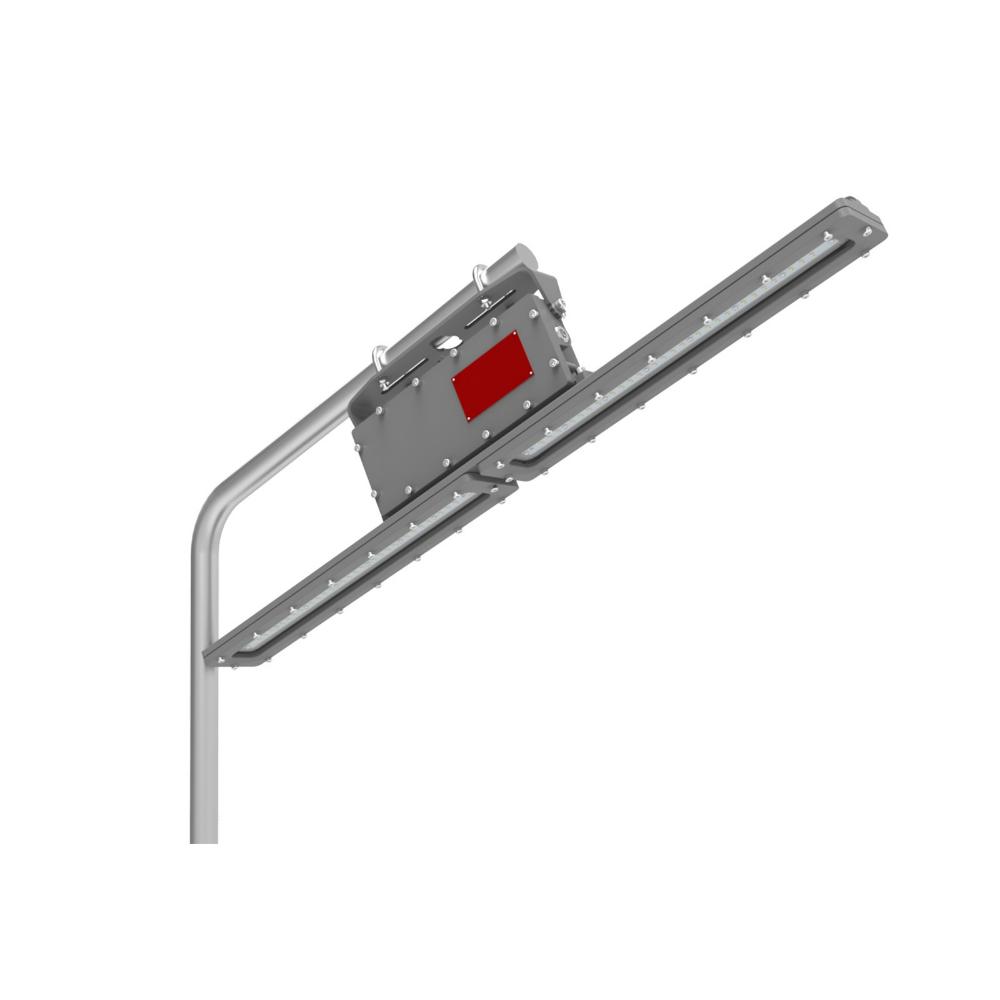

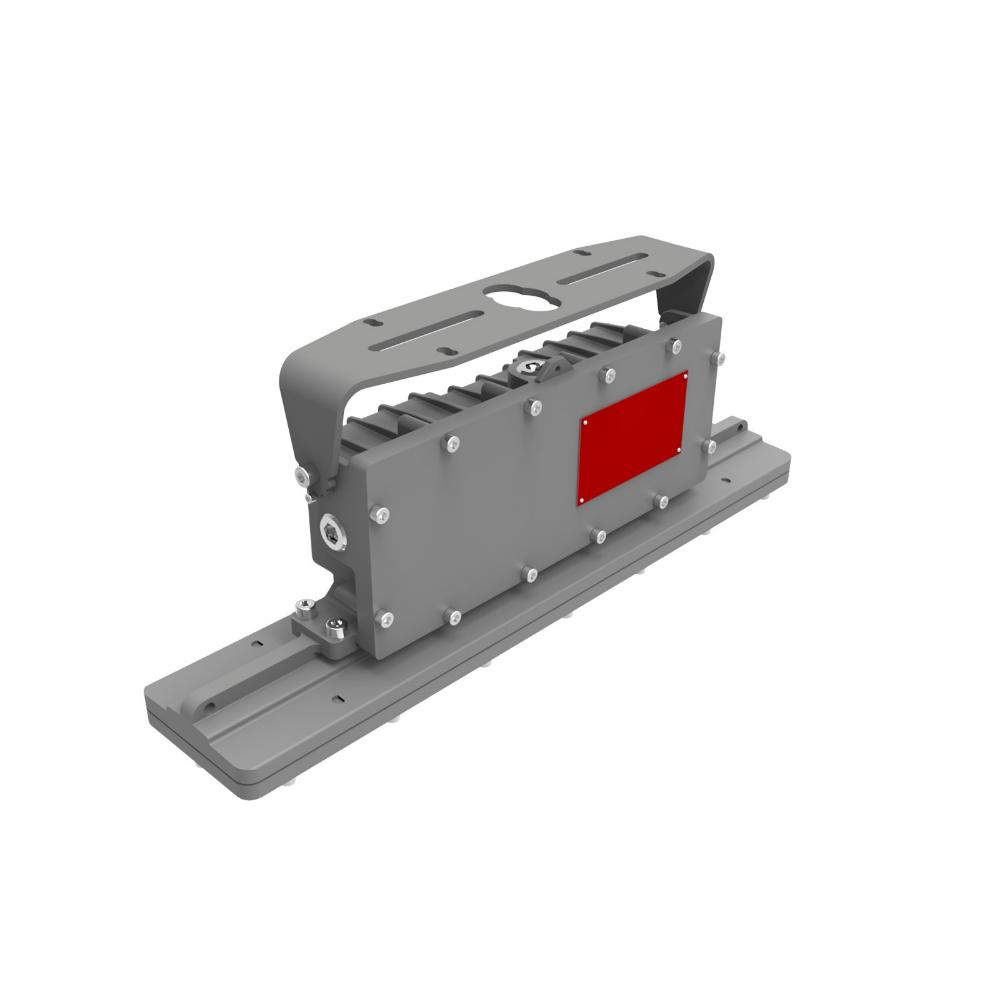

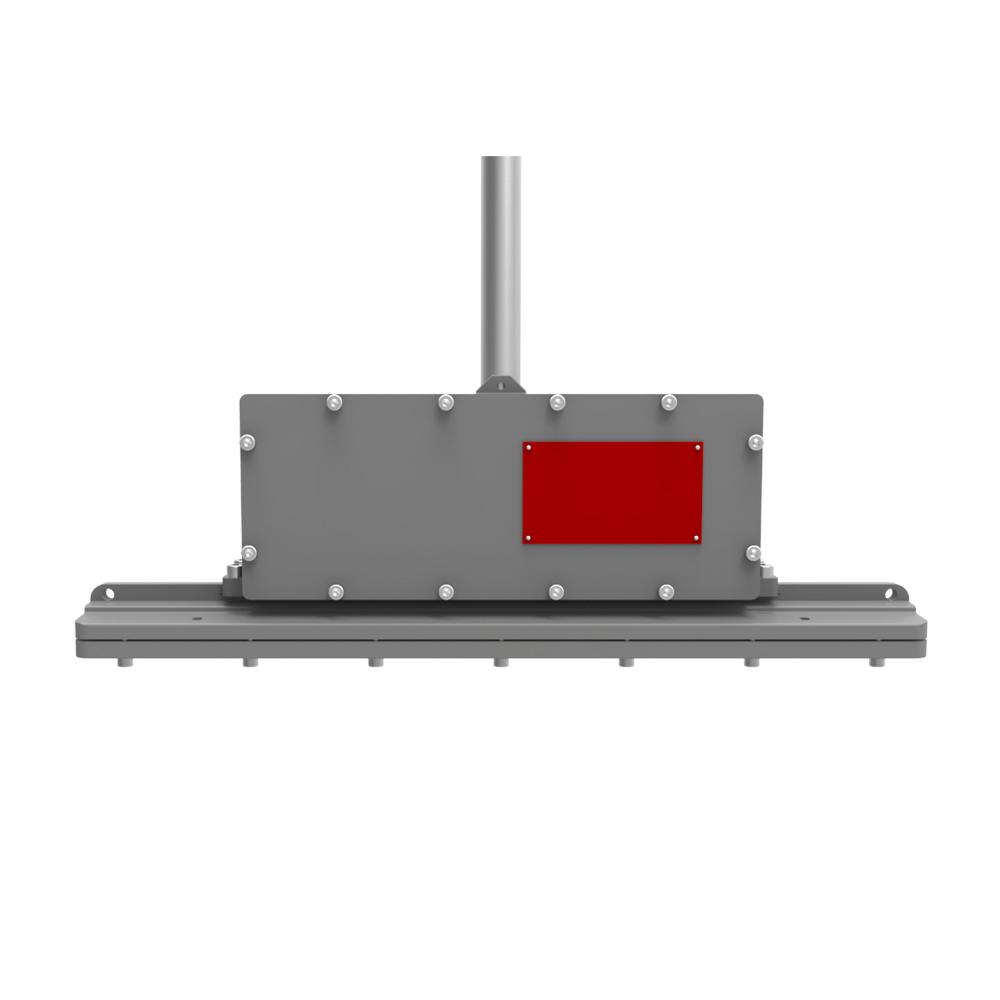

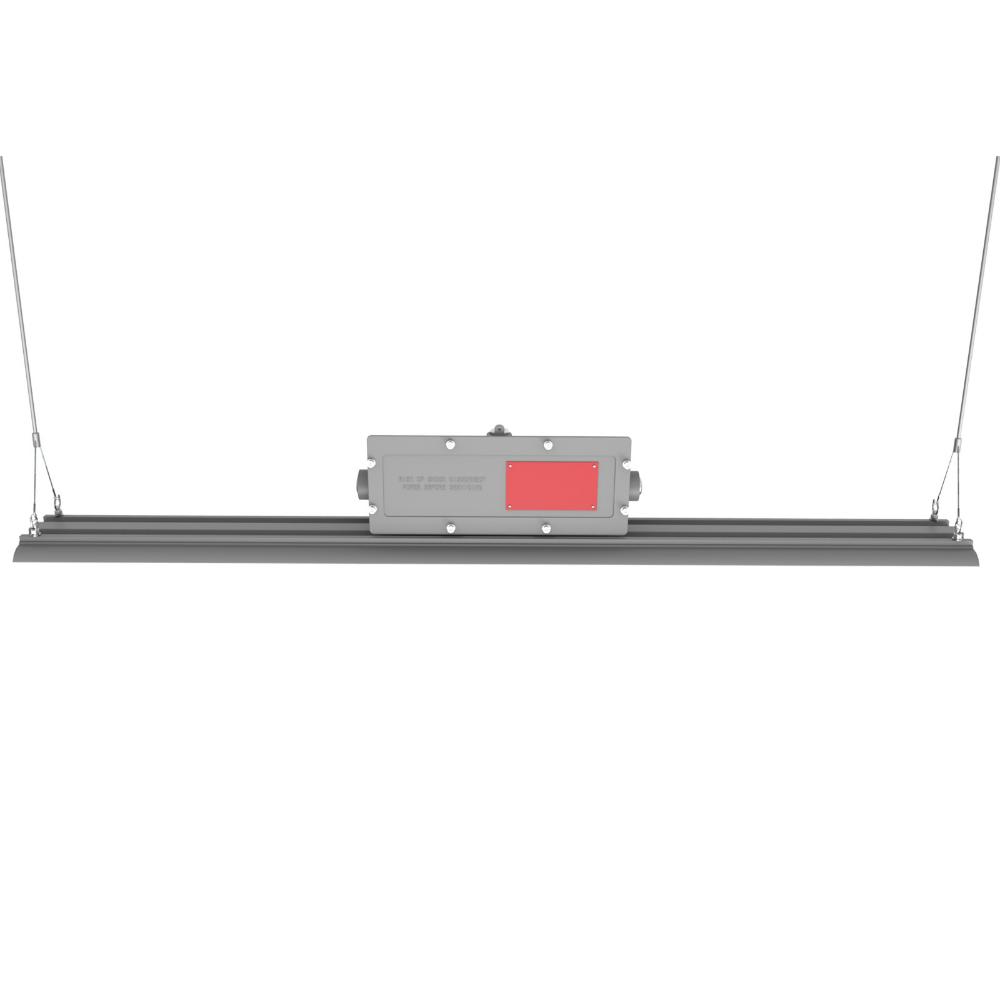

- Mounting Options: Pendant, Yoke, Chain, Pole
- Product Weight: 30/40W: 16.3lbs/7.4kg, 60/80W: 23.8lbs/10.8kg
- Cable Entry: (3) 3/4" NPT
- Product Dimensions (LxWxH): 21.4 x 4.3 x 7.3in(544 x 108 x 185mm) 43.3 x 4.3 x 7.3in(1100 x 108 x 185mm)
Environmental Parameters
- Ambient Operating Temperature: -40°F ~ 140°F (-40°C ~ 60°C)
- T-Code Rating: C1D1 - T6, C1D2 - T4A
Compliance
Ratings:
- Class I Division 1, Groups C, D
- Class I Division 2, Groups A, B, C, D
- Class I, Zone 1, Group IIB
- UL 1598 Wet Locations
- UL 1598A Marine Outside Type (Salt Water)
- IP66
- IK08
- Salt Spray 720 hrs (ISO 9227)
Certifications:
- UL844
- UL1598
- UL1598A
- CSA C22.2 No.250.0
- CSA C22.2 No.137
- FCC Part 15, Subpart B
- DLC Standard
