Description

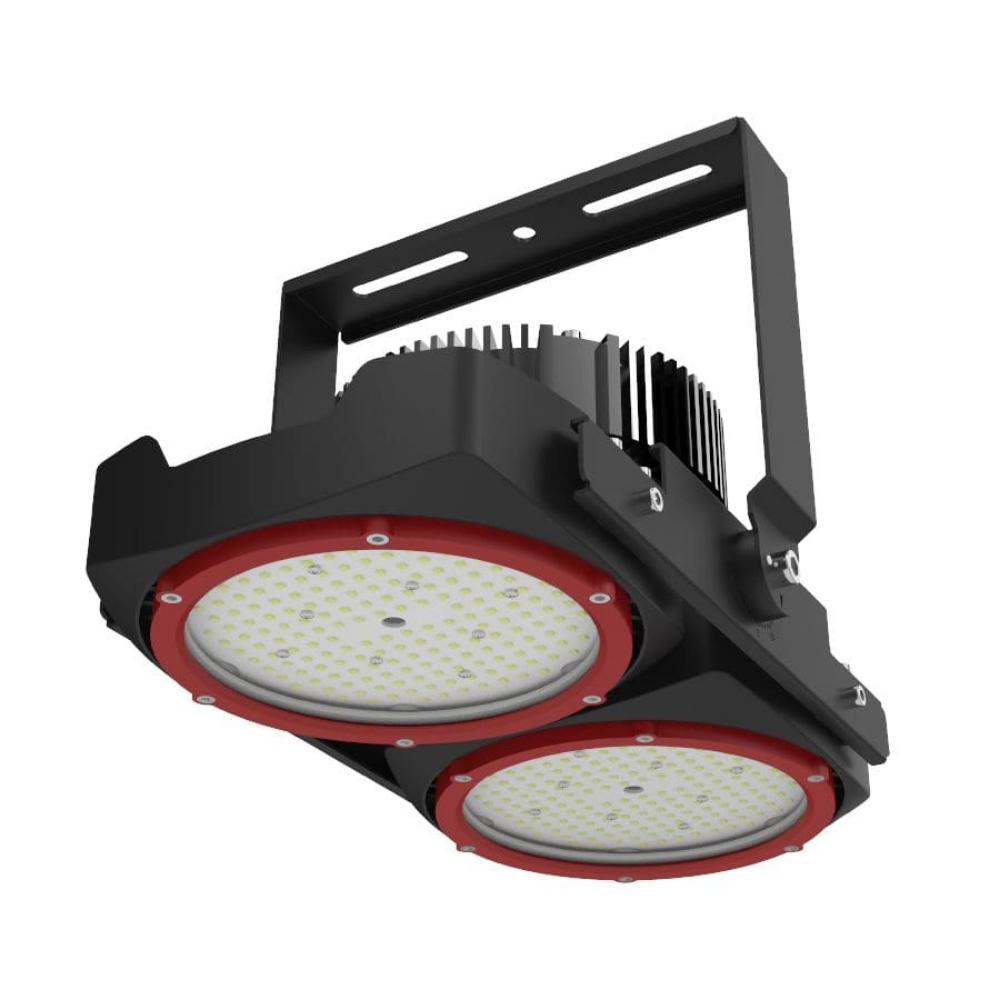

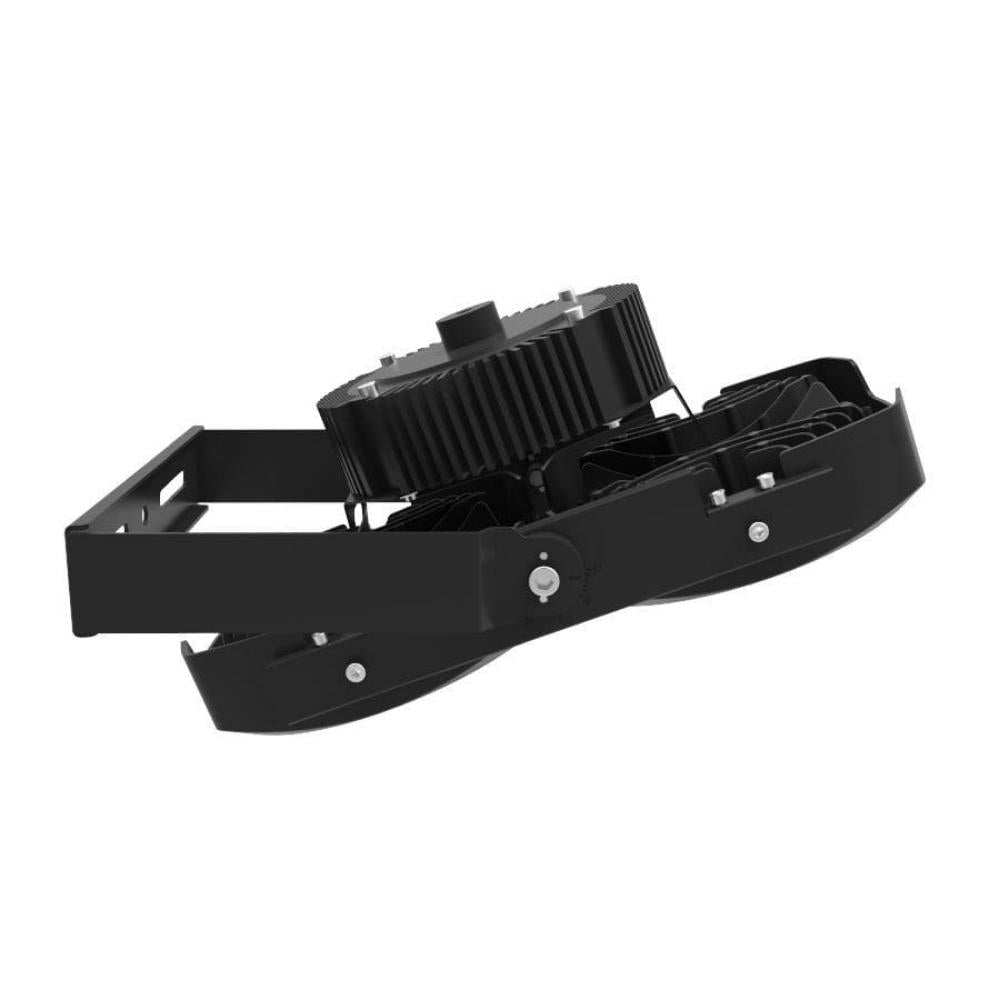

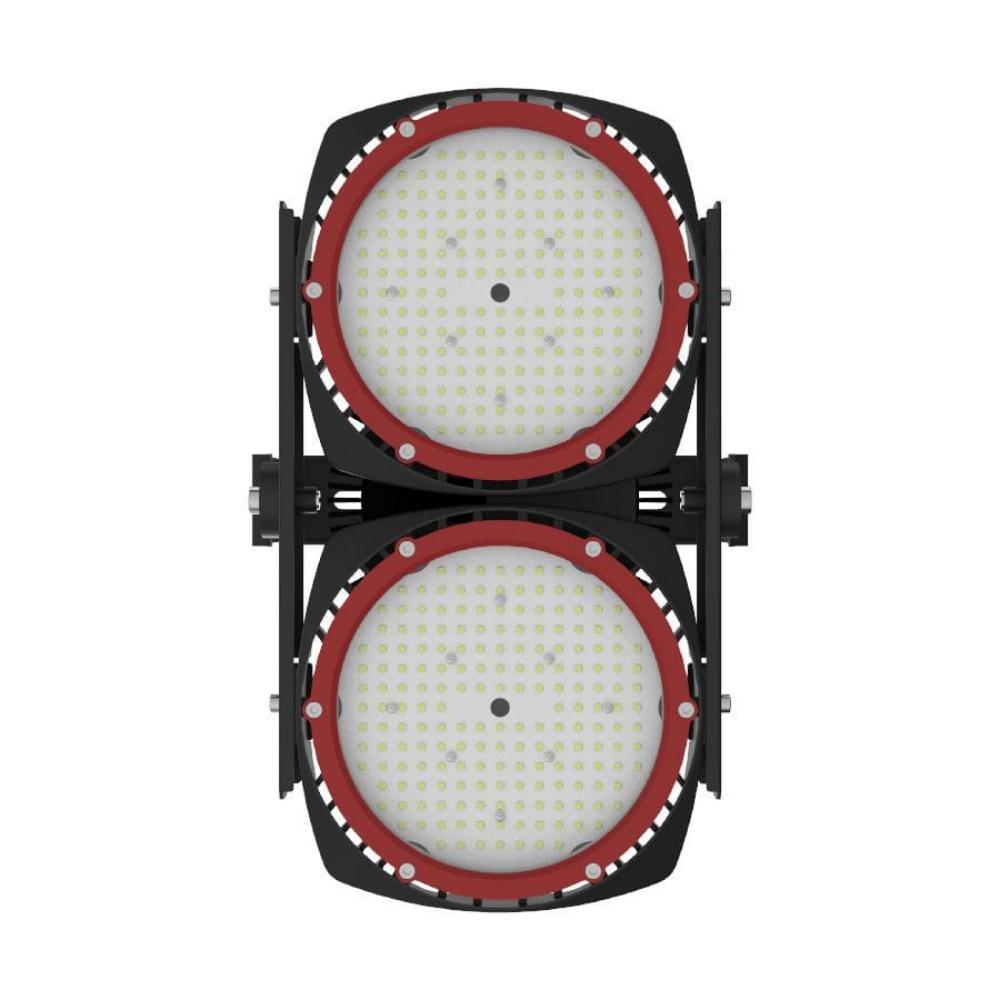

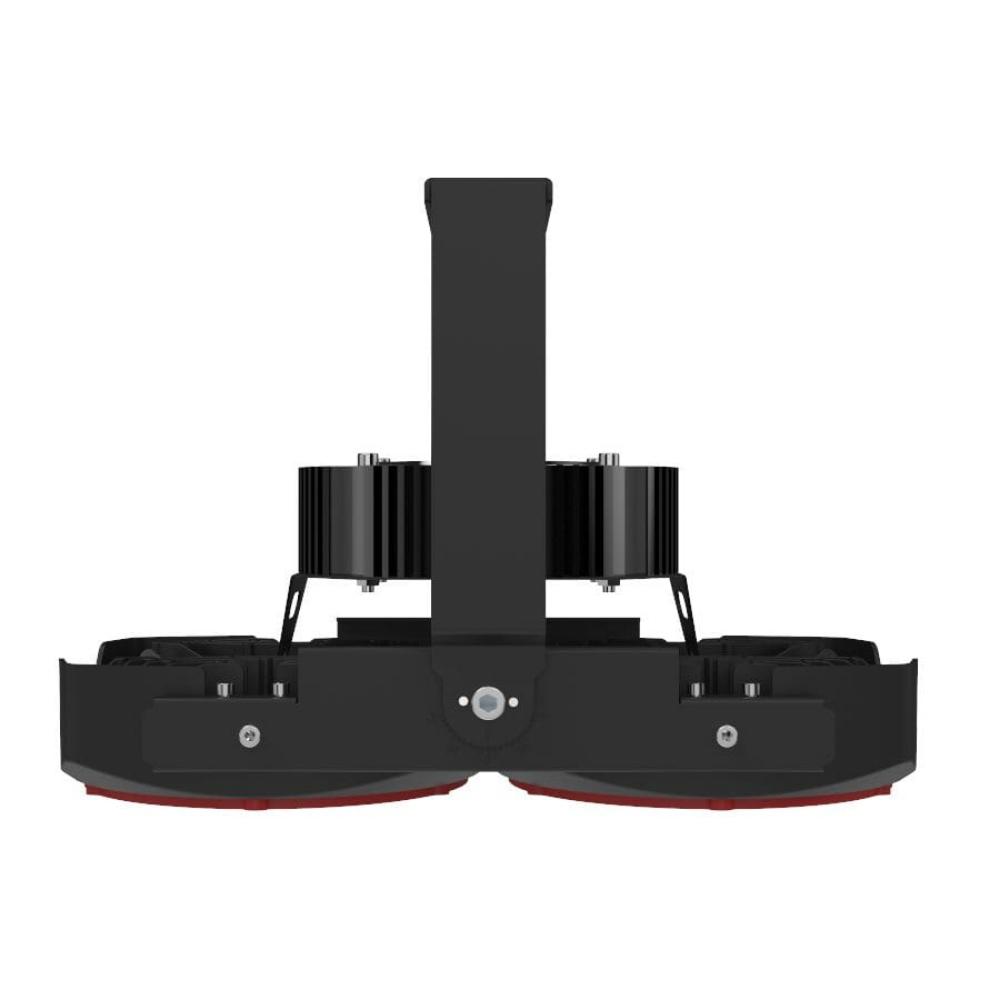

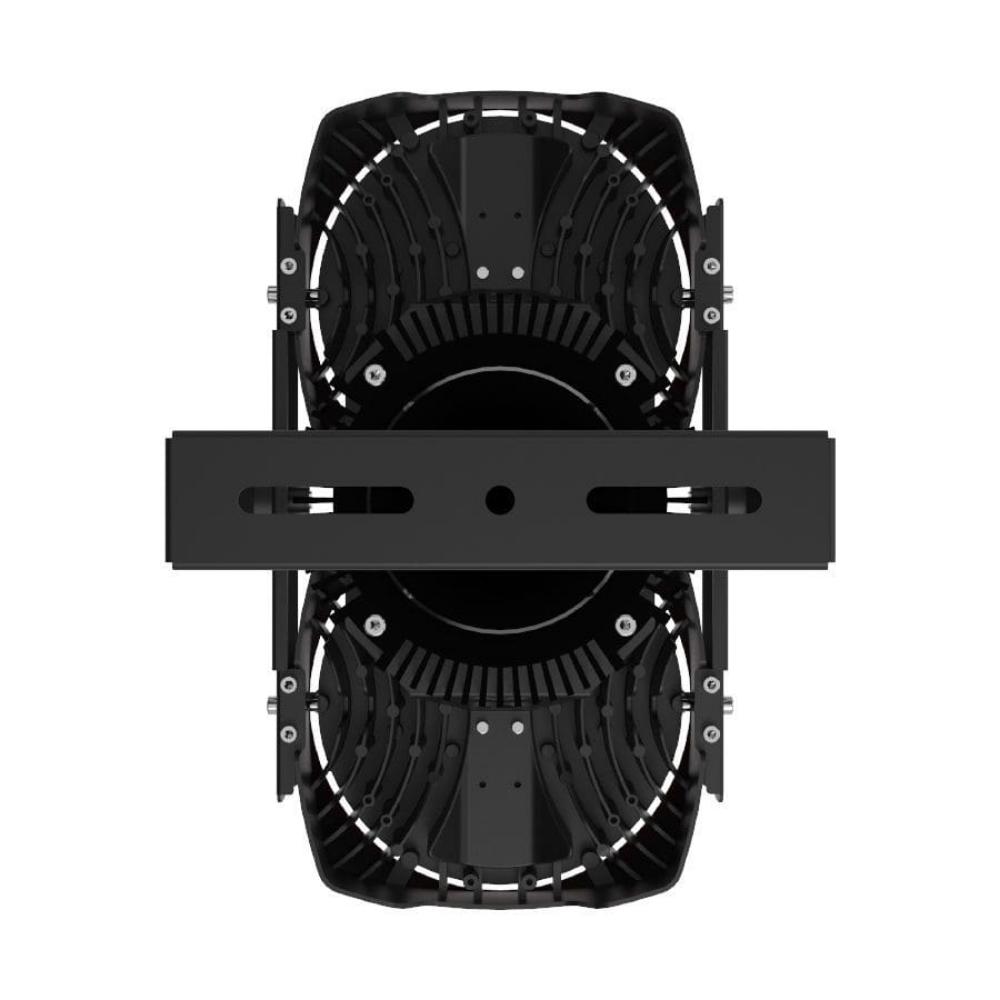

Red Sky Lighting Modular Hot Series Ceiling Light
Introducing the Modular Hot Series by Red Sky Lighting, the ultimate solution for high temperature environments. Designed with up to four LED modules, our Modular Hot Series provides unparalleled light output, equivalent to 400-2000W HID/MH lighting (30,500 to 114,500 lumens), while simultaneously reducing maintenance and energy costs by approximately 70%.
Specifications
Electrical Parameters
- Power: 200W, 400W, 600W, 800W
- Voltage(V): 100-277V AC / 347-480V AC
- Frequency: 50/60Hz
- Power Factor: ≥0.90
- THD: <20%
- L70: 110,000 hrs@158°F
- Dimming: 0-10V, Range 0-100%
- Surge Protection: 10KV
- Warranty: 5 Years
Optical Parameters
- Lumen Output: 29,993Lm , 58,653Lm , 93,290Lm, 120,634Lm
- Lumen Efficacy: 150Lm/W
- Available Beam Angle: 15°/30° / 60° / 90° / 30*120°/T3(Polycarbonate)/120°(Glass)
- Correlated Color Temperature (CCT): 5000K
- Color Rendering Index (CRI): 80 CRI
Mechanical Parameters
- Hardware: Stainless steel 316
- Lens Material: Tempered Glass or Polycarbonate
- Mounting Options: Yoke
- Product Weight: 200W: 21lbs/9.5kg 400W: 38.8lbs/17.6kg 600W: 62.2lbs/28.2kg 800W: 80.6lbs/36.6kg
- Connection: 200W: 5ft Power Cord 600W: 3ft Power Cord
- Product Dimensions (LxWxH): 200W: 16.5 x 10.6 x 10.9 in (420 x 270 x 277mm) 400W: 19.5 x 16.5 x 10.9 in (495 x 420 x 277mm) 600W: 29.1 x 16.5 x 10.9 in (740 x 420 x 277mm) 800W: 38 x 16.5 x 10.9 in (964 x 420 x 277mm)
Environmental Parameters
- Maximum Ambient Temperature: Glass:158°F(70°C),PC:149°F(65°C)
- Installation: MIN 90°C SUPPLY CONDUCTORS
Compliance
Ratings:
- UL 1598 Wet Locations
- IP66/IP67
- IK08 (Glass)/IK10 (PC)
- Salt Spray 720 hrs (ISO 9227)
- 3G vibration
Certifications:
- UL1598
- CSA C22.2 No. 250.0
- DLC Standard*
- FCC Part 15, Subpart B
Product Files
Click for Red Sky Lighting MDH Specification
Click for Red Sky Lighting MDH Installation Manual
Click for Red Sky Lighting MDH Certificate - UL1598 Non-Hazardous
