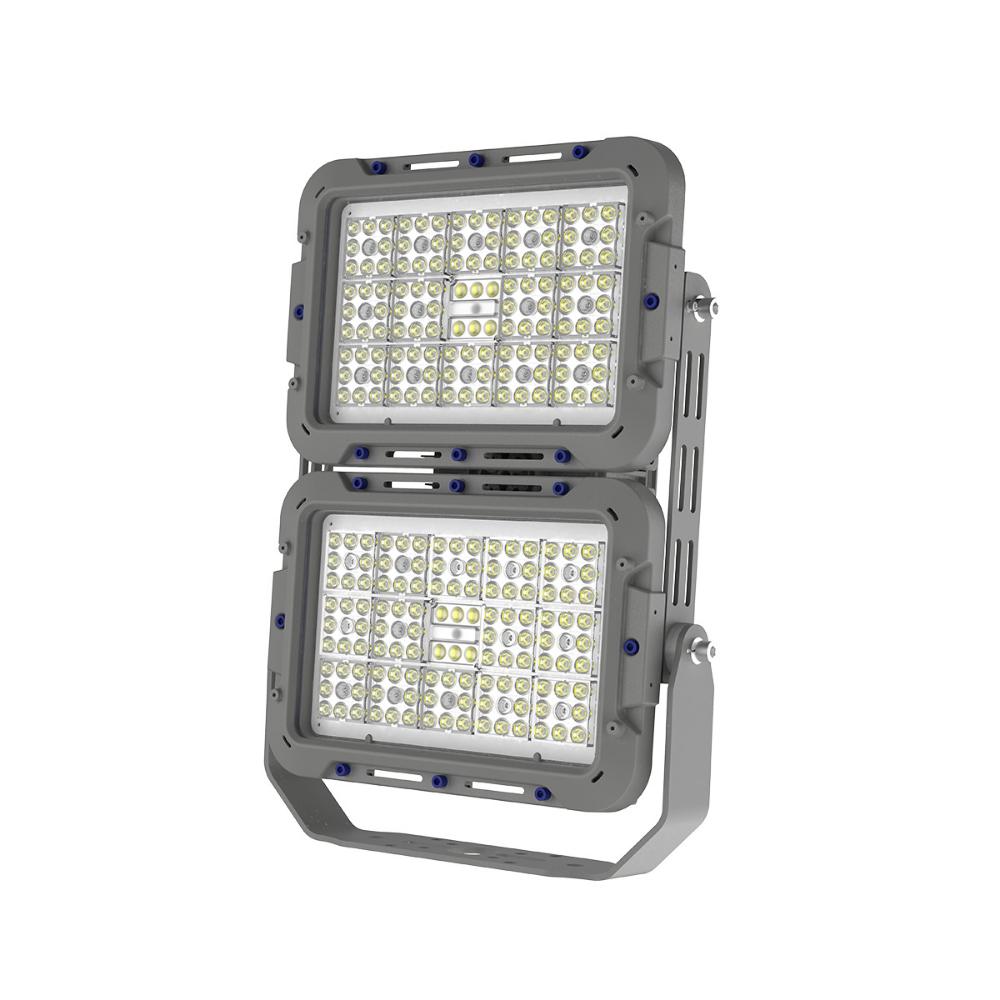

Red Sky Lighting Modular Max Harsh Series Flood Light

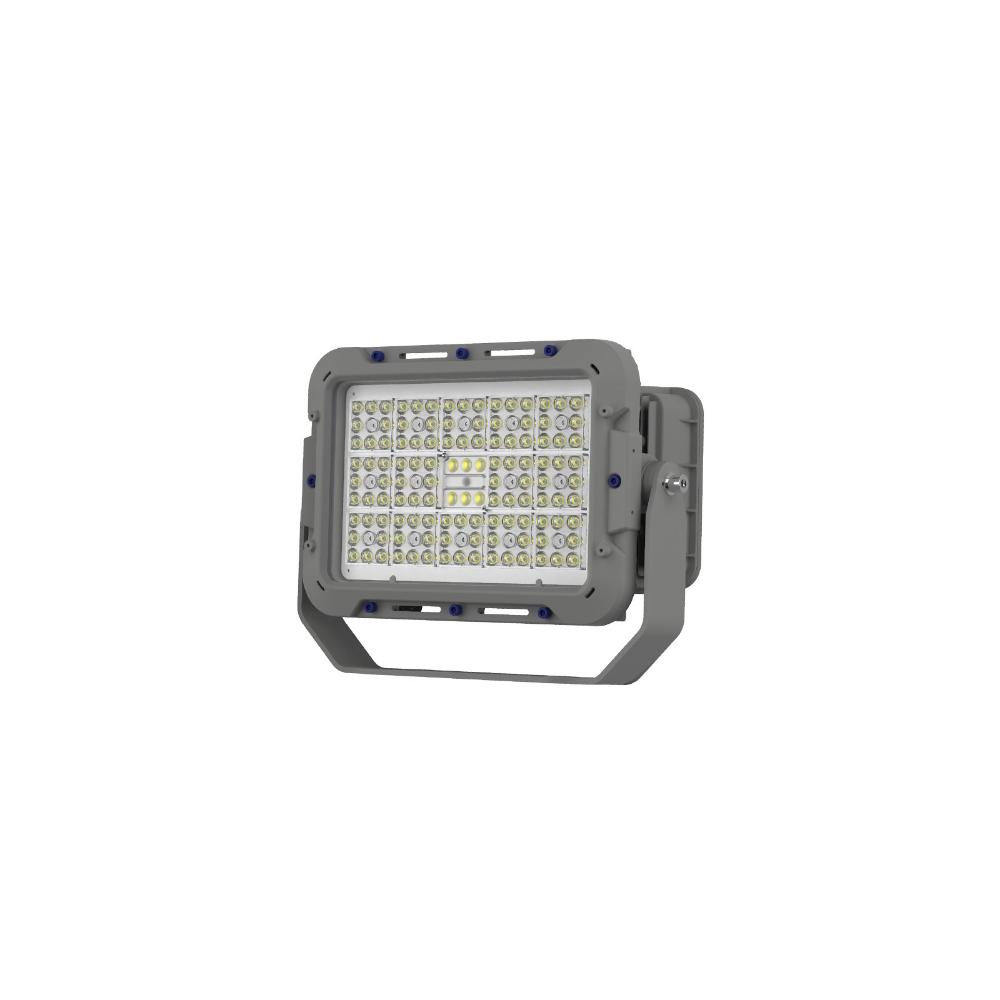

Red Sky Lighting Modular Max Harsh Series Flood Light Additional Image 1

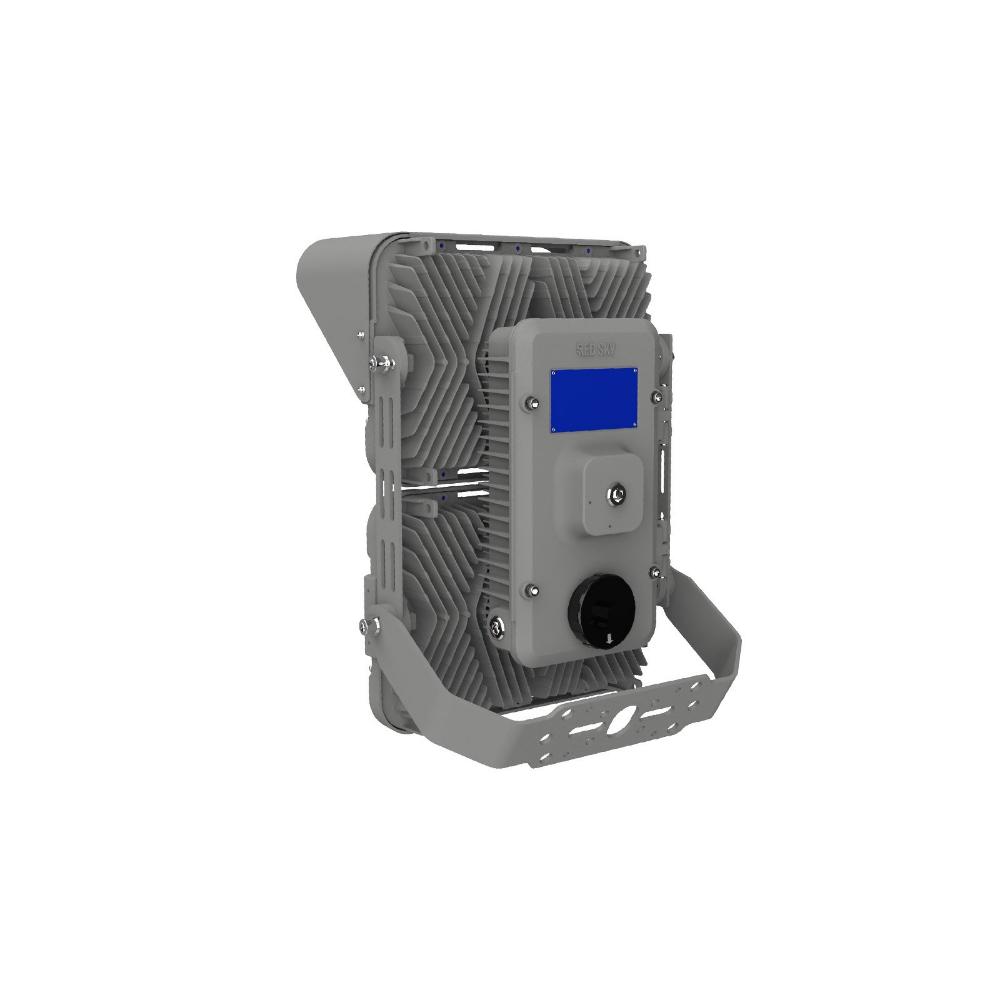

Red Sky Lighting Modular Max Harsh Series Flood Light Additional Image 2

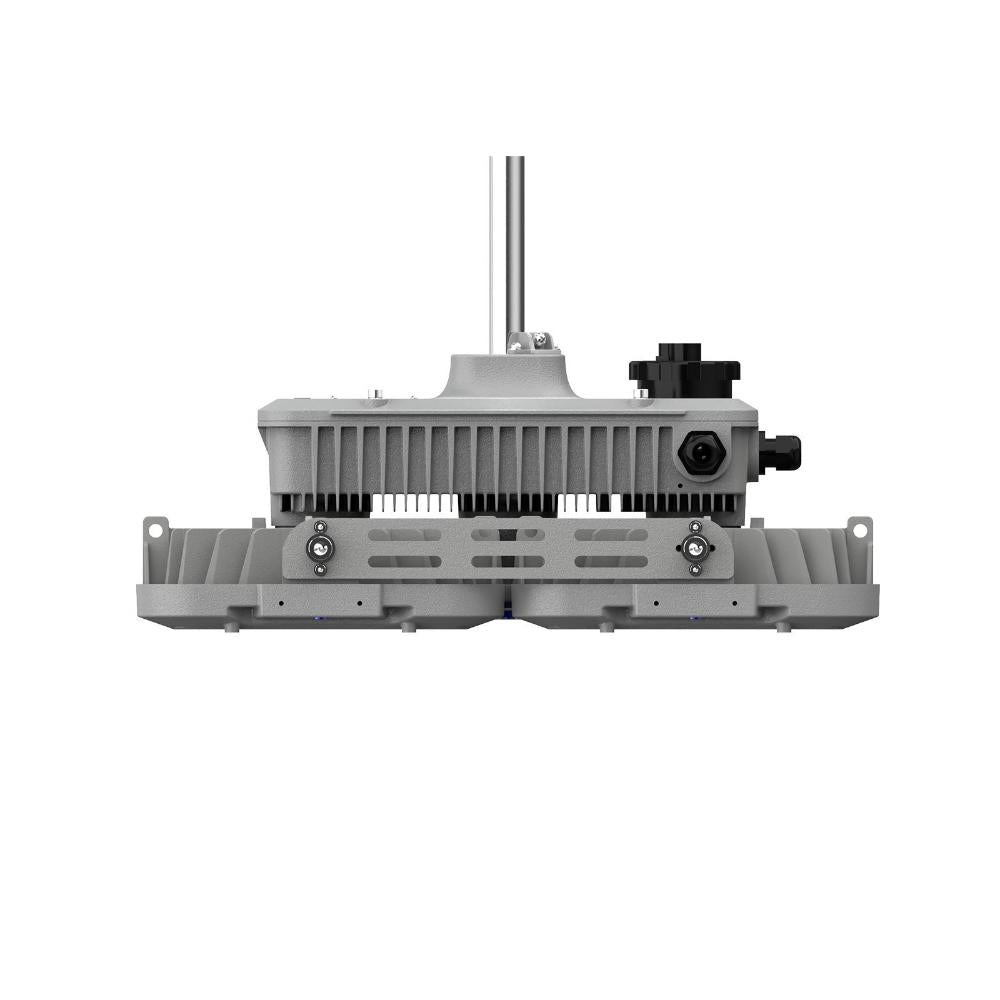

Red Sky Lighting Modular Max Harsh Series Flood Light Additional Image 3

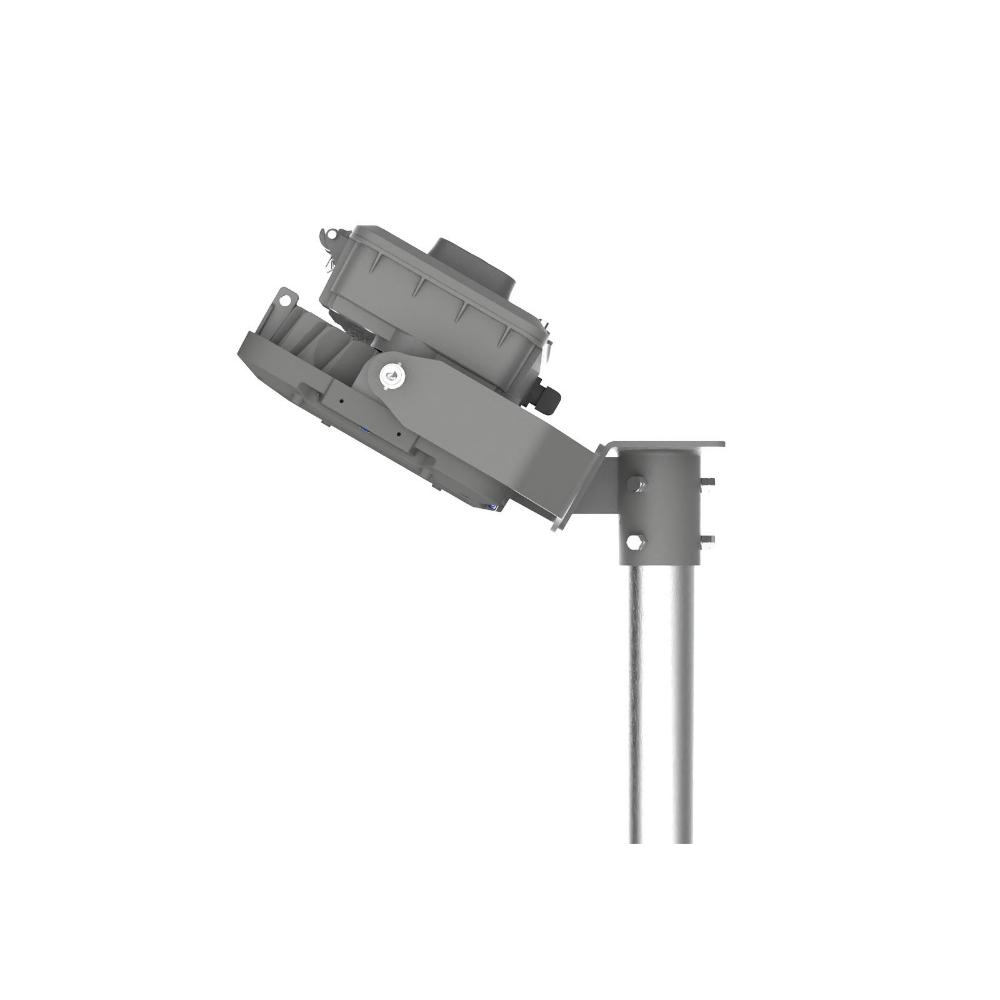

Red Sky Lighting Modular Max Harsh Series Flood Light Additional Image 4

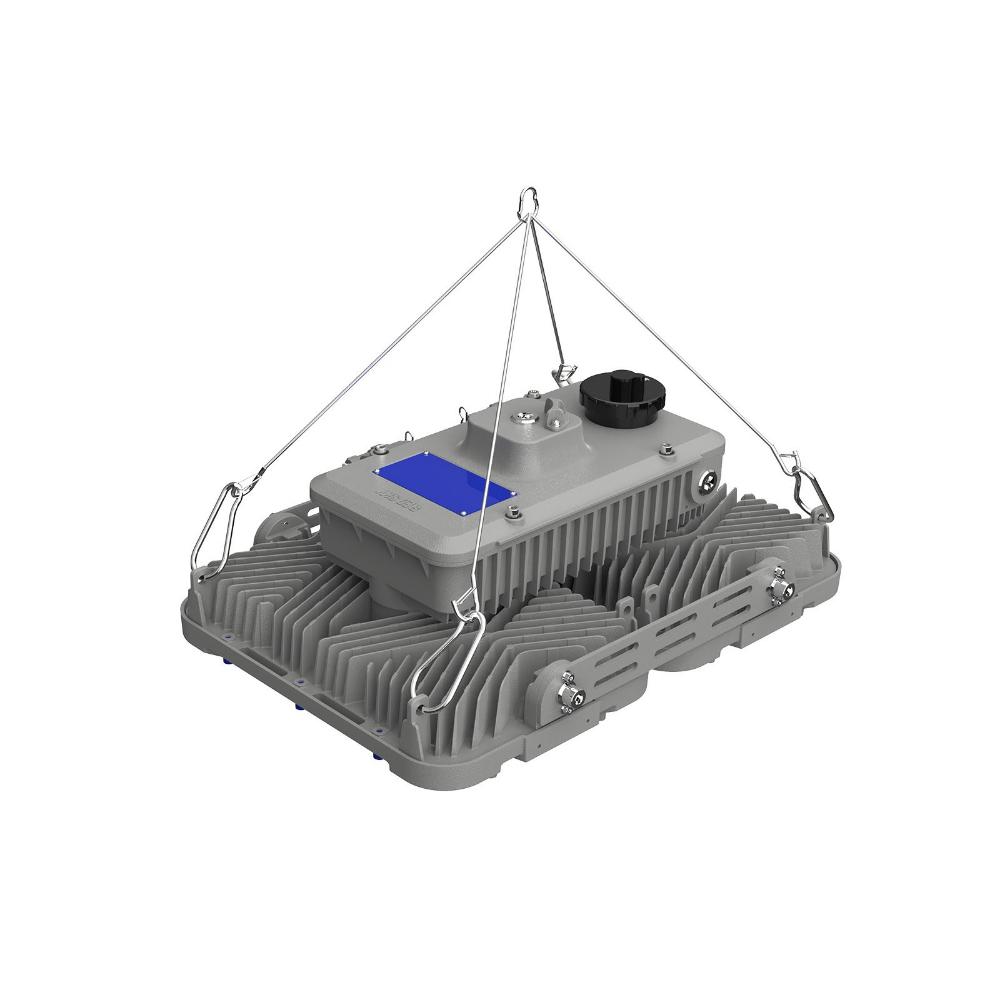

Red Sky Lighting Modular Max Harsh Series Flood Light Additional Image 5

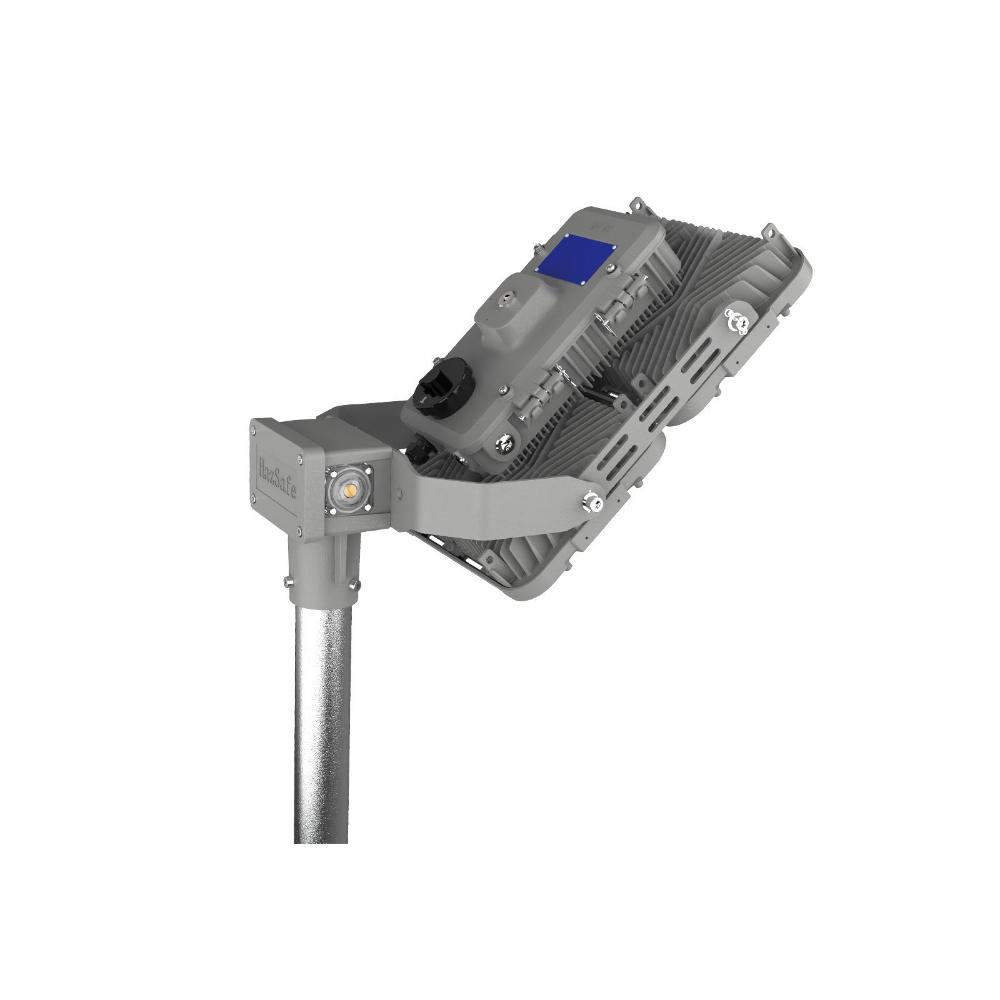

Red Sky Lighting Modular Max Harsh Series Flood Light Additional Image 6
Roll over image to zoom in Click on image to zoom
Red Sky Lighting Modular Max Harsh Series Flood LightRed Sky Lighting Modular Max Harsh Series Flood Light Additional Image 1Red Sky Lighting Modular Max Harsh Series Flood Light Additional Image 2Red Sky Lighting Modular Max Harsh Series Flood Light Additional Image 3Red Sky Lighting Modular Max Harsh Series Flood Light Additional Image 4Red Sky Lighting Modular Max Harsh Series Flood Light Additional Image 5Red Sky Lighting Modular Max Harsh Series Flood Light Additional Image 6

Red Sky Lighting Modular Max Harsh Series Flood Light

Red Sky LightingSKU: MDX HS
Price:
$0.00 USD

Description

Red Sky Lighting Modular Max Harsh Series Flood Light

RED SKY Modular Max Harsh Series UL is a rugged LED flood and high bay luminaire designed to withstand the most demanding industrial environments. Delivering up to 66,000 lumens with 166 lm/W efficiency, it provides powerful, energy-efficient illumination for large facilities. Certified to UL1598/1598A for wet and marine locations, it endures extreme temperatures from -49°F to +149°F without compromising performance.
With robust IP66/67 and NEMA 4X protection, plus a wide range of beam angles and mounting options, it adapts to diverse site needs while resisting water, dust, and corrosion. With a focus on fast delivery and sustainability, the Modular Max Harsh Series UL ensures safe, reliable lighting for marine, oil & gas support, metal processing, and other heavy industrial applications.

Specifications

Electrical Parameters

  • Power (W): 90W, 120W, 190W, 260W, 310W, 380W, 440W
  • Voltage(V): 100-277V AC, 347-480V AC
  • Frequency: 50/60Hz
  • Power Factor: >0.90
  • THD: <20%
  • L70: 90W, 120W, 190W, 260W: 230,000 hrs@149°F 310W, 380W, 440W: 230,000 hrs@131°F
  • Dimming: 0-10V, Range 10% - 100%
  • Surge Protection*: 10KV
  • Warranty: Standard: 7 Years, Extended: 10 years

Optical Parameters

  • Lumen Output*: 15,074Lm, 19,854Lm, 29,148Lm, 37,009Lm, 47,974Lm, 59,028Lm, 66,313Lm
  • Lumen Efficacy*: 166Lm/W
  • Available Beam Angle: 30° / 60° / 90° / 120° / T2 / T3 / T5
  • Correlated Color Temperature (CCT): 2700K / 4000K / 5000K
  • Color Rendering Index (CRI): 80 CRI

Mechanical Parameters

  • Hardware: Stainless steel 316
  • Lens Material: Tempered Glass
  • Mounting Options: Pendant, Straight Yoke, Angled Yoke, Chain, Stanchion
  • Product Weight: 90W, 120W, 190W, 260W: 21.8lbs / 9.9kg 310W, 380W, 440W: 36.3lbs / 16.5kg
  • Cable Entry: (5) 3/4" NPT***
  • Product Dimensions (LxWxH): 90W, 120W, 190W, 260W: 14.1 x 9.8 x 7.4 in (357 x 250 x 189 mm) 310W, 380W, 440W: 9.9 x 14.1 x 7.4 in (505 x 357 x 189 mm)

Environmental Parameters

  • Ambient Operating Temperature: 90W, 120W, 190W: -49°F ~ +149°F (-45°C ~ 65°C) 260W, 310W, 380W, 440W: -49°F ~ +131°F (-45°C ~ 55°C)

Compliance

Ratings:

  • UL 1598 Wet Locations
  • UL 1598A Marine Outside Type (Salt Water)
  • IP66/67, NEMA 4X
  • IK10
  • 3G Vibration (ANSI C136.31)
  • Salt Spray 720H (ASTM B117)

Certifications:

  • UL1598
  • UL1598A
  • CSA C22.2 No. 250.0
  • DLC Premium*
  • FCC 47 CFR Part 15 Subpart B

Product Files

Click for Red Sky Lighting MDX HS Specification

Click for Red Sky Lighting MDX HS Installation Maunal

Click for Red Sky Lighting MDX HS Certificate - UL1598 Non-Hazardous

Click for Red Sky Lighting MDX HS Certificate - UL1598A Marine
