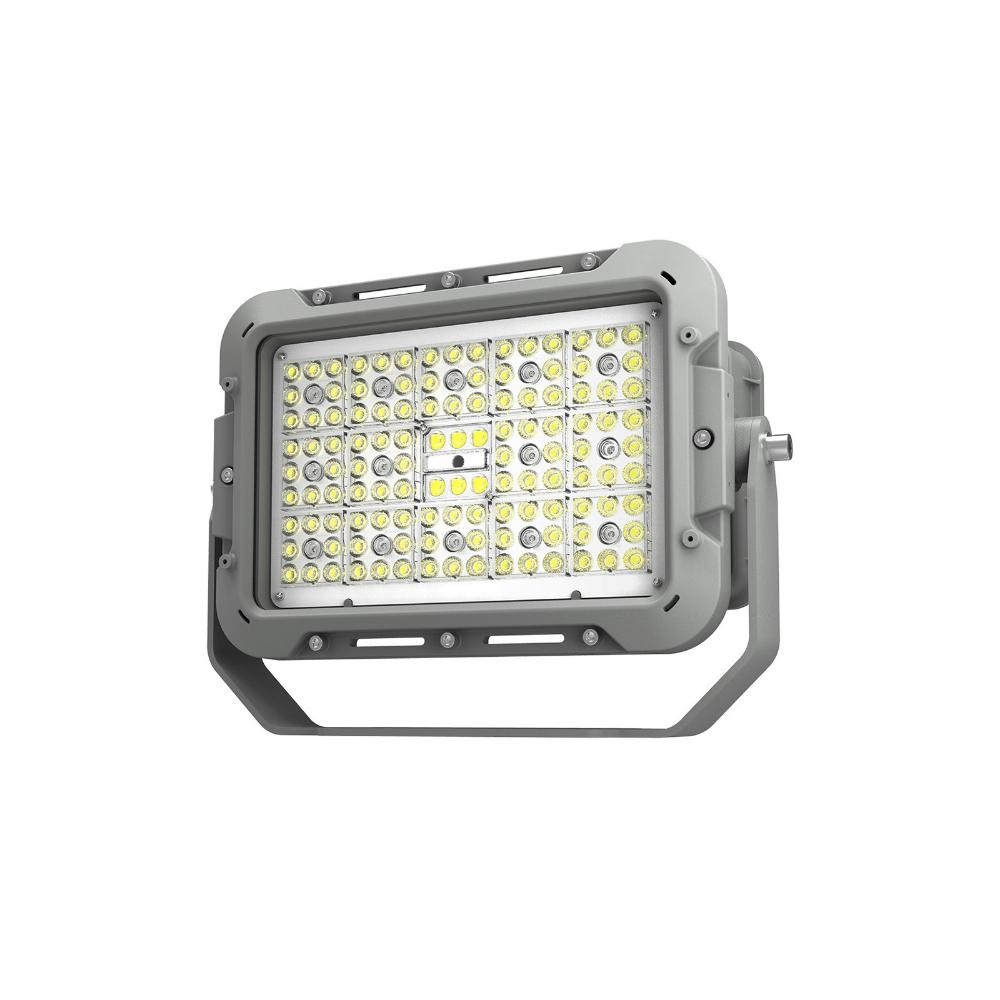

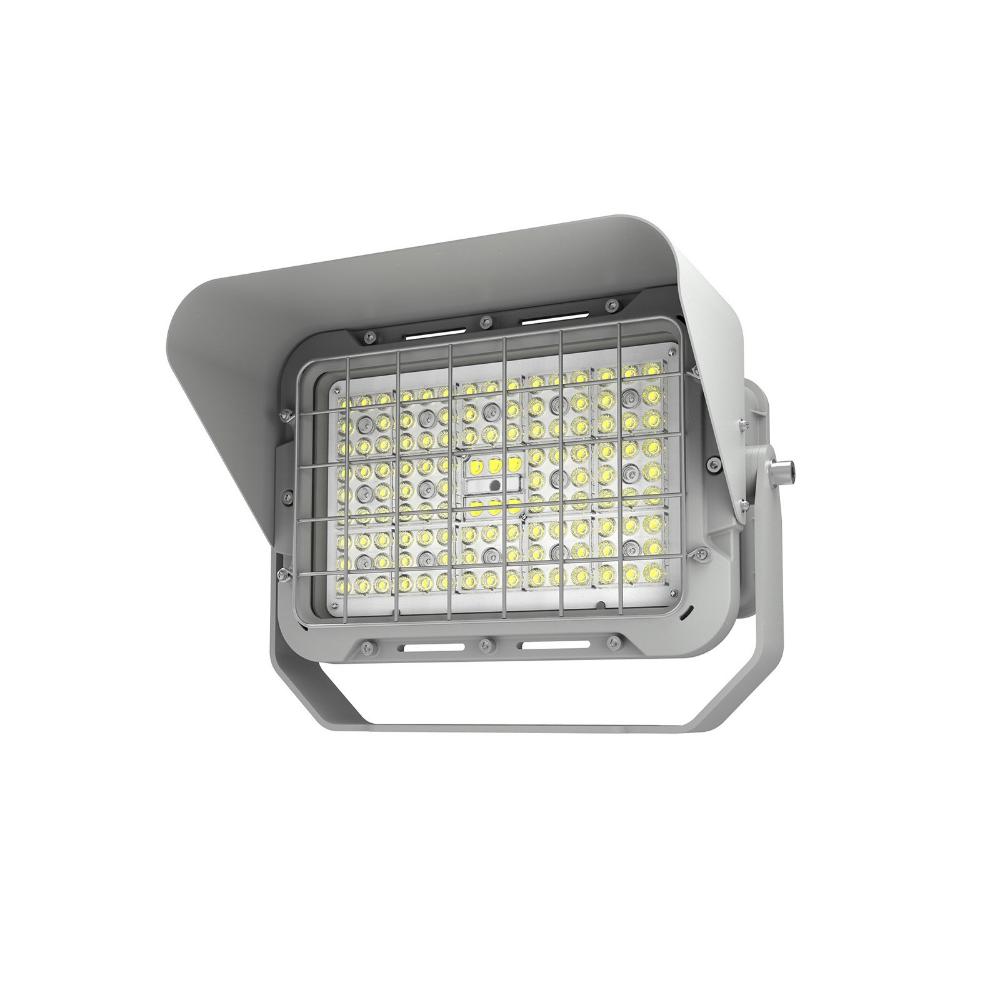

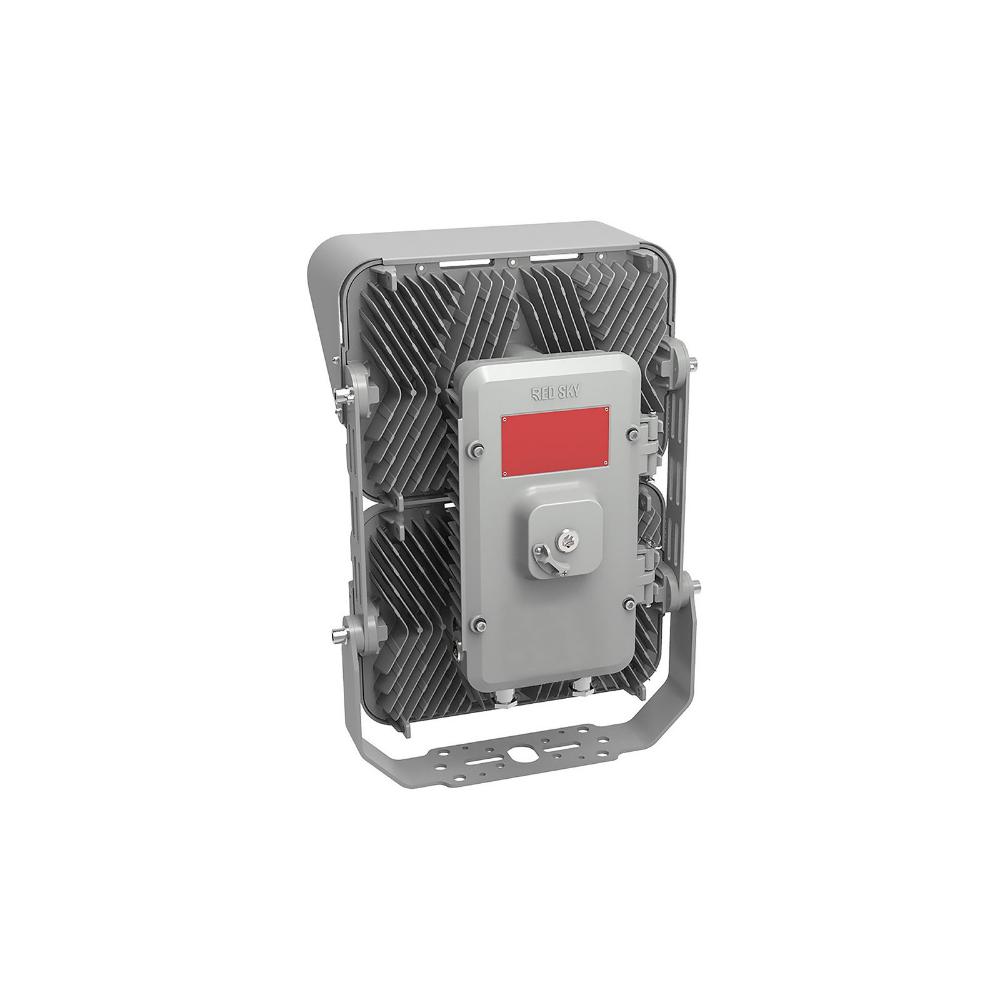

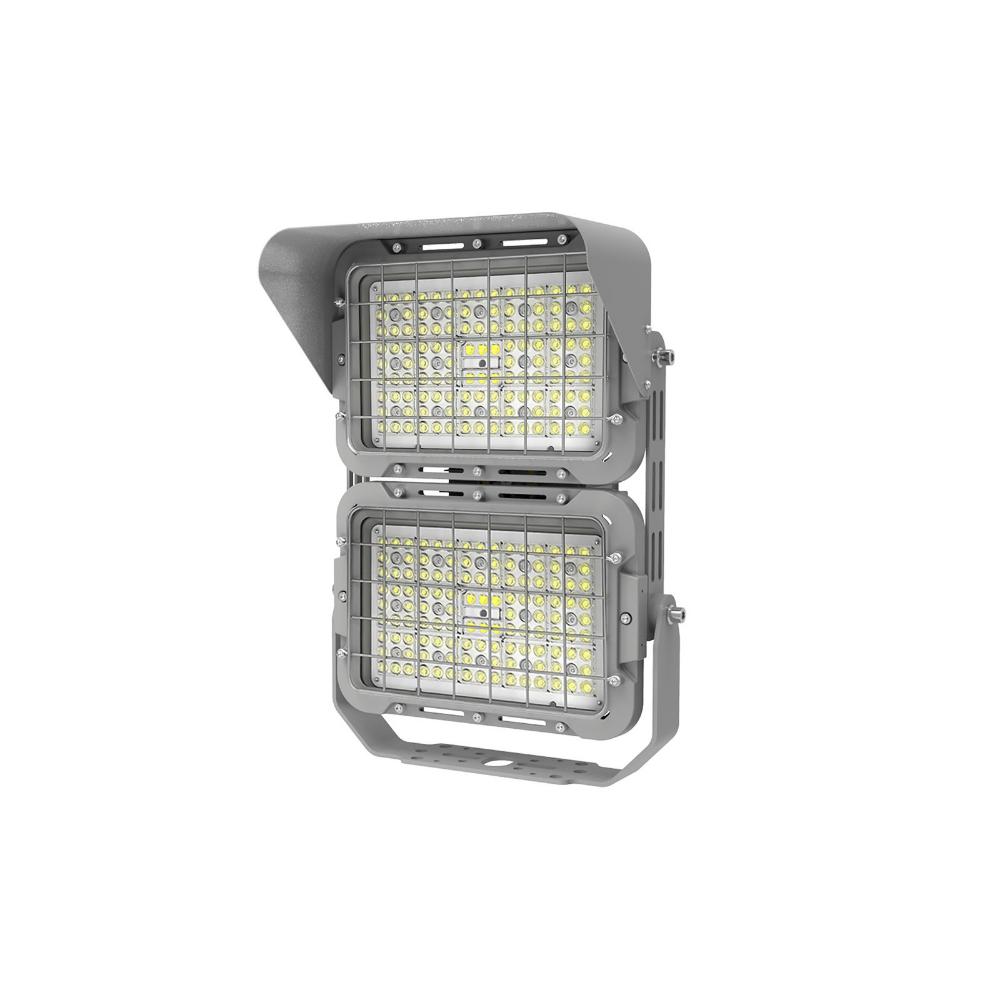

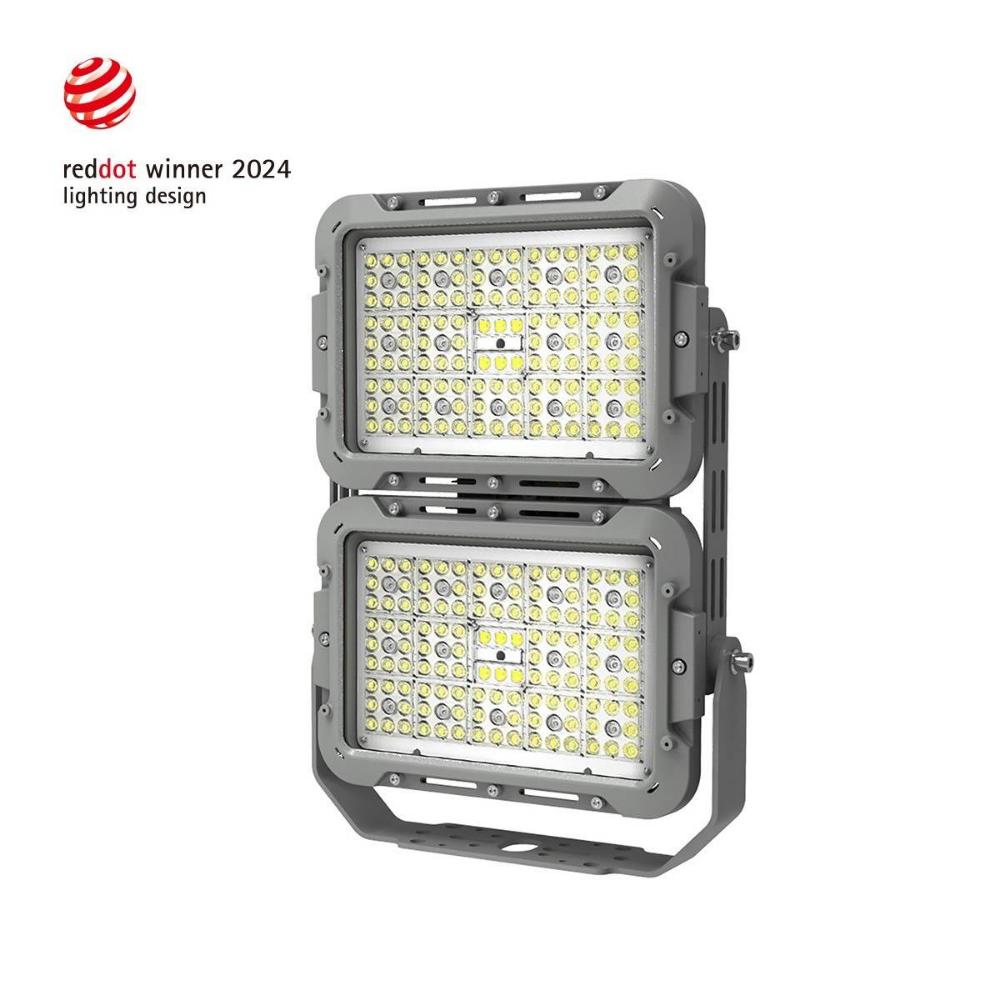

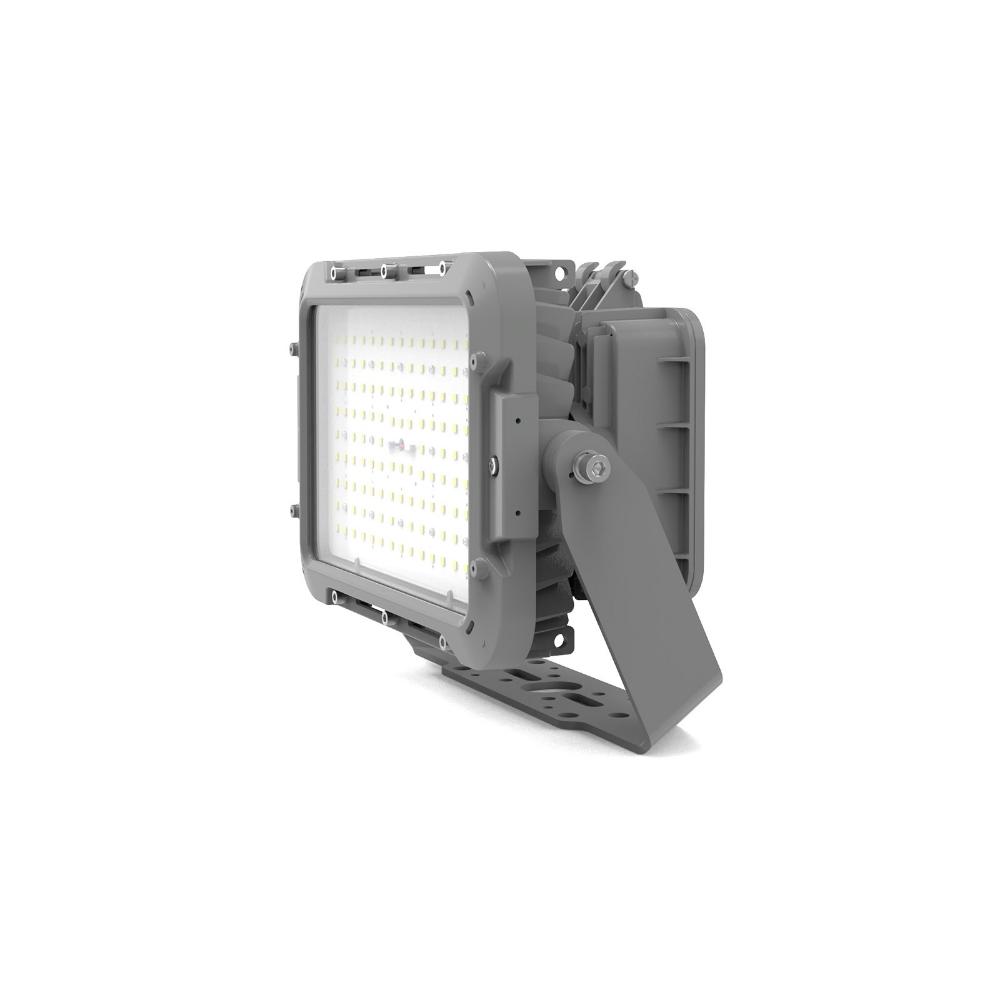

Red Sky Lighting Modular Max Series Flood Light
The Modular Max Series packs powerful performance with a high lumen output of up to 70,000 lumens and excellent luminous efficacy of up to 180lm/W. This is achieved while maintaining a lightweight and compact design, making it over 25% lighter than comparable C1D2/C2D1 floodlights.
Certified for C1D2/C2D1 hazardous locations, the Modular Max Series withstands even the harshest environments. Its craftsmanship and rigorous testing ensure optimal performance under extreme conditions, maintaining high output from -49°F to +149°F (-45°C to +65°C). An outstanding thermal design and robust quality provide durable operation.
Specifications
Electrical Parameters
- Power (W): 90W, 120W, 190W, 260W, 310W, 380W, 440W
- Voltage(V): 100-277V AC, 347-480V AC
- Frequency: 50/60Hz
- Power Factor: >0.90
- THD: <20%
- L70: 90/120/190/260W: 230,000 hrs@149°F 310/380/440W: 230,000 hrs@131°F
- Dimming: 0-10V, Range 10%-100%
- Surge Protection: 10KV
- Warranty: Standard: 7 Years, Extended: 10 years
Optical Parameters
- Lumen Output: 15,074Lm, 19,854Lm, 29,148Lm, 37,009Lm, 47,974Lm, 59,028Lm, 66,313Lm
- Lumen Efficacy: 166Lm/W
- Available Beam Angle: 30° / 60° / 90° / 120° / T2 / T3 / T5
- Correlated Color Temperature (CCT): 2700K/4000K/5000K
- Color Rendering Index (CRI): 80 CRI
Mechanical Parameters
- Hardware: Stainless steel 316
- Lens Material: Tempered Glass
- Mounting Options: Pendant, Straight Yoke, Angled Yoke, Chain, Stanchion
- Product Weight: 90/120/190/260W: 21.8lbs/9.9kg 310/380/440W: 36.3lbs/16.5kg
- Cable Entry: (5) 3/4" NPT***
- Product Dimensions (LxWxH): 90/120/190/260W: 14.1 x 9.8 x 7.4in(357 x 250 x 189mm) 310/380/440W: 19.9 x 14.1 x 7.4in(505 x 357 x 189mm)
Environmental Parameters
- Ambient Operating Temperature: 90/120/190W: -49°F ~ +149°F (-45°C ~ 65°C) 260/310/380/440W: -49°F ~ +131°F (-45°C ~ 55°C)
- T-Code Rating: CID2 - T3C, C2D1 - T4
- EPA wind rating (FT2): 90/120/190/260W: 1.753 (Yoke), 1.888 (Stanchion) 310/380/440W: 2.864 (Yoke), 2.999 (Stanchion)
Compliance
Ratings:
- Class I Division 2, Groups A, B, C, D
- Class II Division 1 Group E, F, G
- Class II Division 2, Groups F, G
- Class III
- Simutaneous Presence
- Class I, Zone 2, Group IIC
- Zone 20, 21 & 22
- UL 1598 Wet Locations
- UL 1598A Marine Outside Type (Salt Water)
- IP66/67
- NEMA 4X
- IK10
- 3G Vibration (ANSI C136.31)
- Salt Spray 720H (ASTM B117)
Certifications:
- UL844
- UL1598
- UL1598A
- CSA C22.2 NO. 250.0
- CSA C22.2 No. 137
- DLC Premium*
- FCC 47 CFR Part 15 Subpart B
