Description

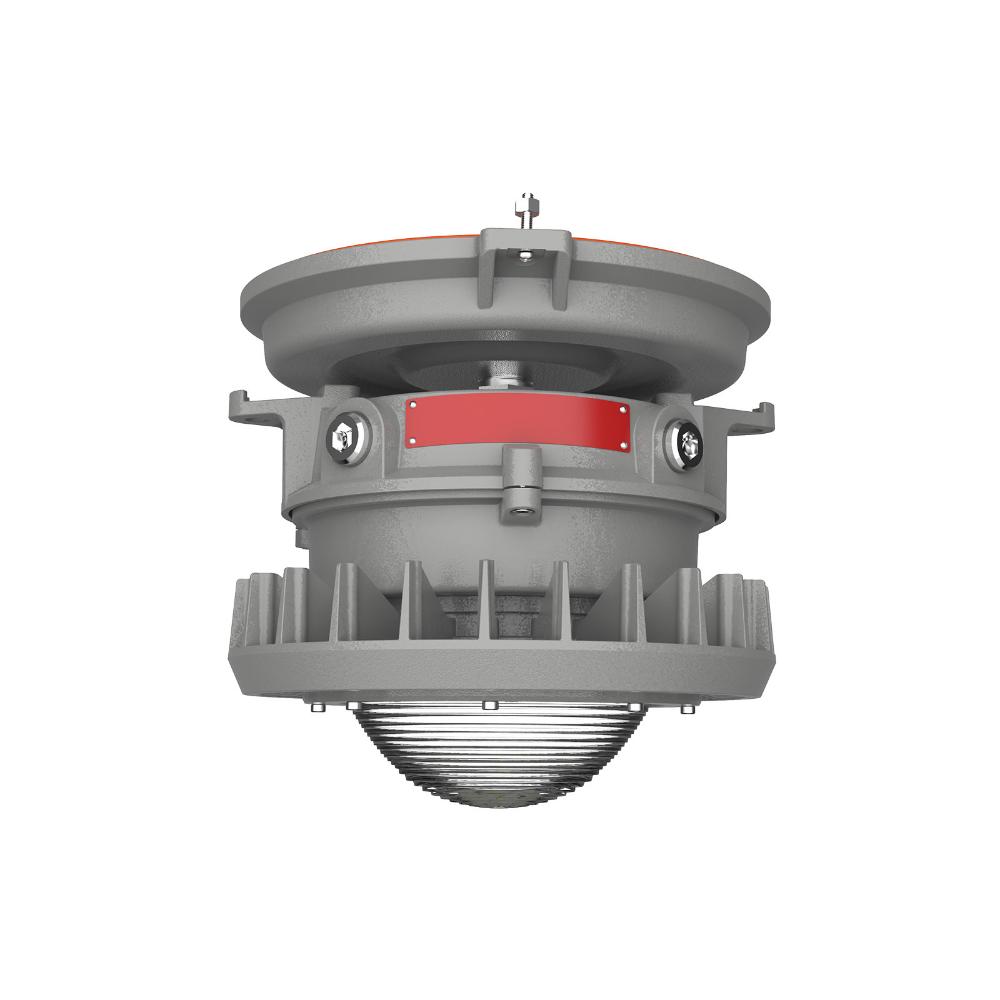

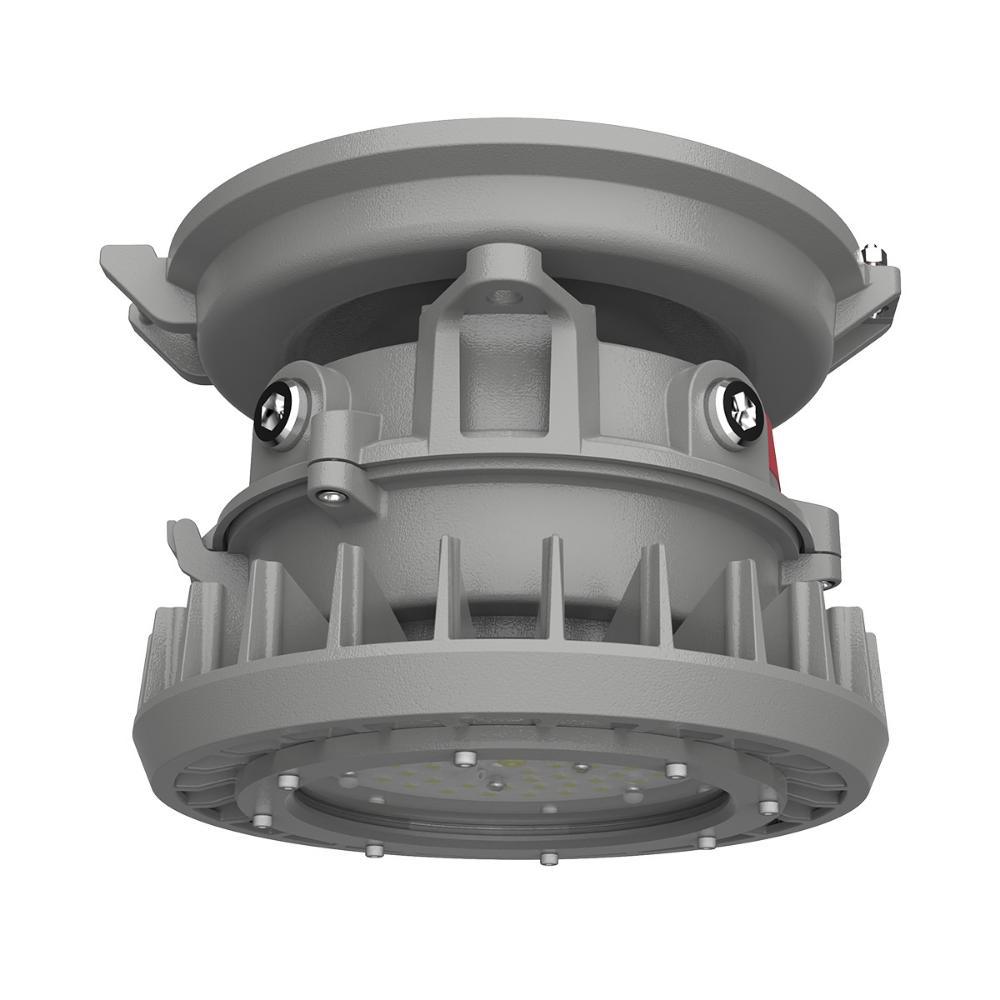

Red Sky Lighting Retrofit with Round Series Ceiling Light
The Retrofit with Round series provides a fast and cost-effective way to upgrade existing hazardous location fixtures to LED - without full luminaire replacement.
By reusing the original fixture housing and cover, including the explosion-proof enclosure and conduit entry, it simplifies installation while maintaining the integrity of the hazardous location rating.

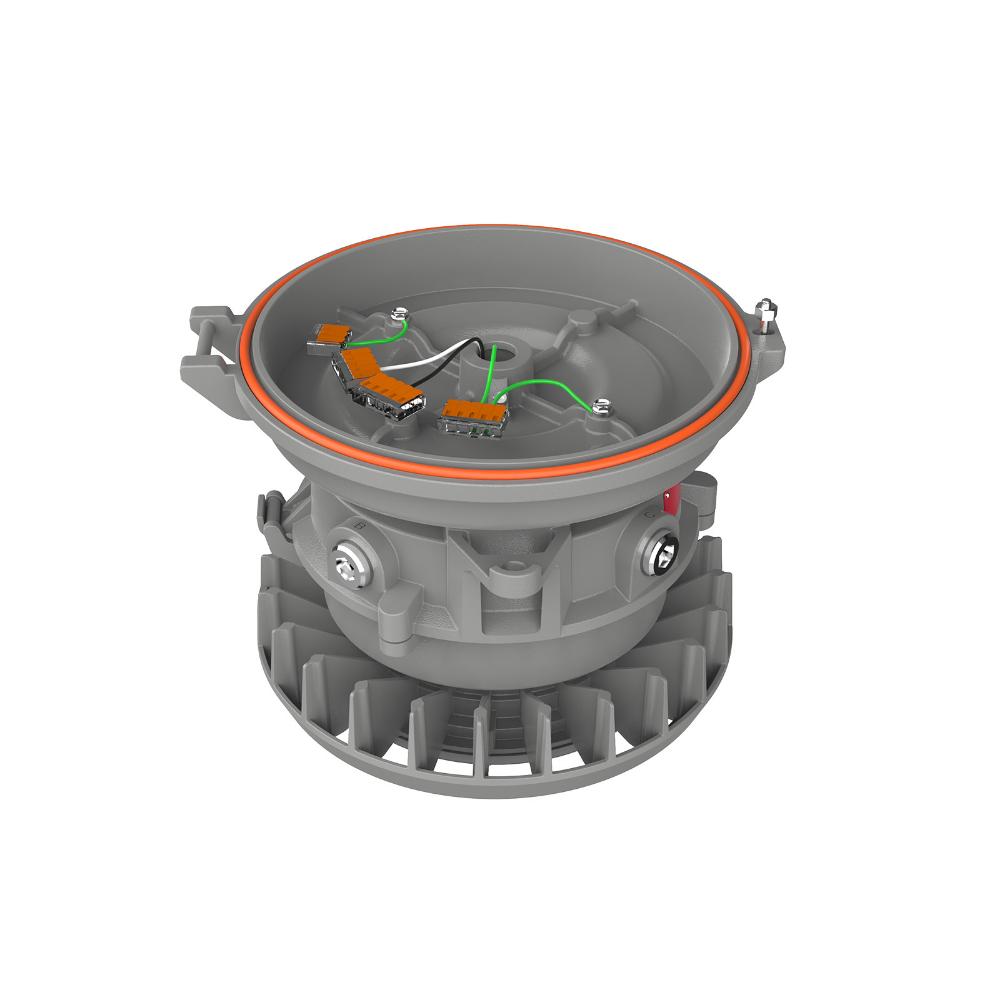

With dedicated adapters, pre-installed wiring, and WAGO connectors, Retrofit with RND2 enables quick, one-person installation and reduces labor time in retrofit projects across demanding industrial environments.
Specifications
Electrical Parameters
- Power (W): 35W, 40W, 45W, 55W, 60W, 65W
- Voltage(V AC): 120-277, 347-480
- Frequency: 50/60Hz
- Power Factor: ≥0.90
- THD: <20%
- L70: 127,000 hrs@140°F
- Surge Protection: 10KV
- Warranty: LEDs: 10 years, Driver: 7 years
Optical Parameters
- Lumen Output*: 5,048Lm, 5,617Lm, 6,532Lm ,7,982Lm, 8,901Lm ,9591Lm
- Lumen Efficacy*: 150Lm/W
- Available Beam Angle: 60°/120°/T1/T3
- Correlated Color Temperature (CCT): 3000K/4000K/5000K/Amber
- Color Rendering Index (CRI): 80 CRI
Mechanical Parameters
- Mounting Options: MM3/CMP/MM2/MM2L
- Product Weight: MM3-16.09lbs/7.3kg, CMP-14.77lbs/6.7kg, MM2-14.33lbs/6.5kg
- Cable Entry: (4) 3/4" NPT
- Product Dimensions (LxWxH): MM3-13.6 x 12.1 x 9.3 in (345 x 307 x 235 mm), CMP-11.6 x 10.3 x 8.2 in (295 x 261 x 208 mm), MM2-10.5 x 9.7 x 8.7 in (266 x 246 x 220 mm）
Environmental Parameters
- Ambient Operating Temperature: -40°F ~ +140°F (-40°C ~ 60°C)
Compliance
Ratings:
- Class I, Division 2, Groups A, B, C, D
- Class Il, Division 1 Groups E, F, G
- Class Il, Division 2, Groups F, G
- Class Ill
- Class I, Zone 2, Group IIC
- Zone 21, Group IllC
- UL 1598C Wet Locations
- NEMA 4X(Fixture only)
- IP66(Fixture only)
- IK08(Glass)
- IK10(PC)
- Salt Spray 720 hrs (ASTM B117)
Certifications:
- UL844
- UL1598C
- CSA C22.2 No. 250.1
- CSA C22.2 No. 137
- FCC Part 15, Subpart B
Product Files
Click for Red Sky Lighting RTR RND2 Specification
