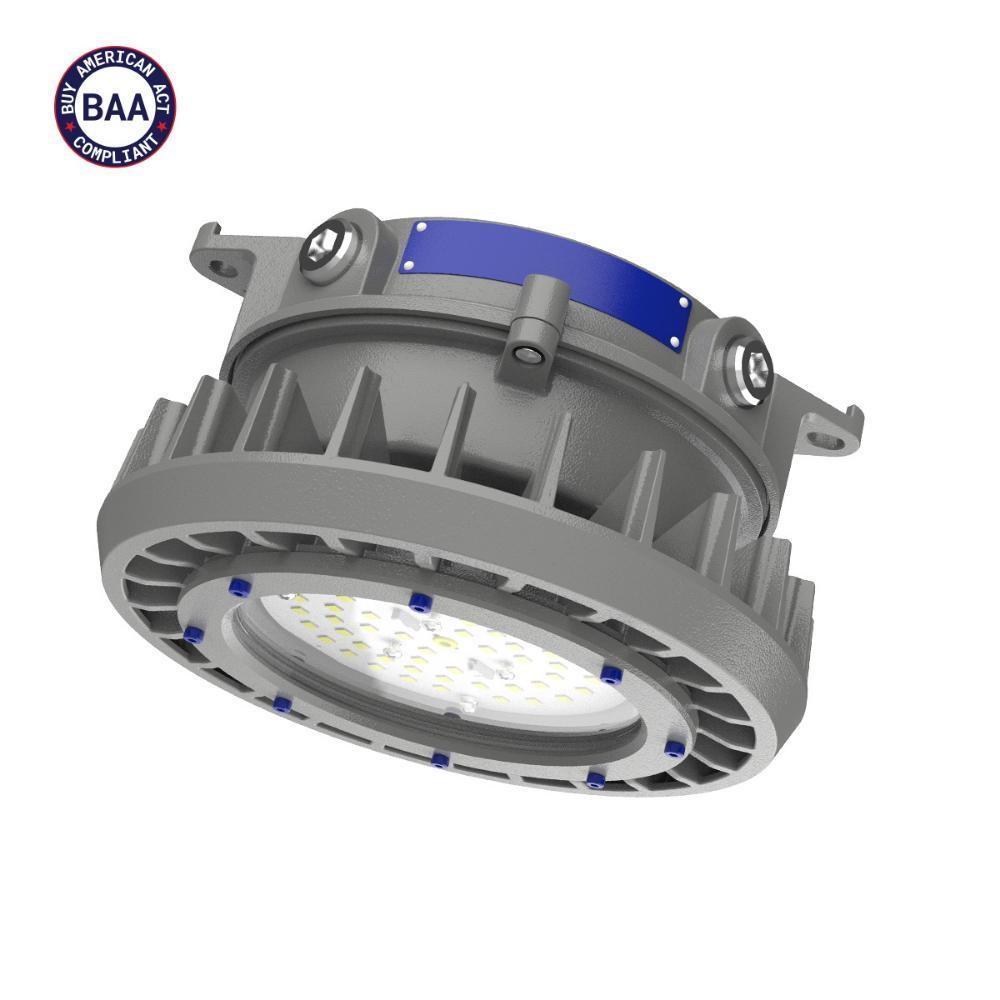

Red Sky Lighting Round Harsh Series Flood Light
The Round Harsh Series packs powerful, efficient lighting into a compact 9-inch form. With NEMA 4X protection, it delivers up to 150 lm/W and 127,000+ hours of life. Built to endure -40°F to 140°F, it resists dust, salt, and vibration. Multiple lens and mounting options offer flexibility, while pre-installed cords simplify installation in harsh industrial settings.
Specifications
Electrical Parameters
- Power (W): 35W, 40W, 45W, 55W, 60W, 65W
- Voltage(V): 120-277V AC, 347-480V AC
- Frequency: 50/60Hz
- Power Factor: ≥0.90
- THD: <20%
- L70: 127,000 hrs@140°F
- Dimming: 34/40/45/55/65W: 0-10V, Range 10-100%
- Surge Protection: 10KV
- Warranty: LEDs: 10 years, Driver: 7 years
Optical Parameters
- Lumen Output: 5,048Lm, 5,617Lm, 6,532Lm, 7,982Lm, 8,901Lm, 9,591Lm
- Lumen Efficacy: 150Lm/W
- Available Beam Angle: 60°/ 120°/T1/T3
- Correlated Color Temperature (CCT): 3000K/4000K/5000K/Amber
- Color Rendering Index (CRI): 80 CRI
Mechanical Parameters
- Hardware: Stainless steel 316

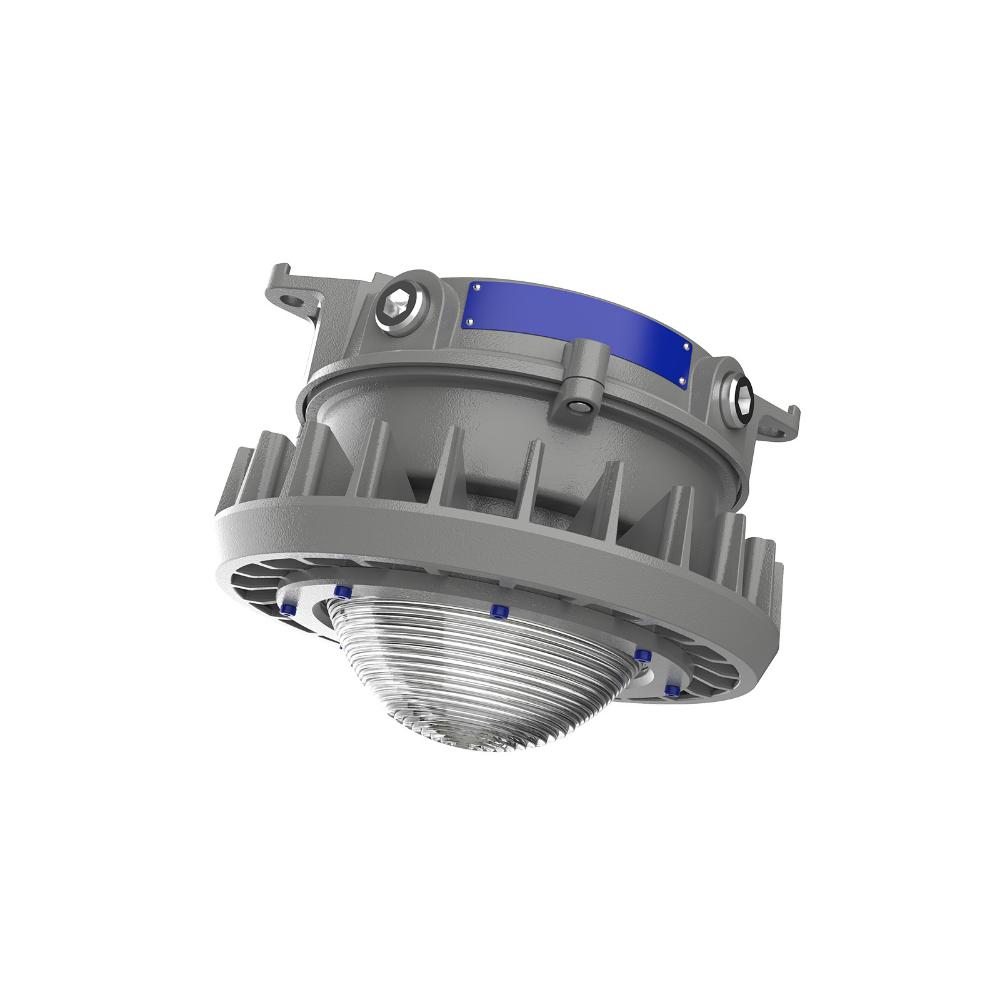

- Lens Material: Tempered Glass/Polycarbonate

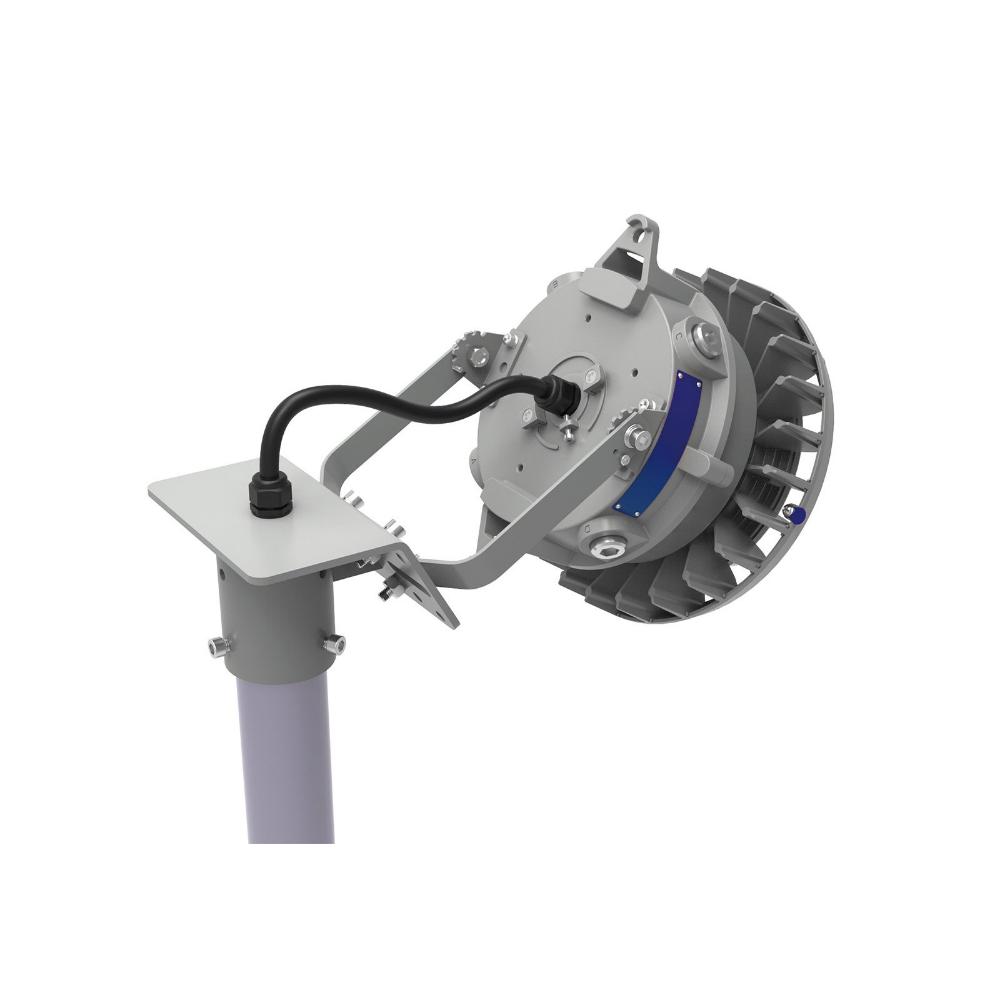

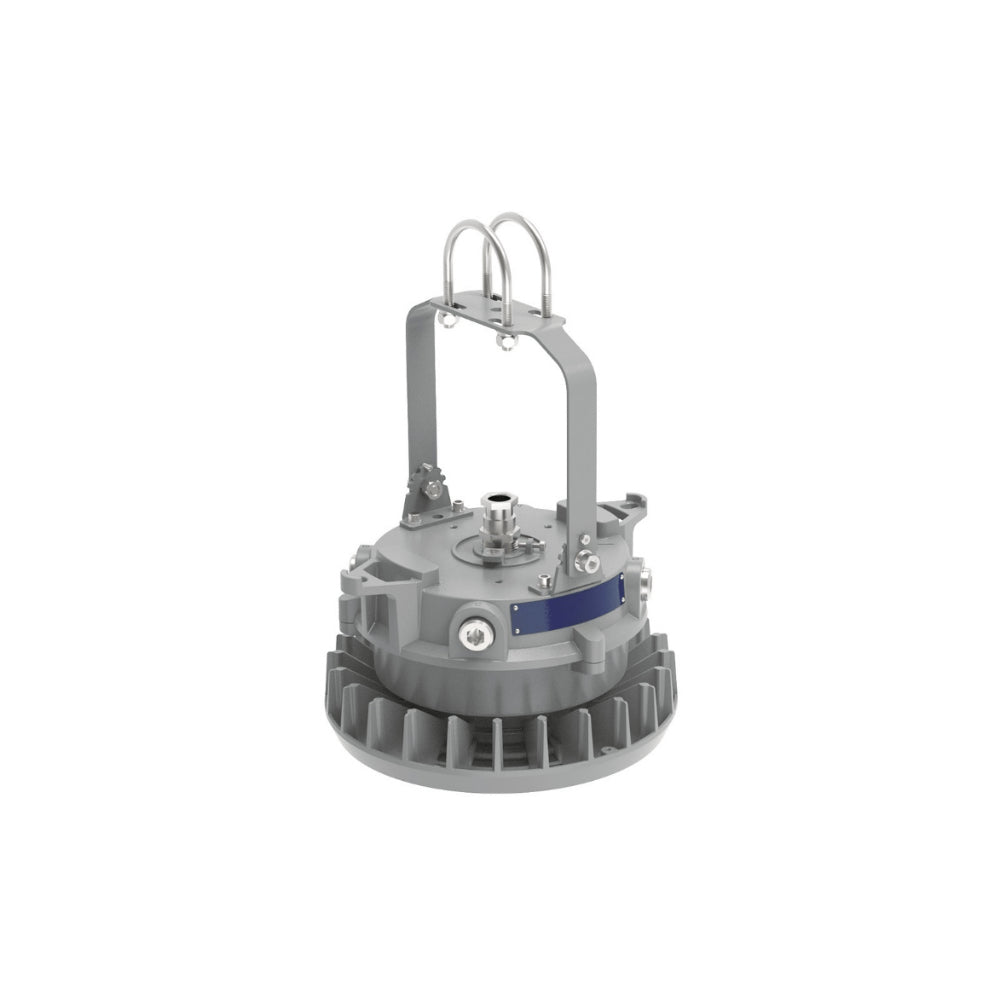

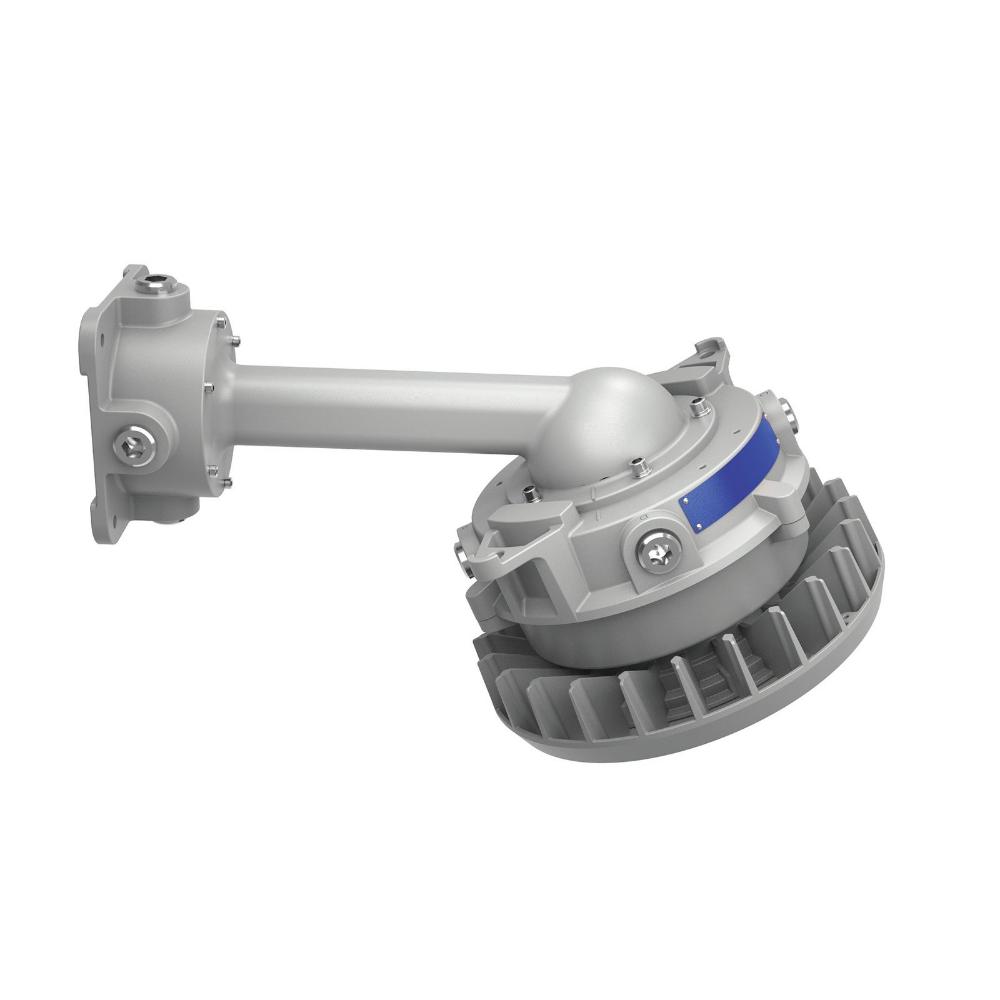

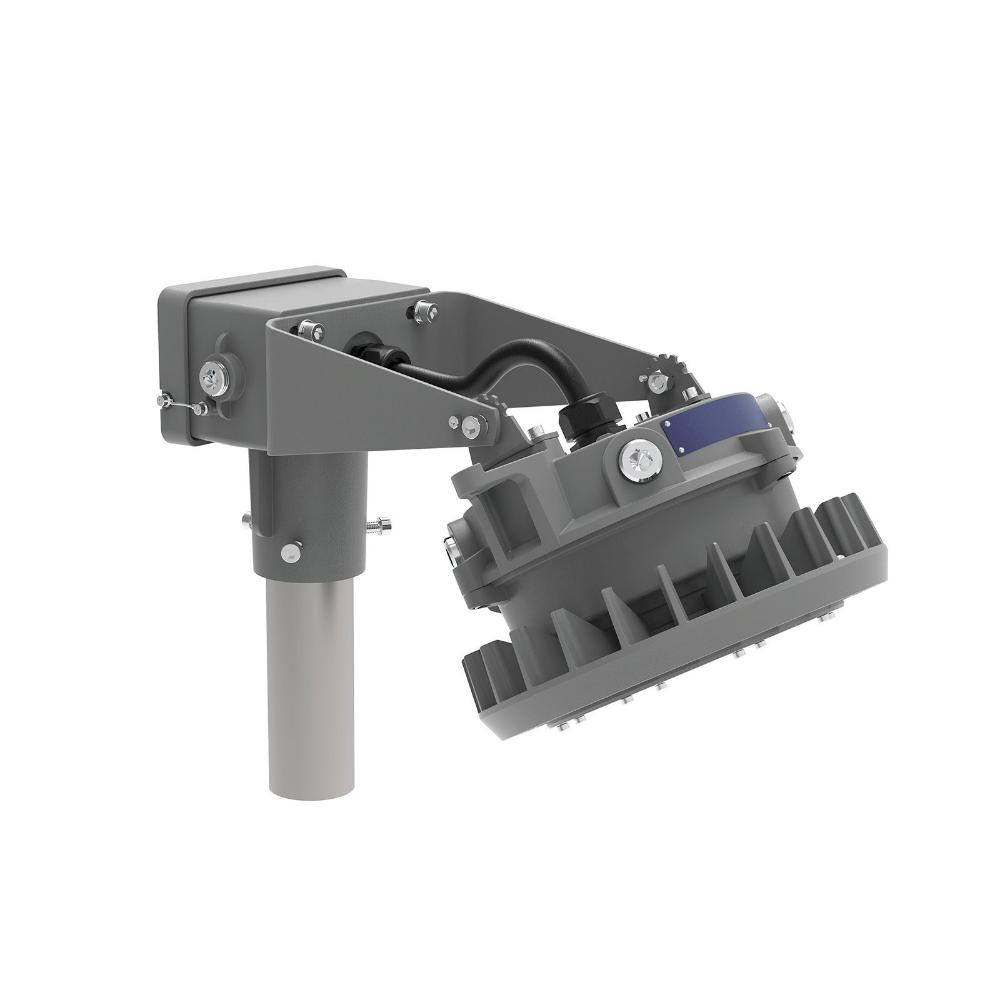

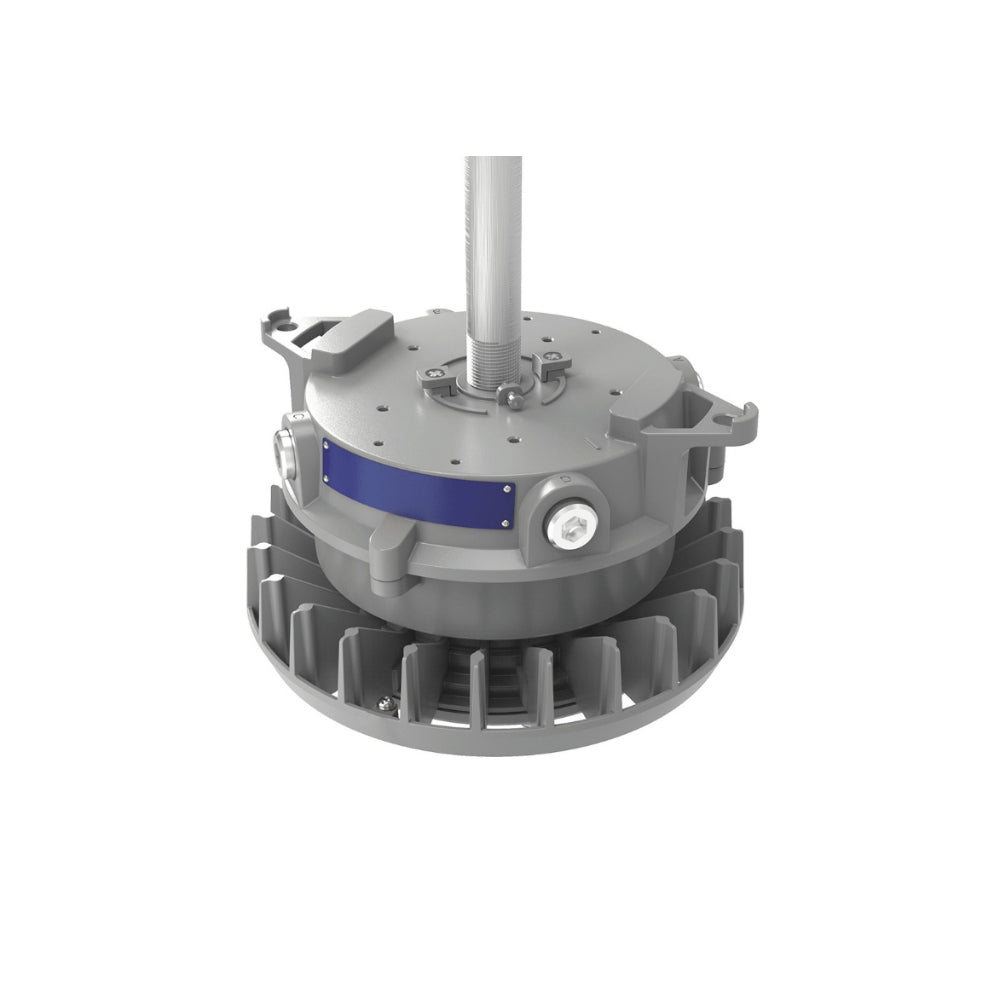

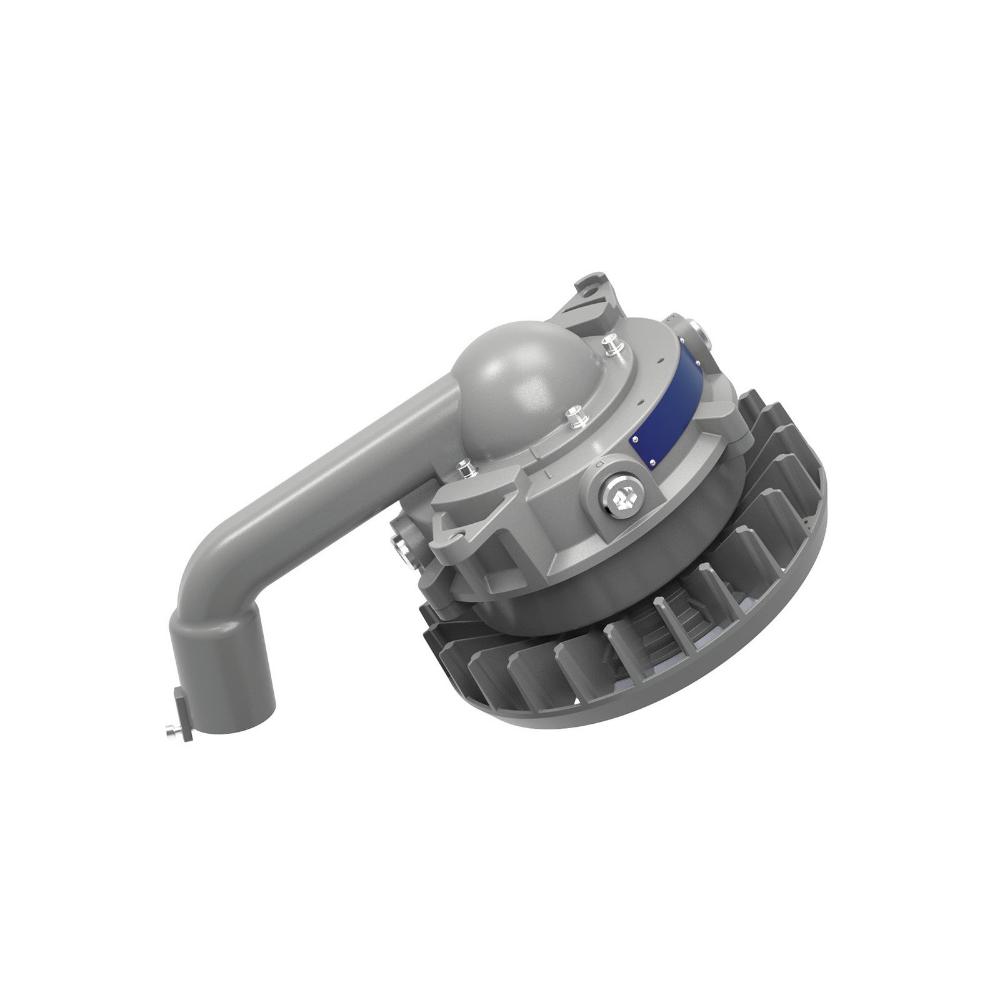

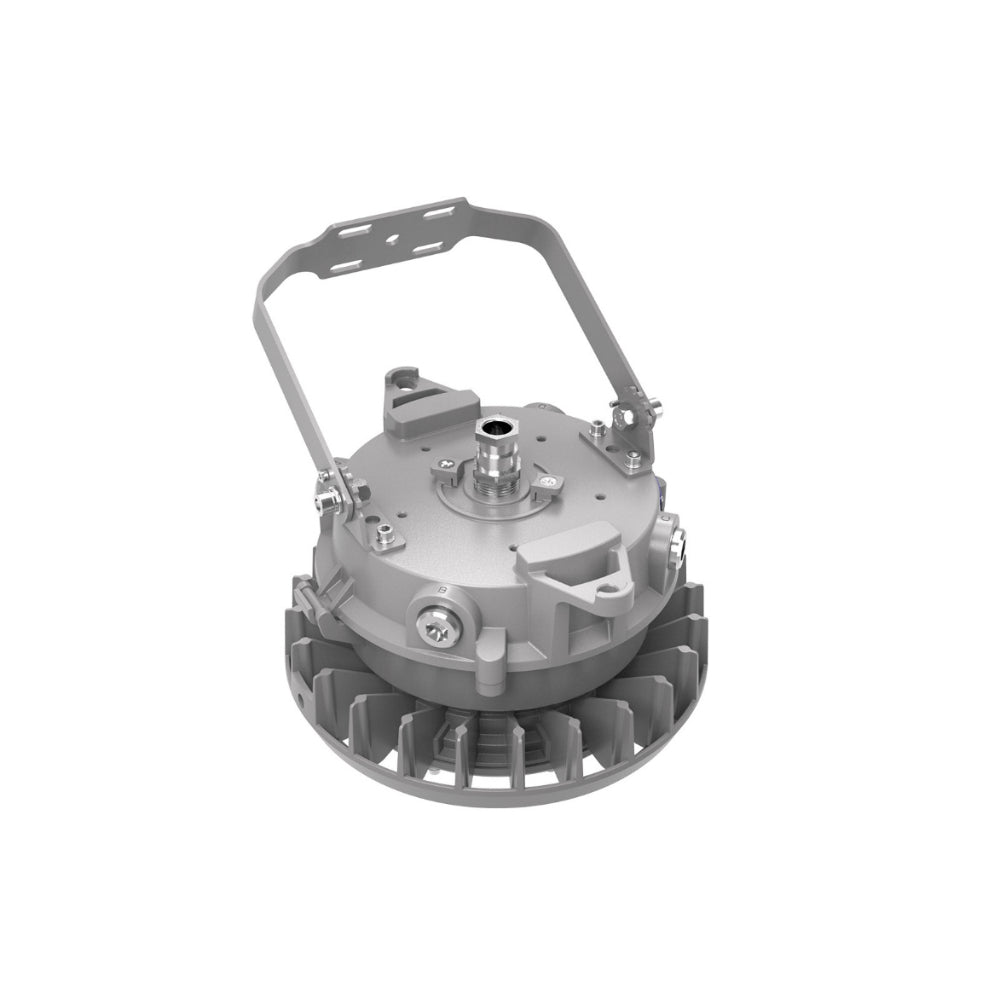

- Mounting Options: Pendant, Ceiling, Yoke, Wall, Stanchion, Pole, Pipe, Junction box
- Product Weight: 11.0lbs / 5.0kg
- Cable Entry: (5) 3/4" NPT
- Product Dimensions (LxWxH): 10.6 x 10.3 x 7.85in (269.4 x 262 x 199.3mm)
Environmental Parameters
- Ambient Operating Temperature: -40°F ~ +140°F (-40°C ~ 60°C)
Compliance
Ratings:
- UL 1598 Wet Locations
- UL 1598A Marine Outside Type(Salt Water)
- IP66, NEMA 4x
- IK08(Glass)/IK10(PC)
- Salt Spray 720 hrs (ASTM B117)
- 3G (ANSI C136.31)**
Certifications:
- UL 1598
- UL 1598A
- CSA C22.2 NO. 250.0
- DLC Premium*
- FCC Part 15, Subpart B
Product Files
Click for Red Sky Lighting RND2 HS Specification
Click for Red Sky Lighting RND2 HS Installation Manual
Click for Red Sky Lighting RND2 HS Certificate - UL1598 Non-Hazardous
Click for Red Sky Lighting RND2 HS Certificate - UL1598A Marine
