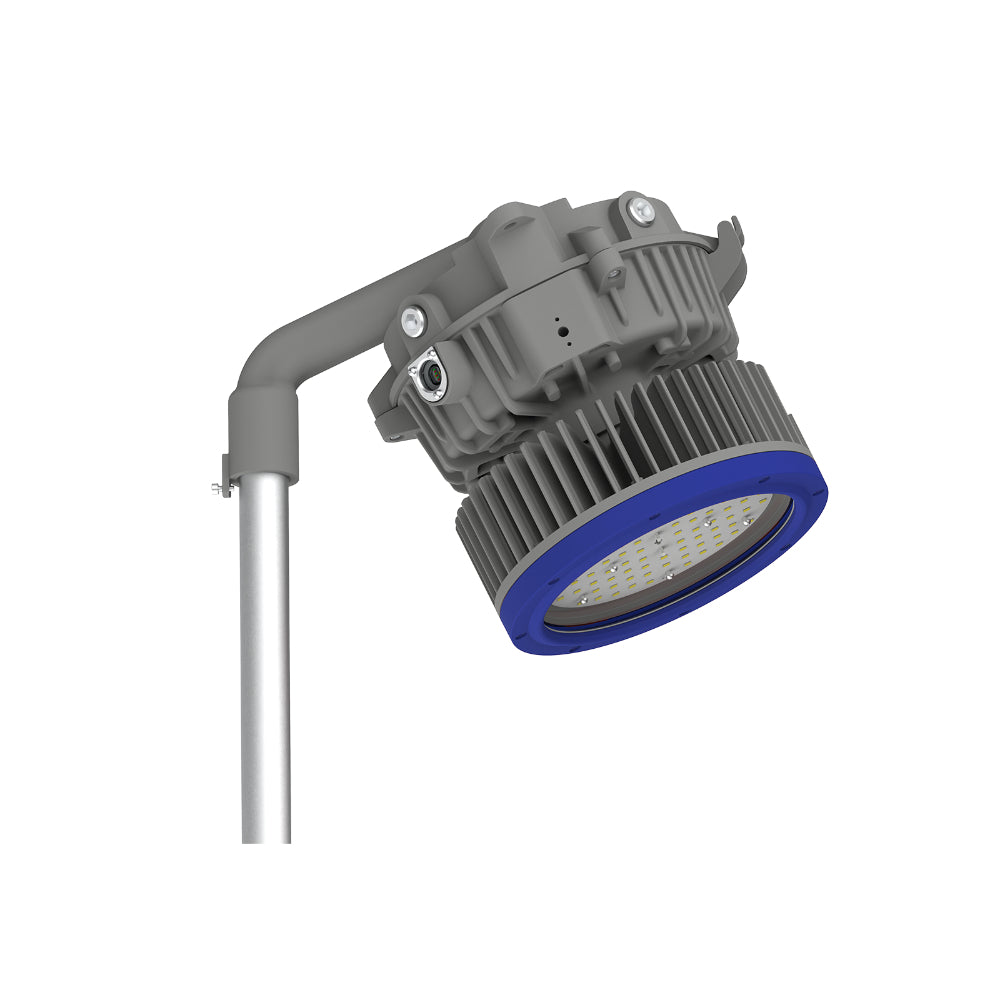

Red Sky Lighting Round Max Emergency Harsh Series Flood Light Additional Image 3
Red Sky Lighting Round Max Emergency Harsh Series Flood Light Additional Image 4
Red Sky Lighting Round Max Emergency Harsh Series Flood Light Additional Image 5
Red Sky Lighting Round Max Emergency Harsh Series Flood Light Additional Image 6
Red Sky Lighting Round Max Emergency Harsh Series Flood Light Additional Image 7
Red Sky Lighting Round Max Emergency Harsh Series Flood Light Additional Image 8
Roll over image to zoom in Click on image to zoom
Red Sky Lighting Round Max Emergency Harsh Series Flood LightRed Sky Lighting Round Max Emergency Harsh Series Flood Light Additional Image 1Red Sky Lighting Round Max Emergency Harsh Series Flood Light Additional Image 2Red Sky Lighting Round Max Emergency Harsh Series Flood Light Additional Image 3Red Sky Lighting Round Max Emergency Harsh Series Flood Light Additional Image 4Red Sky Lighting Round Max Emergency Harsh Series Flood Light Additional Image 5Red Sky Lighting Round Max Emergency Harsh Series Flood Light Additional Image 6Red Sky Lighting Round Max Emergency Harsh Series Flood Light Additional Image 7Red Sky Lighting Round Max Emergency Harsh Series Flood Light Additional Image 8

Red Sky Lighting Round Max Emergency Harsh Series Flood Light

Red Sky LightingSKU: RDX EM HS
Price:
$0.00 USD

Description

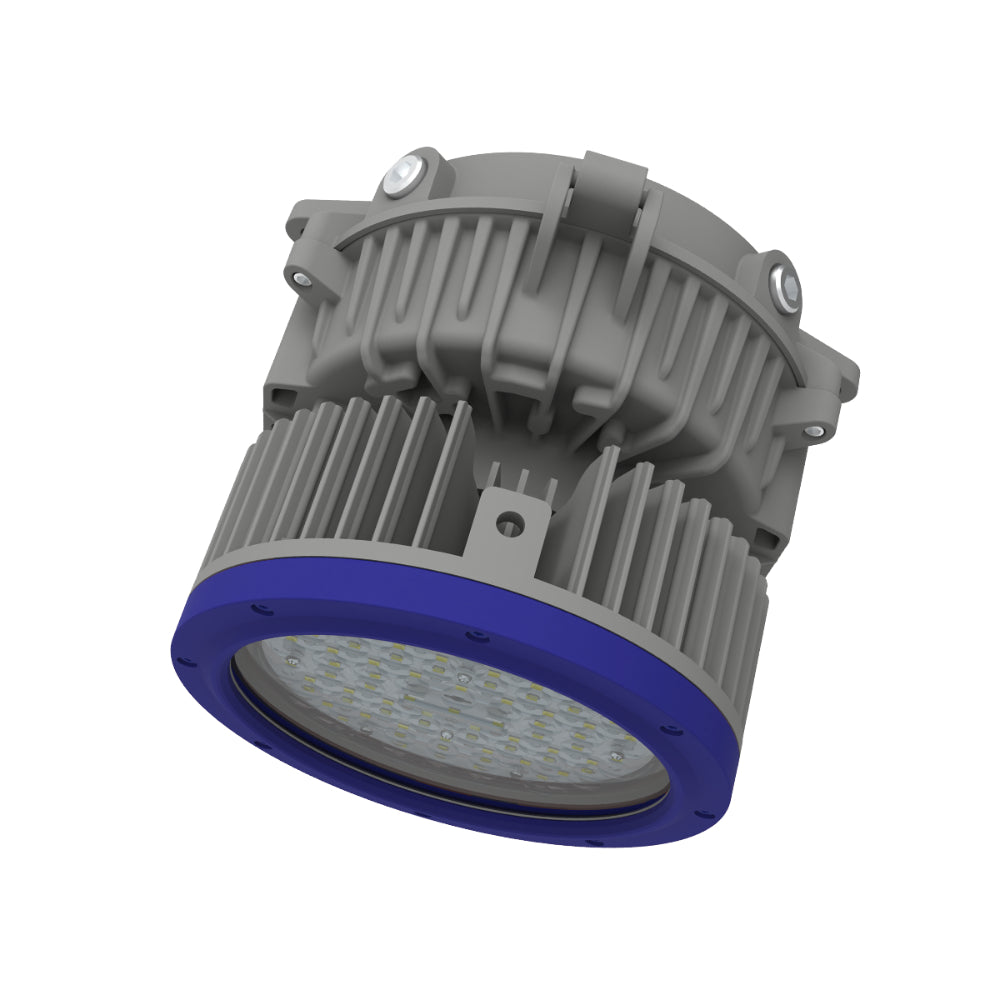

Red Sky Lighting Round Max Emergency Harsh Series Flood Light

The RDX EM is a UL 924-certified emergency LED light engineered for harsh environments. Delivering 6,000-29,000 lumens with LiFePO₄ battery backup, IP66/IP67, and NEMA 4X protection, it ensures reliable, energy-efficient illumination for oil & gas, chemical, marine, and industrial applications.

Specifications

Electrical Parameters

  • Power (W): 40W, 50W, 65W, 85W, 130W, 160W, 200W
  • Voltage(V): 100-277V AC
  • Frequency: 50/60Hz
  • Power Factor: ≥0.90
  • THD: <20%
  • L70: >102,000 hrs@60°C
  • Dimming: 0-10V, Range 10%-100%
  • Surge Protection: 10KV
  • Emergency Run Time*: 3,000Lm@90mins/ 1,500Lm@180mins
  • Warranty: Fixture: 5 years, Battery: 3 years

Optical Parameters

  • Lumen Output*: 6,039Lm, 7,580Lm, 9,873Lm, 12,957Lm, 19,714Lm, 23,551Lm, 28,654Lm
  • Lumen Efficacy*: 150Lm/W
  • Available Beam Angle: 30°/ 60°/T1/T3/T5
  • Correlated Color Temperature (CCT): 3000K/4000K/5000K
  • Color Rendering Index (CRI): 80 CRI

Mechanical Parameters

  • Hardware: Stainless steel 316
  • Lens Material: Tempered Glass or Polycarbonate

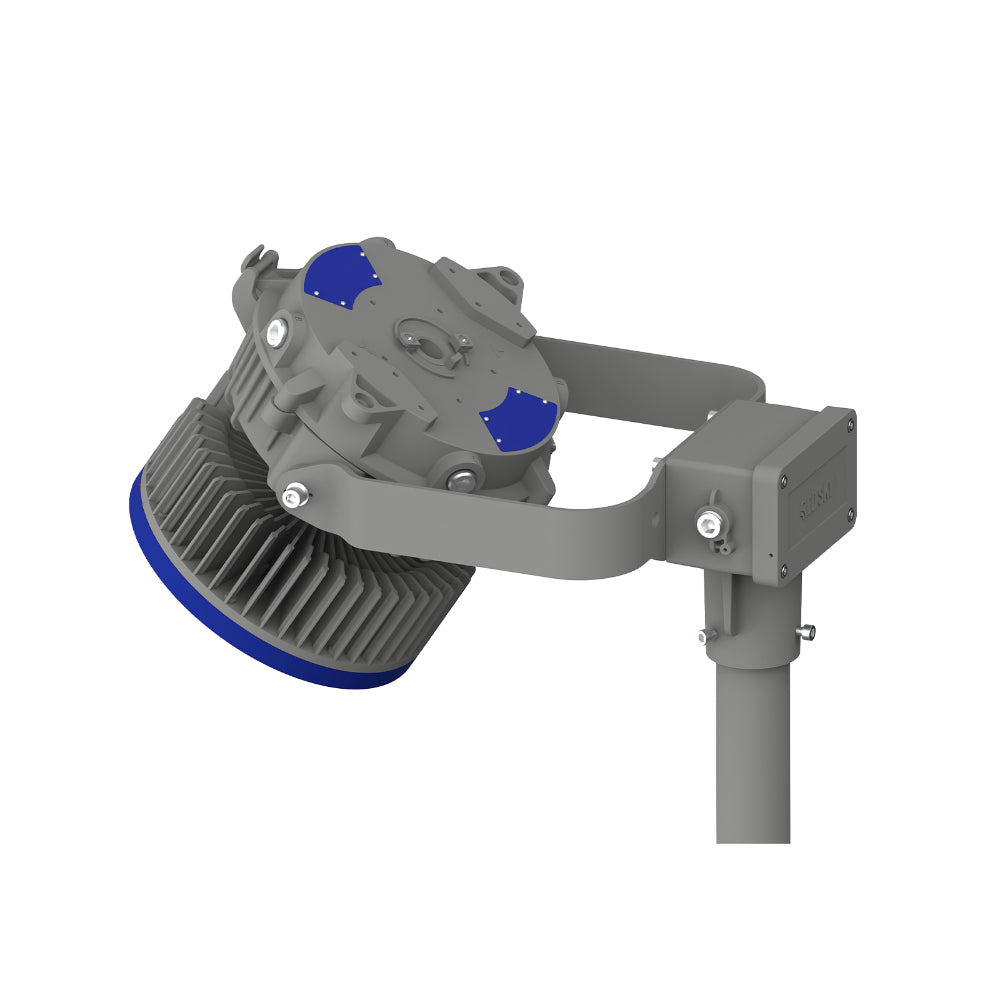

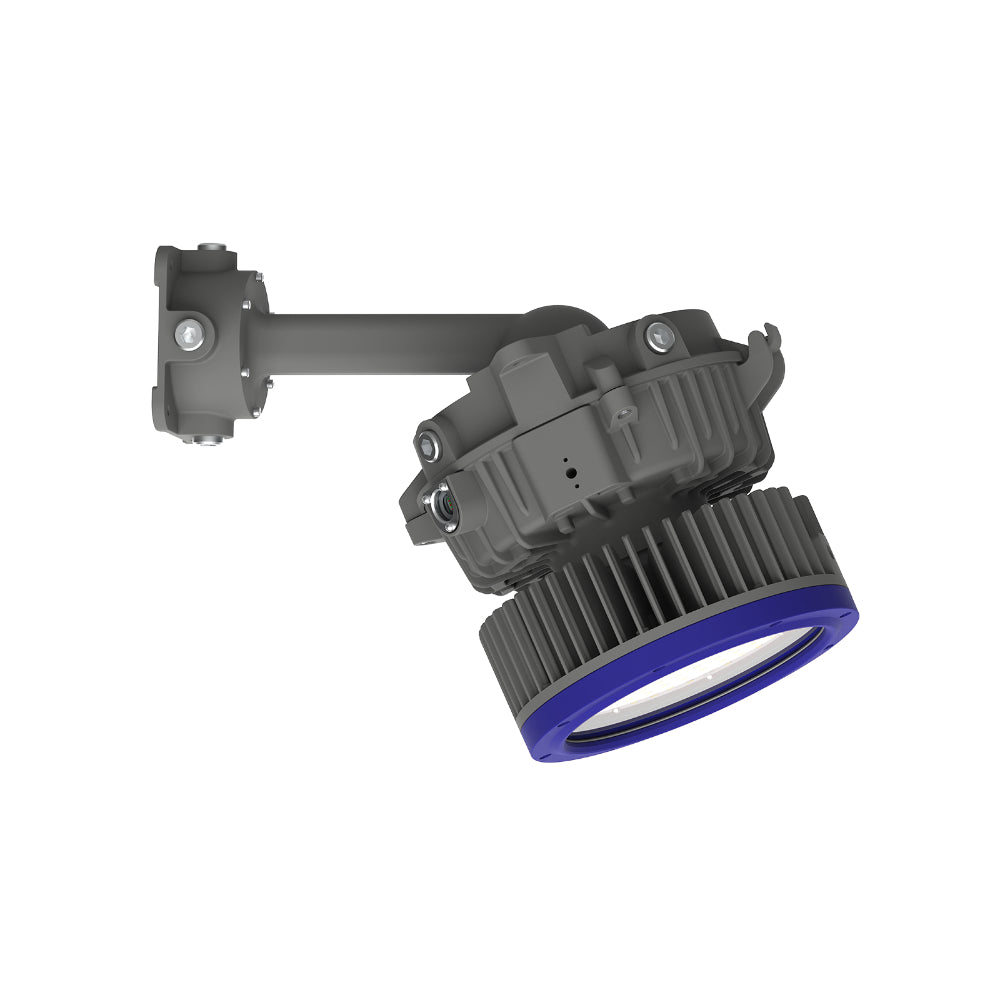

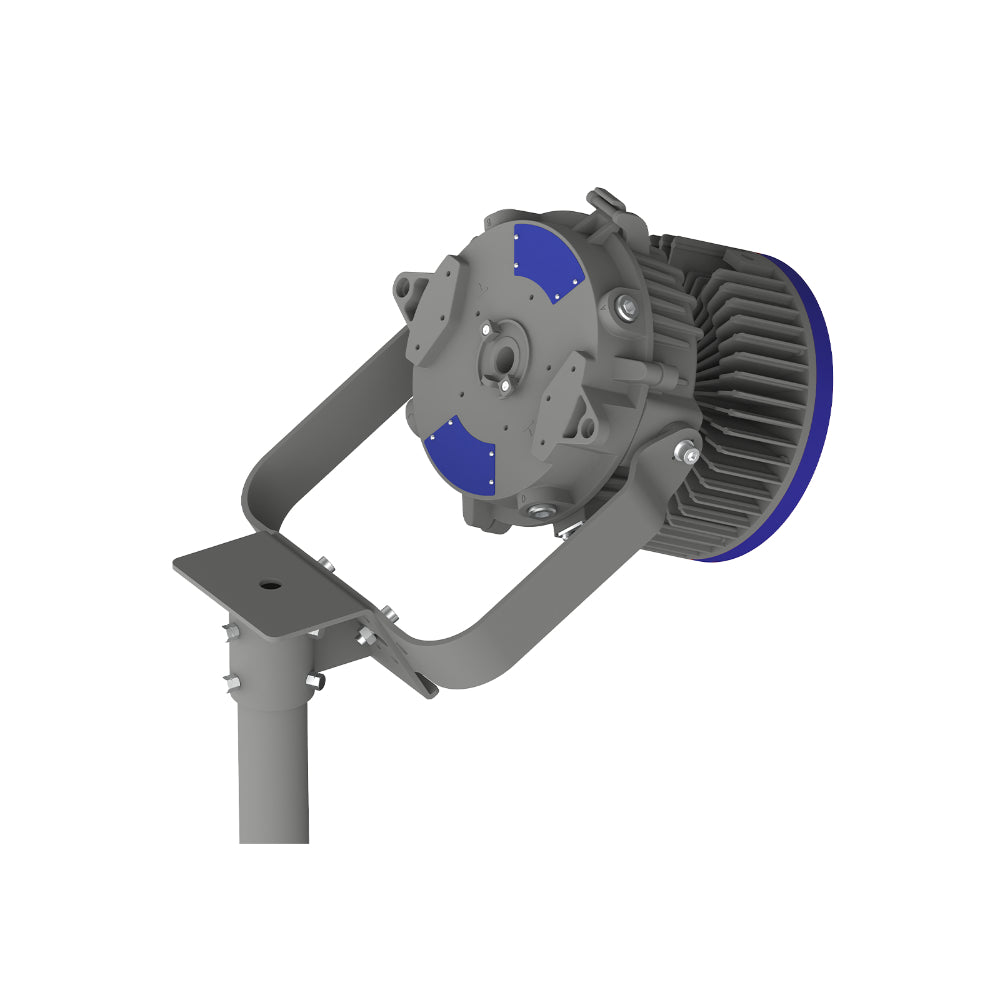

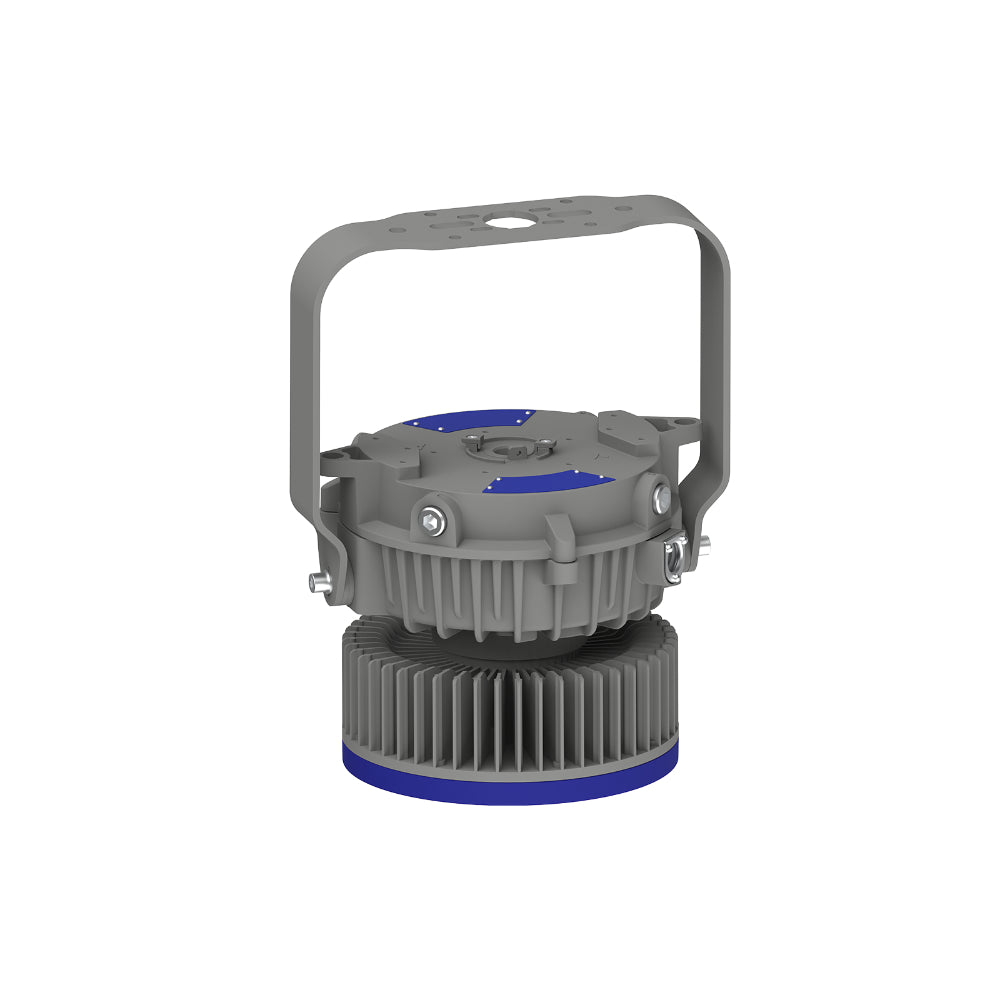

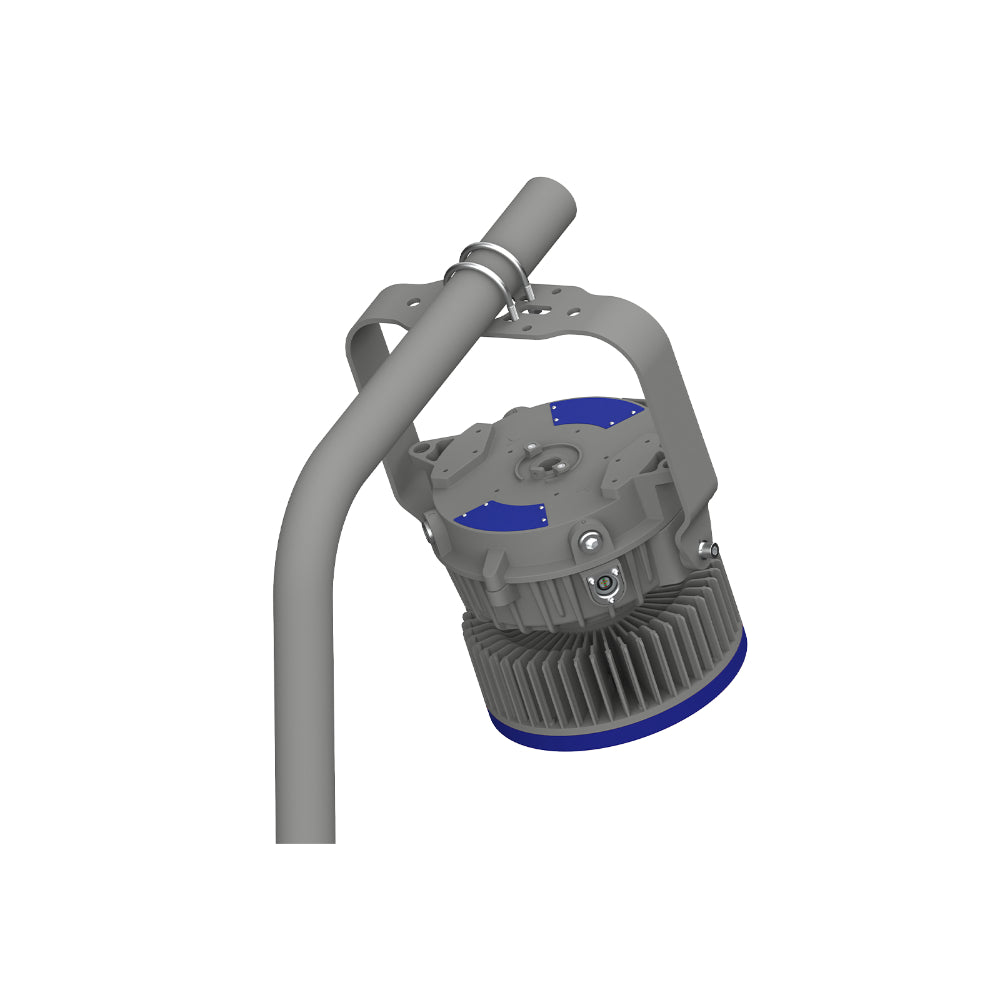

  • Mounting Options: Pendant, Ceiling, Yoke, Wall, Stanchion, Pole, Junction Box, Stanchion Slip Fitter
  • Product Weight: 28lbs/12.7kg
  • Cable Entry: (5) NPT 3/4"
  • Product Dimensions (LxWxH): Flat lens：Φ13 x 10.7 in (Φ330 x 271.5 mm) / Drop lens：Φ13 x 12.9 in (Φ330 x 327.3 mm)

Environmental Parameters

  • Ambient Operating Temperature: 40W, 50W, 65W, 85W, 130W, 160W: 32°F ~+140°F (0°C ~ +60°C) 200W: 32°F ~ +131°F(0°C ~ +55°C）

Compliance

Ratings:

  • UL 1598 Wet Locations
  • UL 1598A Marine Outside Type (Salt Water)
  • NEMA 4X, IP66 / 67
  • IK08(Glass) / IK10(PC)
  • Salt Spray 720H (ASTM B117)
  • 3G Vibration (ANSI C136.31)

Certifications:

  • UL924
  • UL1598
  • UL1598A
  • CSA C22.2 No. 141
  • CSA C22.2 No. 250.0
  • FCC Part 15, Subpart B

Product Files

Click for Red Sky Lighting RDX EM HS Specification

Click for Red Sky Lighting RDX EM HS Installation Maunal

Click for Red Sky Lighting RDX EM HS Certificate - UL1598 Non-Hazardous

Click for Red Sky Lighting RDX EM HS Certificate - UL1598A Marine

Click for Red Sky Lighting RDX EM HS Certificate - UL924 Emergency Non-Hazardous
