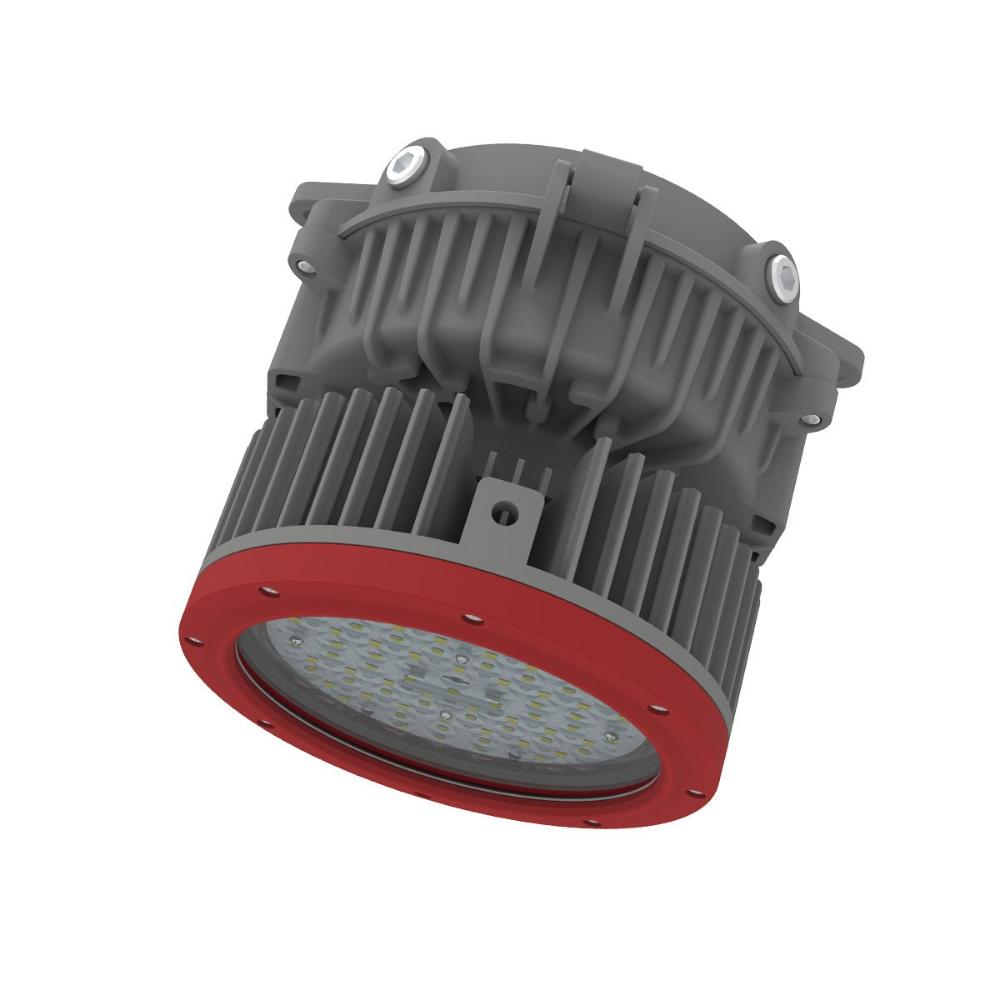

Red Sky Lighting Round Max Emergency Series Flood Light

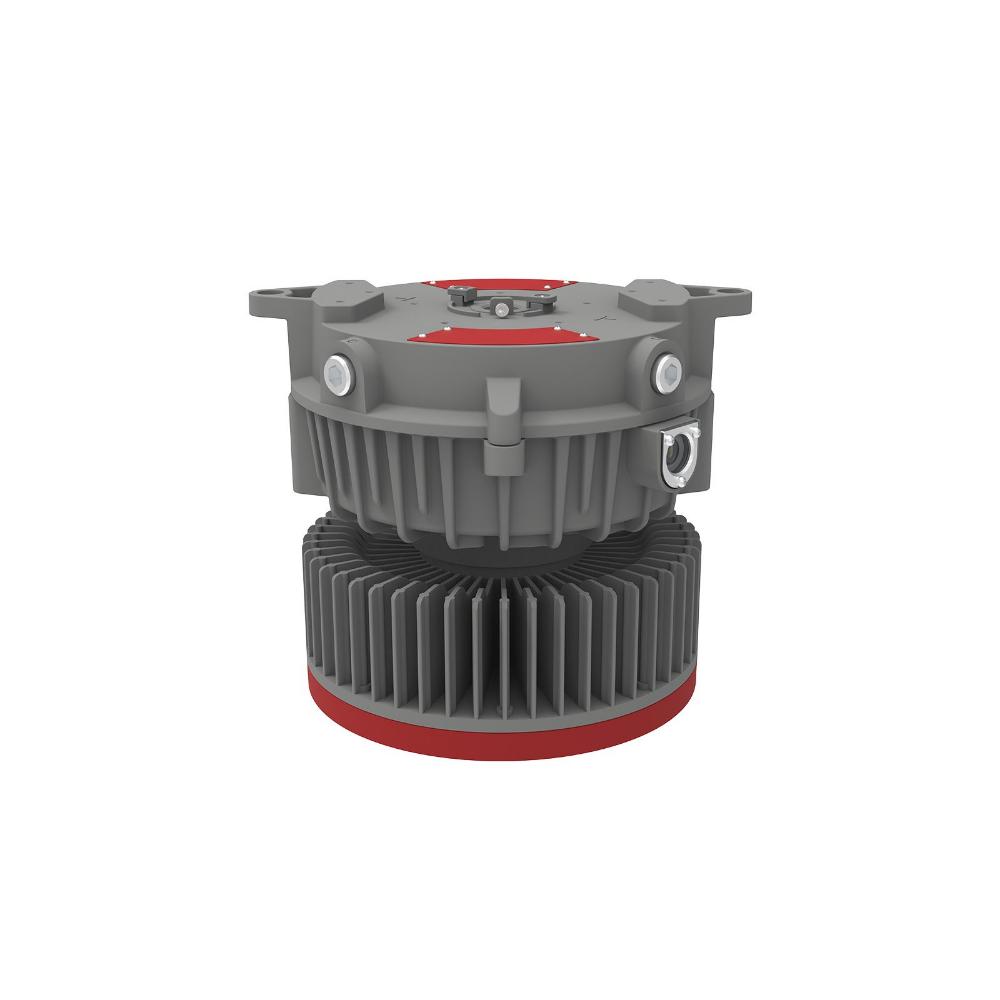

Red Sky Lighting Round Max Emergency Series Flood Light Additional Image 1

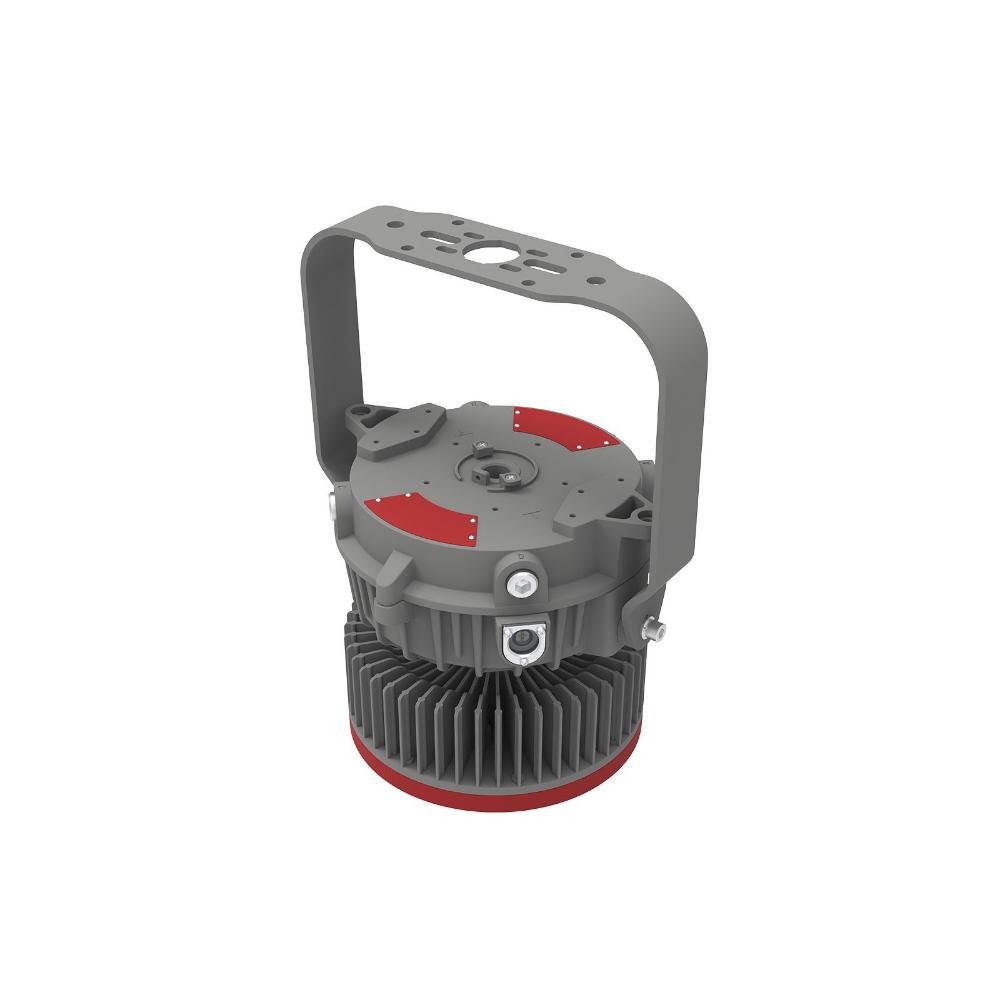

Red Sky Lighting Round Max Emergency Series Flood Light Additional Image 2

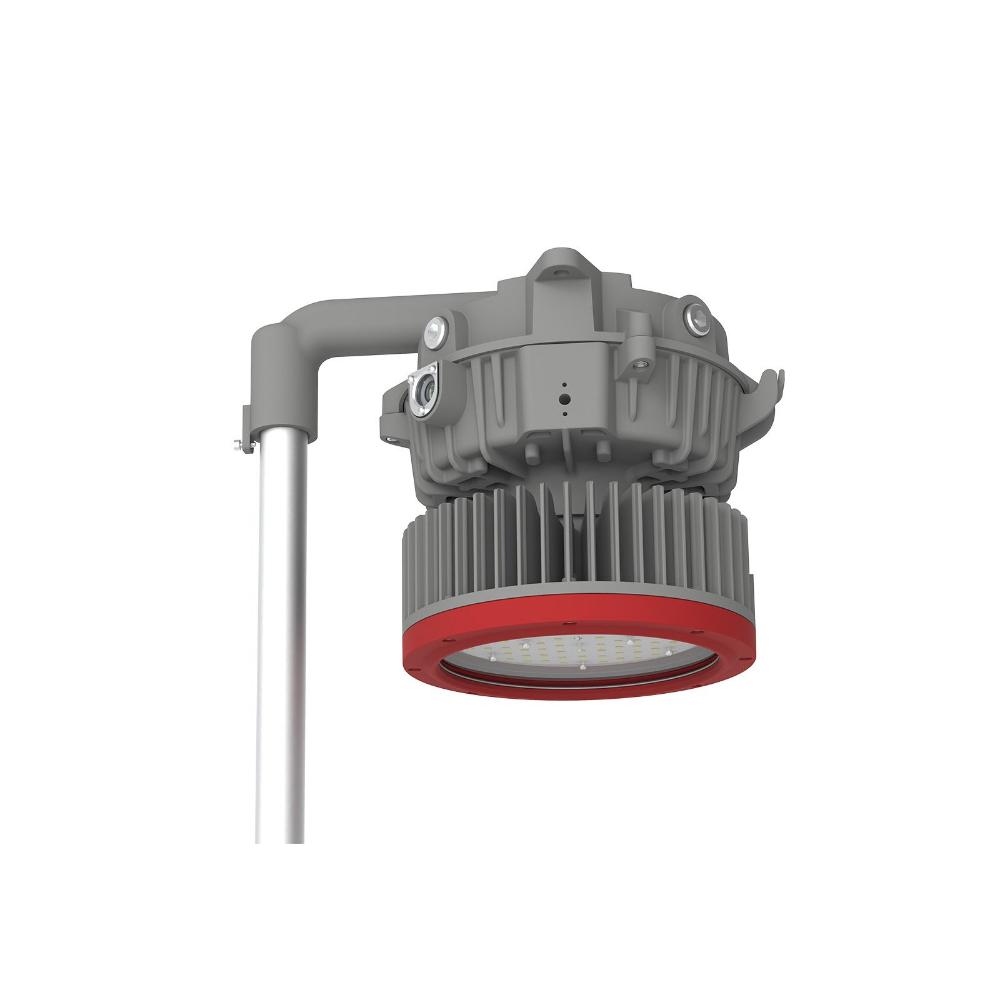

Red Sky Lighting Round Max Emergency Series Flood Light Additional Image 3

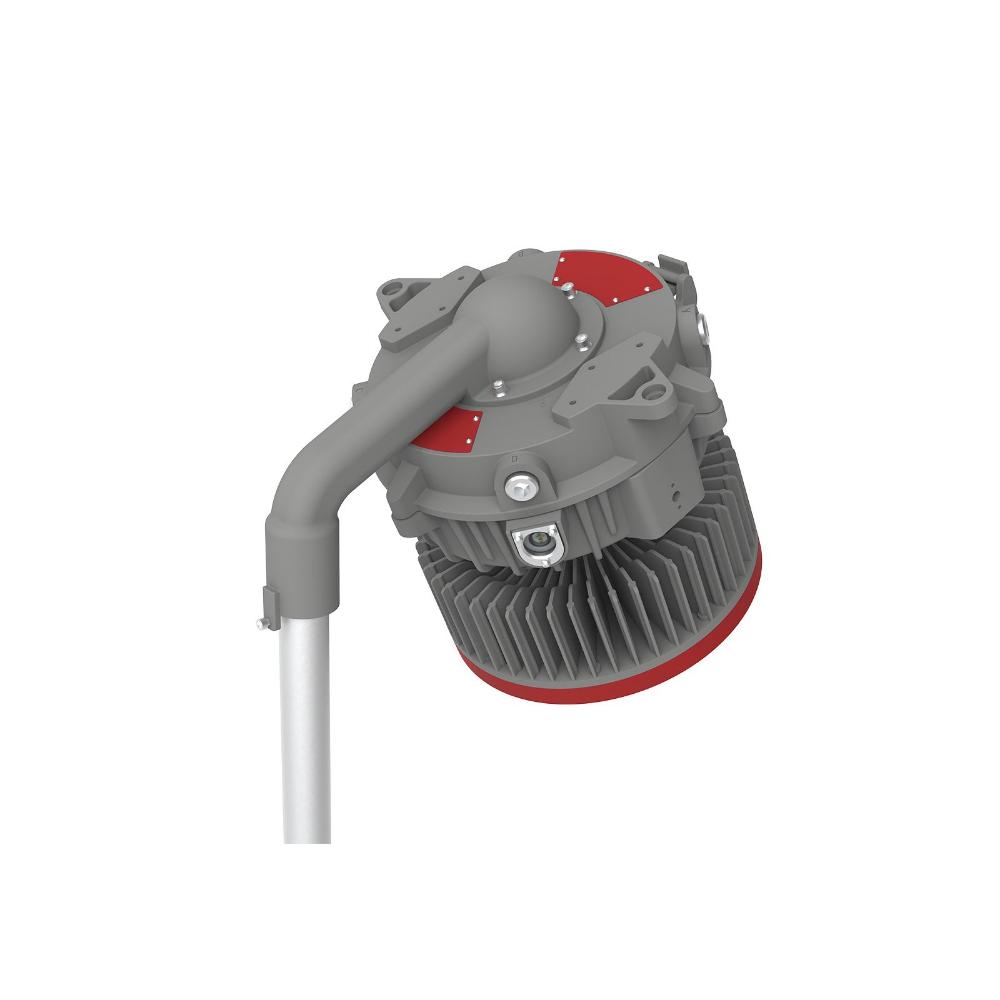

Red Sky Lighting Round Max Emergency Series Flood Light Additional Image 4

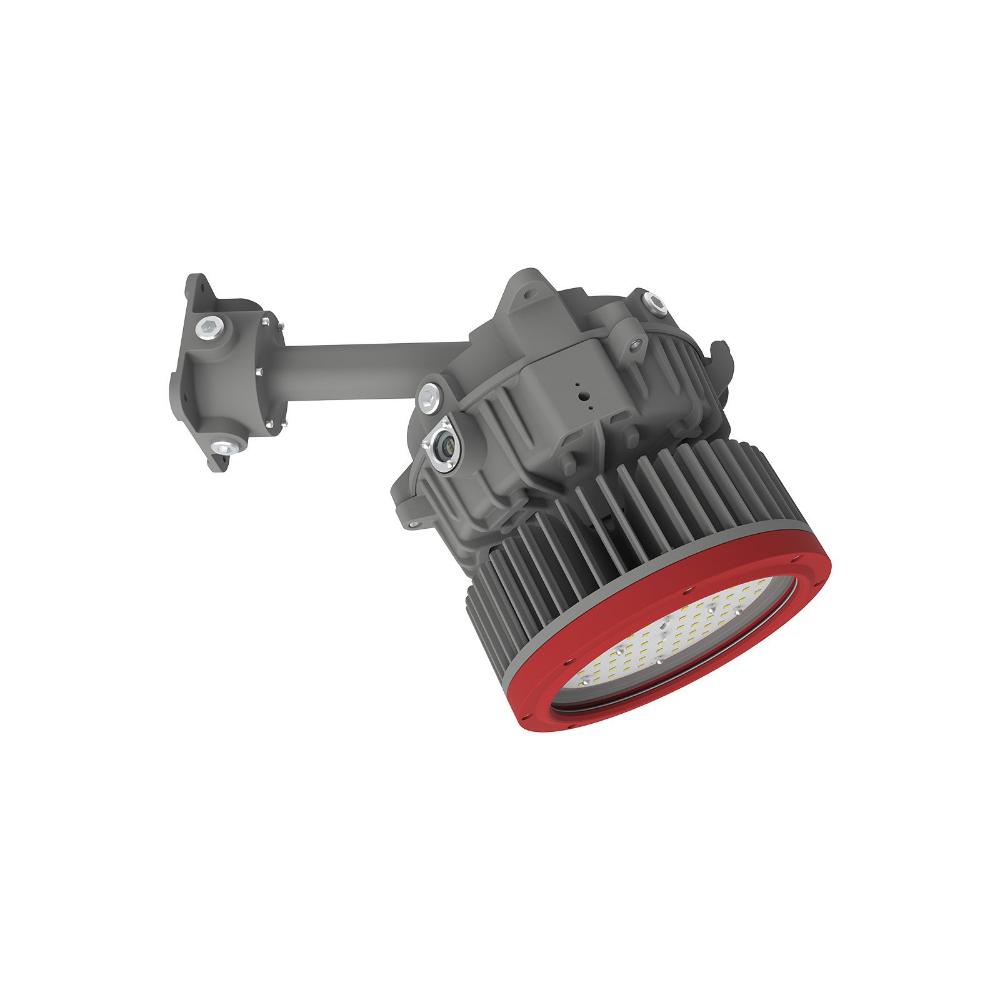

Red Sky Lighting Round Max Emergency Series Flood Light Additional Image 5

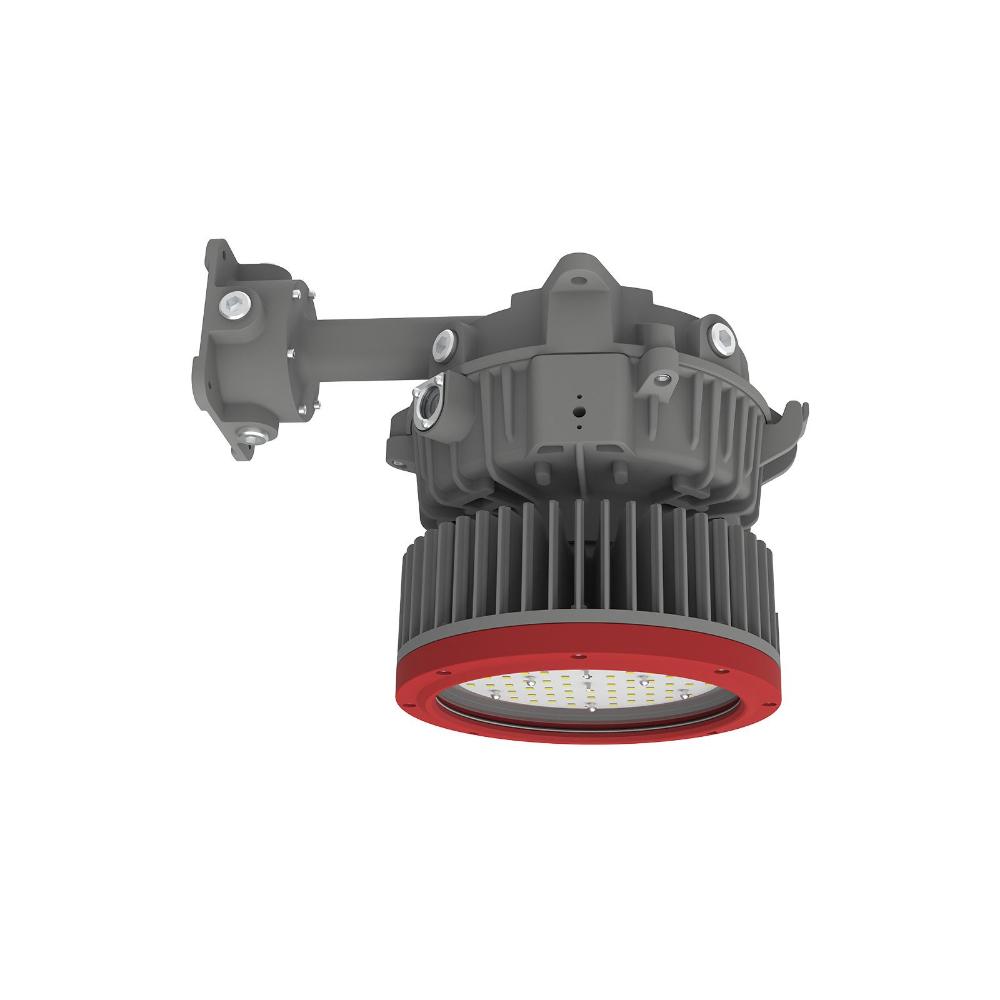

Red Sky Lighting Round Max Emergency Series Flood Light Additional Image 6

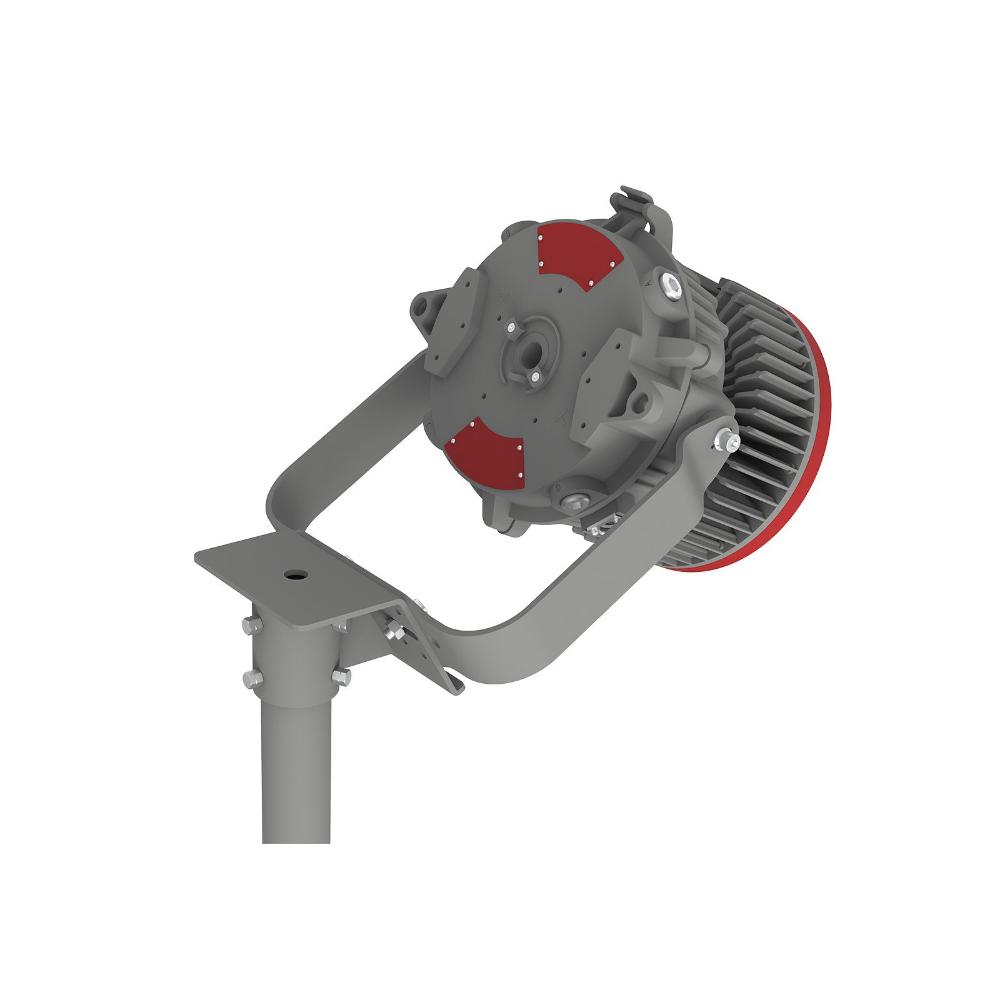

Red Sky Lighting Round Max Emergency Series Flood Light Additional Image 7

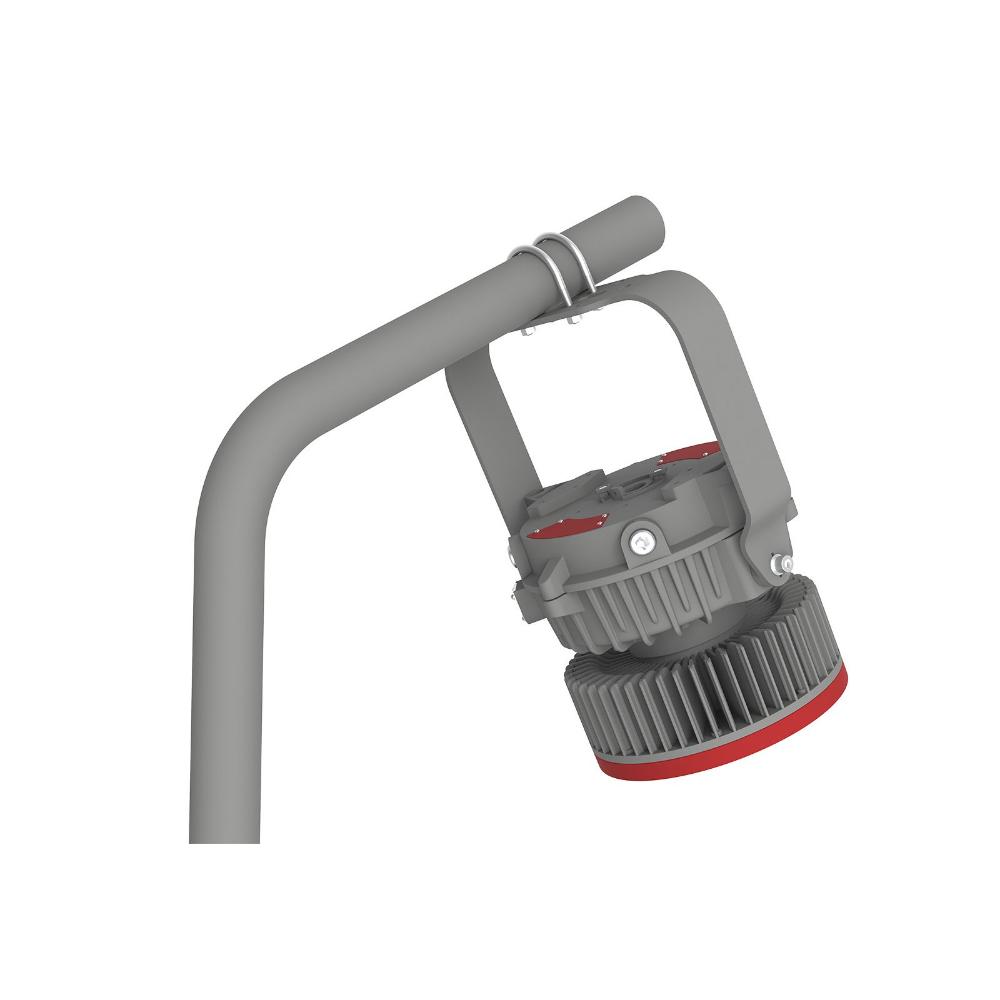

Red Sky Lighting Round Max Emergency Series Flood Light Additional Image 8

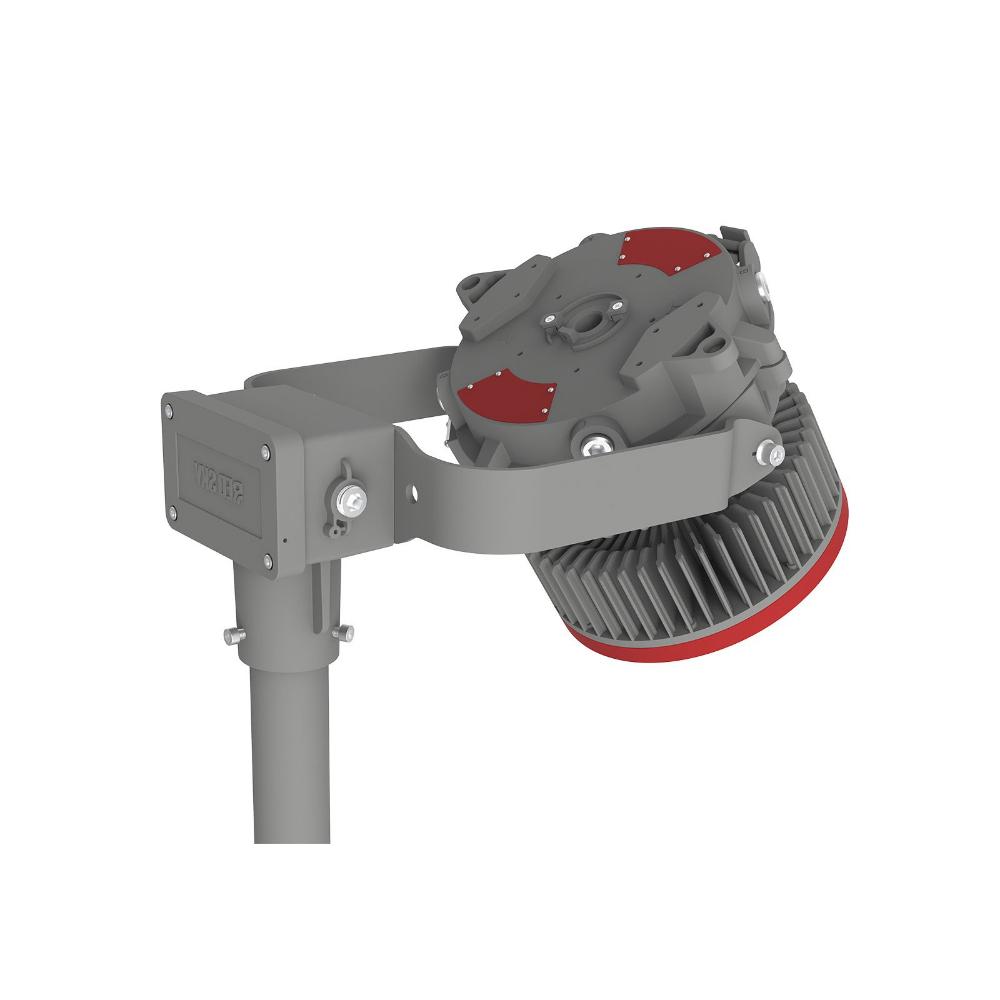

Red Sky Lighting Round Max Emergency Series Flood Light Additional Image 9
Roll over image to zoom in Click on image to zoom
Red Sky Lighting Round Max Emergency Series Flood LightRed Sky Lighting Round Max Emergency Series Flood Light Additional Image 1Red Sky Lighting Round Max Emergency Series Flood Light Additional Image 2Red Sky Lighting Round Max Emergency Series Flood Light Additional Image 3Red Sky Lighting Round Max Emergency Series Flood Light Additional Image 4Red Sky Lighting Round Max Emergency Series Flood Light Additional Image 5Red Sky Lighting Round Max Emergency Series Flood Light Additional Image 6Red Sky Lighting Round Max Emergency Series Flood Light Additional Image 7Red Sky Lighting Round Max Emergency Series Flood Light Additional Image 8Red Sky Lighting Round Max Emergency Series Flood Light Additional Image 9

Red Sky Lighting Round Max Emergency Series Flood Light

Red Sky LightingSKU: RDX EM
Price:
$0.00 USD

Description

Red Sky Lighting Round Max Emergency Series Flood Light

The round max emergency series delivers seriously safe lighting for hazardous environments. Combining general and emergency illumination, it provides up to 29,000 lumens with a LiFePO₄ battery backup for 90-180 minutes of emergency runtime. Built tough with IP66/IP67, IK10, and 3G vibration ratings, it ensures reliability when safety matters most.

Specifications

Electrical Parameters

  • Power (W): 40W, 50W, 65W, 85W, 130W, 160W, 200W
  • Voltage(V): 100-277V AC
  • Frequency: 50/60Hz
  • Power Factor: ≥0.90
  • THD: <20%
  • L70: >102,000 hrs@60°C
  • Dimming: 0-10V, Range 10%-100%
  • Surge Protection: 10KV
  • Emergency Run Time*: 3,000Lm@90mins/ 1,500Lm@180mins
  • Warranty: Fixture: 5 years, Battery: 3 years

Optical Parameters

  • Lumen Output*: 6,039Lm, 7,580Lm, 9,873Lm, 12,957Lm, 19,714Lm, 23,551Lm, 28,654Lm
  • Lumen Efficacy*: 150Lm/W
  • Available Beam Angle: 30°/ 60°/T1/T3/T5
  • Correlated Color Temperature (CCT): 3000K/4000K/5000K
  • Color Rendering Index (CRI): 80 CRI

Mechanical Parameters

  • Hardware: Stainless steel 316
  • Lens Material: Tempered Glass or Polycarbonate
  • Mounting Options: Pendant, Ceiling, Yoke, Wall, Stanchion, Pole, Junction Box, Stanchion Slip Fitter
  • Product Weight: 28lbs/12.7kg
  • Cable Entry: (5) NPT 3/4"
  • Product Dimensions (LxWxH): Flat lens：Φ13 x 10.7 in (Φ330 x 271.5 mm) / Drop lens：Φ13 x 12.9 in (Φ330 x 327.3 mm)

Environmental Parameters

  • Ambient Operating Temperature: 40W, 50W, 65W, 85W, 130W, 160W: 32°F ~140°F (0°C ~ +60°C) 200W: 32°F ~ +131°F(0°C ~ +55°C）

Compliance

Ratings:

  • Class I Division 2, Group A, B, C, D
  • Class II Division 1 Group E, F, G
  • Class II Division 2, Group F, G
  • Class III
  • Class I, Zone 2, Group IIC
  • Zone 21, Group IIIC
  • UL 1598 Wet Locations
  • UL 1598A Marine Outside Type (Salt Water)
  • IP67
  • IK08(Glass) / IK10(PC)
  • Salt Spray 720H (ASTM B117)
  • 3G Vibration (ANSI C136.31)
  • NEMA 4X

Certifications:

  • UL 844
  • UL924
  • UL1598
  • UL1598A
  • CSA C22.2 No. 137
  • CSA C22.2 No. 141
  • CSA C22.2 No. 250.0
  • FCC Part 15, Subpart B

Product Files

Click for Red Sky Lighting RDX EM Specification

Click for Red Sky Lighting RDX EM Installation Maunal

Click for Red Sky Lighting RDX EM Certificate - UL1598 Non-Hazardous

Click for Red Sky Lighting RDX EM Certificate - UL1598A Marine

Click for Red Sky Lighting RDX EM Certificate - UL924 Emergency Non-Hazardous

Click for Red Sky Lighting RDX EM Certificate - UL844 & UL924 Emergency-Hazardous
